BIESSE AKRON - 435: Edgebander with Corner Rounding0.4 - 3 mm Banding cap., 10 - 60 mm (0.39 - 2.36") panel thickness; 140 mm (5-1/2") min. panel length; 85 mm (3-1/4") min. panel width.Equipped with: -- Auto-Set device to ensure optimum positioning of the cutters according to the thickness of the panel being machined. -- Quick-change glue pot system. -- (1) Large 150 mm dia. driven & (5) idle pressure rollers; Edge Feeding & Pressing Unit VC-511: Automatic loading of tape in rolls and strips. -- Feed Speeds: 33 - 46 - 65 FPM.Workstations -- Double motor End Trim; tiltable from 0° - 15°; each motor: 0.8 kW (1 HP) - 12,000 RPM. -- Top & Bottom Trimming Unit with: (2) Motors, 0.65 kW (0.87 HP) each. - "Pro-nesting" copiers; cutters R-2 mm. -- Corner Rounding Unit with: (2) Motors; each 0.65 kW (0.87 HP) - 12,000 RPM. -- Top & Bottom radius scraping. -- Top & Bottom Flat Glue Scrapper. -- Top & Bottom Oscillating Buffing Station: (2) Motors; each 0.5 HP - 2,800 RPM.Operator & Machine Control: -- Operator control panel; High-Definition touchscreen control; Windows XP based; user-friendly graphic user interface with: Diagnostic and assisted maintenance. -- USB End Ethernet port; Controller (max. of 320 programs); soft touch keypad; 6" color LCD screen; displays in millimeter or inch units; automatic or manual startup.Complete with: -- All cutting & trimming workstations: HF (high frequency motors; 200 Hz) and enclosed by padded sound enclosure. -- Top pressure is provided by staggered double row holddown wheels mounted on ball bearings.NOTE: Return Conveyor not included.

BIESSE - ELIX B: CNC Bore, Glue, and Dowel InserterBIESSE Drill & Dowel Inserter features: Single-spindle for drilling; dowel insertion unit; glue injecting unit installed on a carriage moving in the X-axis.Position for drilling dowel insertion provided through simple programs through the NC control or third party software. Operator Control interface is: Intuitive, user-friendly, and very easy to use. -- Specifications Max. parts length: 1,300 mm (51";); min. parts length:120 mm (4.7";); parts thickness: 10 - 40 mm (0.4"; to 1-1/2";). -- Positioning Speed "X" & "Y" Axis positioning speed: 40 MPM (131 FPM); "Z" axis has manual adjustment with: Max stroke of 40 mm (1.57").The working units travel: Precision machine ground ball screws; powered by brushless AC Servo motors. -- Worktable(4) Working Zones with: Center fence position in up mode; (2) large work zones in down position; (4) holddown cylinders. -- Boring UnitDrilling Uunit. High-speed unit with: 6,000 RPM spindle; max. drilling depth of 30 mm (1-1/4"); max. drill bit dia.: 12 mm (0.47"); manual adjustment of depth with: Digital indicator. -- Dowel Insertion UnitDowel prepositioning ensures: high repeatability of inserting dowels for each hole; distance between the dowel insertion unit and the drilling spindle: 32 mm (1.3") for simultaneous drilling; dowel insertion when holes are spaced at 32 mm; standard dowel dimensions: 8 x 30 mm; Max. dowel projection: 14 mm (0.551"). Glue Tank: Holds up to 8 liters (3.1 gallons) of glue; max. glue density: 900 CPS. - Glue inserting unit: Flow sensor and electronic adjustment of the amount of glue. -- Operator InterfaceIndustrial Numerical Control with: Extremely simple Program Editor; macro & parametric programming. Icon driven. -- Includes: Original Factory Machine Documentation. -- Actual Model: BIESSE ELIX B

BIESSE ROVER - A 3.30: CNC Machining Center (w/ATC/Boring) -- SPECIFICATIONSWorking cap. - "X" Axis: 118" (3,000 mm) any unit; "Y" Axis: For routing, 45.2" (1,150 mm; "Y" Axis for: Boring; 49.6" (1,260 mm); "Z" Axis stroke: 7.8" (198 mm); max. material thickness: 5.9" (150 mm). -- Positioning Speed Both "X & Y" Axis is: 262 FPM (80 MPM); "Z": 111 FPM (34 MPM); helical rack & pinion drive: On "X" axis; precision ball screw on: "Y & Z" Axes. -- Worktable (6) Support rails with: (3) Vacuum pods per rail; (6) pop-up back stops, (4) pop-up side-stops; (2) independent working areas.Prepared for (optional) "quick fit" vacuum outlets for: Optional clamping of small or awkward shaped parts; each work zone with (1) "Quick connect" vacuum outlet: For custom vacuum fixtures. -- Boring Unit(14) Independent vertical boring spindles forming an L-configuration with: (7) Spindles in "X" Axis & (7) spindles in "Y" Axis.(6) Horizontal spindles with: (2 + 2) in "X" axis; (1 + 1) in "Y" Axis; (1) "X" Axis grooving saw for: Max. 120 mm dia. blade. -- Machining (1) 9.5 HP (7 kW) Vertically mounted HSD electrospindle router with: HSK F63 Adaptor.Inverter driven 1,000 - 24,000 RPM with: Max. torque from 12,000 - 24,000 RPM. (1) 18-Position "Ride-Along", "on the fly" automatic tool changer. -- Operator & Machine ControlPC Front-End with: BIESSE "XP600" + Windows "XP" + BIESSE "WORKS" Operating System.INTEL "Celeron" 2.0 GHz Processor; 4 GB Hard drive; 15" color monitor; international keyboard; soft touch keypad & industrial mouse; RS-232 serial port; (1) 1.44 MB floppy disk drive.BiesseWORKS: An easy CAD program that can be done from the office or at the machine; Operating System: Real-Time multitask processing; programs can be transferred via diskette or downloaded by wire. -- Complete with: (1) 250 M³/Hr Vacuum Pump; 11 KVA stabilized autotransformer for voltages between: 220 - 600 Volts. Equipped with: Centralized manual Lubrication System for guides & ball screw; built-in 1,500 W air conditioner for constant temperature & dust-free environment. Emergency stop rope & sound absorbing protective head enclosure with: Debris curtain around bottom edge. -- Actual model: BIESSE ROVER - A 3.30

BIESSE - AKRON 1130 J: Edgebander (w/Premill & Corner Rounding) -- SpecificationsWorking Capacity Edgebanding thickness: 0.4 - 3 mm Capacity; min. panel width: 85 mm (3.3"); min. panel length: 140 mm (5-1/2"); panel thickness: 10 - 50 mm (0.39" - 1.96"). - Feed Speed: 9 MPM (30 FPM).Front-End Equipped with: -- Premilling Unit "RT01" with: "Auto Set" Automatic intervention; Strip & Coil Edge magazine; automatic shear type guillotine. -- Hot Melt Glue System. Teflon coated glue pot; digital thermostats with automatic kickdown when machine is in idle mode.Pressure Section with: (1) Large dia. "nonstick" coated drive roller & (1) TEFLON plated idle rollers. Workstations -- "IT01" End Trimming Unit. Single motor end trimming unit with: Linear bearing support. -- "RT01" Premilling Unit. Asymmetrical diamond tools; max. height = 55 mm. -- "RF01" Tilting Fine Trimming Unit. Multiprofile cutters for: Flush trimming; 25° chamfer & 3 mm radius trimming. -- "AR01" Corner Rounding Unit. Single motor corner rounding unit with: 3 mm Radius tooling. -- RB01 Unit. Profile Scraping; Top & bottom 3 mm thick PVC banding. -- "RC01" Flat Scraping Unit. Top & Bottom glue scraping. -- "SZ01" Buffing Unit. Top & Bottom buffing unit; 1/2 HP (0.37 kW) - 2,800 RPM motors; units tilt 0° - 30°.Operator & Machine Control -- BIESSE "SMART TOUCH 7": User-Friendly touchscreen control panel for workstations.Complete with: -- Insulated sound enclosure over all trim stations with: Split dust hood; viewing windows.

BIESSE - ROVER 24 FTS: Flat Table Machine (w/ATC/Boring) -- Specifications4' x 10' "Matrix" Grid phenolic surface table for "Nested Base Manufacturing". -- Working Capacity"X" Axis is 122" (3,100 mm);"Y" axis 49.2" (1,250 mm); "Z" axis stroke is 9.8" (250 mm); max. material thickness of 6.1" (155 mm). -- Positioning Speed "X" & "Y" Axis is 328 FPM (100 MPM); Z-axis 98 FPM (30 MPM); "X" axis uses a helical rack & pinion system; "Y" & "Z" axes use precision ball screws.All axes movement is on precision linear guides & ways & controlled by digital, brushless AC Servo motors; all motion components are maintained by an automatic lubrication system. -- Work AreaFlat table design with: "Matrix" grid phenolic surface for "Nested Base Manufacturing"; (2) independent working areas.(14) External pop-up reference pins with: (6) Pins on the front of the table: (4) On the back of the table; (2) on the RH side; (2) on the LH side.Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; each work zone with: (1) "Quick connect" vacuum outlet for custom vacuum fixtures. -- Boring Unit(1) 2.5 HP (1.7 kW) - 4,000 RPM Motor; (14) independent vertical spindles: (7) In "X" axis & (7) in "Y" axis.(6) Horizontal spindles with: (2 + 2) In "X" axis & (1 + 1) in "Y" axis; (1) 120 mm dia. "X" axis grooving saw.(1) 6-Position "Ride Along" Automatic tool changer for "on-the-fly" ATC. -- Machining(1) 10.2 HP (7.6 kW) Air-cooled electrospindle with: HSK F63 Adaptor; variable speed from 1,000 - 24,000 RPM. -- Operator & Machine ControlPC Front-End with: NC 1000" + WINDOWS "NT" Operating System; 17" color CRT; 40 GB hard drive; full keyboard & mouse; Ethernet connection capabilities. -- Complete with:(1) 250 CBM/Hr Vacuum Pump; universal Autotransformer for voltages between: 200 - 600 V, 50/60 Hz; includes: Manuals, documents, safety mats, fencing. -- Actual Model is: BIESSE ROVER 24 FTS.

Biesse Rover 24 FT Router Series # 09665 Year: 2001 Power Supply: 20 KW, 480 V, 28 A., 60Hz., 110 24 Low Tensions Air supply: 7 minimum Bar Suction Air Speed: 30 M/1 Vacuum Pump Additional photos and details available Router is still hooked up and running. Price includes dismantling & loading Contact us for a freight rate

BIESSE ROVER A 1536 G FT: Flat Table Machine with C-Axis -- Specifications5' x 12' "Matrix" grid Phenolic surface for: "Nested Base Manufacturing". -- Working Capacity"X" Axis: 148.2" (3,765 mm); "Y" Axis: 62.4" (1,585 mm); "Z" Axis stroke: 12.8" (325 mm); max. material thickness: 6.2" (160 mm). -- Positioning Speed"X" & "Y" Axes: 197 FPM (60 MPM); "Z" Axis: 98.4 FPM (30 MPM).All axes movement on precision linear guides & ways; controlled by digital, brushless AC Servo motors. - All motion components are maintained by an automatic lubrication system."X" & "Y" Axes: Use precision rack & pinion system; "Z" Axis uses precision ball screws. -- Work AreaFlat table design with: HI-FLOW, Multizone Matrix grid Phenolic surface for: "Nested Base Manufacturing"; automatic NC controlled zoning of the vacuum table with: (9) Individual zones.(2) Pneumatic "side" pop-up reference stops; (4) pneumatic "back" pop-up reference stops; (6) pneumatic "front" pop-up reference stops.Prepared for (optional) "quick fit" vacuum outlets: Optional clamping of small or awkward shaped parts; "quick connect" vacuum outlet: Custom vacuum pods & fixtures. -- Boring Unit(1) 2.5 HP (1.7 kW) Motor; variable speed up to 6,000 RPM; BH-40L Boring block with: (24) Independent spindles; (16) Vertical: (8) in "X" axis; (8) in "Y" axis. (8) Horizontal: (4) in X & (4) in Y. -- "X" Axis grooving saw with: 120 mm Dia. blade. -- Machining(1) 16.1 HP (12 kW) Air-cooled HSD Electrospindle with: HSK F63 adaptor; variable speed from: 1,000 - 20,000 RPM.(1) NC Controlled "C" axis for: 360° Horizontal operating; (1) 16-position ATC tool changer plate located at the back of the machine base.NC Controlled presetting for the measurement of the tool length. -- Operator & Machine ControlPC Front-End with: BIESSE XP 660 + BiesseWORKS + BiessNEST + WINDOWS WRT Operating System.15" TFT Flat screen monitor; server; full keyboard, & mouse all mounted on a mobile cart; Ethernet connection capabilities.BiesseWORKS Graphic interface makes full use of the operating methods typical of the WINDOWS operating system: Assisted graphic editor used to program machining operations; programming, and guided creation of parametric macros.Import of CAD and other external software files in DXF & CID3 format; 3D simulation of the tool path, calculation of machining time & the ability to create rotate virtual faces.BiesseNEST integrated with BiesseWORKS makes nesting simple & effective for every kind of shapes using parametric programs to optimize machining programs. -- Complete with:(2) 300 cbm/Hr BUSH Vacuum Pump; safety mats & fencing.Automatic program update according to the tool length; Automatic Lubrication System for linear guides, pads and recirculating ball screw.Universal Autotransformer for voltages between: 200 - 600 V - 50/60 Hz; Teleservice capabilities. -- Options (must be purchased separately). BIESSE Aggregate HSK F63. 360° Rotation on C-axis C with: 2-Opposite spindles; "AEROTECH" Tool Holder for

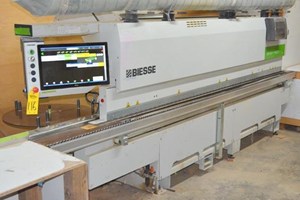

BIESSE AKRON 1440A SINGLE SIDE EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) + with "AIR FORCE" PUR & EVA TECHNOLOGY: -- Specifications: Latest Technology combines productivity, efficiency, and flexibility for all types of edgebanding material."AirForce" emits high temperature compressed air through a slot nozzle directly onto the reactive layer of laser banding. That layer is activated and bonds the banding to the panel fibers. This technology allows changes based on banding colors without any setup.Environmentally friendly providing a “clean - green"; technology that eliminates glue and fumes, which becomes timely & important. In addition, it features a conventional EVA (Hot Melt) Gluing System to cover the full range of edgebanding processes in use today!Working Capacity: -- Min. panel height: 10 mm; Max. panel height: 60 mm; Height of edgebanding material: 14 - 64 mm; Thickness of edgebanding material in rolls: 0.4 - 3 mm; Thickness of edgebanding in strips: 0.4 - 10 mm.Min. panel protrusion from the track: 25 mm; Panel length: 140 - 3200 mm; Min. panel width (with length 140 mm): 85 mm; Min. panel width (with length 250 mm): 50 mm.Multi-Feed speed 8-12-15 &18 MPM.Glue & Pressure Section: -- Infrared lamp IRL 700; Gluing unit Quickmelt QM 703 EVA melting glue. Special glue container for PU glue; Additional glue container for EVA gluing unit with melting device.Additionally equipped with the AirForce "VC-710", High pressure, hot air system to reactivate special pre-coated edge material (commonly referred to as laser edge.Automatic edge feed; Cutter knife; Pressure zone with 1-Drive & 2 pressure rollers.Working Units: -- Pre-milling unit with 2 x 0,8 kW, 12000 RPM motors, front/rear inclination 0° -15°. -- RT 02; Gluing, edge feeding, and pressing unit VC-511. -- End trimming unit with 2 x 0,8 kW, 12000 RPM, front/rear, inclination 0° -15°. -- Fine trimming unit 2 × 0,6 kW, 12000 RPM top/bottom. -- (2) Multifunction Corner Rounding unit, 0,65 kW each, for Corner Rounding, Straight Work pieces, Post and Soft-Forming 90° -180° degrees. -- Edge scraper unit; -- Glue scraper unit; -- Buffing unit 2 × 0,37 kW motors. Machine Features: -- Belt pressure beam. The top presser comprises a rubber belt with a stain-proof coating. The thrust exercised on the panel is provided by springs housed on techno polymer connecting rods. -- Auto adjustment of in feed fence. -- Automatic track lubrication system with dynamic track absorption. -- Manual infeed system for narrow pieces. -- One coil automatic edge feeding. -- Hybrid gluing head for granulated EVA and Polyurethane glue. -- Pre-Melter TM10 for Polyurethane glue in cartridges. On-demand top-loading pre-melter for PUR glues. -- Adaptive infra-red lamp to heat up the panel side before the glue application, in order to optimize the adhesion process. -- Independent pneumatic exclusion of the top/bottom fine trimming unit. Operator & Machine Control: -- Biesse, Windows-based

BIESSE AKRON 1430 A Edgebander, with Pre-MillWorking Capacity: -- Edgebanding Thickness, 0.4 - 12 mm capacity. -- Panel Thickness, 10 - 60 mm, Min. Panel Width, 85 mm (3.3"), Min. Panel Length, 140 mm (5.5")Basic Machine Equipped with: -- Motorized Top Pressure Beam: with automatic adjustment from the machine control, -- Motorized infeed fence. -- Pre-milling Unit: with "Autoset" automatic intervention,Edgebanding Section Equipped with: -- 31" Dia. Coil table. -- Strip & Coil Edge Magazine: with automatic shear type guillotine, -- Hot-Melt Glue System, with teflon coated glue pot, digital thermostats with automatic kick-down when machine is in idle mode, -- Pressure Section with (1) large dia. "non-stick" coated drive roller & (2) teflon plated idle rollers Finishing Section Workstations: -- 2-Motor End Trimming Unit: 0.33 HP (0.24 kW) - 12,000 RPM motor, with automatic swivel 0° to 15°, -- Top & Bottom Multi- Function Flush/Bevel/Radius Trimming Unit: 2-motor Top & Bottom Multi- Function Flush/Bevel/Radius Trimming Unit, 0.3 HP (0.24 kW) - 12,000 RPM. -- Profile Scraping Unit: Top & bottom 2 mm or 3 mm thick PVC banding, digital indicator for horizontal adjustments. -- Flat Scraping Unit: Top & bottom glue scraping unit. -- Buffing Unit: Top & bottom Buffing Unit, 0.5 HP (0.37 kW) - 2,800 RPM motors), units tilt 0° - 30°. -- Top & Bottom Hot Air Blowers.Operator & Machine Control: -- Biesse SMART TOUCH 7" + Windows Operating System, user-friendly touchscreen control panel for workstations, rotating operator control panel w/keypad and LCD readout.21" LCD Touchscreen display. Integrated 4GB hard disk for filing media files and the programs back up.USB port for managing in a simple and efficient way multimedia files, programs, and updates. Ethernet port for connecting the machine to the net.Complete With: -- Insulated sound enclosure overall trim stations with a split dust hood, viewing windows.Machine Dimensions: 176" x 36" x 70" H.Machine Dimensions with Outboard Extension: 176" x 56" x 70" H.

BINKS - COMET 3, ...Paint PumpMounted on a roll-around cart.

Infra Red heating unit designed to be used over a conveyor (not included). Currently set up to roll a shop cart under to assist us in some finishing processes. This is a two zone unit with an overall heating area of 56 sq ft. between the two infrared panels. Each section of infrared panels is 4'x7' allowing you an array of options to meet your needs. They do however, get controlled off the same control panel. --Unit has a mechanical percentage timer in control cabinet that is used to cycle power on and off as a means to control temperature. Controlling the distance from emitters to work surface is your other form of temperature control. The patented Black Body emitter consists of a serpentine configuration of NiChrome wire embedded in a refractory pad that is 12 inches square and approx.3/8" thick and coated with a high-emissivity black coating. -- Unit is complete and will need some retrofitting to meet your specific requirements.

BLACK BROTHERS “22-D 875-62"; TOP & BOTTOM GLUE SPREADER with 62"; working width. -- Upper elevator opening 0"; – 4";. -- 8-¾"; dia. Neoprene coated applicator rollers with 16 TPI Grooving. -- 6-½"; dia. Smooth Neoprene doctor rolls. -- 40 - 120 FPM Variable speed drive. -- Complete with: Push button magnetic starter, NEMA 12 electronics, safety guards, all warning labels.LITERATURE PHOTO - Not actual equipment offered, for reference only.

BLACK BROTHERS TOP AND BOTTOM 775- HOT MELT Glue Spreader with 32" working width.7-3/4" Heated Adhesive applicator rolls, with flow controlled by Chrome Doctor rolls. -- Single speed feed drive motor, operating at approximately 88 FPM. -- It has a 32″ width capacity and a 5-1/2″ thickness capacity. -- The doctor rolls are in very good condition. The price listed reflects that the 2 applicator rolls need to be re-covered. Or we can have them recovered for you for an extra cost and re-install. Please contact us with your specifications as we do not recover rolls until a machine is sold as these machines are very application specific. Meaning type of material which is usually silicone or a blend and durometer.This Model 775 has been cleaned and checked, and it heats up, and runs as it should.

BLACK BROTHERS 22D-875-62 Top & Bottom Glue SpreaderSpecifications: -- 62" Working width, 8-3/4" dia. Grooved Neoprene applicator roll with 24 TPI, 6-1/2" dia. smooth Neoprene doctor roll -- Lower elevator opening 0" - 4-1/2", -- Single speed of 88 FPM with 1.5 HP drive; -- NEMA 12 electrics. -- Complete with: Push button magnetic starter, safety guards, all warning labels.

Black Brothers 22-D-875-68 Top Only Glue Spreader with 68" working width, 8-3/4" dia. Smooth Neoprene applicator roller, 6-1/2" dia. neoprene doctor roll, top roll applicator only, upper elevator opening 0" - 4-1/2", REEVES variable feed drive 1.5 HP. -- Complete with: Electrical interlocks, and safety shutoff bars.

BLACK BROTHERS - 22-D-875-56, ...Roller Coater56" Nominal length; 8-3/4" dia. applicator, Chrome doctor roll, upper elevator & top only. -- Setup to 0" - 6" thick. -- Smooth Chrome applicator rolls and Chrome doctor rolls. -- Stationary feed speed drive, passline height 34". -- Drip Pan, Feed Pan, Continuous Flow Through. -- Trough for continuous flow 1" pneumatic pump and hose to supply product. -- (30) Day warranty for workmanship and manufacture's warranty for all parts used.Complete with: -- NEMA-12 Electrical enclosure, operating control bars, magnetic brake, electrical interlocks, reverse lockout, and cleanup pan.

Black Brothers 22D glue spreader Max working width 50"Max working thickness 3" 1/2 Hp, 230/460 volt three phase drive motor Table passline height 40" 7-1/4" diameter x 50-1/2" long top and bottom chrome doctor rollers 9" diameter x 50-1/2" long top and bottom rubber covered applicator rollers (Please note that the top doctor roller and top applicator roller is segmented) 11-3/4" long and 38" long top roller segments

48" wide Black Bros UV Curing Oven

BLACK BROTHERS - 22-D-875-56, ...Roller Coater56" Nominal length; 8-3/4" dia. applicator, Chrome doctor roll, upper elevator and top only. -- Setup to 0" - 6" thick. -- Smooth EPDM applicator rolls and Chrome doctor rolls. -- Variable feed speed drive, pass line height 34". -- Drip Pan, Feed Pan, Continuous Flow Trough to be Stainless Steel or Teflon Coated. -- Trough for continuous flow 1" pneumatic pump and hose to supply product.Complete With: -- NEMA-12 Electrical enclosure, operating control bars, magnetic brake, electrical interlocks, reverse lockout and cleanup pan.

BLACK BROTHERS TOP and BOTTOM GLUE SPREADER with 74" working width, 8-3/4" dia. Neoprene coated application rollers and 6-1/4" dia. Neoprene coated doctor rolls. -- Upper elevator opening 0" - 4-1/2" -- 40 - 120 FPM Variable speed drive. -- Complete with: Push-button magnetic starter, safety reversing bar, safety guards and all warning labels.
