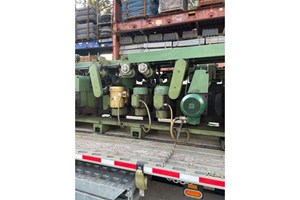

Leadermac LMC Hypermac 630 Wood Moulder w/1 to 7 Heads $95,000 Call Robert 516-909-7222
Equipment Location:Jersey City, NJ
Ideal Moulding
516-909-7222
|
|
ADOLF JOHN & COMPANY Model "FS IV" Automatic Guillotine with 126" Max. length cap., 3-7/8" cutting height. -- 0.5 HP motorized parallel fence, adjustable from 1" - 64", push button controlled travel with digital readout, micro-adjustment by hand wheel. -- 7" Wide hydraulic pressure beam with rack & pinion travel; 5.5 HP gear pump motor for pressure beam and knife cutting operation, approx. (2) Sec cycle time/cut; -- Complete with: (2) Palm buttons for safety. -- All Hydraulics were reconditioned in 2013, and used very little since.
Equipment Location:PACIFIC NORTHWEST, AL
EX-FACTORY INC.
704-841-2001
|
|
AEM 503-43 Wide Belt Sander (3) Heads -- 42" Width cap. Drum, Drum, Platen --Head Configuration: --1st Head: Rubber covered contact roll, 6" dia. (65 - 70 Duro), 25 HP motor. --2nd Head: Rubber covered contact roll, 6" dia. (60 - 65 Duro), 20 HP motor --3rd Head: 2-1/2" Wide finishing platen, 15 HP motor --Specifications -- 37" x 75" abrasive belts -- POSI-TRAK electronic tracking --Pneumatic belt tensioning --Double infeed & outfeed spring loaded holddown rolls -- 3 HP variable feed drive, 15 to 45 FPM, --Equipped with & Features -- 0" - 8" part thickness adjustment with PROSCALE digital readout -- (4) precision screw jacks. --Motor load meters and 21" infeed conveyor.
Equipment Location:SOUTHWEST
Joe Retzlaff
800-374-5009 ext:348
|
|
AEM Model 75-430 Wide Belt Sander;Specifications: 2-Head, 43" wide x up to 8" thick capacity. -- 1st Head: Quiet cut style drum - 25 HP. -- 2nd Head: 5" wide finishing platen - 20 HP. -- Pneumatic belt tracking, Abrasive belt size xx" x xx". -- Variable speed feed drive motor; powered open/close. -- Motor load meters. -- Front and rear lighting. -- Includes: Belt cart with (4) unused 150 grit belts and (2) unused 120 grit belts, extra parts and manual.
Equipment Location:ATLANTIC CDN
Joe Retzlaff
800-374-5009 ext:348
|
|
AEM 370 Wide belt Sander -- 1-Head, 37" width cap., combination sanding head with 4" dia. rubberized contact roll & 2" wide polishing platen; 20 HP motor. -- Abrasive belt size 37" x 60", with air tensioning, electronic abrasive belt tracking; -- 1 HP single speed conveyor, 0" - 8" opening with (4) screw jacks, double infeed & outfeed rubber covered holddown rolls. Complete with: -- Infeed conveyor extension, safety stop bar, load meter.
Equipment Location:EASTERN CDN
Ed Webb
800-374-5009 ext:377
|
|
Single 37" Head
Combination Head with Drum and Platen
Belt Size: 37" x 75"
This machine is no longer needed at the current facility. Seller says everything is in working condition.
Equipment Location:NC
Carolina Machinery Sales, Inc
704-288-1904
|
|
AES - EXTREME LINE 1325, ...Nested Base CNC Router with Loading and Unloading System:Description:4' x 8' Single-zone Stationary Aluminum Grid "MATRIX" table with Traveling "Bridge Gantry", Boring Head, ATC, and Auto Loading & Unloading SystemSpecifications: -- Working Field: X-Axis is 98.4" (2,500 mm); Y-axis is 51" (1,300 mm); Z-axis stroke is 7.8" (200 mm); max. material thickness of 5.1" (130 mm).Square grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining". -- Positioning Speed: X- & Y-Axis 2,365 IPM (60 MPM), Z-axis at 780 IPM (20 MPM).YASKAWA Brushless, high torque AC Servo motor drives control on all axes.High precision "Rack & Pinion" system in X- & Y-axis & ground ball screw Z-axis.All components ride on THK precision profile linear guideways. -- Boring Unit: HSD" Drilling Head, 3 HP (2.2 kW), variable speed from 4,500 - 8,000 RPM motor. (10) Independent vertical spindles on 32 mm centers, (6) spindles in X-axis & (4) spindles in Y-axis.(6) Horizontal spindles with (2 + 2) in X-axis & (1 + 1) in Y-axis.(1) X-Axis grooving saw for max. 120 mm dia blade, variable speed from 5,500 - 10,000 RPM. -- Machining: 12 HP (9 kW) HSD Air cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 12-Position ATC rotary tool magazine located at the back of the gantry and traveling with the X-Axis. -- Operator & Machine Control: OSAI Industrial PC Front-End with: Windows "7" operating system; 17" high resolution LCD flat-screen; ergonomic keypad; compatible with most CAD/CAM software in the market.Program & Data transfer via USB ports or downloading by wire is possible via serial port connections for RS-232, RS-242 & Ethernet adaptor. OSAI Control offers incredible list of functions from (a) auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- CAD/CAM Software: ALPHACAM "Essential" 2D CAD/CAM package, the most efficient and widely used CAD/CAM software in the woodworking industry, is included with machine. This package includes 3D Engraving and is Upgradable to full 5-Axis so it can grow with your business.ALPHACAM - As easy as you need it to be and as powerful as you want it to be. --System Includes: ● (1) Lifting Table with Automatic Indexing: Panel stack specifications: Max. panel stack height is 700 mm (27.55"), Max. panel stack weight is 4,000 kG (8,800 Lbs),Max. panel stack misalignment for X-Axis is 30 mm (1.18") & Y-Axis is 5 mm (0.19").The panel stack automatically indexes to the machine worktable height, allowing the loading unit suction cups to grip the top panel. ● (1) Workpiece Loading Unit with Suction Cups:Vacuum device with row of suction cups mounted on backside of gantry bridge grip the upper panel of the stack and move it up to the machine table support stops.Max. weight o
Equipment Location:MIDWEST
Norm Schust
800-374-5009 ext:445
|
|
Grutter Mortison Tennoner Machine with (2) 25HP Motors, control Panel & Valves.
Equipment Location:Clarksburg, TN
LPS Equipment & Acquisition Co.
731-986-4351
|
|
AES - Nova 1325, ...4' x 8' Nested Base CNC Router with ATC & Boring:Description:4' x 8' Single-Zone Stationary Phenolic Grid "Matrix" Table with Dual Driven Traveling "Bridge Gantry".Specifications: -- Working Field: X-Axis is 98" (2,500 mm); Y-Axis is 51" (1,300 mm); Z-Axis stroke is 8" (300 mm) Square grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining". --Positioning Speed: X-Axis at 60 MPM (197 FPM), Y-Axis at 60 MPM (197 FPM), Z-Axis Speed 20 MPM (65 FPM), Z-Axis Stroke 200 mm (8").Yaskawa Brushless, high torque AC Servo motor drive control on all axes.High Precision "Rack & Pinion" system on X- & Y-axis with a ground ball screw on Z-Axis.All components ride on THK precision linear guide ways. -- HSD Boring Unit: 2.2 HP (1.7 kW) Drilling Head; Tool connections 10 mm collet, (9) Independent Vertical Spindles on 32mm centers, (5) X-Axis, and (5) on Y-Axis, maximum drill spindle speed 6,000 RPM. -- Spindle & ATC: 12 HP 9 kW HSD Air cooled electro spindle with HSK F63 adapter, variable spindles speeds from 1,500 to 24,000 RPM(1) 8-position Automatic Linear Tool Changer Rack. -- Operator & Machine Control: OSAI Open Industrial PC control with: Windows "8" operating system, 15.6” TFT colored LCD screen; ergonomic keypad; compatible with all CAD/CAM software on the market Program & Data transfer via USB ports or downloading by wire is made possible via serial port connections for RS-232, RS-242 & Ethernet adaptor.OSAI Control offers an incredible list of functions from (a) auto- diagnostics to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to due to active tool wear using space-and-time criteria. -- CAD/CAM Software: ALPHACAM "Essential" 2D CAD/CAM package, the most efficient and widely used CAD/CAM software in the woodworking industry, is included with machine. This package includes 3D Engraving and is Upgradable to full 5-Axis so it can grow with your business. ALPHACAM - As easy as you need it to be and as powerful as you want it to be. -- Features: ● (1) BECKER 250 cbm/Hr Vacuum Pump ● Hand-Held Remote Control Pendant ● Automatic Tool Offset Unit ● Manual Lubrication Unit to 19 Central Lubrication Points ● Pneumatic Part Location Referencing Pop-up Pins -- Safety System: Safety enclosure around the spindle carriage; photocell safety sensors & perimeter fencing. -- Supplied with: Comprehensive technical documentation & manuals and covered by a 1 - year Parts and 6 - month Labor factory warrantyNOTE: EX-FACTORY has this AES machine under power & available for inspection at their Zeeland, MI Showroom!
Equipment Location:MIDWEST
Norm Schust
800-374-5009 ext:445
|
|
AES - EXTREME LINE 1640, ...Nested Base CNC Router with Loading & Unloading System.Description:5' x 12' Single-zone Stationary Aluminum Grid "MATRIX" table with Traveling "Bridge Gantry", Boring Head, ATC, and Auto Loading & Unloading SystemSpecifications: -- Working Field: X-Axis is 157.48" (4,000mm); Y-axis is 63" (1,600 mm); Z-axis stroke is 7.87" (200 mm); max. material thickness 5.1" (130 mm).Square grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining". -- Positioning Speed: X- & Y-Axis 2,365 IPM (60 MPM), Z-axis at 780 IPM (20 MPM).YASKAWA Brushless, high torque AC Servo motor drives control on all axes.High precision "Rack & Pinion" system in X- & Y-axis & ground ball screw Z-axis.All components ride on THK precision profile linear guideways. -- Boring unit: HSD Drilling Head, 3 HP (2.2 kW), variable speed 4,500 - 8,000 RPM motor. (10) Independent vertical spindles on 32 mm centers, (6) spindles in X-axis & (4) spindles in Y-axis.(6) Horizontal spindles with (2 + 2) in X-axis & (1 + 1) in Y-axis.(1) X-Axis grooving saw for max. 120 mm dia blade, variable speed from 5,500 - 10,000 RPM. -- Spindle and ATC: 12 HP (9 kW) HSD Air cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 12-Position ATC rotary tool magazine located at the back of the gantry and traveling with the X-Axis. -- Operator & Machine Control: OSAI Industrial PC Front-End with Windows "7" operating system; 17" high resolution LCD flat-screen; ergonomic keypad; compatible with most CAD/CAM software in the market.Program & Data transfer via USB ports or downloading by wire is possible via serial port connections for RS-232, RS-242 & Ethernet adaptor. OSAI Control offers incredible list of functions from (a) auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- CAD/CAM Software: ALPHACAM "Essential" 2D CAD/CAM package, the most efficient and widely used CAD/CAM software in the woodworking industry, is included with machine. This package includes 3D Engraving and is Upgradable to full 5-Axis so it can grow with your business.ALPHACAM - As easy as you need it to be and as powerful as you want it to be. --System Includes: ● (1) Automatically Indexing Lifting Table - Panel Stack Specifications: Max. panel stack height is 700 mm (27.55"), max. panel stack weight is 4,000 kG (8,800 Lbs), max. panel stack misalignment for X-axis is 30 mm (1.18") & Y-axis is 5 mm (0.19").The panel stack indexes up to the machine worktable height, allowing the suction cups to grip the top panel. ● (1) Workpiece Loading Unit with Suction Cups - Vacuum device with row of suction cups mounted on backside of gantry bridge grip the upper panel of the stack and move it up to the machine table support stops.Max. weight of single workpiece to be loaded
Equipment Location:MIDWEST, AL
EX-FACTORY INC.
704-841-2001
|
|
B.M.TEN Shaper with 1-1/4" Interchangeable spindle, 7.5 HP motor. -- 35-1/2" x 43" fixed table. -- Vertical spindle travel is 7-3/4" -- 5-5/16" cap. under the nut. -- (5) spindle speeds 2,800 - 4,500 - 6,000 - 8,000 & 10,000 RPM -- Complete with: 3-Roller Power Feeder.
Equipment Location:PACIFIC NORTHWEST, AL
EX-FACTORY INC.
704-841-2001
|
|
AES - NOVA 1632, ...5' x 10' Nested Base CNC Router with ATC & Boring. Description:5’ x 10' Single-Zone Stationary Phenolic Grid "Matrix" Table with Dual Driven Traveling "Bridge Gantry".Specifications: -- Working Field: X-Axis is 126" (3,200 mm), Y-Axis is 63" (1,600 mm), and Z-Axis Stroke is 12" (300 mm).Square grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining". --Positioning Speed: X-Axis at 60 MPM (197 FPM), Y-Axis at 60 MPM (197 FPM), Z-Axis Speed 20 MPM (65 FPM), Z-Axis Stroke 200 mm (8").Yaskawa Brushless, high torque AC Servo motor drive control on all axes.High Precision "Rack & Pinion" system on X- & Y-axis with a ground ball screw on Z-Axis.All components ride on THK precision linear guide ways. -- HSD Boring Unit: 2.2 HP (1.7 kW) Drilling Head; Tool connections 10 mm collet; (9) Independent Vertical Spindles on 32mm centers, (5) X-Axis, and (5) on Y-Axis; maximum vertical spindle speed 6,000 RPM. -- Spindle & ATC: 12 HP (9 kW) HSD Air cooled electro spindle with HSK F63 adapter, variable spindles speeds from 1,500 to 24,000 RPM(1) 8-position Automatic Linear Tool Changer Rack. -- Operator & Machine Control: OSAI Open Industrial PC control with: Windows "8" operating system, 15.6” TFT colored LCD screen; ergonomic keypad; compatible with all CAD/CAM software on the market Program & Data transfer via USB ports or downloading by wire is made possible via serial port connections for RS-232, RS-242 & Ethernet adaptor.OSAI Control offers an incredible list of functions from (a) auto- diagnostics to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to due to active tool wear using space-and-time criteria. -- CAD/CAM Software: ALPHACAM "Essential" 2D CAD/CAM package, the most efficient and widely used CAD/CAM software in the woodworking industry, is included with machine. This package includes 3D Engraving and is Upgradable to full 5-Axis so it can grow with your business.ALPHACAM - As easy as you need it to be and as powerful as you want it to be. -- Features: ● (1) BECKER 250 cbm/Hr Vacuum Pump ● Hand-Held Remote Control Pendant ● Automatic Tool Offset Unit ● Manual Lubrication Unit to 19 Central Lubrication Points ● Pneumatic Part Location Referencing Pop-up Pins -- Safety System: Safety enclosure around the spindle carriage; photocell safety sensors & perimeter fencing. -- Supplied with: Comprehensive technical documentation & manuals and covered by a 1 - year Parts and 6 - month Labor factory warrantyNOTE: EX-FACTORY has this AES machine under power & available for inspection at their Zeeland, MI Showroom!
Equipment Location:MIDWEST
Norm Schust
800-374-5009 ext:445
|
|
AES - EXTREME LINE 1632, ... Nested Base CNC Router with Loading & Unloading System:Description: 5' X 10' Single-zone Stationary Aluminum Grid "MATRIX" table with Traveling "Bridge Gantry", Boring Head, ATC, and Auto Loading & Unloading SystemSpecifications: -- Working Field: X-Axis is 125.98" (3,000 mm); Y-axis is 62.99" (1,300 mm); Z-axis stroke is 7.8" (200 mm); max. material thickness 5.1" (130 mm).Square grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining". -- Positioning Speed: X- & Y-Axis 2,365 IPM (60 MPM), Z-axis at 780 IPM (20 MPM).YASKAWA Brushless, high torque AC Servo motor drives control on all axes.High precision "Rack & Pinion" system in X- & Y-axis & ground ball screw Z-axis.All components ride on THK precision profile linear guideways. -- Boring unit: HSD Drilling Head, 3 HP (2.2 kW), variable speed from 4,500 - 8,000 RPM motor.(10) Independent vertical spindles on 32 mm centers, (7) spindles in X-axis & (3) spindles in Y-axis. -- Spindle and ATC: 12 HP (9 kW) HSD Air cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 12-Position ATC rotary tool magazine located at the back of the gantry and traveling with the X-Axis. -- Operator & Machine Control: OSAI Industrial PC Front-End with: Windows "7" operating system; 17" high resolution LCD flat-screen; ergonomic keypad; compatible with most CAD/CAM software in the market.Program & Data transfer via USB ports or downloading by wire is possible via serial port connections for RS-232, RS-242 & Ethernet adaptor; OSAI Control offers incredible list of functions from (a) auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- CAD/CAM Software: ALPHACAM "Essential" 2D CAD/CAM package, the most efficient and widely used CAD/CAM software in the woodworking industry, is included with machine. This package includes 3D Engraving and is Upgradable to full 5-Axis so it can grow with your business.ALPHACAM - As easy as you need it to be and as powerful as you want it to be. --System Includes: ● (1) Automatically Indexing Lifting Table - Panel stack specifications: Max. panel stack height is 700 mm (27.55"), max. panel stack weight is 4,000 kG (8,800 Lbs), max. panel stack misalignment for X-axis is 30 mm (1.18") & Y-axis is 5 mm (0.19").The panel stack indexes up to the machine worktable height, allowing the suction cups to grip the top panel. ● (1) Workpiece Loading Unit with Suction Cups - Vacuum device with row of suction cups mounted on backside of gantry bridge grip the upper panel of the stack and move it up to the machine table support stops.Max. weight of single workpiece to be loaded is 200 kG (440 Lbs), max. panel thickness is 30 mm (1.18"), min. panel thickness is 10 mm (0.39"), min. workpiece to be loaded 900 x 1,600 mm (35" x
Equipment Location:MIDWEST, AL
EX-FACTORY INC.
704-841-2001
|
|
BACCI TSG 2T Round End Tenoner with twin positioning tables with a traversing single cutter head design. Movement of cutter head is by mechanical cam actuation on bearing slides. -- General Data: 4 HP - 5,700 RPM belt driven head, cutterhead traversing motor 1 HP. Tables alternate into the cutting cycle for continuous operation, each table is laterally positioned with air cylinders; straight, simple or compound angles are easily adjusted with tables: 0° - 15° up, 0° - 30° down and 0° - 20° bevel, (1) table with overhead adjustable pneumatic holddown. -- Capacity: Tenon depth: 3/8" to 1-3/4" (10 to 45 mm) with special tooling 1/4" to 3-1/2" (6 to 90 mm), max. tenon width: 1-5/8" (42 mm), and max. tenon length: 4-1/2" (115 mm plus both radii). Production rates approx. (600 - 840) pieces/Hr. -- Complete with: Push button controls on front of machine. Tranformer for 600 volts operation. -- Note: See MO category for female Mortisers.
Equipment Location:EASTERN CDN
Louis Sicotte
800-374-5009 ext:329
|
|
AES - NOVA 1640, ...5' x 12' Nested Base CNC Router with Boring & ATC.Description:5' x 12' Single-Zone Stationary Phenolic Grid "Matrix" Table with Dual Driven Traveling "Bridge Gantry".Specifications: -- Working Field: X-Axis is 157.48" (4,000 mm) Y-Axis is 62.99" (1,600 mm) Z-Axis Stroke is 7.87" (200 mm).Square grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining". -- Positioning Speed: X-Axis at 60 MPM (197 FPM), Y-Axis at 60 MPM (197 FPM), Z-Axis Speed 20 MPM (65 FPM), Z-Axis Stroke 200 mm (8").Yaskawa Brushless, high torque AC Servo motor drive control on all axes.High Precision "Rack & Pinion" system on X- & Y-axis with a ground ball screw on Z-Axis.All components ride on THK precision linear guide ways. -- HSD Boring Unit: 2.2 HP (1.7 kW) Drilling Head; Tool connections 10 mm collet, (9) Independent Vertical Spindles on 32mm centers, (5) X-Axis, and (5) on Y-Axis; maximum drill spindle speed 6,000 RPM. - . -- Spindle & ATC: 12 HP (9 kW) HSD Air cooled electro spindle with HSK F63 adapter, variable spindles speeds from 1,500 to 24,000 RPM(1) 8-position Automatic Linear Tool Changer Rack. -- Operator & Machine Control: OSAI Open Industrial PC control with: Windows "8" operating system, 15.6” TFT colored LCD screen; ergonomic keypad; compatible with all CAD/CAM software on the market Program & Data transfer via USB ports or downloading by wire is made possible via serial port connections for RS-232, RS-242 & Ethernet adaptor.OSAI Control offers an incredible list of functions from (a) auto- diagnostics to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to due to active tool wear using space-and-time criteria. -- CAD/CAM Software: ALPHACAM "Essential" 2D CAD/CAM package, the most efficient and widely used CAD/CAM software in the woodworking industry, is included with machine. This package includes 3D Engraving and is Upgradable to full 5-Axis so it can grow with your business.ALPHACAM - As easy as you need it to be and as powerful as you want it to be. -- Features:● (1) BECKER 250 cbm/Hr Vacuum Pump● Hand-Held Remote Control Pendant● Automatic Tool Offset Unit● Manual Lubrication Unit to 19 Central Lubrication Points● Pneumatic Part Location Referencing Pop-up Pins -- Safety System: Safety enclosure around the spindle carriage; photocell safety sensors & perimeter fencing. -- Supplied with: Comprehensive technical documentation & manuals and covered by a 1 - year Parts and 6 - month Labor factory warrantyNOTE: EX-FACTORY has a similar AES machine under power & available for inspection at their Zeeland, MI Showroom!
Equipment Location:MIDWEST
Norm Schust
800-374-5009 ext:445
|
|
AES - EXTREME 1632, ... Nested Base CNC Router with Boring & ATC: Description:5' x 10' Single-Zone Stationary Aluminum Grid "MATRIX" Table with Traveling "Bridge Gantry", Boring Head and ATCSpecifications: -- Working Field: X-Axis is 126" (3,200 mm); Y-axis is 63" (1,600 mm); Z-axis stroke is 7.8" (200 mm); max. material thickness of 5.1" (130 mm).Square grid pattern allows the use of vacuum pods or closed cell rope gasketing material with spoil boards for "nested base machining". -- Positioning Speed: X- & Y-Axis 2,365 IPM (60 MPM), Z-axis at 780 IPM (20 MPM).YASKAWA Brushless, high torque AC Servo motor drives control on all axes.High precision "Rack & Pinion" system in X- & Y-axis & ground ball screw Z-axis.All components ride on THK precision profile linear guide ways. -- Boring unit w/Saw: HSD Drilling Head, 3 HP (2.2 kW), variable speed from 4,500 - 8,000 RPM motor. (10) Independent vertical spindles on 32 mm centers, (6) spindles in X-axis & (4) spindles in Y-axis.(6) Horizontal spindles with (2 + 2) in X-axis & (1 + 1) in Y-axis.(1) X-Axis grooving saw for max. 120 mm dia blade, variable speed from 5,500 - 10,000 RPM. -- Spindle and ATC: (1) 12 HP (9 kW) HSD Air cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 12-Position ATC rotary tool magazine located at the back of the gantry and traveling with the X-Axis. -- Operator & Machine Control: OSAI Industrial PC Front-End with: Windows "7" operating system; 17" high resolution LCD flat-screen; ergonomic keypad; compatible with most CAD/CAM software in the market.Program & Data transfer via USB ports or downloading by wire is possible via serial port connections for RS-232, RS-242 & Ethernet adaptor. OSAI Control offers incredible list of functions from (a) auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- CAD/CAM Software: ALPHACAM "Essential" 2D CAD/CAM package, the most efficient and widely used CAD/CAM software in the woodworking industry, is included with machine. This package includes 3D Engraving and is Upgradable to full 5-Axis so it can grow with your business.ALPHACAM - As easy as you need it to be and as powerful as you want it to be. -- Features: ● (1) BECKER 250 cbm/Hr Vacuum Pump ● Handheld Remote Control Pendant ● Automatic Lubrication System to 19 Central Points ● Automatic Tool Offset Unit ● Pneumatic Part Location Referencing Pop-up Pins -- Safety System: Full safety enclosure around the spindle carriage, photocell safety sensors with perimeter fencing, machine prewired to accept safety mats. -- Supplied with: Comprehensive technical documentation & manuals and covered by 1-Year Parts & 6-Month labor warranty. --Available Options: ● NC Controlled C-Axis for 360° operation. ● Workpiece Outfeed Pusher (Rake). ● Offloading Conveyor Belt Outfeed TableNO
Equipment Location:MIDWEST, AL
EX-FACTORY INC.
704-841-2001
|
|
BACCI T4MO 4-Spindle Copy Lathe/Shaper w/Sanding. 4-Spindle duplicating, carving and copy heads with (4) copy belt sanders for asymmetrical parts. -- Capacity: Max. working height: 6.5" (165 mm), max length capacity 39.4" (1,000 mm). -- Speeds: (3) Carriage speeds: 3 IPM (75 mm/Min) and up to 7.87 IPM (200 mm/Min). Spindle speeds: 25 min. to 42 max. RPM. -- Features: Carriage feed motor 1 HP. Cutter drive motor 7.5 HP. Bell cutters 1.38" (35 mm), Min. working radius 0.71" (18 mm). NOTE: Larger diameters are possible by using every second carriage position, ie. (2) heads instead of four heads.Actual model is ...T4MOL.
Equipment Location:SOUTH
Tony Cornacchione
800-374-5009 ext:432
|
|
AES - EXTREME 1325, ... Nested Based CNC Router with Boring & ATC.Description:4' x 8' Single-Zone Stationary Aluminum Grid "MATRIX" Table with Traveling "Bridge Gantry"Specifications: -- Working Field: X-Axis is 98.4" (2,500 mm); Y-axis is 51.2" (1,300 mm); Z-axis stroke is 7.8" (200 mm); max. material thickness 5.1" (130 mm).Square grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining". -- Positioning Speed: X- & Y-Axis at 2,365 IPM (60 MPM), Z-axis at 780 IPM (20 MPM).YASKAWA Brushless, high torque AC Servo motor drives control on all axes.High precision "Rack & Pinion" system in X- & Y-axis & ground ball screw Z-axis.All components ride on THK precision profile linear guide ways. -- Boring Unit: HSD" Drilling Head, 3 HP (2.2 kW), variable speed from 4,500 - 8,000 RPM motor.(10) Independent vertical spindles on 32 mm centers; (6) spindles in X-axis & (4) spindles in Y-axis.(6) Horizontal spindles with (2 + 2) in X-axis & (1 + 1) in Y-axis.(1) X-Axis grooving saw for max. 120 mm dia blade, variable speed from 5,500 - 10,000 RPM. -- Spindle and ATC: 12 HP (9 kW) HSD Air cooled electro spindle motor with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 12-Position ATC rotary tool magazine located at the back of the gantry and traveling with the X-axis. -- Operator & Machine Control: OSAI Open Industrial PC control with: Windows "7" operating system; 17" high resolution LCD flat-screen; ergonomic keypad; compatible with all CAD/CAM software in the market.Program & Data transfer via USB ports or downloading by wire is possible via serial port connections for RS-232, RS-242 & Ethernet adaptor;.OSAI Control offers incredible list of functions from (a) auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- CAD/CAM Software: ALPHACAM "Essential" 2D CAD/CAM package, the most efficient and widely used CAD/CAM software in the woodworking industry, is included with machine. This package includes 3D Engraving and is Upgradable to full 5-Axis so it can grow with your business.ALPHACAM - As easy as you need it to be and as powerful as you want it to be. -- Features: ● (1) BECKER 250 cbm/Hr Vacuum Pump ● Hand-Held Remote Control Pendant. ● Automatic Tool Offset Unit ● Automatic Lubrication Unit to 19 Central Lubrication Points ● Pneumatic Part Location Referencing Pop-up Pins -- Safety System: Safety enclosure around the spindle carriage; photocell safety sensors & perimeter fencing; machine prewired to accept safety mats. -- Supplied with: Comprehensive technical documentation & manuals and covered by 1-Year Parts & 6-Month labor warranty. -- Available Options: ● NC Controlled C-Axis for 360° operation. ● Workpiece Outfeed Pusher (Rake). ● Offloading Conveyor Belt Outfeed Table.NOTE: EX-FACTO
Equipment Location:MIDWEST, AL
EX-FACTORY INC.
704-841-2001
|
|
AES - EXTREME 1640, ...Nested Base CNC Router with Boring & ATC:Description:5' x 12' Single-Zone Stationary Aluminum Grid "MATRIX" Table with Traveling "Bridge Gantry"Specifications: -- Working Field: X-Axis is 157" (3,200 mm); Y-axis is 63" (1,600 mm); Z-axis stroke is 7.8" (200 mm); max. material thickness of 5.1" (130 mm).Square grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining". -- Positioning Speed: X- & Y-Axis at 2,365 IPM (60 MPM), Z-axis at 780 IPM (20 MPM).YASKAWA Brushless, high torque AC Servo motor drives control on all axes.High precision "Rack & Pinion" system in X- & Y-axis & ground ball screw Z-axis. All components ride on THK precision profile linear guideways. -- Boring unit: HSD Drilling Head, 3 HP (2.2 kW), variable speed from 4,500 - 8,000 RPM motor. (10) Independent vertical spindles on 32 mm centers; (6) spindles in X-axis & (4) spindles in Y-axis.(6) Horizontal spindles with (2 + 2) in X-axis & (1 + 1) in Y-axis.(1) X-Axis grooving saw for max. 120 mm dia blade, variable speed from 5,500 - 10,000 RPM. -- Spindle and ATC: 12 HP (9 kW) HSD Air cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 12-Position ATC rotary tool magazine located at the back of the gantry and traveling with the X-Axis. -- Operator & Machine Control:OSAI Industrial PC Front-End with: Windows "7" operating system; 17" high resolution LCD flat-screen; ergonomic keypad; compatible with most CAD/CAM software in the market.Program & Data transfer via USB ports or downloading by wire is possible via serial port connections for RS-232, RS-242 & Ethernet adaptor. OSAI Control offers incredible list of functions from (a) auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- CAD/CAM Software: ALPHACAM "Essential" 2D CAD/CAM package, the most efficient and widely used CAD/CAM software in the woodworking industry, is included with machine. This package includes 3D Engraving and is Upgradable to full 5-Axis so it can grow with your business.ALPHACAM - As easy as you need it to be and as powerful as you want it to be. -- Features: ● (1) BECKER 250 cbm/Hr Vacuum Pump ● Handheld Remote Control Pendant ● Automatic Lubrication System to 19 Central Points ● Automatic Tool Offset Unit ● Pneumatic Part Location Referencing Pop-up Pins -- Safety System: Full safety enclosure around the spindle carriage, photocell safety sensors with perimeter fencing, machine prewired to accept safety mats. -- Supplied with: Comprehensive technical documentation & manuals and covered by 1-Year Part & 6-Month labor warranty. --Available Options: ● NC Controlled C-Axis. ● Workpiece Outfeed Pusher (Rake). ● Offloading Conveyor Belt Outfeed Table NOTE: EX-FACTORY has a similar AES Nesting Syste
Equipment Location:MIDWEST
Norm Schust
800-374-5009 ext:445
|
|
AES - FLEXA 1632, ...5' x 10' Nested Base 3-Axis CNC Router with Manual Tool Change. Description:5' x 10' (3,200 x 1,600 mm) Single-Zone Stationary Phenolic Grid "Matrix" Table with travelling "Bridge Gantry".Specifications: -- Working Field: X-Axis is 126" (3,200 mm), Y-Axis is 63" (1,600 mm), and Z-Axis Stroke is 12" (300 mm).Square grid pattern allows the use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining". -- Positioning Speed: Y-Axis at 60 MPM (197 FPM), X-axis at 60 MPM (197 FPM), Z-axis at 20 MPM (65 FPM).YASKAWA Brushless, high torque AC Servo Motor drive control on all axes.High Precision "Rack & Pinion" system in X- & Y-axis with a precision ground ball screw on the Z-axis.All components ride on THK profile linear guide ways. -- HSD Spindle: 7 HP (5.5 kW) HSK F63 Air cooled electro spindle with variable spindles speeds from 1,500 to 18,000 RPM; Manual Tool Change. -- Operator & Machine Control: CNC Control by Osai ISAAC Open controller with a 32-Axis Servo control capacity, single Spindle-control, Remote I/O with additional 256 input/output; Windows Based Operating System.15.6” TFT Colored LCD screen running WINDOWS "8", Integrated Ethernet, Pulse or Servo control voltage, with quick setup feature; Automatic corner slowdown function (G09). -- CAD/CAM Software: ALPHACAM - "Essential" 2D CAD/CAM package, the most efficient and widely used CAD/CAM software in the woodworking industry, is included with machine. This package includes 3D Engraving.ALPHACAM - As easy as you need it to be and as powerful as you want it to be. -- Equipped with & Features: ● (1) BECKER Vacuum pump 140 cbm/Hr wired through the machine so no disconnect needed. ● (1) 220 V - 380 Volt transformer. ● Handheld MPG (Manual Pulse Generator) and ● Safety Light Barriers. ● Pneumatic pop up reference pins mounted within the table perimeter. -- Supplied with: Comprehensive technical documentation & manuals and covered by a 12-month Factory Warranty. NOTE: EX-FACTORY has a similar AES machine under power & available for inspection & demonstration at our Zeeland, MI Showroom!
Equipment Location:MIDWEST, AL
EX-FACTORY INC.
704-841-2001
|
