Description:

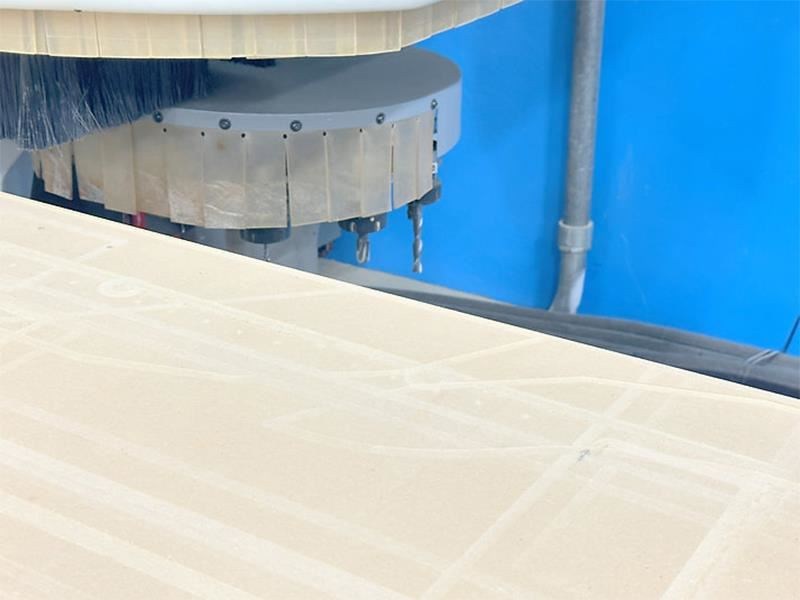

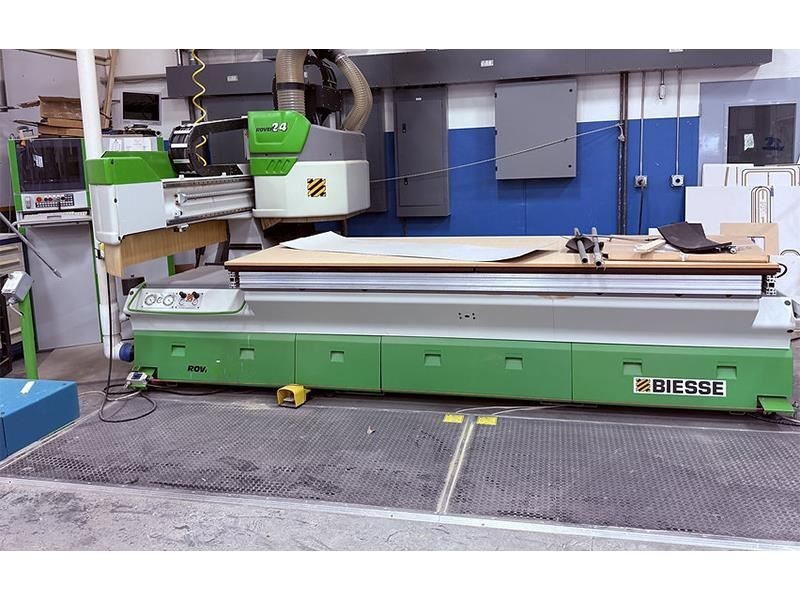

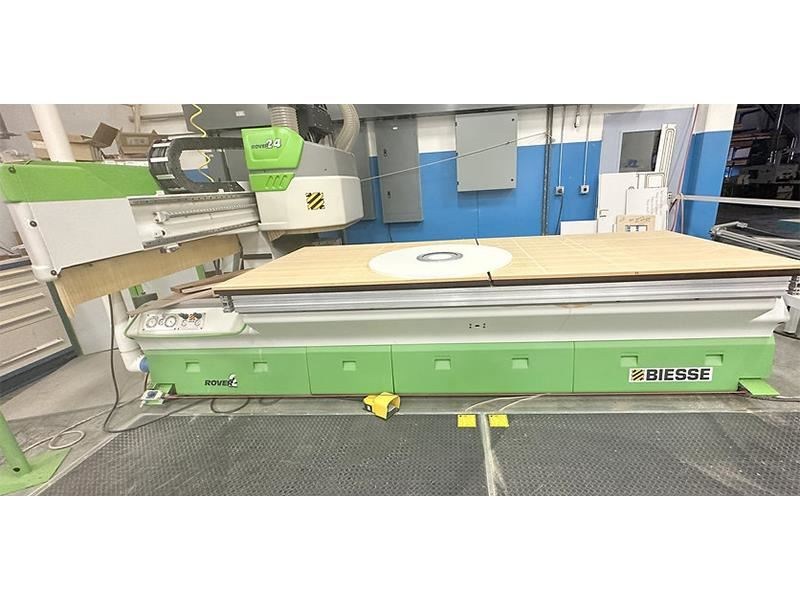

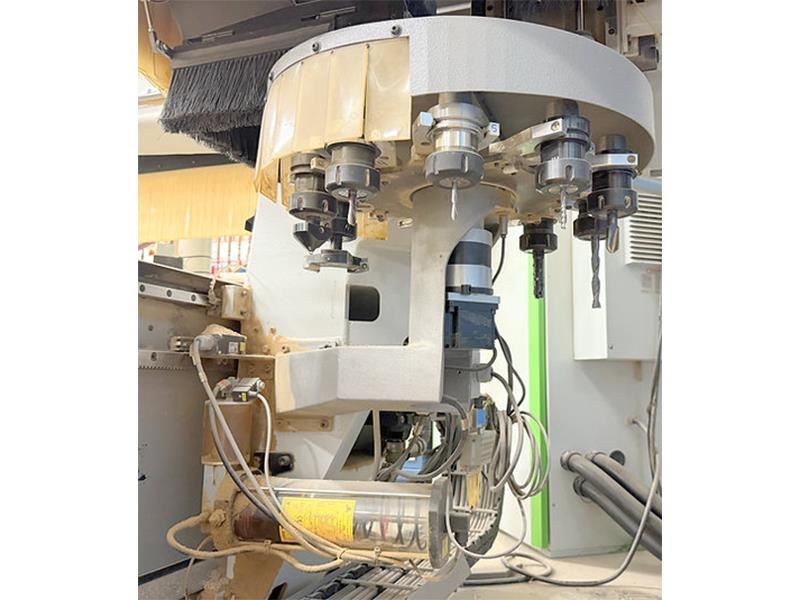

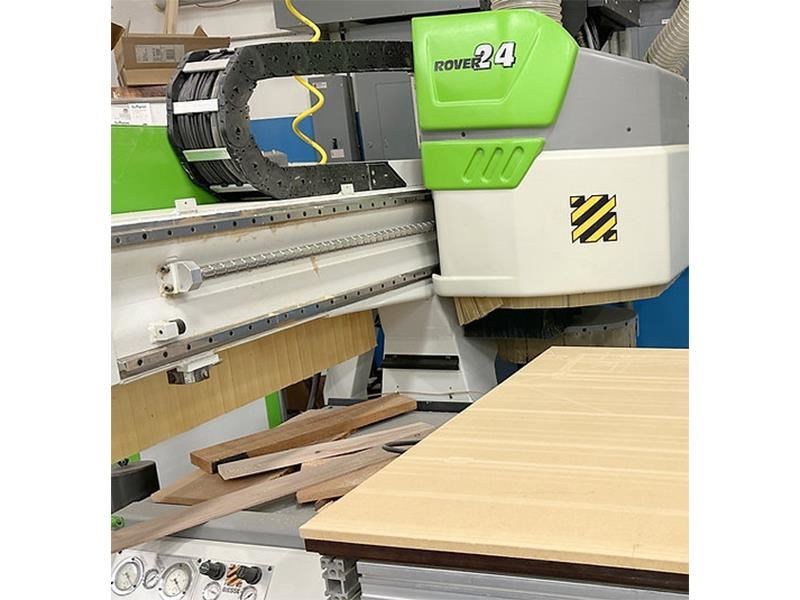

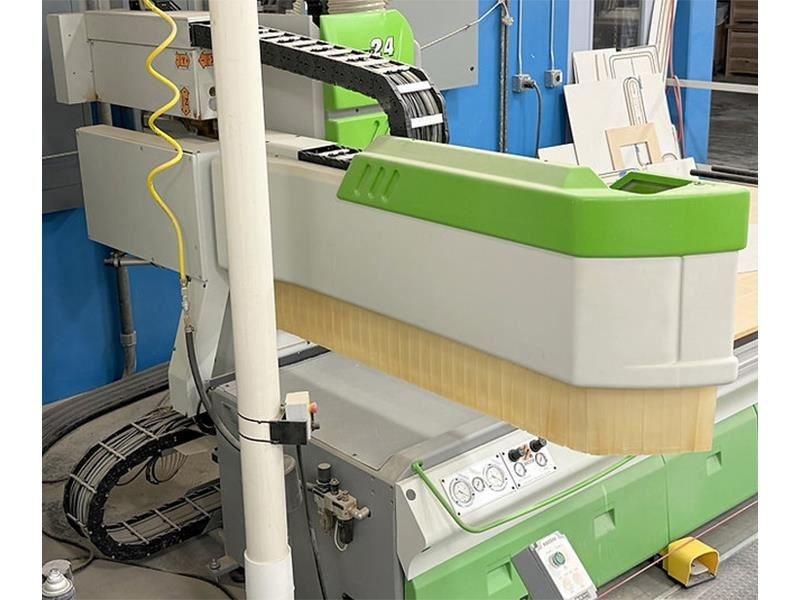

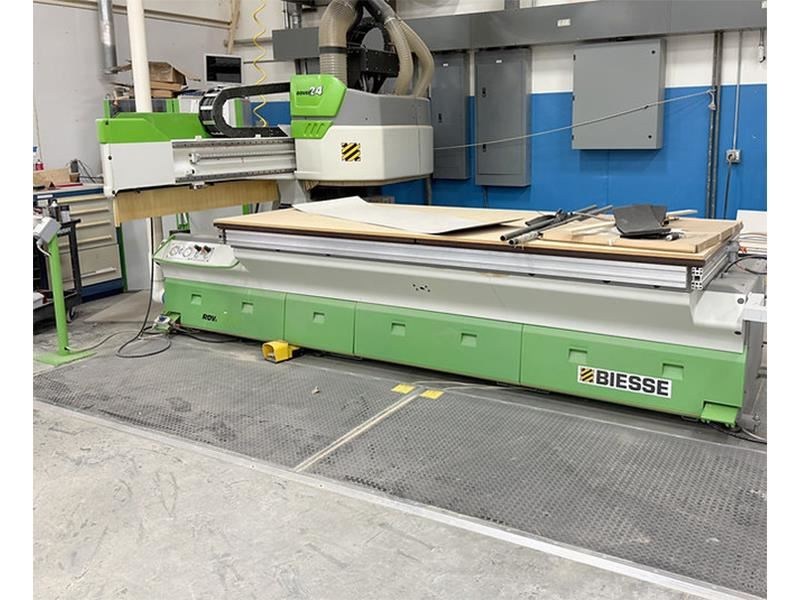

BIESSE - ROVER 24 FST: Flat Table Machine (w/ATC/Boring) -- Specifications4' x 10' "Matrix" Grid phenolic surface table for "Nested Base Manufacturing". -- Working Cap.:"X" Axis is 122" (3,100 mm);"Y" axis 49.2" (1,250 mm); "Z" axis stroke is 9.8" (250 mm); max. material thickness of 6.1" (155 mm). -- Positioning Speed: "X" & "Y" Axis is 328 FPM (100 MPM); Z-axis 98 FPM (30 MPM); "X" axis uses a helical rack & pinion system; "Y" & "Z" axes use precision ball screws.All axes movement is on precision linear guides & ways & controlled by digital, brushless AC Servo motors; all motion components are maintained by an automatic lubrication system. -- Work AreaFlat table design with: "Matrix" grid phenolic surface for "Nested Base Manufacturing"; (2) independent working areas.(14) External pop-up reference pins with: (6) Pins on the front of the table: (4) On the back of the table; (2) on the RH side; (2) on the LH side.Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; each work zone with: (1) "Quick connect" vacuum outlet for custom vacuum fixtures. -- Boring Unit(1) 2.5 HP (1.7 kW) - 4,000 RPM Motor; (14) independent vertical spindles: (7) In "X" axis & (7) in "Y" axis.(6) Horizontal spindles with: (2 + 2) In "X" axis & (1 + 1) in "Y" axis; (1) 120 mm dia. "X" axis grooving saw.(1) 6-Position "Ride Along" Automatic tool changer for "on-the-fly" ATC. -- Machining(1) 10.2 HP (7.6 kW) Air-cooled electrospindle with: HSK F63 Adaptor; variable speed from 1,000 - 24,000 RPM. -- Operator & Machine ControlPC Front-End with: NC 1000" + WINDOWS "NT" Operating System; 17" color CRT; 40 GB hard drive; full keyboard & mouse; Ethernet connection capabilities. -- Complete with:(1) 250 CBM/Hr Vacuum Pump; universal Autotransformer for voltages between: 200 - 600 V, 50/60 Hz; includes: Manuals, documents, safety mats, fencing. -- Actual Model is: BIESSE ROVER 24 FTS.
