Description:

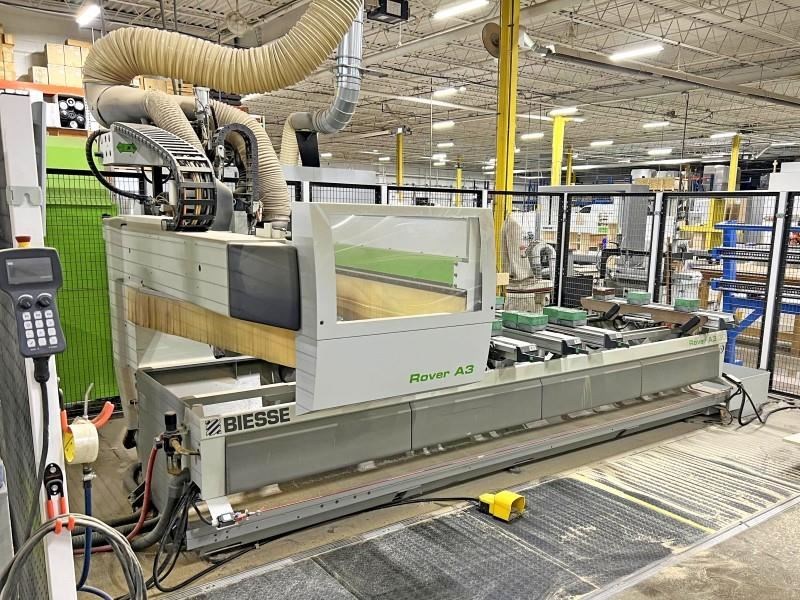

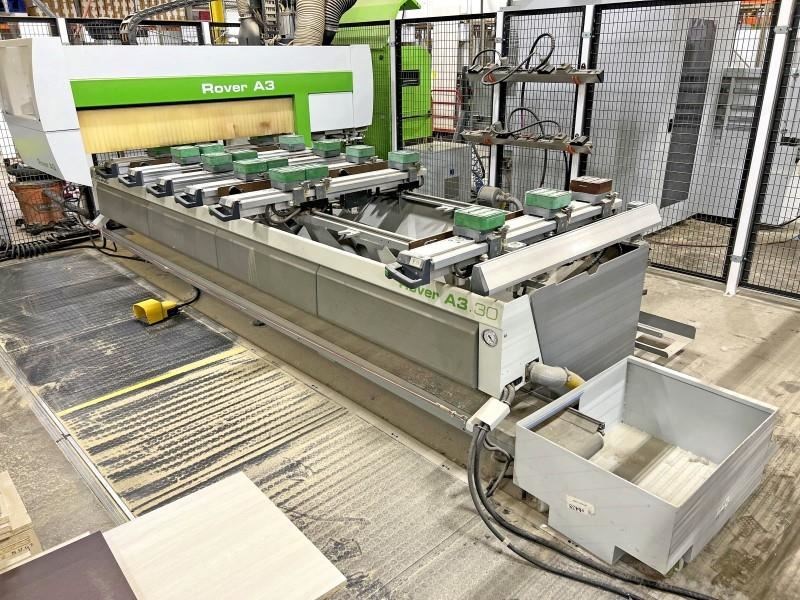

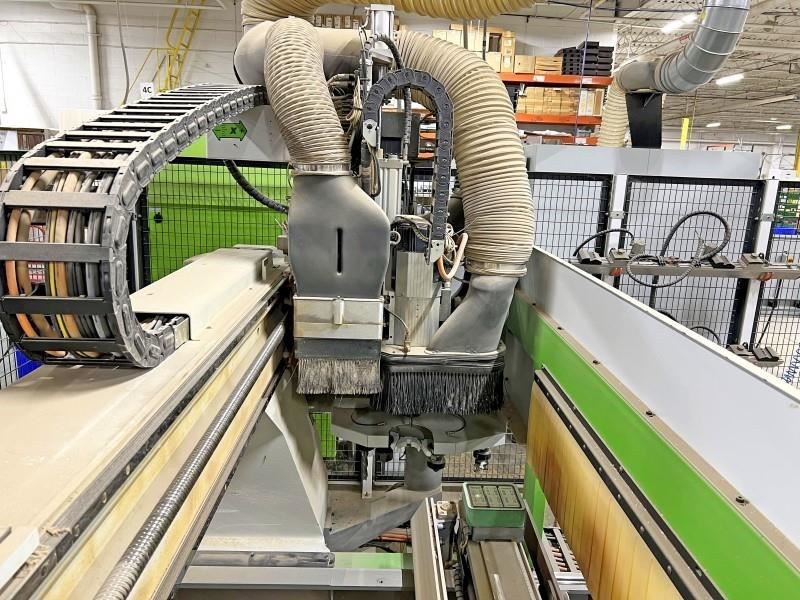

BIESSE ROVER A 3.30 CNC MACHINING CENTER (W/ATC/BORING): -- Specifications: Working cap. "X" Axis is 118" (3,000 mm) any unit, "Y" axis for routing is 45.2" (1,150 mm), "Y" axis for boring is 49.6" (1,260 mm), "Z" axis stroke 7.8" (198 mm) max. material thickness 5.9" (150 mm). -- Positioning Speed: "X & Y" Axis is 262 FPM (80 MPM), "Z" 111 FPM (34 MPM); helical rack and pinion drive on "X" axis & precision ball screw on "Y & Z" axis. -- Work Table: (6) Support rails with (3) vacuum pods per rail; (6) pop-up back stops, (4) pop up side stops; (2) independent working areas.Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; each work zone with (1) "quick connect" vacuum outlet for custom vacuum fixtures. -- Boring Unit: (14) Independent vertical boring spindles forming an L-configuration with (7) spindles in "X" axis & (7) spindles in "Y" axis.(6) Horizontal spindles with (2+2) in "X" axis & (1+1) in "Y" axis, (1) "X" axis grooving saw for max. 120 mm dia. blade. -- Machining: (1) 9.5 HP (7 kW) Vertically mounted HSD electro-spindle router with HSK F63 adaptor,inverter driven 1,000 - 24,000 RPM with max. torque from 12,000 - 24,000 RPM. (1) 18-Position "Ride-Along" "on the fly" automatic tool changer. -- Operator & Machine Control: PC Front End with Biesse "XP600" + Windows "XP" + Biesse "WORKS" operating system;INTEL "Celeron" 2.0 GHz processor; 4 GB Hard drive; 15" color monitor; international keyboard; soft touch keypad & industrial mouse; RS-232 serial port and (1) 1.44 MB floppy disk drive.BiesseWORKS is an easy CAD program which can be done from the office or at the machine; operating system for real-time multitask processing; programs can be transferred via diskette or downloaded by wire. -- Complete With: (1) 250 M³/Hr vacuum pump; 11 KVA Stabilized auto-transformer for voltages between 220 - 600 Volts. Centralized manual lubrication system for guides & ball screw. Built-in 1,500 W air conditioner for constant temperature & dust-free environment. Emergency stop rope & sound absorbing protective head enclosure with debris curtain around bottom edge. -- Actual model is BIESSE ROVER A 3.30
