Description:

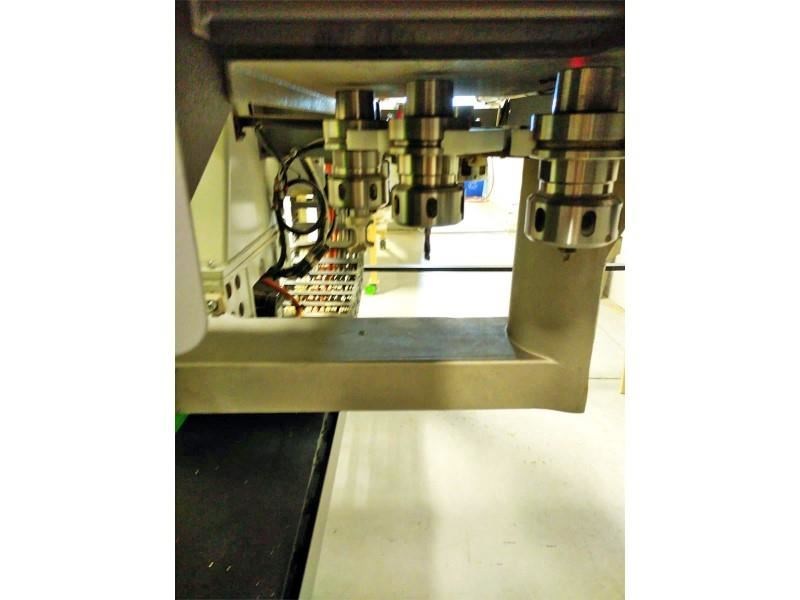

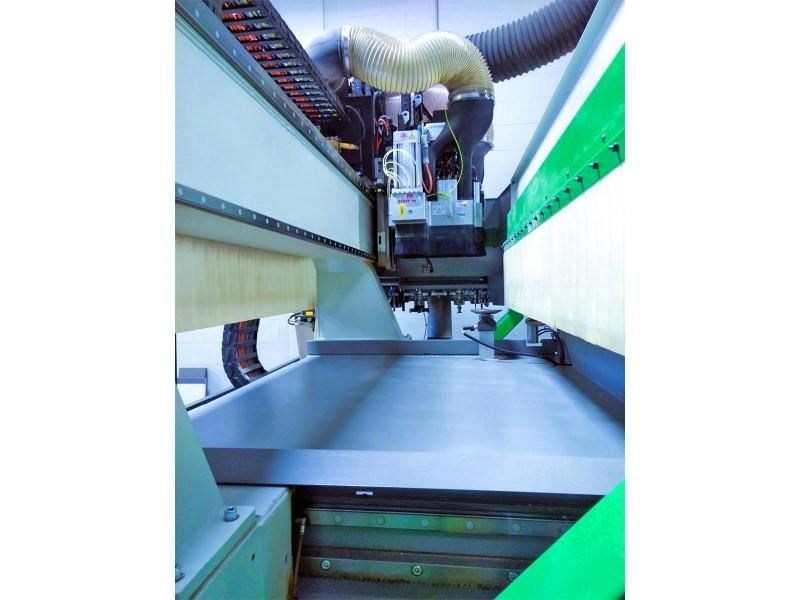

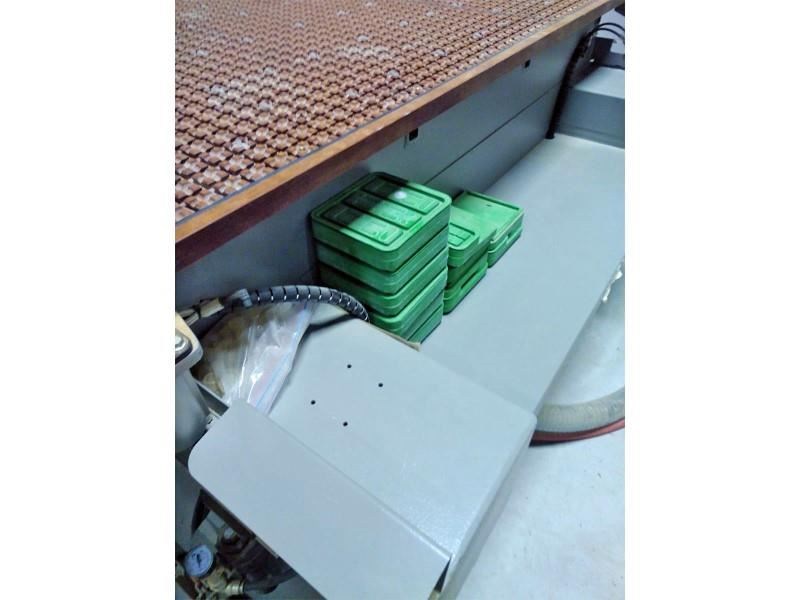

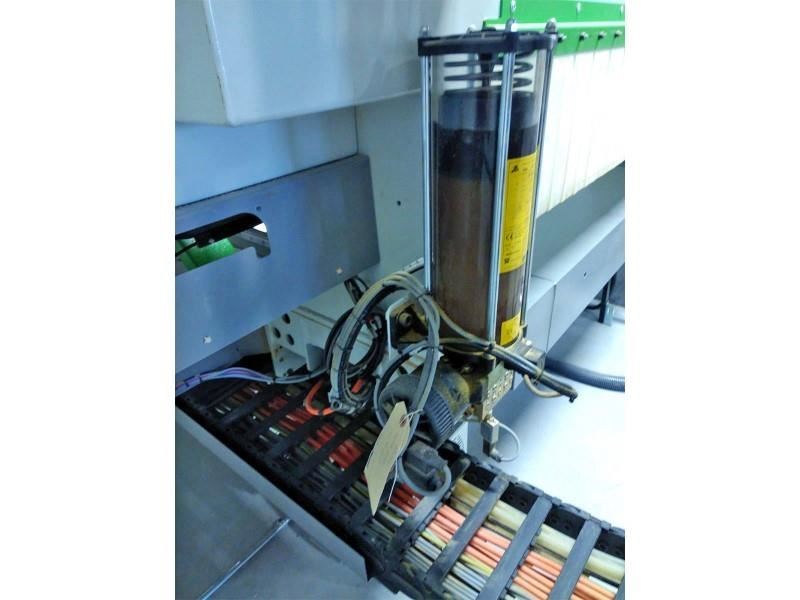

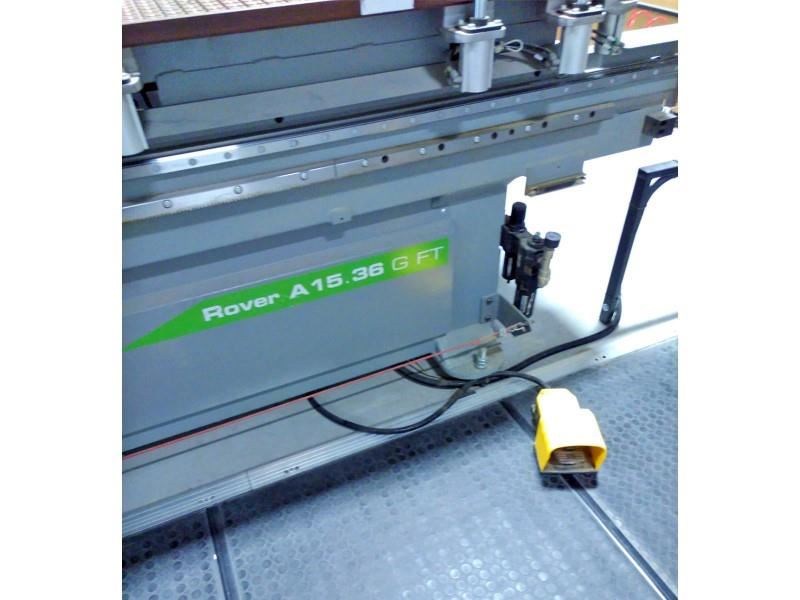

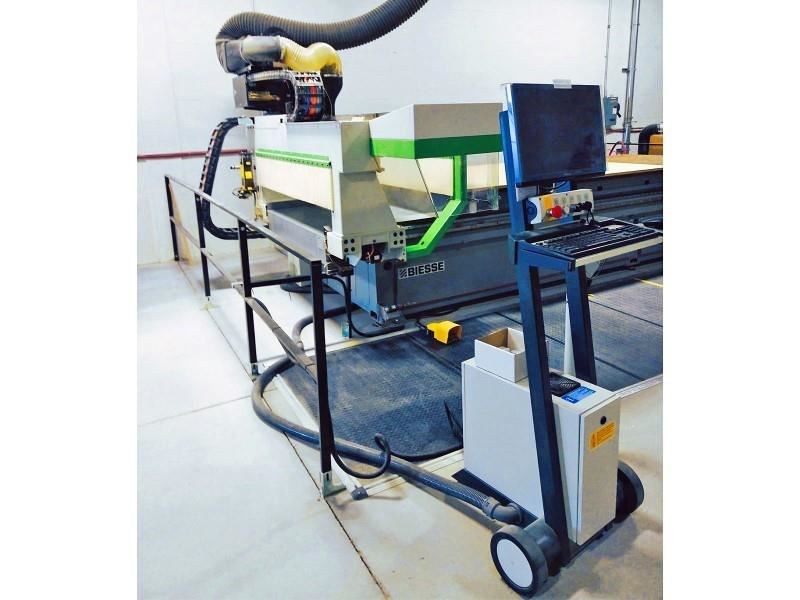

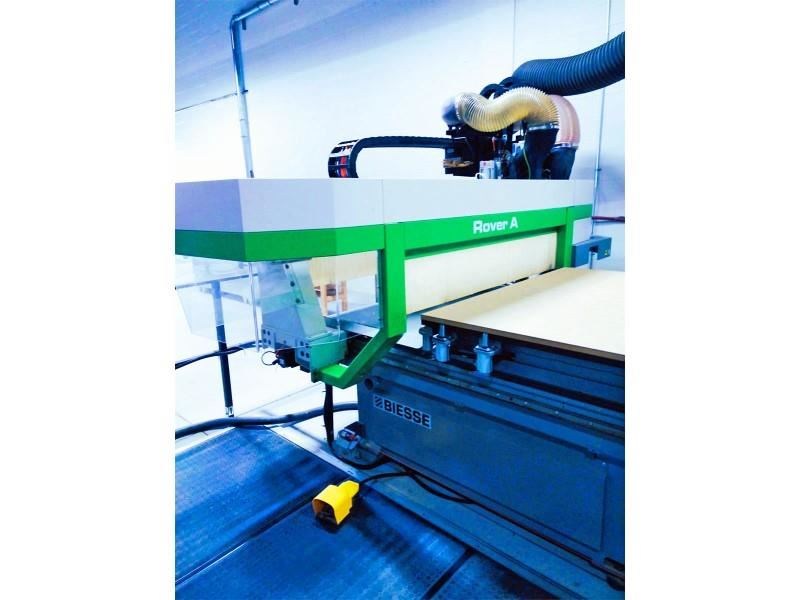

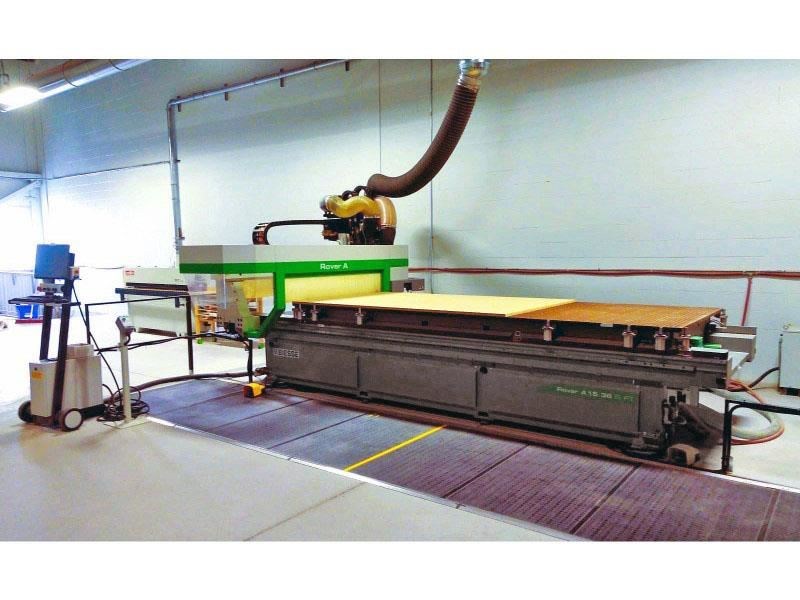

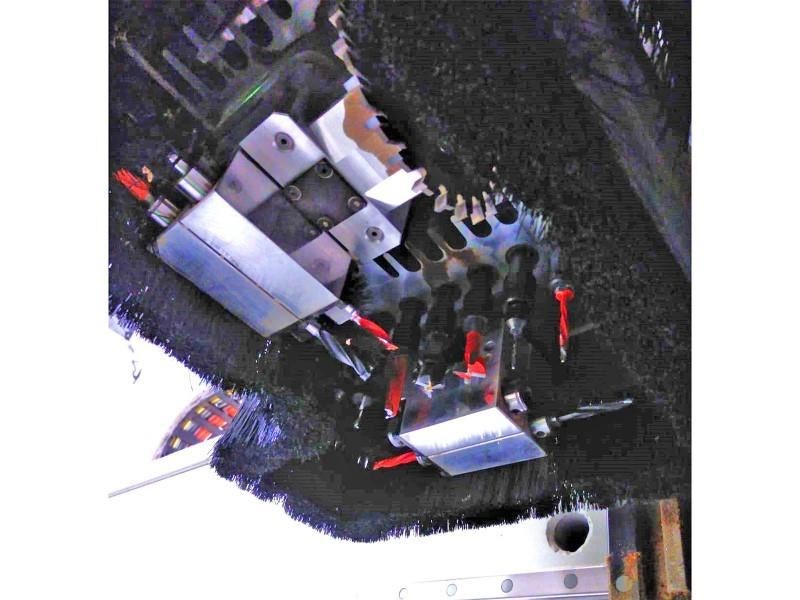

BIESSE ROVER A 1536 G FT FLAT TABLE MACHINE WITH C AXIS. -- Specifications:5' x 12' "Matrix" grid Phenolic surface for "Nested Base Manufacturing". -- Working Capacity:"X" Axis 148.2" (3,765 mm), "Y" axis 62.4" (1,585 mm), "Z" axis stroke is 12.8" (325 mm), max. material thickness 6.2" (160 mm). -- Positioning Speed:"X" & "Y" axis 197 FPM (60 MPM), "Z" axis 98.4 FPM (30 MPM).All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors. All motion components are maintained by an automatic lubrication system."X" & "Y" Axes use a precision rack & pinion system; "Z" axis uses precision ball screws. -- Work area:Flat table design with HI-FLOW, multi-zone Matrix" grid Phenolic surface for "Nested Base Manufacturing"; Automatic NC controlled zoning of the vacuum table with (9) individual zones.(2) Pneumatic "side" pop-up reference stops, (4) pneumatic "back" pop-up reference stops, & (6) pneumatic "front" pop-up reference stops.Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; with "quick connect" vacuum outlet for custom vacuum pods & fixtures. -- Boring Unit:(1) 2.5 HP (1.7 kW) Motor, variable speed up to 6,000 RPM: BH-40L boring block with (29) independent vertical spindles, (15) in "X" axis & (14) in "Y" axis;(10) Horizontal spindles with (3 + 3) in "X" axis & (2 + 2) in "Y" axis, (1) "X" axis grooving saw with 120 mm dia blade. -- Machining:(1) 16.1 HP (12 kW) Air cooled HSD Electro Spindle with HSK F63 adaptor, variable speed from 1,000 - 20,000 RPM.(1) NC Controlled "C" axis for 360° horizontal operating; (1) 16-position ATC tool changer plate located at the back of the machine base;NC controlled presetting for the measurement of the tool length. -- Operator & Machine Control:PC Front-End with: BIESSE XP 660 + BiesseWORKS + BiesseNEST + WINDOWS WRT operating system;15" TFT Flat screen monitor; server, full keyboard, & mouse all mounted on a mobile cart; Ethernet connection capabilities.BiesseWORKS Graphic interface makes full use of the operating methods typical of the WINDOWS operating system: Assisted graphic editor used to program machining operations; programming, and guided creation of parametric macros.Import of CAD and other external software files in DXF & CID3 format; 3D simulation of the tool path, calculation of machining time & the ability to create rotate virtual faces.BiesseNEST integrated with BiesseWORKS makes nesting simple & effective for every kind of shapes using parametric programs to optimize machining programs. -- Complete with:(2) 300 cbm/Hr BUSH Vacuum Pump, label printer & NC controlled label applicator, safety mats & fencing.Automatic program update according to the tool length; Automatic Lubrication System for linear guides, pads and recirculating ball screw.Universal Auto-Transformer for voltages between 200 - 600 V, 50/60 Hz; Tele-Service capabilities. -- Options (Must be purchased separately): BIESSE Agg
