Woodworking Equipment For Sale

SCM - B5L: Edgebander3/4" Edge thickness cap.; panel thickness 7/16" - 2-5/16"; min. panel width 2-1/2"; min. length 6". Equipped with: -- Pre-heated infeed fence; automatic feed magazine for strip or coil stock; glue pot unit with dual thermostat; 3 mm PVC cap. guillotine; (1) large driven & (4) idle roller pressure rollers; gluing unit and pressure section tilt 0° to 6°. Workstations -- Double motor end trim; tilt: 0° to 15°; 1 HP - 8,500 RPM motors. -- Top & Bottom trimming; bevels 0° - 45°; 3-1/2 HP - 12,000 RPM motors. -- Top & Bottom Fine/Radius Trimming: Tilts 0° - 45°; 2-1/2 HP - 12,000 RPM motors. -- Top & Bottom buffing; 0.5 HP - 3,000 RPM motors. -- Dual feed speed: 32 & 48 FPM with: 3-1/2/5-1/2 HP feed drive. Complete with: Sound enclosure; outboard panel support; used tooling.

SCMI Sandya 3S/ RCS 37" double head wide belt sander37" width cap. Drum, Combination Head1st head: 4.5" diameter steel contact drum with manual grit set2nd head: 4.5" rubber drum with 2" wide soft platenSpecifications -- 30HP 230v 3ph drive -- Delta soft start motor controls -- Electrical requirements: 91amps -- Anti-dubbing control of platen rise-fall to protect leading and trailing edges of panels -- Variable speed conveyor by inverter 12-60 fpm with digital display for working height -- Automatic thickness set up -- 6.6" max thickness capacityEquipped with & Features -- Automatic conveyor belt tracking (pneumatic cylinder) -- Two platens, soft (for veneer), semi-stiff (solid wood) -- 50 durometer conveyor belt -- 2 roller infeed and outfeed roller tables -- 4 Top and bottom fastened jack screws -- Manual adjustment of contact roller and platen positions1800 CFMTwo (2) 5" dust ports

SCM - ACTION TF 2500: Case Clamp (Automatic Feed Through) -- Specifications Max. standard working dimensions: 2,500 mm (98.4") Wide x 1,250 mm (49.2") high x 800 mm (31.5") depth. -- Min. standard working dimensions: 250 mm (9.8" Wide x 250 mm (9.8") high x 250 mm (9.8") depth. -- Working table height: 600 mm (23.6"). -- Max. Vertical pressing force: 1,500 kG (3,300 Lbs). Max. Side pressing force: 1,200 kG (2,640 Lbs).Features -- Full top & bottom platen for maximizing pressing PSI on the box. -- Rack & Pinion guides at: All (4) corners of the top platen & side pressure to keep the top platen parallel and the side pressure square. -- Sizes of box can be input for efficient cycle control when running repetitive box closings. -- Machine can also find the size of the box, so all the Operator does is place the box onto the powered infeed belt to be clamped. -- The vertical & horizontal pressure is adjustable according to the type of furniture to be assembled. -- Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention. -- Pressure supplied by infinitely adjustable brushless electric motors.Complete with: -- 5.7" Touchscreen panel with: Software by CPC to program cycles. -- Rack & Pinion system; Brushless motors. -- Front & rear photocell barriers. -- Actual Model SCM ACTION TF 2500

SCM - ACTION FL 2500: Case Camp (Semi-Automatic) -- SpecificationsMax. standard working dimensions: 2,500 mm (98.4") Wide x 1,250 mm (49.2") high x 800 mm (31-1/2") depth. -- Min. standard working dimensions: 250 mm (9.8" Wide x 250 mm (9.8") high x 150 mm (5.9") depth. -- Working height: 508 mm (20"). -- Vertical pressing force: 15 kN (3,372 Lbs).Features -- Full top & bottom platen for: Maximizing pressing PSI on the box. -- Rack & Pinion guides: All (4) corners of the top platen & side pressure to keep the top platen parallel and the side pressure square. -- Sizes of box can be input for efficient cycle control when running repetitive box closings. -- Machine finds the size of the box; Operator only opens the Clamp to a size larger than the box to be clamped. -- Vertical & horizontal pressure: Adjustable according to the type of furniture to be assembled. -- Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention. -- Pressure supplied by: Infinitely adjustable brushless electric motors.Complete with: -- 5.7" Touchscreen panel with: CPC Software to program cycles. -- Rack & Pinion system, brushless motors. -- Front & rear photocell barriers. -- Actual Model SCM CPC ACTION FL 2500

SCMI OLIMPIC S1000 T-ERL EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) -- Specifications:Edge Capacity, 0.4 to 15 mm (0.016 to 5/8") for strip feeding. -- Panel Capacity, min. width 50 mm and 140 mm min. length, (2.0" and 5-1/2"). Panel thickness min./max. 8 - 60 mm (3/8" - 2-3/8"). Equipped With: Adjustable In-feed Fence: Manually pre-set with digital indicator and pneumatic panel spacing device. -- Pre-Milling Station, RT-E: Spindles 2 x 5.25 HP, 12,000 RPM, (1) with PLC controlled jump action and manual digital indicators positioning and Diamond Cutter-heads. -- Anti-Adhesive Spraying System: Top/Bottom, positioned prior to the Pre-Milling Unit, it prevents glue buildup on the work-piece surfaces. It consists of (2) independent spray nozzles, and a tank for anti-adhesive liquids. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station, Vc/1000: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat-up time approx. 10 Min. -- Pressure Section: Servo motor positioning, (4) pressure rollers, first larger, Teflon coated and powered. Workstations: End Trimming Station K-SEL: Front & rear 2 x 0.5 HP, 12,000 RPM motors mounted on THK guides, swivels 0ø - 15ø, rapid set up between straight and angled cutting with the automatic swivel cylinder. -- Flush Trimming Unit, Rsp: Top/Bottom, 2 x 1.5 HP, 12,000 RPM with 2 pre-set pneumatic positions, flush and overhang, remote pneumatic in/out positioning. -- Bevel/Radius Trimming Unit, Ri/S: Programmable, servo motor positioning, 2 x 1.0 HP - 12.000 RPM motors for change-over on the fly. -- Corner Rounding / Trimming Unit, Round-K: For additional top & bottom trimming of linear an/or vertical leading & trailing corner when edgebanding all (4) sides, 2 x 0.8 HP - 12,000 RPM motor. Comes with (2) pre-set pneumatic positions to allow to go from thick to thin pvc automatically. -- Profile Scraping Unit "RAS/1000": Top/Bottom with (2) indexed manual pre-sets. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue Scraping Unit, "RCA/2c": Top/bottom flat glue scraper with pneumatic positioning through controller and air-blow off nozzle to keep the knifes clean. -- Buffing Unit "SPN": Top/bottom, oscillating 2 x 0.25 HP - 3,000 RPM motors, tilting up to 12°. -- Hot Air Unit: Single blower with adjustable heat range and directional heat shield for top/bottom coverage. Restores color luster on thick pvc edging materials that may be lost during the edge scraping process.Controls: -- Startouch Controller, 12" color touch screen, swivels 270° at in-feed of machine. Capable to store (100) programs, (6) at the touch of a single key. Graphical display of all working units. Tracks production data, diagnostic information and monitors maintenance schedules. Complete With & Features: -- Feed-speed, 40/60 FPM, 1 x 2.5 HP feed drive motor, 200 Hz frequency inverter for all

SCM OLIMPIC K360 EDGEBANDER (W/PRE-MILLING):Specifications -- Edge Capacity: 0.3 - 3 mm (0.012 - 0.118"); for coiled edges: 0.3 - 6 mm strips with: 6 x 60 mm kit included; dia. coil holder plate: 780 mm (31"). -- Panel Capacity. Min. width: 90 mm; min. length: 140 mm (3-1/2" & 5-1/2"); panel thickness min./max.: 8 - 50 mm (3/8" - 2") & max. 60 mm (2.4") with 6 x 60 mm kit included.Equipped with: -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Premilling Station - "RT-VP": Spindles: (2) x 2.0 HP - 19,000 RPM; (1) PLC controlled jump action; diamond cutterheads. -- Automatic Strip & Coil Feed Magazine: For straight edges; 3 mm guillotine for coils. -- Gluing Station for EVA (Hot Melt) with: Teflon-coated glue tank; quick disconnect to change glue tanks fast if needed; Heat-up time approx. 10 Min. Includes 1.5 kG glue pot instead of standard. -- Pressure Section: Manual digital positioning, (3) pressure rollers: 1st Larger; Teflon Coated and powered. Workstations -- End Trimming Station - "K2". Front & rear: (2) x 1/2 HP (included extra); 12,000 RPM Motors mounted on THK guides; swivels 0° - 15°; rapid setup between straight & angled cutting with the automatic swivel cylinder.Automatic positioning for (3) cutting modes: Straight, chamfered, and radius of thick edges. -- Top & Bottom Trimming Unit - "R-K". Remote (via control panel) pneumatic positioning for (3) settings: Flush/bevel/radius trimming; (2) x 0.7 HP - 12,000 RPM motors with precision digital indicators for quick setup. -- Top & Bottom Profile Scraping Unit. Manual preset with: Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Buffing Unit - "SP-V": Top/bottom; (2) x 1/4 HP - 2,800 RPM Motors; tilting up to 12°; cleaning & polishing of edges.Controls -- ORION - "1" Plus: Controller. Fixed at infeed of machine; soft keys; graphics; 4" LCD display panel.Handles most machine setup functions & workstations; machine automation by PLC function; encoder positioned in the panel feed track pinion; diagnostics for a quick solution to many errors; process statistics data: Number of pieces/edges and track feeding.Features & Complete with: -- Feed speed: 36 FPM Fixed; (1) x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units; manual adjustable holddown pressure beam; full sound enclosure cover; outboard panel support. -- Overall dimensions: 3,600 mm (142") x 900 mm (36") x 1,600 mm (63"); approx. weight: 997 kG (2,200 Lbs). -- UL/CSA approved version.

SCM Minimax T-50 Tilting Spindle Shaper -- Specifications: -- 1-1/4" Dia. interchangeable spindle tilts -5° to +45°, -- 6.6 HP motor; 3-1/2" cap. under nut, (4) spindle speeds of 1,700 - 4,000 - 7,000 & 9,000 RPM. -- Table size 18" x 43" with adjustable side extension tables; 3" - 5" - 7" & 8" table insert openings -- 4-1/2" max. spindle height above table -- 2" max. tooling retraction under table with 7" max. tooling dia.; working height 37".Equipped with: Outrigger Sliding Table, micro-adjustable fence, spindle lock, magnetic starter w/overload protection, reversing switch, and 4-3/4" dia. dust outlet. Includes: Several New Cutter-heads

SCM ACTION FL 2500 CASE CLAMP (SEMI-AUTOMATIC): -- SpecificationsMax. standard working dimensions: 2,500 mm (98.4") Wide x 1,250 mm (49.2") high x 800 mm (31-1/2") depth. -- Min. standard working dimensions: 250 mm (9.8" Wide x 250 mm (9.8") high x 150 mm (5.9") depth. -- Working height: 508 mm (20"). -- Vertical pressing force: 15 KN (3,372 Lbs.).Features -- Full top & bottom platen for maximizing pressing PSI on the box. -- Rack & Pinion guides at all (4) corners of the top platen & side pressure to keep the top platen parallel and the side pressure square. -- Sizes of box can be input for efficient cycle control when running repetitive box closings. -- Machine can also find the size of the box, so all the Operator has to do is open the Clamp to a size larger than the box to be clamped. -- The vertical & horizontal pressure is adjustable according to the type of furniture to be assembled. -- Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention. -- Pressure supplied by infinitely adjustable brushless electro-motors.Complete with: -- 5.7" Touchscreen panel with: Software by CPC in order to program cycles. -- Rack & Pinion system, brushless motors. -- Front & rear photocell barriers. -- Actual Model is: SCM CPC ACTION FL 2500

SCMI MINI MAX - Formula S 2: Sliding Table SawSpecifications & Features -- 128" Cutting cap. w/standard scoring saw and carriage; 5 HP motor; stop on fence for cuts extendable to 128"; 50" cutting width w/ rip fence.Equipped with: -- 14" Main blade; 4-1/2" scoring blade; 4-1/2" max. blade cutting height at 90°; 3-1/2" max. blade cutting height at 45°. -- 4,000 RPM Main blade speed; 8,500 RPM scoring blade; 90° - 45° blade tilting.

SCMI - OLIMPIC K 560 R HP. Edgebander (w/Premill & Corner Rounding) -- Specifications Edge Capacity: 0.4 to 6 mm (0.016 to 1/4") for strip feeding. -- Panel Capacity:Min. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Premilling Station. (2) 2.0 HP (1.5 kW) motors; Servo controlled; to rectify/clean panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine. For straight edges; 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with quick-change/disconnect Teflon glue pot for fast glue tanks change if needed. Heat up time approx. 10 Min. -- Pressure Section. Manual digital positioning: Teflon coated pneumatic driven roller; (2) spring-loaded idle rollers.Workstations -- End Trimming Station.: Front & rear: (2) 0.5 HP - 12,000 RPM Motors mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit. (2) 0.7 HP - 12.000 RPM motors; capable of tilting & pneumatic positioning for (3) settings: flush/bevel/radius trimming for quick setup. -- Top & Bottom Profile Scraping Unit with: Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Glue Scraping Unit: Eliminates any excess glue. -- Buffing Unit. Top/Bottom; (2) 1/4 HP - 2,800 RPM motors; tilting up to 12°.Operator & Machine Control -- "STARTOUCH" Controller with: 21-1/2" Touchscreen display; capable of storing (100) programs. Machine automation by: PLC Function; encoder positioned in the panel feed track pinion.Diagnostics for a quick solution to errors; process statistics data: i.e., Number of pieces/edges and track feeding.Features & Complete with: -- 2-Speed feed speed of: 40 & 60 FPM (12 & 18 MPM); (1) 2-1/2 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Servo controlled; adjustable top holddown pressure beam. -- Auto. panel spacer to eliminate premature loading -- Anti-adhesive spray. -- Full sound enclosure cover and outboard panel support. -- THIS MACHINE IS FULL SERVO CONTROLLED. -- Actual Model: SCM - OLIMPIC K 560 R HP

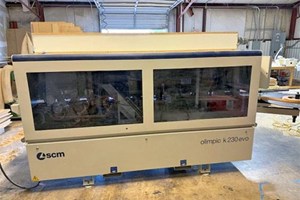

SCMI OLIMPIC K230R EVO EDGEBANDER (W/PRE-MILLING): -- Specifications:0.4mm to 3mm Edge thickness, Panel thickness 8mm to 50mm (0.3" to 1.96"), minimum part width 60mm (2.36"), minimum part length 160mm (6.30").Minimum distance between panels: 559 mm (22";), 29.5 FPM (98 MPM) Fixed feed speed, 1.0 HP (0.75 kW) feed drive.Pre-milling station: (2) 2.0 HP (1.5 kW) motors, to rectify/clean panels already sized. -- Adjustable In-feed Fence: Manually pre-set with digital indicator, pneumatic in/out positioning.Equipped with: 1.5 Kg Teflon-coated glue pot, glue roller application system complete w/automatic recycling device for unused glue.Digital thermostat adjustment for temperature control. pneumatic guillotine, heating time approx. 8-10 min.3-Roll pressure unit w/pneumatic controls for all pressure rollers. -- Automatic strip & coil feed magazineWorkstations:2-Motor front & rear End Trimming (0.5 HP - 12,000 RPM ea. motor.), tilts 0° - 15°, end trimmers mounted on THK guide. -- Top & bottom flush & bevel trims with quick release mount and plug-in motors for quick tooling changes(0.5 HP - 12.000 RPM motor ea.), bevels 0° - 15° with precision digital indicators for quick setup. -- Top & bottom scraping unit w/manual positioning. -- Top & bottom buffing unit (0.25 HP - 3,000 RPM motors), tilts up to 12°. Operator & Machine Control:Orion 1 Plus controller, located at the infeed of the machine. It is capable of operating all the work units via soft touch buttons.It pneumatically tilt’s the end trim unit from the control panel, it eliminates the use of micro switches, as well as control the temperature of the glue.The control is tilted slightly upward for a more ergonomically friendly position for the operator. -- Actual Model is SCM OLIMPIC K230R EVO.

SCM OLIMPIC K 360ERT HP COMPACT EDGEBANDER (W/PRE-MILL):Specifications: -- Edge Capacity, 0.4 to 6 mm (0.016to 1/4") for strip feeding. -- Panel Capacity, min. width 65 mm and 140 mm min. length, (2-3/8" and 5-1/2"). Panel thickness min./max. 8 - 60 mm (3/8" - 2-1/2").Equipped With: -- Adjustable In-feed Fence: Manually pre-set with digital indicator, pneumatic in/out positioning. -- Pre-Milling Station, RT-VP: Spindles 2 x 2.0 HP, 19,000 RPM, (1) with PLC controlled jump action and diamond cutter heads. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat-up time approx. 10 Min. -- Pressure Section: Manual digital positioning, (3) pressure rollers, first larger, Teflon coated and powered. Workstations: -- End Trimming Station: Front & rear 2 x 0.25 HP, 12,000 RPM motors mounted on THK guides, swivels 0° - 15°, rapid set up between straight and angled cutting with the automatic swivel cylinder. -- Trimming Unit Flush/Bevel/Radius: Top/Bottom remote (via control panel) pneumatic positioning for (3) settings, flush/bevel/radius trimming, 2 x 0.7 HP - 12.000 RPM motors with precision digital indicators for quick setup. -- Profile Scraping Unit "RAS/V": Top/Bottom, manual pre-set up with digital indicators. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Buffing Unit: Top/bottom, 2 x 0.25 HP - 2,800 RPM motors, tilting up to 12°. Controls: -- Orion 1 Plus Controller, fixed at in-feed of machine. with "Touch Screen" control with soft keys, graphics and LCD display panel. It handles most machine set-up functions and workstations. Complete With & Features: -- Feed-speed, 36 FPM fixed, 1 x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable hold-down pressure beam, full sound enclosure cover and outboard panel support. -- Actual Model is SCM OLIMPIC K 360R HP

SCM OLIMPIC K 560 T-ER2 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- SpecificationsEdge Capacity: 0.4 to 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity: Min. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Pre-milling Station: (2) 2.0 HP (1.5 kW) motors; rectifies/cleans panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: "SGP" for EVA (Hot Melt) with quick change/disconnect Teflon glue pot for fast glue tanks change if needed; heat up time approx. (10) Min. -- Pressure Section: Manual digital positioning; Teflon coated pneumatic driven roller, and (2) spring loaded idle rollers.Workstations -- End Trimming Station: (2) Front & rear 0.5 HP - 12,000 RPM motors, mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit: (2) 0.7 HP - 12.000 RPM Motors; capable of tilting & pneumatic positioning for (3) settings: Flush/bevel/radius trimming for quick setup. -- Corner Rounding Unit "Round 2M" with: (2) 0.8 HP Independent motors that slide on THK guides. -- Top & Bottom Profile Scraping Unit with: Digital indicators; large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue scraping Unit "RC-N": Eliminates any excess glue. -- Buffing Unit "SP-V": (2) Top/bottom 0.25 HP - 2,800 RPM motors; tilting up to 12°.Operator Interface -- "STARTOUCH" Controller with: 12" Touchscreen display; capable of storing (100) programs. -- Machine automation by PLC function and encoder positioned in the panel feed track pinion. -- Diagnostics for a quick solution to errors: Process statistics data (i.e., number of pieces/edges) and track feeding.Features & Complete with: -- 2-Speed feed speed of 40 & 60 FPM (12 & 18 MPM); (1) 2.5 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Electronic Positioning of the top hold-down pressure beam. -- Nesting Copying Device. -- Full sound enclosure cover and outboard panel support. -- Actual Model is: SCM OLIMPIC K 560 T-ER2

SCMI - K201 HFE: Single Sided Edgebander1/8" Max. edge cap.; 1-1/2" max. panel thickness; semiautomatic strip & coil feed magazine (manual single strip feed); Teflon coated glue pot w/fast 8-Minute heat up time; 1.2 mm cap. guillotine. -- Workstations: Single motor front & rear end trim; 0.8 HP - 10,000 RPM motor; top & bottom flush trims, 0.8 HP - 27,000 RPM ea. motor; straight or 12° bevel cutters. -- Top & Bottom buffing unit, 0.25 HP - 2,800 RPM motors; 25 FPM fixed feed speed with 0.8 HP drive. -- Complete with: Sound enclosure, frequency converter, and used tooling.

SCM SC 4 Elite Sliding Table Saw -- Specifications: 102" Cutting length, 12" main blade capacity, with scoring. 5/8" Saw arbor, and 3/4" Dado capacity; 4.8 HP main motor. 50" rip capacity to the right of the blade. -- Equipped with: Cast iron mono-block saw unit with dual tilting trunnions, with dial indicator of the saw blade tilt; cast iron rip fence knuckle, micro-adjustment control, and steel round bar support. -- Complete with: Aluminum sliding table with machined steel ways; telescoping crosscut fence, with two adjustable flip stops, two-position sliding table lock, for ease of panel loading; eccentric panel clamp.

SCM - K 203 F: Edgebander0.4 to 5 mm Max. edge cap. for strip feeding; 1/8" (3 mm) for coil feeding; 60 mm min. panel width; 160 mm min. panel length; panel thickness: 10 - 50 mm. Equipped with: -- Teflon coated glue pot (heat-up time 10 - 15 min.); automatic strip &coil feed magazine; 3 mm cap. guillotine; 3-roll pressure unit w/pneumatic control.Workstations -- Double motor front & rear-end trim mounted on: THK Guideways (0.4 HP - 12,000 RPM motor ea.); tilts 0° - 15° from the control panel with: (2) Preset positions. -- Top & Bottom flush & bevel trims with: Quick release mount & plug-in motors for quick tooling changes; 0.7 HP - 12.000 RPM motor ea.; bevels 0° - 15° with: Precision digital indicators for quick setup. -- Top & Bottom scraping unit with: Pneumatic positioning from the control panel; Top & Bottom buffing unit, 0.25 HP - 2,800 RPM motors. -- 36 FPM Fixed feed speed; 0.75 HP feed drive.Includes Microprocessor for line control (store up to 50 preset programs); control panel at eye level for ease of programming; full cover sound enclosure.Features. Mechanical digital readouts for setup adjustments; frequency inverter; outboard panel support.

SCM OLIMPIC K 360ERT HP COMPACT EDGEBANDER (W/PRE-MILL & CORNER ROUNDING):Specifications: -- Edge Capacity, 0.4 to 6 mm (0.016to 1/4") for strip feeding. -- Panel Capacity, min. width 65 mm and 140 mm min. length, (2-3/8" and 5-1/2"). Panel thickness min./max. 8 - 60 mm (3/8" - 2-1/2").Equipped With: -- Adjustable In-feed Fence: Manually pre-set with digital indicator, pneumatic in/out positioning. -- Pre-Milling Station, RT-VP: Spindles 2 x 2.0 HP, 19,000 RPM, (1) with PLC controlled jump action and diamond cutter heads. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat-up time approx. 10 Min. -- Pressure Section: Manual digital positioning, (3) pressure rollers, first larger, Teflon coated and powered. Workstations: -- End Trimming Station: Front & rear 2 x 0.25 HP, 12,000 RPM motors mounted on THK guides, swivels 0° - 15°, rapid set up between straight and angled cutting with the automatic swivel cylinder. -- Trimming Unit Flush/Bevel/Radius: Top/Bottom remote (via control panel) pneumatic positioning for (3) settings, flush/bevel/radius trimming, 2 x 0.7 HP - 12.000 RPM motors with precision digital indicators for quick setup. -- Corner Rounding Unit "Round 2M" with: (2) 0.8 HP Independent motors that slide on THK guides. -- Profile Scraping Unit "RAS/V": Top/Bottom, manual pre-set up with digital indicators. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Buffing Unit: Top/bottom, 2 x 0.25 HP - 2,800 RPM motors, tilting up to 12°. Controls: -- Orion 1 Plus Controller, fixed at in-feed of machine. with "Touch Screen" control with soft keys, graphics and LCD display panel. It handles most machine set-up functions and workstations. Complete With & Features: -- Feed-speed, 36 FPM fixed, 1 x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable hold-down pressure beam, full sound enclosure cover and outboard panel support. -- Actual Model is SCM OLIMPIC K 360ERT HP

Manufacturer's Specification 149.6" capacity 4.2" saw projection (380 mm blade) 12 HP motor/2 Hp scoring motor 20-98 FPM feed Programable controller 230 Volt 3-phase

SCMI "Olimpic S-215" Edgebander Edge thickness capacity, 0.4 - 15 mm Minimum working width, 4-3/4" 59 FPM feed speed Motorized top pressure beam Controller Edgebanding infeed table 230V/60HZ

53” wide vacuum feed belt 48” load space (approx.) Belt size 53" X 102" 1st head rubber contact 29 kW, 460V, 3 phase 2nd head combination 21.4 kW, 460V, 3 phase 3rd head platen 18.5 kW, 220/380V, 3 phase 4th head panel cleaning felt type head 1.74 kW, 460V, 3 phase 5th Air cleaning heads Variable speed feed motor/gear box assembly Free-standing operator/electrical control cabinet Dust manifold included
