Description:

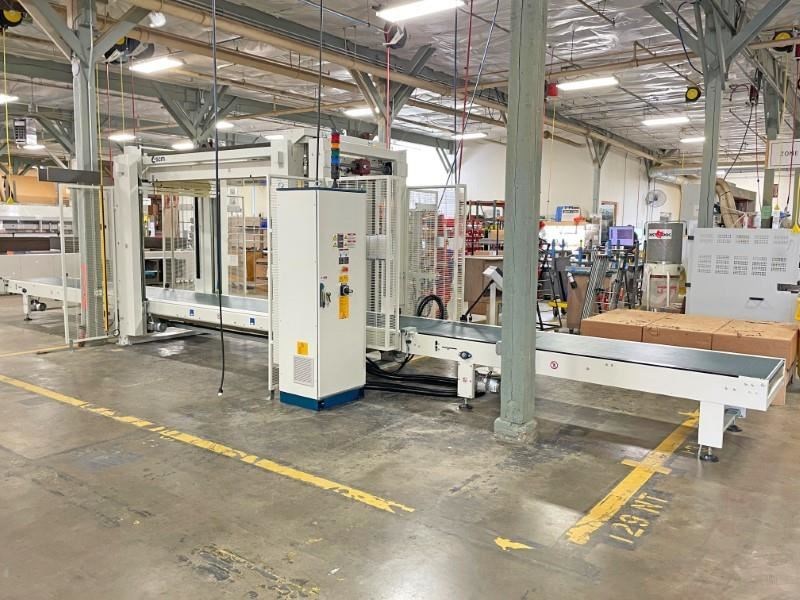

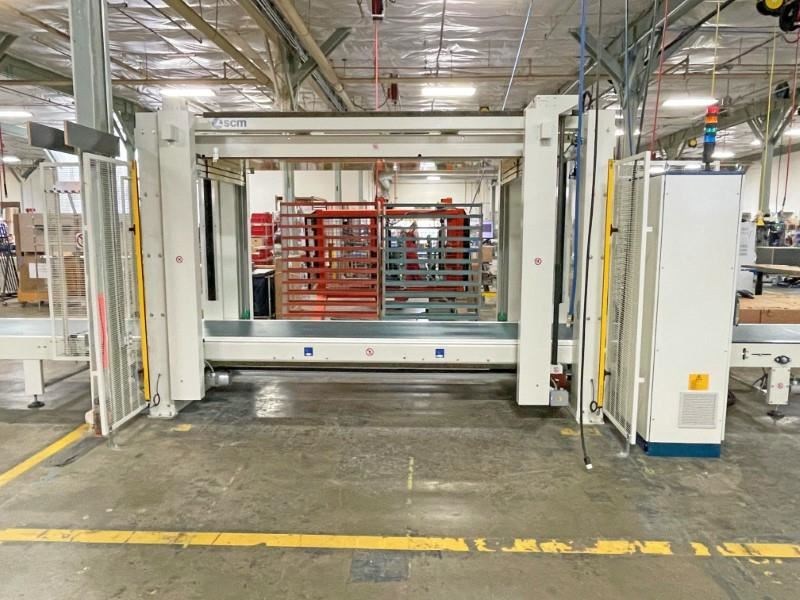

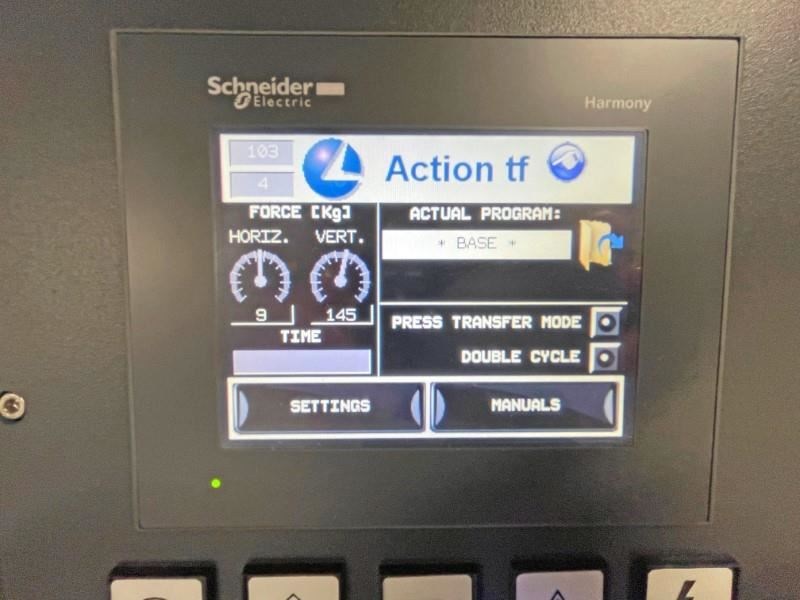

SCM ACTION TF 2500 CASE CLAMP (AUTOMATIC FEED THROUGH) -- Specifications: Max. standard working dimensions: 2,500 mm (98.4") Wide x 1,250 mm (49.2") high x 800 mm (31.5") depth. -- Min. standard working dimensions: 250 mm (9.8" Wide x 250 mm (9.8") high x 250 mm (9.8") depth. -- Working table height: 600 mm (23.6"). -- Max. Vertical pressing force: 1500 kG (3,300 Lbs). Max. Side pressing force: 1200 kG (2,640 Lbs).Features: -- Full top & bottom platen for maximizing pressing PSI on the box. -- Rack & Pinion guides at all (4) corners of the top platen and side pressure to keep the top platen parallel and the side pressure square. -- Sizes of box can be input for efficient cycle control when running repetitive box closings. -- Machine can also find the size of the box, so all the operator has to do is place the box onto the powered in-feed belt to be clamped. -- The vertical and horizontal pressure is adjustable according to the type of furniture to be assembled. -- Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention. -- Pressure supplied by infinitely adjustable brushless electro-motors.Complete with: -- 5.7" Touchscreen panel with: Software by CPC in order to program cycles. -- Rack & Pinion system, Brushless motors. -- Front & rear photocell barriers. -- Actual Model is SCM ACTION TF 2500
