Description:

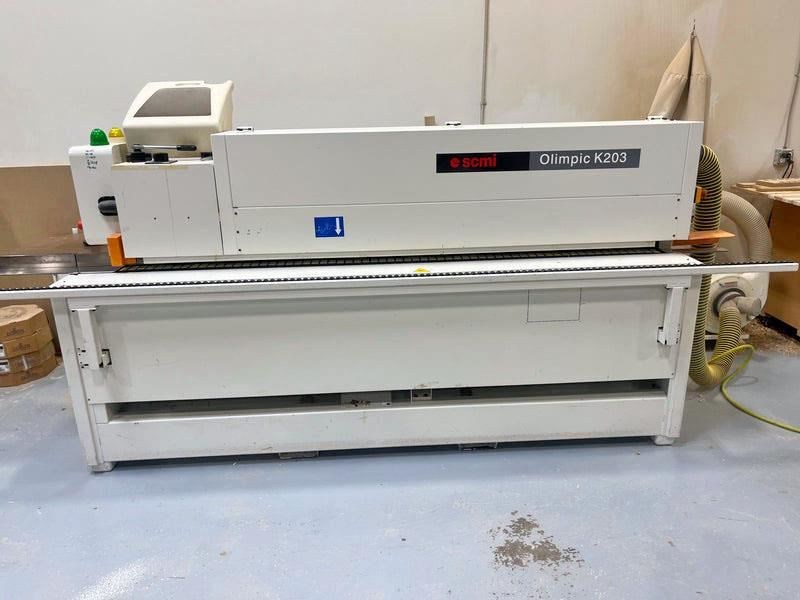

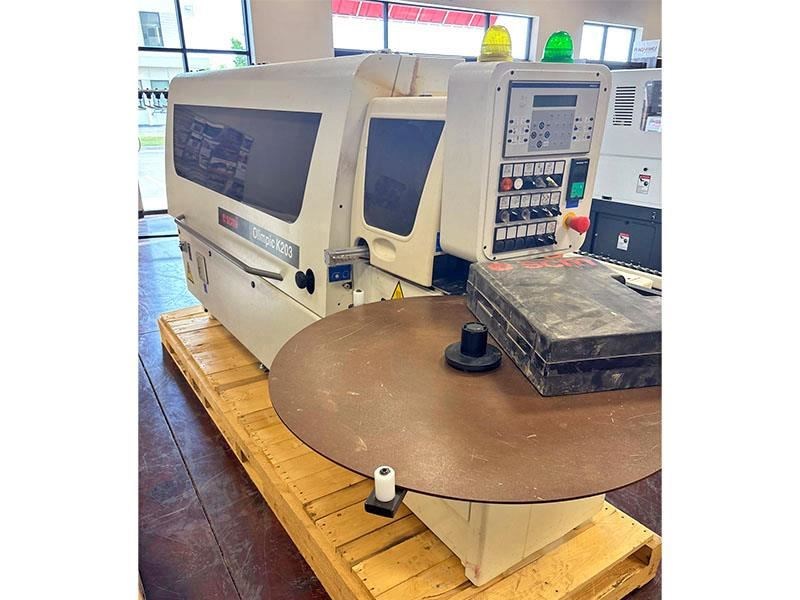

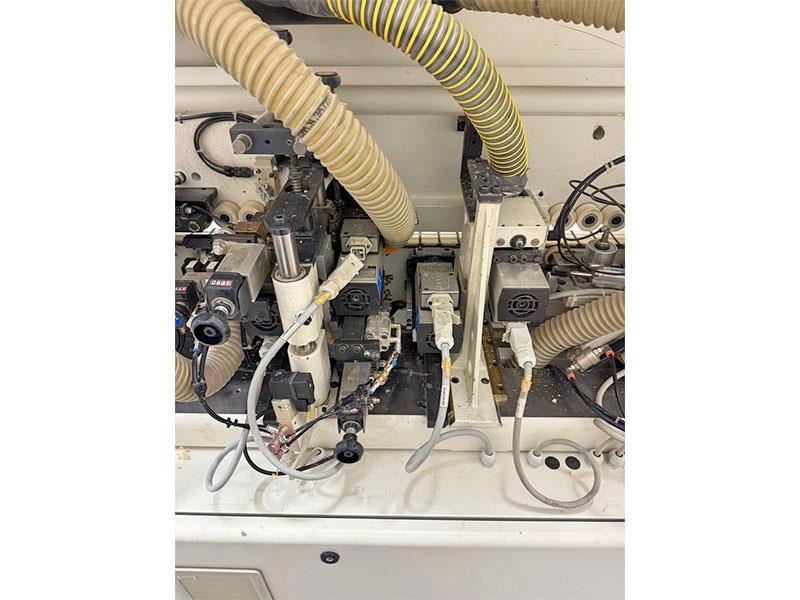

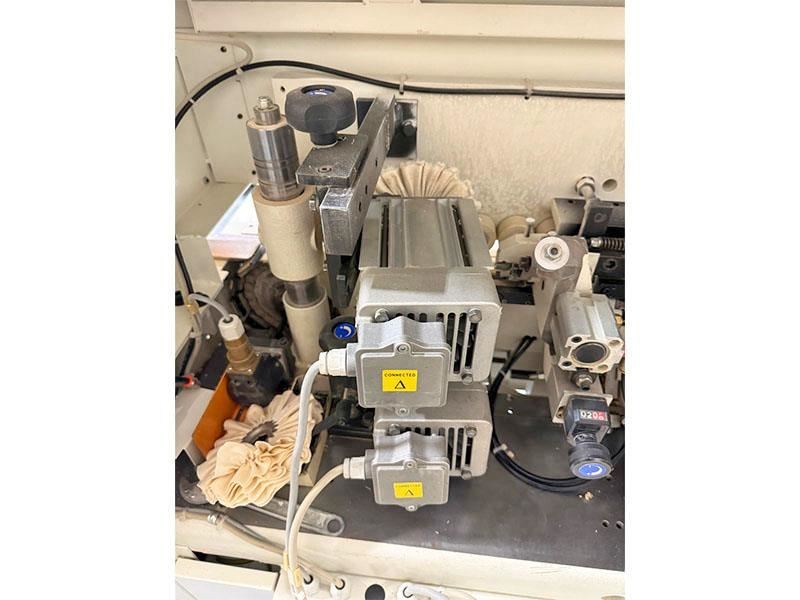

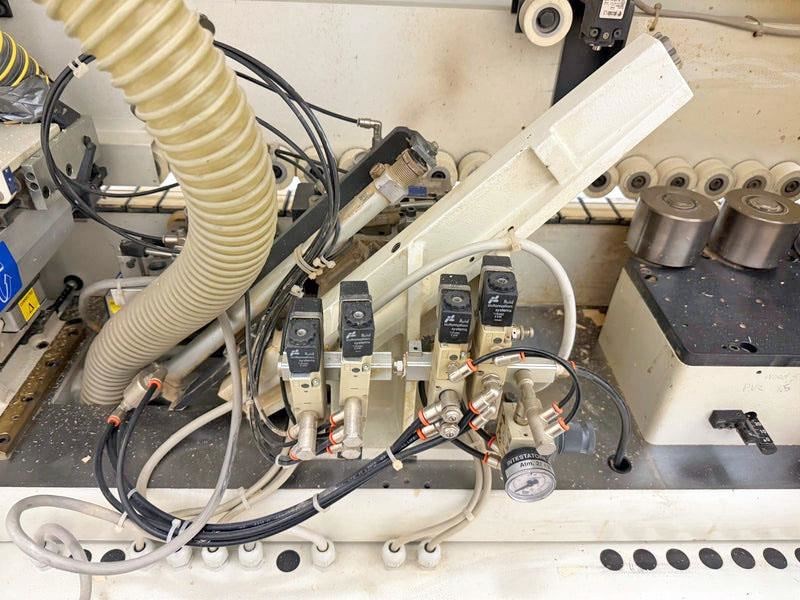

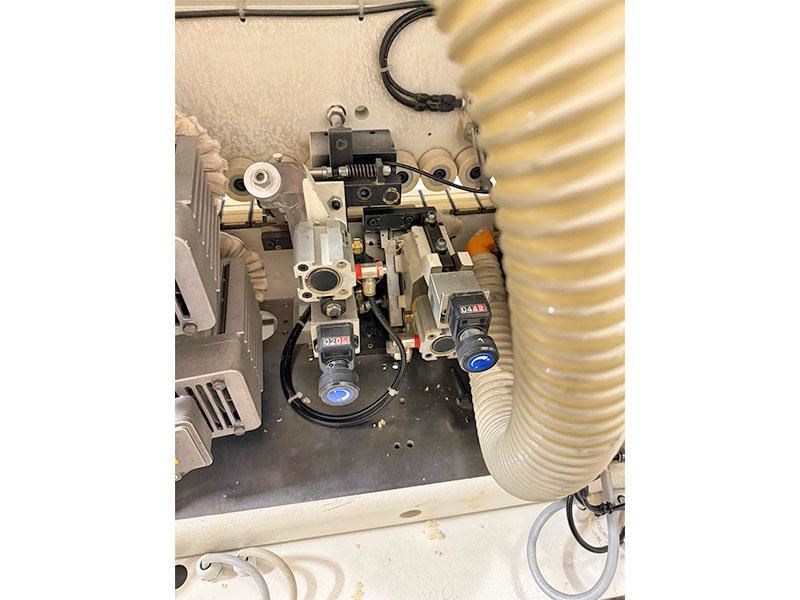

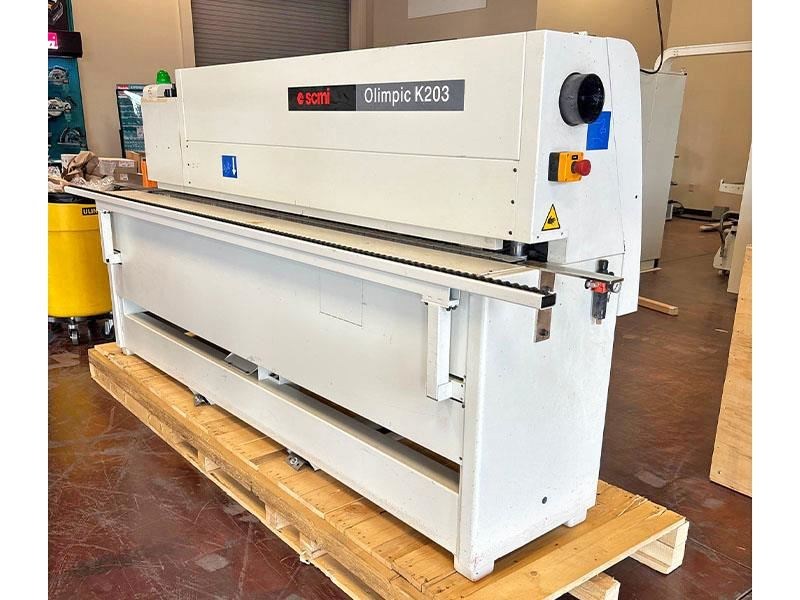

SCM - K 203 F: Edgebander0.4 to 5 mm Max. edge cap. for strip feeding; 1/8" (3 mm) for coil feeding; 60 mm min. panel width; 160 mm min. panel length; panel thickness: 10 - 50 mm. Equipped with: -- Teflon coated glue pot (heat-up time 10 - 15 min.); automatic strip &coil feed magazine; 3 mm cap. guillotine; 3-roll pressure unit w/pneumatic control.Workstations -- Double motor front & rear-end trim mounted on: THK Guideways (0.4 HP - 12,000 RPM motor ea.); tilts 0° - 15° from the control panel with: (2) Preset positions. -- Top & Bottom flush & bevel trims with: Quick release mount & plug-in motors for quick tooling changes; 0.7 HP - 12.000 RPM motor ea.; bevels 0° - 15° with: Precision digital indicators for quick setup. -- Top & Bottom scraping unit with: Pneumatic positioning from the control panel; Top & Bottom buffing unit, 0.25 HP - 2,800 RPM motors. -- 36 FPM Fixed feed speed; 0.75 HP feed drive.Includes Microprocessor for line control (store up to 50 preset programs); control panel at eye level for ease of programming; full cover sound enclosure.Features. Mechanical digital readouts for setup adjustments; frequency inverter; outboard panel support.
