Description:

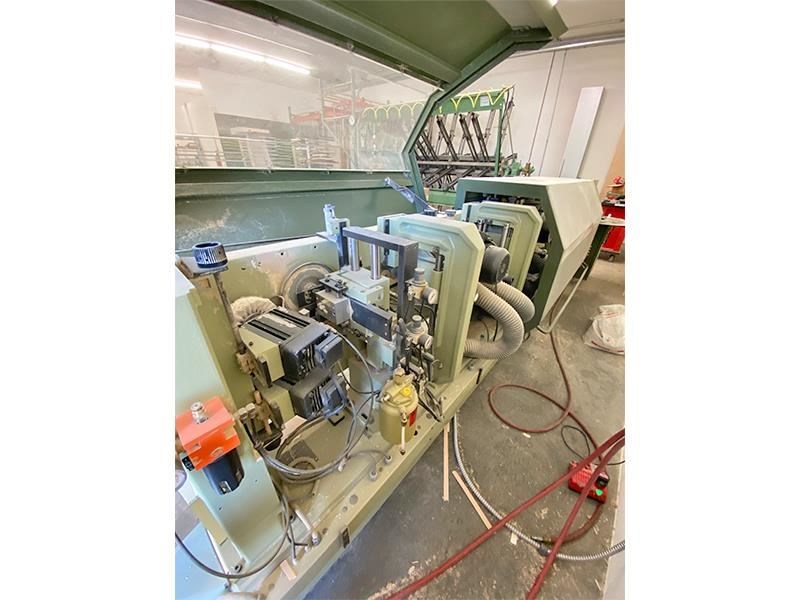

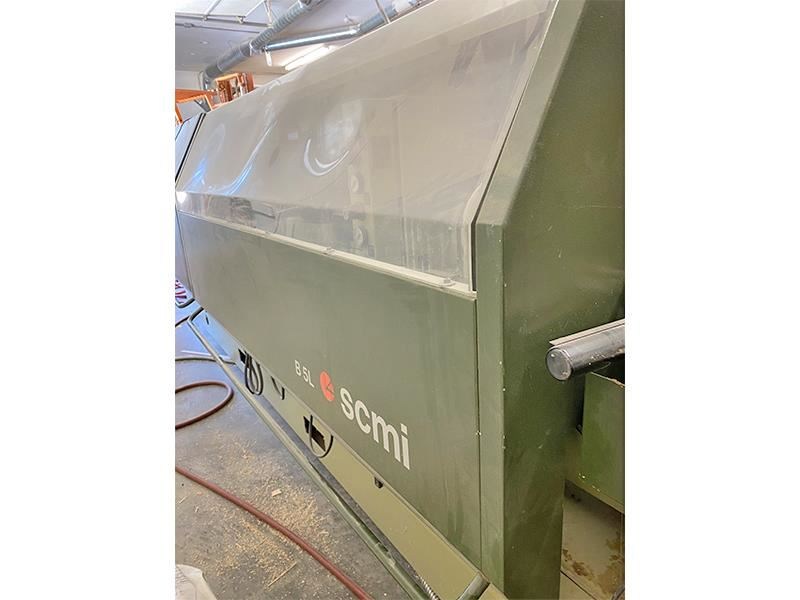

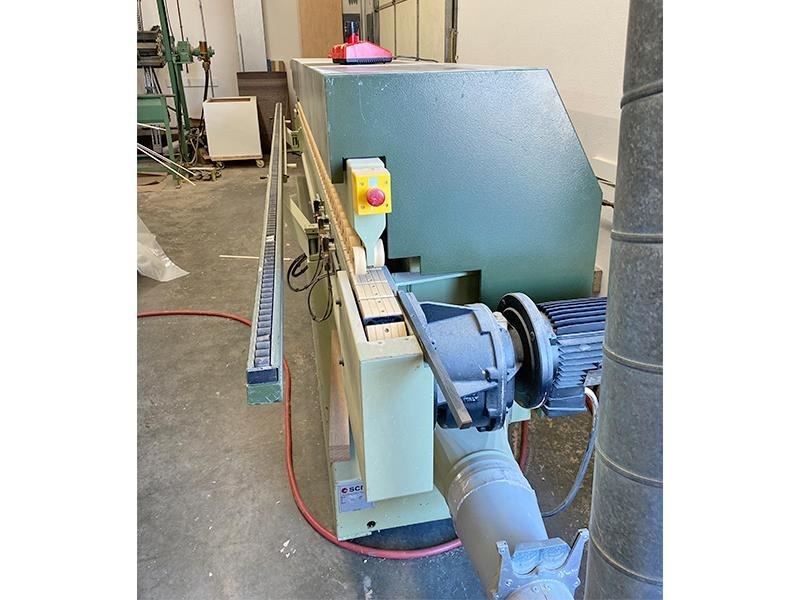

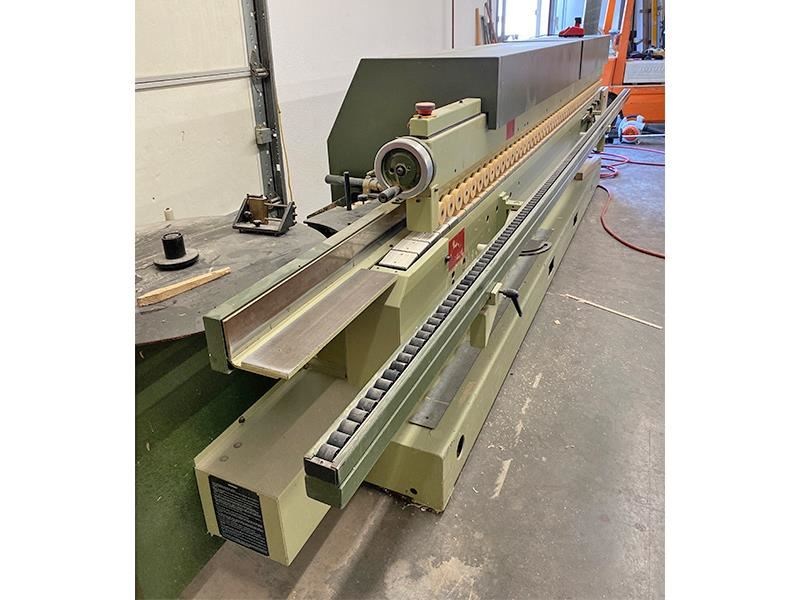

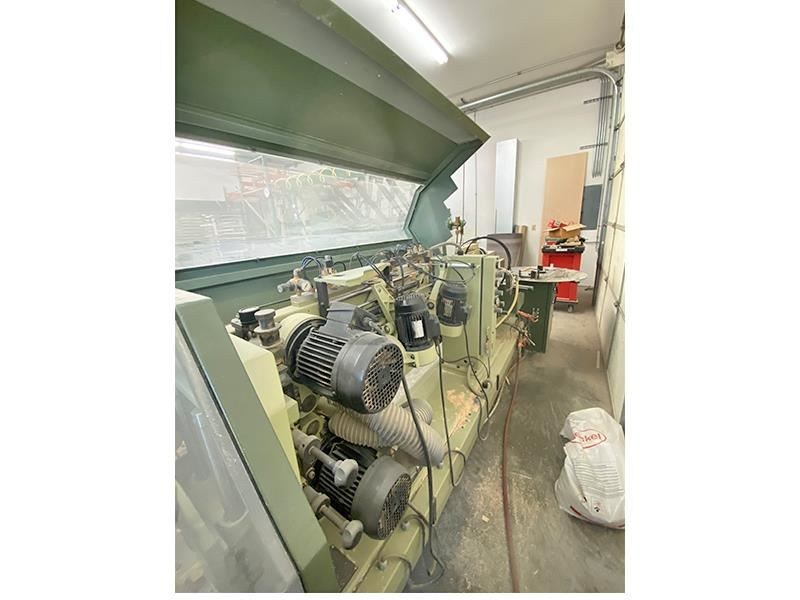

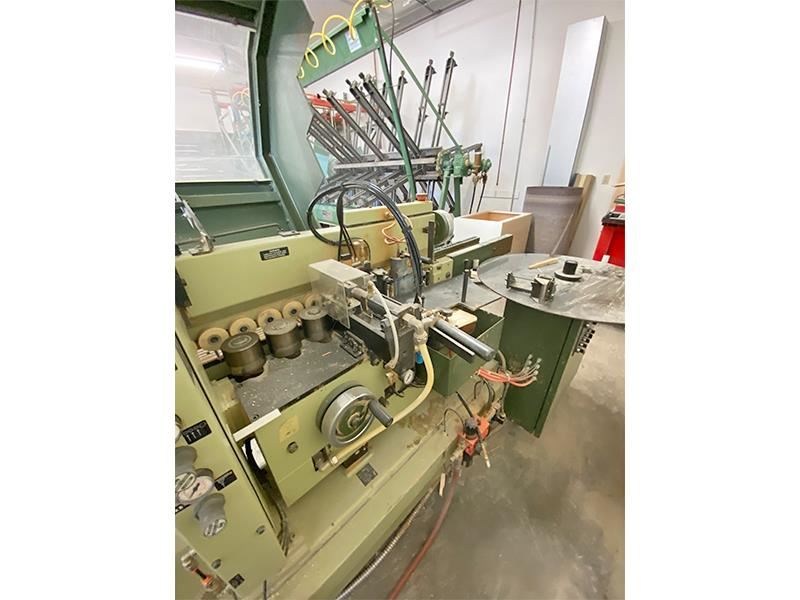

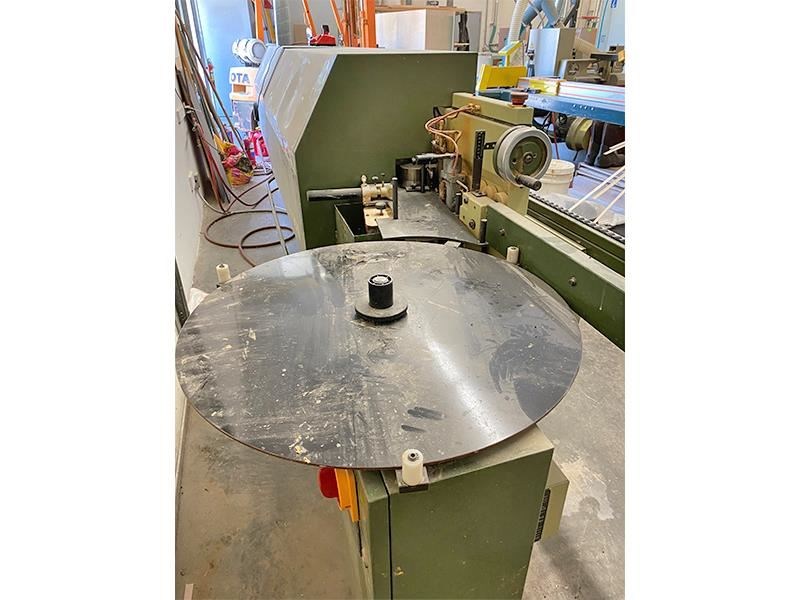

SCM - B5L: Edgebander3/4" Edge thickness cap.; panel thickness 7/16" - 2-5/16"; min. panel width 2-1/2"; min. length 6". Equipped with: -- Pre-heated infeed fence; automatic feed magazine for strip or coil stock; glue pot unit with dual thermostat; 3 mm PVC cap. guillotine; (1) large driven & (4) idle roller pressure rollers; gluing unit and pressure section tilt 0° to 6°. Workstations -- Double motor end trim; tilt: 0° to 15°; 1 HP - 8,500 RPM motors. -- Top & Bottom trimming; bevels 0° - 45°; 3-1/2 HP - 12,000 RPM motors. -- Top & Bottom Fine/Radius Trimming: Tilts 0° - 45°; 2-1/2 HP - 12,000 RPM motors. -- Top & Bottom buffing; 0.5 HP - 3,000 RPM motors. -- Dual feed speed: 32 & 48 FPM with: 3-1/2/5-1/2 HP feed drive. Complete with: Sound enclosure; outboard panel support; used tooling.
