Sanders For Sale

SCM Sandya 5 Wide Belt Thickness Sander (Model 5 RCS 110)43" width cap, Drum, Combination headHead configuration1ST Head : Contact roll, 5-1/2″ dia., 25 HP motor;2nd Head: Combination head, rubber covered contact roll, 5-1/2″ dia., and 2″ wide finishing platen for veneer, 18 HP motor.Specifications -- 43″ x 85″ or 103″ Abrasive belts with electronic tracking & pneumatic belt tensioning, -- Pneumatic exclusion of all contact rolls. -- Conveyor belt feed with variable feed speed, 10 – 60 FPM, 3 HP feed motor, Equipped with & Features: -- Automatic part thickness adjustment, -- Motorized thickness opening with LED readout, -- 0″ – 6-1/4″ via (4) precision conveyor bed jacks. -- In feed & out feed spring loaded rubber covered hold down rolls on all heads, -- Motor load meters -- In feed and out feed conveyor extensions. -- Automatic advancement carpet -- Grooved rubber precision rollers Aspiration dust fans -- Emergency device to save hands while pieces in feedingMore info -- Dimensions 77″ x 64″ x 92″ Weight 1210 kG - Specifications, Dimensions & Weight data are to the best of our knowledge.

SCM UNO CS WIDE BELT SANDER37" Wide cap., 1-Head machine;Specifications: -- Combination head with 4" dia. 85 shore grooved rubber contact drum and 2" wide finishing platen; -- 18 HP motor; 37" x 60" abrasive belt size; 0.87 HP 2-speed feed - 15 & 30 FPM. -- Powered raise and lower w/ LED digital readout; 6-1/4" max. thickness cap., 12-1/2 min. material length. -- Includes: 5-1/2" dia. dust outlet, infeed, and outfeed hold-down roller and load meter.

Belt size 43” x 85” (2) six inch dust ports 1st head 24 HP 230 2nd head 18 HP 230 Fiest head contact drum Second head combination with finish platen Feed rate 3 to 68 feet per minute Weight 4550 lbs 230 volt 3-phase

SCMI Sandya Uno 37" Wide Belt Sander

Mini Max Sander 24” width Single head 240 volt 3-phase

Combination Head Motor HP 18 HP Motor Type Single Speed Abrasive Belt Speed 18 mps Drum Size 120 mm Drum Type 85 Sh Rubber Platen Size 50 mm Abrasive Belt Length 60" 1st Working Unit Working Width 950 mm Number of Heads Available 1 Feed Motor .7 HP Feed Speed 15 or 30 fpm Maximum Work Piece Thickness 160 mm Minimum Work Piece Length 12.5" Abrasive Belt Size 37" X 60" Compressed Air Requirements 6 Bar (88 PSI) Dust Outlets 1 outlet @ 140 mm Exhaust Requirements 900 CFM Power Requirements 54 amps @ 230V Three Phase

SCMI 1998 Drum Sander

53” wide vacuum feed belt 48” load space (approx.) Belt size 53" X 102" 1st head rubber contact 29 kW, 460V, 3 phase 2nd head combination 21.4 kW, 460V, 3 phase 3rd head platen 18.5 kW, 220/380V, 3 phase 4th head panel cleaning felt type head 1.74 kW, 460V, 3 phase 5th Air cleaning heads Variable speed feed motor/gear box assembly Free-standing operator/electrical control cabinet Dust manifold included

SHENG-SHING - SDM-15 ...Wide Belt Sander (Open Ended)15" Single Head Wide Belt Sander with open end for up to 30 " capacity. -- Sanding Head: 15" Wide (30" cap. with 2-pass); 8" Helically Grooved Rubber Covered Contact Roll with 7.5 HP Drive. -- Features: 0" - 6" Part thickness cap., 2-speed conveyor feed 12 or 16 FPM; 16" x 48" Abrasive belts with air tensioning, pneumatic abrasive belt tracking.

SHENG-SHING - SDM-25, ...25" Wide Belt Sander1-Head; 24" width cap.; rubber-covered contact roll; approx. 10 HP motor. -- Abrasive belt size 25" x 48" with: Air tensioning & electronic abrasive belt tracking. -- 5-1/2" Max. height opening with: Manual raise & lower; variable feed speed drive. -- Complete with: Magnetic controls & dust outlet.

SHOP FOX W1678 Heavy Duty 26" 2-Head Drum SanderSpecifications: -- Heavy Duty 26" 2-Head Drum Sander. -- 24" Wide thick conveyor belt, similar to the ones used with Wide Belt Sanders. -- (2) drums 6" x 27-3/4". -- Enclosed fabricated steel base with easy access doors. -- 5 HP Single-phase motor that drives both sanding drums. -- 1st Head for coarse; 2nd head for fine sanding. -- Independent adjustment on both heads. -- Variable Speed conveyor , 0.25 HP feed drive. -- 0" - 4-1/4" Thickness cap. with manual hand wheel adjustment. -- (2) Each rubber covered infeed & outfeed rollers. -- (2) Dust outlets and push button magnetic controls.

STATE B-4 OSCILLATING SPINDLE SANDER 1.5 HP Motor with manual switch, (9) spindles from 1/4" DIA to 4" DIA., 1,725 RPM spindle rotation, 20" x 24" table tilts 15° up and 45° down, table height 40". Also includes work light

STATE - B-4, ...Oscillating Spindle SanderSpecificationsTilting table design with pedestal floor mount.Table size: 20" x 24".Table height: 40".Table tilt: 15° Up; 45° down.Spindle speed: 1,725 RPM.Vertical oscillation: 1-5/8".Oscillations/Min: 90.Lubrication: Oil bath splash. -- Heavy-Duty 1/2 HP motor; maintenance free; 1,725 RPM; TENV totally enclosed non-vented motor; rated for continuous operation; assuring long term dependable service. -- Safe operator controls; magnetic motor starter with overload protection for save installation.All controls mounted for operator convenience. -- Operator friendly handwheel tilting Engineered worm gear design allows table to be tilted 15° up & 45° down relative to spindle.Easy-to-read scale allows for accurate tilt determination before engaging locking device. A tapered pin locks the table during horizontal sanding operations. -- Safety features: Magnetic motor starter with overload protection; safety labels; well-placed ergonomic controls; 3-throat rings to minimize table-to-spindle clearance; POSITIV-LOK spindles provide safe & quick means of changing spindles. -- Recently cleaned, checked; electrical contacts cleaned; machine partially disassembled cleaned; reassembled & tightened; oil sight glass replaced.Weight: 280 Lbs.

STATE D-30 DISC SANDERDynamically balanced 30" steel disc.Commercial duty direct drive 5 HP motor.Heavy cast iron 14" x 38" table w/miter gauge slot.Easy precise rack and pinion tilting of the work table with 45° down and 30° up.Motorized Rack and pinion adjustment of the table rise & fall. Sanding station is mounted to (2) 3-1/2" heavy columns.Heavy bolt-down cast iron base.

STEINEMANN OSUS NOVA 160/6 K-FS/NS-OPTIMAT Top and Bottom Calibrating Sander(6) heads consisting in 2 machines, first machine top/bottom opposed head. Secoind machine (4) head with Combi and finishing platenFeatured: -- 2-Head K, (1) top & (1) bottom; both heads directly opposed. for calibrating -- (4) head FS/NS top/bottom first Combi head, second finishing platenSpecifications:First machine Calibrating Sander: -- Top/bottom opposed single head -- Working width 1,600 mm (63") both heads 11" dia. steel contact roll -- Thickness capacity 3 - 150 mm ( 1/8" - 5.9") -- Working height (passline) 1400 mm (55") -- Cutting speed on K head 34 M/sec. (6,667 SFM) -- Tolerance within the board +/- 0,075 mm (+/- 0,003") -- 100 HP motor each head. -- 63" x 103" Abrasive belt size. (to be confirmed) -- Air jet abrasive belt tracking. -- Variable feed speed 7 - 43 M/min. (24' -138"/min.), 20 HP feed motor,. -- Control panel for this machine only Second Machine Finishing Sander: -- Top/bottom (2) head each as Combination drum/platen and finishing platen -- Working width 1,600 mm (63") both heads 11" dia. steel contact roll -- Thickness capacity 3 - 150 mm ( 1/8" - 5.9") -- Working height (passline) 1400 mm (55") -- Cutting speed on FS head 22 M/sec. (4,330 SFM) -- Cutting speed on NS head 22M/sec. (4,330 SFM) -- Tolerance within the board +/- 0,075 mm (+/- 0,003") -- No motor installed -- 63" x 103" Abrasive belt size. (to be confirmed) -- Air jet abrasive belt tracking. -- Variable feed speed 7 - 43 M/min. (24' -138"/min.), 20 HP feed motor,. -- Control panel for this machine Not included: -- infeed and outfeed conveyor -- Conveyor between the machine -- “all the control wiring goes into a cabinet that is separate on each machine. That is just the wiring for the sensors and solenoids for braking and belt tracking stuff. There are no motor controls with these so there are no starters included. The 2 head comes with (2) 150 HP motors and the 4 head has no motors on it. In order to make these operational you would need a PLC and HMI to run the controls and motor starters and would need to buy motor controls

SUPERBRUSH 13" Combination Brush/Drum Sander: -- SUPERBRUSH applications include, but are not limited to: White wood sanding, de-nibbing, sealer, and primer sanding applications, as well as UV roughing and reclamation projects. De-burring, graining, and polishing of steel, stainless steel polishing and aluminum finishing and solid surface materials. These sanders are well suited to shutter sanding, de-glossing and de-stressing. It can also be equipped with an optional sanding drum for surface sanding. -- 13" Sanding width, 9" min. part length and 4" max. thickness (varies with drum/brush style), or as thin as 1/32", 6" to 8" Typical Brush diameter; driven by a 1-3/4 HP motor, 3/32" per turn height adjustment, depth gauge included. Dimensions: 35"D x 42"W x 44"H. -- Rubberized conveyor belt grips and pulls parts through the sander. via 0 -10 FPM variable speed feed system. 1-1/2" Dia., rubber covered, infeed and outfeed rollers provide tension to support the belt over reinforced steel conveyor bed. Bristle contact gauge (depth gauge) included. -- RPM Gauge displays brush speed, variable 400 - 1,200 RPM. -- Dust Hood: (1) 4″ Port, Hinged At Back, 600 CFM min. recommended. -- Machine Design: Cast stand, zinc-plated steel bed, centerless ground column tubes. Ball bearings are sealed and permanently lubricated. -- Machine comes with one (1) drum or brush of choice based on application.Accessories: Casters, Infeed-Outfeed tables & DRO (Digital Depth Guage).Shipping Dimensions: (L x W x H): 34-½″ x 45-½″ x 46-½″. Shipping Weight: 300 Lbs (approx.).

SUPERBRUSH 24 Brush Sander from SUPERMAX TOOLS:SUPERBRUSH applications include but are not limited to: White wood sanding, de-nibbing, sealer sanding, primer sanding, UV roughing, metal graining/straight lining, metal de-burring, sanding/polishing solid surface material, scuff sanding, shutter sanding, de-glossing and de-stressing.Specifications: -- 24" Sanding width and 11" max. material thickness (height) and min. 1/32" with manual thickness adjustment; 5 HP main motor. -- Rubberized conveyor belt grips and pulls parts through the sander at 0 - 15 FPM. -- 1-1/2" Dia., rubber covered, infeed and outfeed rollers provide tension to support the belt over reinforced steel conveyor bed. -- Bristle contact gauge (depth gauge) included. -- RPM Gauge displays brush speed, variable 400 - 1,200 RPM. Machine Structure: -- Cast stand, zinc-plated steel bed, centerless ground column tubes. -- Ball bearings are sealed and permanently lubricated.

SUPERBRUSH 24 x 2 Double Brush Sander.SUPERBRUSH applications include, but are not limited to: White wood sanding, de-nibbing, sealer, and primer sanding applications, as well as UV roughing and reclamation projects. De-burring, graining, and polishing of steel, stainless steel polishing and aluminum finishing and solid surface materials. These sanders are well suited to shutter sanding, de-glossing and de-stressing.24" Sanding width, 11" min. part length and 4" max. thickness; 5/8" typical brush dia., 1-1/4" to 3" Typical Brush length; 3/32" per turn height adjustment, depth gauge included.Drive Motor: (2) 7.5 HP MotorsRubberized conveyor belt grips and pulls parts through the sander. via 0 -30 FPM variable speed feed system1-1/2" Dia., rubber covered, infeed and outfeed rollers provide tension to support the belt over reinforced steel conveyor bed.Bristle contact gauge (depth gauge) included.RPM Gauge displays brush speed, variable 400 - 1,200 RPM.Hinged Dust Hood with (4), 4″ vacuum ports, 1800 CFM min.Machine Design: Cast stand, zinc-plated steel bed, centerless ground column tubes.Ball bearings are sealed and permanently lubricated.Accessories: Casters, Infeed-Outfeed tables & DRO (Digital Depth Guage).

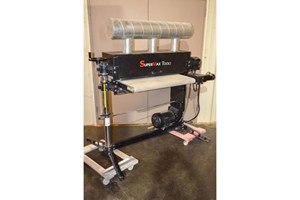

SUPERBRUSH 36 x 2 Dual Brush Sander, (2) 7.5 HP Drive Motors.SUPERBRUSH applications include, but are not limited to: White wood sanding, de-nibbing, sealer, and primer sanding applications, as well as UV roughing and reclamation projects. De-burring, graining, and polishing of steel, stainless steel polishing and aluminum finishing and solid surface materials. These sanders are well suited to shutter sanding, de-glossing and de-stressing.36" Sanding width, 11" min. part length and 4" max. thickness; 1-1/2" to 3" Typical Brush length; 3/32" per turn height adjustment, depth gauge included. Sanding heads 9-1/2" diameter. (2) 7-1/2 HP main drive motors provide the ability to remove stock, and smooth the material in one pass.Rubberized conveyor belt grips and pulls parts through the sander. via 0 -15 FPM variable speed feed system1-1/2" Dia., rubber covered, infeed and outfeed rollers provide tension to support the belt over reinforced steel conveyor bed.Bristle contact gauge (depth gauge) included.RPM Gauge displays brush speed, variable 400 - 1,200 RPM.Hinged Dust Hood with (6) 4" vacuum ports, min. 1,800 CFM capacity Dust collection recommended.Machine Design: Cast stand, zinc-plated steel bed, centerless ground column tubes.Ball bearings are sealed and permanently lubricated.Accessories: Casters, Infeed-Outfeed tables & DRO (Digital Depth Guage).

SUPERBRUSH 49 Single Brush Sander, 7.5 HP Main Motor.SUPERBRUSH applications include, but are not limited to: White wood sanding, de-nibbing, sealer, and primer sanding applications , as well as UV roughing and reclamation projects. Deburring, graining, and polishing of steel, stainless steel polishing and aluminum finishing and solid surface materials. These sander are well suited to shutter sanding, de-glossing and de-stressing.49" Sanding width, 10" min. part length and 11" max. thickness (varies with brush style); 9" - 11" typical brush dia., 1-1/4" to 3" Typical Brush length; 3/32" per turn height adjustment, depth gauge included.Rubberized conveyor belt grips and pulls parts through the sander. via 0 -15 FPM variable speed feed system1-1/2" Dia., rubber covered, infeed and outfeed rollers provide tension to support the belt over reinforced steel conveyor bed.Bristle contact gauge (depth gauge) included.RPM Gauge displays brush speed, variable 400 - 1,200 RPM.Hinged Dust Hood with (3) 4" vacuum ports, min. 1,800 CFM capacity Dust collection recommended.Machine Design: Cast stand, zinc-plated steel bed, centerless ground column tubes.Ball bearings are sealed and permanently lubricated.Includes: (1) Brush and Caster Set
