Woodworking Equipment For Sale

SELCO - EB 120: CNC Frontload Panel SawSpecifications -- 14.4' 4,400 mm) Overall cutting length & 4.7" (120 mm) max. saw blade projection; 18 HP main & 2.4 HP scoring motor; modular roller rear machine table; side aligning device; (2) longitudinal aligners to accurately position the book of panels on the rear saw table prior to cutting. -- Variable saw carriage travel speed: 0 - 328 FPM; electronically controlled overhead program fence; rack & pinion driven; forward speed 196 FPM; return speed 196 FPM.Equipped with: -- (6) Clamps (open up to 122 mm), of which (3) are closely spaced in crosscut area and the other (3) are at equal distance in rip cut area. -- AC Servo Motor drives on both: Saw carriage and pusher fence. Operator & Machine Control: -- The front-end controlled by PC: Color monitor integrated into a high-tech-look Operator control panel (which displays cutting dimensions and patterns); panel has virtually unlimited: Cutting pattern storage capacity; self-diagnostic. Data can be input by keyboard or downloaded directly from the office PC. Complete with: -- 2,300 mm Long crosscut fence stroke (side to side); (2) side/crosscut aligners. -- (3) Front mounted air float tables with: Rounded front for moving panel from rip to crosscut position (24" x 79" each). -- Rear of machine partially enclosed for safety.

SELCO EB 90 CNC Front Load Panel SawSpecifications: -- 173" Overall cutting length, 173" pull back; 3.3" (85 mm) max. saw blade projection, 12 HP (9 kW) main saw motor, 2.4 HP (1.8 kW) scoring motor. -- Modular roller rear machine table, side aligning device, and (2) longitudinal aligners to accurately position book of panels on rear saw table prior to cutting. Equipped with: -- Variable saw carriage travel speed from 0 - 197 FPM (0 - 60 MPM), return speed of 197 FPM (60 MPM). -- Electronically controlled overhead program fence, rack & pinion driven, forward speed of 0 - 197 FPM (0 - 60 MPM), return speed of 197 FPM (60 MPM). -- (9) Clamps (open up to 85 mm); AC Servo motor drives on both saw carriage and pusher fence.CNi "NC 400 Plus" control with: Color monitor and "Assist Line" w/LED readout (displays cutting dimensions & patterns, virtually unlimited storage capacity of cutting patterns & different dimensions. "Assist Line" with: Real-time graphics, self-diagnostic, data input by keyboard or possible direct downloading from an office PC. Complete with: -- 90" (2,300 mm) Long crosscut fence (front-to-back), (2) side/crosscut aligners, "Quick Change" saw blade replacement system. -- (4) Front mounted air float tables with rounded front 24" x 79" for moving panel from rip to crosscut position. -- Includes: -- Rear roller module support rails; rear of machine enclosed for safety.

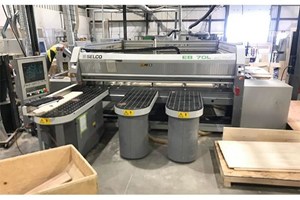

SELCO EB 70 L CNC Front-Load Horizontal Beam CNC Panel SawSpecifications & features: -- 126" (3,200 mm) Overall cutting length, 2.75" cutting height (80 mm saw blade projection), 10 HP main & 3 HP scoring motor. -- Modular roller rear machine table, side aligning device for squaring ripped strips out to 59". -- Variable saw carriage travel speed from 0 - 164 FPM (0 - 50 MPM). -- Electronically controlled overhead program fence, rack & pinion driven, forward speed of 80 FPM, 131 FPM return speed.Equipped with: -- (6) Clamps (open up to 70 mm - 2-3/4"), (3) are closely spaced in crosscut area & (4) are at equal distance in rip cut area; AC Servo motor drives on both saw carriage & pusher fence. -- PC Controller with: Graphics color monitor & "Assist Line"; LED readout integrated into "high tech" look operator control panel (displays cutting dimensions & patterns), (400) cutting patterns with (50) different dimensions for ea. pattern, self-diagnostic. Machine features: -- 1,500 mm (59") Long crosscut fence (front-to-back), (1) side/crosscut aligner. -- (1) Front mounted air flotation table in the crosscut area and (2) front mounted air flotation tables with patented rounded front for moving panel from rip to crosscut position (24" x 59" each). -- 36" Working height; rear of machine partially enclosed for safety.

Ball Milling machine.

SHENG-SHING - SDM-25, ...25" Wide Belt Sander1-Head; 24" width cap.; rubber-covered contact roll; approx. 10 HP motor. -- Abrasive belt size 25" x 48" with: Air tensioning & electronic abrasive belt tracking. -- 5-1/2" Max. height opening with: Manual raise & lower; variable feed speed drive. -- Complete with: Magnetic controls & dust outlet.

SHENG-SHING - SDM-15 ...Wide Belt Sander (Open Ended)15" Single Head Wide Belt Sander with open end for up to 30 " capacity. -- Sanding Head: 15" Wide (30" cap. with 2-pass); 8" Helically Grooved Rubber Covered Contact Roll with 7.5 HP Drive. -- Features: 0" - 6" Part thickness cap., 2-speed conveyor feed 12 or 16 FPM; 16" x 48" Abrasive belts with air tensioning, pneumatic abrasive belt tracking.

--This machine is in an Auction on exfactoryauctions.com-- SHODA MAXXIM 5' x 10' 2-Head CNC Router, with Vacuum Pump – Seller states that machine was run (1) shift from 2002 - 2006, then only a few days per year since! Specifications: Table size 63” x 122” x 29” H, with 3/4” Thick Top. Travels: X-Axis 133", Y-Axis 73", & Z-Axis 10". Max. machining feed speed 590 IPM. Max. positioning speed for X & Y-Axes 1,180 IPM. Equipped with: Moving single-zone vacuum table, with Extra-hard phenolic surface, Front-to-back configuration. (2) 12 kW (16 HP) - 18,000 RPM BT-30 Air-cooled electro-spindle, with Variable spindle speeds 3,000 - 18,000 RPM, AC Inverter, Dynamic spindle braking, Air/Oil mist lubrication. 16-Position Carousel-type automatic tool changer. Features: All Axes with Extra-large precision contour linear guideways. Closed loop AC Servo drives & Precision ground ball screws. Extended extra heavy-duty bridge for full 5' x 10 table coverage. Centralized lubrication system for all spindle & roller bearings, ball screws & guides. Operator Control: FANUC "SERIES 21i-M" Mobile CNC Control, with 10.4" Display, RS-232 Port, PCMCIA Slot, (3) Axes Simultaneous control, Manual pulse generator, Inch & Metric operation, Feed rate & Spindle speed override, Helical interpolation, Full cutter compensation, Background editing features, EIO/ISO recognition. Foot pedal control. Complete with: 2001 TRAVAINI "1-501V1A-460" 40 HP Vacuum Pump, S/N S1433, with Hour meter reading 17,003 Hrs. (10) Toolholders. Dust Manifold. Dimensions without Safety Rails: 202" x 155" x 110" H. Dimensions of Vacuum Pump: 82" x 36" x 65" H.

Shopbot CNC Router

2022 ShopBot PRS5 Alpha ATC CNC Router Features include a 5 HP Automatic Tool Change Spindle, 9-Position Tool Changer, ISO30 Tool Holders with ER32 Collets, and a 4’ x 8’ Table with Actual Movement Dimensions of 49” x 103”. The table is vacuum hold-down capable. • Purchased new in January 2022 • Lightly used for one year and unused for the past year • Currently in its original location • Excellent Condition

SHOP FOX W1678 Heavy Duty 26" 2-Head Drum SanderSpecifications: -- Heavy Duty 26" 2-Head Drum Sander. -- 24" Wide thick conveyor belt, similar to the ones used with Wide Belt Sanders. -- (2) drums 6" x 27-3/4". -- Enclosed fabricated steel base with easy access doors. -- 5 HP Single-phase motor that drives both sanding drums. -- 1st Head for coarse; 2nd head for fine sanding. -- Independent adjustment on both heads. -- Variable Speed conveyor , 0.25 HP feed drive. -- 0" - 4-1/4" Thickness cap. with manual hand wheel adjustment. -- (2) Each rubber covered infeed & outfeed rollers. -- (2) Dust outlets and push button magnetic controls.

1999 Shun Kuang KP6-220S 6 Head Moulder S/N 990536

2002 Shun Kuang Machine KP6=230S 6 Head Moulder S/N 020705

SICOTTE - J 3H-7, ...Vertical Boring Machine24" x 84" Table size. Equipped with: -- (5) 1.5 HP Motors mounted on 24" long arms with motor starter and overload relay. -- (5) 1-1/2" Dia. spindles with spring collet 1/2" capacity. -- (2) Spring loaded holddowns.Features: -- 0" - 8" Vertical table feed, hydraulically operated; variable feed and table travel adjustable from front of machine. -- 3 HP Hydraulic pump motor with reservoir. Complete with: -- Electrical Control System with separate motor controls. -- Single or continuous stroke. -- Manual and automatic cycle. -- Foot pedal actuation. -- (1) Safety guard.

SICOTTE - T 1050, ...Horizontal Boring Machine 2-Spindle Horizontal Borer.Equipped with: -- 1 HP Motor, timing belt drives with motor starter. -- (2) Horizontal spindles, 2" dia. with Jacobs® Chuck, 0 - 1/2" capacity, turning at 3,450 RPM.Features: -- 4" Boring head stroke with air/oil system and adjustable feed speed. -- Spindle mount on dovetail beam with min. 2" to a max. 11-3/4" center distance.Complete with: -- (2) Pneumatic hold-downs & 12" x 16" wooden table size.

SICOTTE J 20-5 Horizontal Boring Machine:12" x 60" Steel table with 2-1/2" manual up-and-down adjustment. -- (4) Drive groups with 1-1/2 HP - 3,500 RPM drive motor each, timing belt & pulley drive. -- (7) Spindles, 2" in dia. and with Jacob chuck 0 - 1/2" capacity. -- Spindle feed powered by 3 HP hydraulic pump, 0" - 6" stroke, variable speed up to (30) strokes/Min.Complete with: -- (3) Pneumatic holddowns, -- Cycle timer 0-30 sec., -- Automatic/manual cycle with foot pedal switch, -- Sinvle or continous stroke -- Emergency stop.

SICOTTE J3H-A-6 Angular Vertical Boring Machine24" x 72" Table size Angular boring machine for chair seat -- (6) Hydraulic self feed spindle having 3 7/8" adjustable stroke and variable speed feed, 1 HP motor, jacob chuck 0 to 1/2" capacity, mounted on 24"long arms with timing belt drive. -- The spindle can be set at coumpônd angle angle with 30 deg front to back and 15 deg right top left. -- (2) Air holddowns. -- 0" - 8" Vertical table feed hydraulically operated that can be used when you drill vetically without angle, , variable feed and table travel adjustable from front of machine, -- 3 HP hydraulic pump motor with reservoir. Complete with: -- Electrical control system with separate motor controls, -- Single or continous stroke, -- Manual and automatic cycle and foot pedal actuation, -- Selector switch to activate each spindle manually . -- This machine is design for chair seat boring or any other application where angular holes are required.

SICOTTE J 20-5 Horizontal Boring Machine:12" x 60" Steel table with 2-1/2" manual up-and-down adjustment. -- (3) Drive groups with 1 HP - 3,500 RPM drive motor each, timing belt & pulley drive. -- (1) Spindles, 2" in dia. and with Jacob chuck 0 - 1/2" capacity. -- Spindle feed powered by 3 HP hydraulic pump, 0" - 6" stroke, variable speed up to (30) strokes/Min.Complete with: -- (3) Pneumatic holddowns, -- Cycle timer 0-30 sec., -- Automatic/manual cycle with foot pedal switch, -- Sinvle or continous stroke -- Emergency stop.

SILVER SJK-21 Horizontal & Vertical Boring on 32 mm centers.(21) Spindles in line on one boring head (aluminum alloy single block), drills vertically from top & horizontally from rear. -- Features pneumatic adjustment for horizontal boring.Specifications: -- Max drill dia. is 1.38" (35 mm); Max panel thickness is 2.36" (60 mm); Table size 36" x 19.75" (914 x 502 mm). -- Length of cross fence is 102" (2,600 mm); length of aluminum table fences are 39" (1,000 mm) to the left and 28" (710 mm) to the right with flip stops.Equipped with: -- Depth stop adjustment, (2) holddown air cylinders, and foot pedal operation for clamping/drilling cycle. -- 2 HP - 3,600 RPM TEFC motor with thermal overload protection and low voltage controls.. -- Includes (12) Quick change chucks..

SILVER SJK-19T Line Boring MachineSingle line vertical boring machine with (19) spindles at 32 mm centers driven through a powerful 1.5 HP motor.Equipped with: -- Foot pedal controlled pneumatic boring cycle -- Adjustable boring feed speed -- Adjustable boring depth for fast changeover -- 2 Pneumatic cylinder clamp for solid hold-down to the material. -- 3 Meter long back fence for long line boring with flip stops -- (2) Positioning pins at both end of boring head to set up for longer line boring quickly -- Quick change chuck for fast changeover (19 pcs included)Specifications: -- No. of Spindles....................................................................................... 19 -- Distance between each spindle.............................................................. 32 mm -- Max Boring Depth .................................................................................. 60 mm (2.36") -- Working Table Size................................................................................ 800 x 500 mm (31.5" X 19.68") -- Table Height from Floor......................................................................... 780 mm (30.35") -- Max Boring Depth from Edge................................................................. 155 mm (6") -- Electric .................................................................................................. 220 V / 60 Cy / 3-Ph -- Machine Size (LxWxH) ........................................................................... 920 X 670 X 1490 mm (36.25" x 26.37" X 58.66") -- Net Weight ............................................................................................ 220 kgs. (484 Lbs)

SILVER - SJK-65: Construction & Line Boring Machine(4) Vertical Boring Heads; 21-spindle from bottom on 32 mm centers; (1) Horizontal Boring Head; (21) spindles on 32 mm center. -- 3" (75 mm) Max. drilling depth; (3) 4.0 HP - 3,450 RPM motors; pneumatic-hydraulic drill head advance with: Speed control with working speed or (0 - 15) cycles per min.; head height adjustment with: Mechanical digital readout; 51" x 37" working capacity. -- Equipped with: (2) Pneumatic holddown clamps; pneumatic foot pedal control.
