Description:

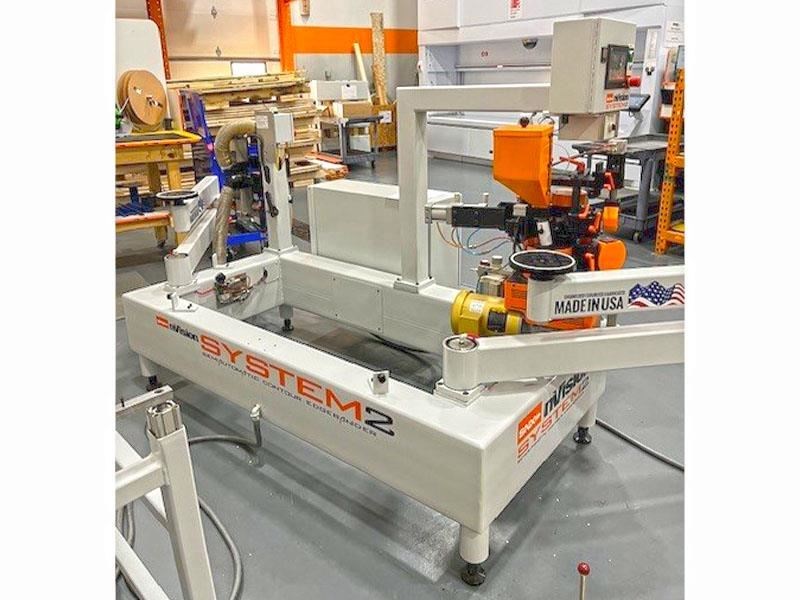

SNX - nVISION SYSTEM2 G2: Contour Edgebander + Optional Dual Telescoping Arms for simultaneous Contour Banding & Trimming -- Specifications Curved (contour) Edgebander to allow: 360° Edgebanding to contoured (shaped) panels.Edgebanding applied automatically as part is advanced past the edgebanding Workstations via turntable.Reduced learning curve/expertise for operation as Operator easily loads part to vacuum turntable, then activates the edgebanding cycle. -- Working CapacityThe "nVision" Contour Bander bands a min. material size of: 150 mm (6") dia.Max. material size: 2,400 x 2,400 mm (94" x 94"); max. material weight up to: 104.5 kG (230 Lbs).Material thickness from: 10 - 60 mm (0.4" - 2.36"); banding thickness from: 0.5 mm thin tape w/low temp adhesive - 3 mm tape. -- Radii CapacityMin. internal (inside) radius: 80 mm (3.14"); min. external (outside) radius: 30 mm (1'-18") Based on 1 mm thick edge tape. Edgebanding thickness: 1 mm; min. = R 30 mm. Edge thickness: 2 mm; min. = R 50 mm. Edge thickness: 3 mm; min. = R 80 mm. Panel thickness: 10 - 60 mm with edge thickness 1 mm. Panel thickness: 10 - 60 mm with edge thickness 2 mm. Panel thickness: 10 - 45 mm with edge thickness 3 mm.IMPORTANT: ALL min. & max. radii are affected by: Tape thickness, quality of adhesive, and edgebanding being applied. Radius size dramatically affected by adhesive temperature and quality of edge tape: Semi or rigid. -- Equipped with:(1) Thermalregulated glue pot heated via: (2) 800-Watt heating elements with electronic temperature controls; holds up to 1 kG (2.2 Lbs) granules. (2) Pressure rollers to copy the shape of the piece; automatic Guillotine for coiled material up to 3 mm (0.11") thickness & 57 mm height (1/8" - 2-1/4"). -- Features: TRIAX 3-AXIS Laser System (patented) for tighter butt joints & easy length identification with closed parts without the need for additional length measurement.Laser detects a tight radius; automatically slows the speed + resume the set speed when the detected radius has passed.Machine equipped with: Foot pedal for manual control/intervention. Motorized turntable for: Automated edgebanding application to large panels.(2) "Heavy-Duty" Articulating arms to support the parts during edgebanding & trimming; arms with large interchangeable vacuum pod to secure panels during edging and trimming.NOTE: Panels can be irregular in shape but must conform to the min. tolerances of inner & outer radii and fit within the work area. -- Complete with: Top & Bottom Trimming unit. Centralized control panel with: Simple PLC Touchscreen Interface with individual controls for all stations to enable manual feeding of panels if desired. Banding Station. Edgeband coil stand. Standard-size vacuum pod for articulated arm. 80 mm dia. (3") dust extraction outlet. Foot pedal activation/deactivation control. Larger feed roller. QC Glue tank with
