Woodworking Equipment For Sale
1451 Results Found
Diehl Model 55 Straightline Ripsaw, Completely Disassembled & Gone Through, Works Great, 15hp-3 DD Motor, 2” Dia. Arbor, 16” Blade Capacity, 1/8” to 2 ½” Cut Depth, 2hp Feed Mtr., $8,500. 843-873-2071 - 19" width of table to the right of blade & 30" to the left Table size 56" long x 45" wide 2HP Feed Motor, Adjustable speed from 55 to 110 FPM Twin Chain Drive Automatic Drip Lube Top pressure system with 6 full width rollers & 2 split rollers over blade - We just had the machine completely disassembled gone thru heavily lubricated and reassembled to manufacturers specifications. It runs fine and everything works on the machine. It is very heavy and well built american machine! This machine is made to straight line rip lumber to make glue joints for table tops etc. We used it for straight lining lumber for a flooring plant. We can load for customer.
Logosol PH 360 Moulder w/Under 50 Hrs., 4 Sets of Flooring Knives, Second Set of Cutter Heads for Straight Knives, Dust Extractor & Filtration Bags, Multi Dust Port Attachments $21,000 obo 859-802-9178
Call for Price
A&S Machinery Panel Saw Model 781 10 HP 230 Volts 3 Phase Includes Multiple Saw Blades and Sizes
Call for Price
Manufacturer specs (to be confirmed): Multi Axes, Multi Function CNC horizontal machining center. Designed to perform (4) operations to produce cabinet door panels . The 3S will size, square, shape and sand cabinet door panels. Equipped with (2) shaping spindles, (2) 12 Position tool changers, (2) sanding units and (1) sawing unit. Shaping Spindles: each has a 14 hp, 208/230V, 3 ph motor and utilizes HSK type tooling (3-Axis positioning) Tool Changers are post mounted and shaper units travel back for tool exchange. Sanding Units: Each has a 3 hp, 208.230V, 3 ph motor Variable Spindle Speed from 600 to 1500 rpm (HSK Spindles) Manual positioning on the Z axis, travels in the X-axis with the shaping spindles, Sanding Spindles tilt manually from 0Â° to 20Â° with digital read-outs. Saw Unit: 5 hp, 208/230V, 3 ph motor Designed to trim oversized panels to length prior to the shaping and sanding functions. Saw will handle up to 5" (width use) material in a single pass, multiple passes can be performed if material exceeds the 5" limit. no longer used at currently facility except for rare projects
Call for Price
Machine is no longer under power. Used only with water for pre-glued dowels Manuf specs: The Accu-Systems H-49 is a horizontal point to point bore and dowel insertion machining center. It is designed to CNC position the spindle, bore a hole, then CNC position the inserter, inject glue or water for pre glued dowels, and fire the dowel into the hole There are 2 zones standard in the base model H-49 allowing for pendulum processing. While the one part is being machined, the other zone can be loaded and queued for machining (4) quick adjustable vertical clamps Accu-Systems Drilling/Dowel Machine ready for a new home. Coming from a Kitchen Supplier. Very little use according to the seller.
ADOLF JOHN & COMPANY Model "FS IV" Automatic Guillotine with 126" Max. length cap., 3-7/8" cutting height. -- 0.5 HP motorized parallel fence, adjustable from 1" - 64", push button controlled travel with digital readout, micro-adjustment by hand wheel. -- 7" Wide hydraulic pressure beam with rack & pinion travel; 5.5 HP gear pump motor for pressure beam and knife cutting operation, approx. (2) Sec cycle time/cut; -- Complete with: (2) Palm buttons for safety. -- All Hydraulics were reconditioned in 2013, and used very little since.
AEM Model 75-430 Wide Belt Sander;Specifications: -- 2-Head, 43" wide x up to 8" thick capacity. -- 1st Head: Quiet cut style drum - 25 HP. -- 2nd Head: 5" wide finishing platen - 20 HP. -- Pneumatic belt tracking, Abrasive belt size xx" x xx". -- Variable speed feed drive motor; powered open/close. -- Motor load meters. -- Front and rear lighting. -- Includes: Belt cart with (4) unused 150 grit belts and (2) unused 120 grit belts, extra parts and manual.
AEM 370 Wide belt Sander1-Head, 37" width cap., combination sanding head; -- 4" Dia. rubberized contact roll & 2" wide polishing platen; 20 HP motor. -- Abrasive belt size 37" x 60", with air tensioning, electronic abrasive belt tracking; -- 1 HP single speed conveyor, 0" - 8" opening with (4) screw jacks. -- Double infeed & outfeed rubber covered holddown rolls. Complete with: -- Infeed conveyor extension, safety stop bar, load meter.
Call for Price
Single 37" Head Combination Head with Drum and Platen Belt Size: 37" x 75" This machine is no longer needed at the current facility. Seller says everything is in working condition.
Call for Price
AEM 501-37 Wide Belt Sander (1) Single Head 36" width cap., combination head:Head Configuration:1st Head: 6" dia. rubber covered contact roll and 1-1/2" wide finishing platen, 20 HP motor.Specifications: -- Abrasive belt size 37" x 75", with air tensioning and POSI-TRACK electronic abrasive belt tracking. -- 1.5 HP Variable feed speed motor for 15 - 45 FPM, double infeed & double outfeed rubber covered holddown rolls; -- 0" - 8" manual part thickness opening with mechanical digital readout, --(4) screw jacks for conveyor bed opening.Equipped with & Features -- Infeed conveyor extension with safety stop bar and motor load meter -- Heavy Duty endless conveyor belt, quick release outboard support. --Air operated disc brakes on main motor of positive stopping of sanding head in (4 - 7) seconds --Emergency stop functions at pinch points --Centralized control panel.
Call for Price
70' Long x 5' wide enclosed unloading conveyor 15 HP Drive Flat belt with 2-1/2" tall steel cleats Skirted sides to keep material on belt This system has been removed and is ready to load. System is designed to work behind live bottom trailers.
AES - EXTREME LINE 1325, ...Nested Base CNC Router with Loading and Unloading System:Description:4' x 8' Single-zone Stationary Aluminum Grid "MATRIX" table with Traveling "Bridge Gantry", Boring Head, ATC, and Auto Loading & Unloading SystemSpecifications: -- Working Field: X-Axis is 98.4" (2,500 mm); Y-axis is 51" (1,300 mm); Z-axis stroke is 7.8" (200 mm); max. material thickness of 5.1" (130 mm).Square grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining". -- Positioning Speed: X- & Y-Axis 2,365 IPM (60 MPM), Z-axis at 780 IPM (20 MPM).YASKAWA Brushless, high torque AC Servo motor drives control on all axes.High precision "Rack & Pinion" system in X- & Y-axis & ground ball screw Z-axis.All components ride on THK precision profile linear guideways. -- Boring Unit: HSD" Drilling Head, 3 HP (2.2 kW), variable speed from 4,500 - 8,000 RPM motor. (10) Independent vertical spindles on 32 mm centers, (6) spindles in X-axis & (4) spindles in Y-axis.(6) Horizontal spindles with (2 + 2) in X-axis & (1 + 1) in Y-axis.(1) X-Axis grooving saw for max. 120 mm dia blade, variable speed from 5,500 - 10,000 RPM. -- Machining: 12 HP (9 kW) HSD Air cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 12-Position ATC rotary tool magazine located at the back of the gantry and traveling with the X-Axis. -- Operator & Machine Control: OSAI Industrial PC Front-End with: Windows "7" operating system; 17" high resolution LCD flat-screen; ergonomic keypad; compatible with most CAD/CAM software in the market.Program & Data transfer via USB ports or downloading by wire is possible via serial port connections for RS-232, RS-242 & Ethernet adaptor. OSAI Control offers incredible list of functions from (a) auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- CAD/CAM Software: ALPHACAM "Essential" 2D CAD/CAM package, the most efficient and widely used CAD/CAM software in the woodworking industry, is included with machine. This package includes 3D Engraving and is Upgradable to full 5-Axis so it can grow with your business.ALPHACAM - As easy as you need it to be and as powerful as you want it to be. --System Includes: ● (1) Lifting Table with Automatic Indexing: Panel stack specifications: Max. panel stack height is 700 mm (27.55"), Max. panel stack weight is 4,000 kG (8,800 Lbs),Max. panel stack misalignment for X-Axis is 30 mm (1.18") & Y-Axis is 5 mm (0.19").The panel stack automatically indexes to the machine worktable height, allowing the loading unit suction cups to grip the top panel. ● (1) Workpiece Loading Unit with Suction Cups:Vacuum device with row of suction cups mounted on backside of gantry bridge grip the upper panel of the stack and move it up to the machine table support stops.Max. weight o
ANDI SELEXX Series "BDT" with ATC and Boring; only 285 hours!4' x 8' Fixed table, moving gantry machine with a single-zone vacuum table. -- Equipped with:(1) 7.5 HP ISO-30 Type ATC spindle, air cooled, ceramic bearings, variable spindle speed from 1,000 - 18,000 RPM; 6-station automatic tool changer and 2 HP 6-spindle vertical drill bank (6 in Y-axis). -- Axis stroke:1,800 mm in X, 2,880 mm in Y, and 200 mm in Z-axis. -- Max. feed rate:50 MPM (1,950 IPM) in X & Y, 10 MPM (328 IPM) in Z-axIs. Equipped with & Features: -- Tool Length Measuring System (Tool Touch-off device). -- SYNTECH controller with network compatible WINDOWS PC based front-end, color monitor, keyboard, mouse. -- Full function hand held pendant, absolute & incremental programming, cutter & tool length compensation, feed rate & spindle speed override, inch/metric operation, and linear/circular & helical interpolation. Complete with: -- 10 HP BECKER Vacuum Pump. Tool holders collets and Light safety fences. -- Maintenance supplies (grease, grease guns), and full manuals & product literature.
ANDI STRATOS SUP 5 X 10 CNC Router with ATC & Boring with only (473) hours:61" x 120" Vacuum table w/Phenolic resin top; axis stroke: X-axis is 120", Y-axis is 61" and Z-axis is 8"; fixed table - moving gantry. -- Equipped with:(1) 10 HP Router with oil mist lubrication, infinitely variable 1,000 - 18,000 RPM spindle speed, controlled by 13 KVA inverter; 8-position carousel type automatic tool changer with "ISO-30" tool holders. -- Boring unit:(1) (11) spindle boaring block with (9) vertical and (2) horizontal. -- All axes:Move on profile way bearing systems and are driven by precision ball screws with anti-backlash ball nuts for rapid feed-rates up to 945 IPM on the X- & Y-axis, 236 IPM on Z-axis. -- Control:FANUC "21i-mb" CNC Controller with: 9" CRT Screen display, RS-232 interface in separate free-standing control console. -- Controller features:Linear, circular & helical interpolation; automatic acceleration & deceleration, absolute & incremental programming, feed rate override. -- Complete with:Assorted tool holders and original documentation. Note: There is no vacuum pump included.
AES - NOVA 1632, ...5' x 10' Nested Base CNC Router with ATC & Boring. Description:5’ x 10' Single-Zone Stationary Phenolic Grid "Matrix" Table with Dual Driven Traveling "Bridge Gantry".Specifications: -- Working Field: X-Axis is 126" (3,200 mm), Y-Axis is 63" (1,600 mm), and Z-Axis Stroke is 12" (300 mm).Square grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining". --Positioning Speed: X-Axis at 60 MPM (197 FPM), Y-Axis at 60 MPM (197 FPM), Z-Axis Speed 20 MPM (65 FPM), Z-Axis Stroke 200 mm (8").Yaskawa Brushless, high torque AC Servo motor drive control on all axes.High Precision "Rack & Pinion" system on X- & Y-axis with a ground ball screw on Z-Axis.All components ride on THK precision linear guide ways. -- HSD Boring Unit: 2.2 HP (1.7 kW) Drilling Head; Tool connections 10 mm collet; (9) Independent Vertical Spindles on 32mm centers, (5) X-Axis, and (5) on Y-Axis; maximum vertical spindle speed 6,000 RPM. -- Spindle & ATC: 12 HP (9 kW) HSD Air cooled electro spindle with HSK F63 adapter, variable spindles speeds from 1,500 to 24,000 RPM(1) 8-position Automatic Linear Tool Changer Rack. -- Operator & Machine Control: OSAI Open Industrial PC control with: Windows "8" operating system, 15.6” TFT colored LCD screen; ergonomic keypad; compatible with all CAD/CAM software on the market Program & Data transfer via USB ports or downloading by wire is made possible via serial port connections for RS-232, RS-242 & Ethernet adaptor.OSAI Control offers an incredible list of functions from (a) auto- diagnostics to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to due to active tool wear using space-and-time criteria. -- CAD/CAM Software: ALPHACAM "Essential" 2D CAD/CAM package, the most efficient and widely used CAD/CAM software in the woodworking industry, is included with machine. This package includes 3D Engraving and is Upgradable to full 5-Axis so it can grow with your business.ALPHACAM - As easy as you need it to be and as powerful as you want it to be. -- Features: ● (1) BECKER 250 cbm/Hr Vacuum Pump ● Hand-Held Remote Control Pendant ● Automatic Tool Offset Unit ● Manual Lubrication Unit to 19 Central Lubrication Points ● Pneumatic Part Location Referencing Pop-up Pins -- Safety System: Safety enclosure around the spindle carriage; photocell safety sensors & perimeter fencing. -- Supplied with: Comprehensive technical documentation & manuals and covered by a 1 - year Parts and 6 - month Labor factory warrantyNOTE: EX-FACTORY has this AES machine under power & available for inspection at their Zeeland, MI Showroom!
Call for Price

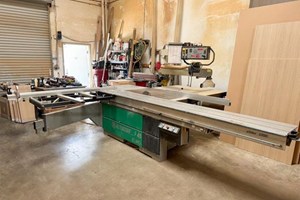

3-axis CNC controlled Rip fence to 1300mm Automatic lubrication 3200mm table length 750mm table extension Eye level control panel Miter fence w/ digital display Stored indoors The owner has confirmed that this Altendorf F-45 Posit is in good runnin/working condition and is ready to load!
Call for Price
7.5 HP Main motor Up to 45 degree balde tilt Scoring - Scoring saw/motor works, however saw does not go up/down. Not sure if it is a cylinder or switch. Seller did not use scoring so never fixed. Everything else in good working condition. This machine was removed from the shop for new equipment.
Call for Price
Manufacturer specs (to be confirmed): WA-8 SERIES 10' (3,200mm) SLIDER WITH MANUAL RIP FENCE, 0” – 51” CONTROL PANEL WITH START STOP FOR MAIN AND SCORING MOTORS; OVERARM GUARD ASSEMBLY WITH SWIVEL ARM 7-1/2HP, 3PH, BELT DRIVE MOTOR; POWERED RAISE AND LOWER AND TILT OF SAW BLADE CROSSCUT FENCE WITH MANUAL FLIP STOPS AND TELESCOPING FENCE; RIP FENCE This machine no longer in use and has been moved to dry storage. Ready to load!
AM&D (ADVANCED MANUFACTURING & DEVELOPMENT) VACUMIZER 100 SS Vacuum CoaterSpecifications: -- Table size 10" x 12". -- Substrate width 5-1/2". -- Substrate height 1-1/2". -- Maximum substrate girth 13". -- Minimum substrate length 9". -- Reservoir capacity 3 to 10 Gallons. -- Line speeds Up to 100 FPM. -- Dimensions 40" x 36" x 66" H. -- Weight 750 Lbs.Equipped with: -- 10 HP Vacuum pump. -- ARO Diaphragm pump. -- 2-Roll feeder with 1/4 HP Motor.Includes: -- Flow control. -- Recently rebuilt.
