Description:

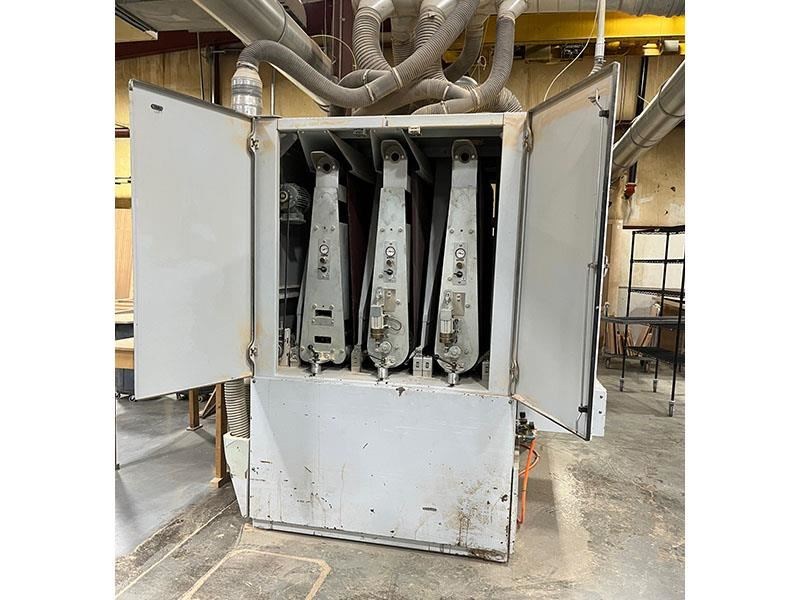

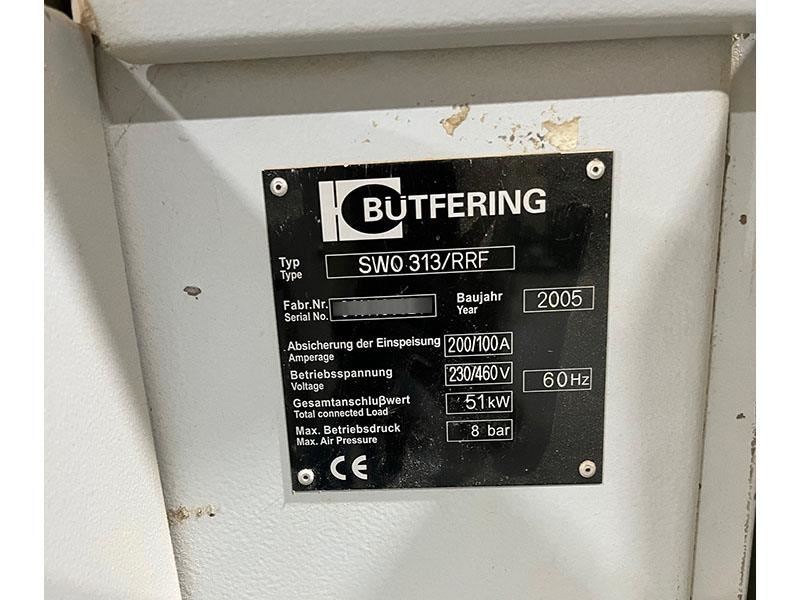

Butfering SWO-313-RRF 3-Head, 43" width cap.43" width cap. Drum, Drum , Combination HeadHead configuration-1st Head: 20 HP motor, 160 mm steel contact roller, cutting speed of 60 FPS;2nd Head: 20 HP motor, 160 mm 85-shore rubber covered contact roller, cutting speed of 60 FPS.3rd Head: 18 HP motor, "Combination" head with 65-shore rubber convered contact roller,Specification -- Automatic height positioning of the contact roller and air cusion sanding pad, -- Cutting speed 40 FPS. -- Automatic thickness setting system with indexing control, rubberized holddown rollers before & after each sanding head; motorized workpiece thickness setting via joy stick control. -- Millimeter & inch decimal LED thickness readout, variable speed conveyor from 8 - 42 FPM. -- Conveyor table mounted on (4) Heavy Duty jack screws, automatic conveyor belt tracking, electronic belt oscillation system, electronic motor braking system, -- Overthickness protection system. - cutting speed of 60 FPS; 2nd Head: 20 HP motor, 160 mm 85-shore rubber covered contact roller, cutting speed of 60 FPS. roller, -- Automatic height positioning of the contact roller and air cusion sanding pad, cutting speed 40 FPS.Equipped with & Features -- Safety interlocks on all access doors, infeed roller extension; -- Emergency stops at infeed and outfeed locations. -- Variable conveyor speed from 8 - 42 FPM; 1 HP feed drive. -- Amperage @ 230 Volt, 3-phase = 180 amps; machine control voltage is 24 Volts. -- Dust collection requirements 3,200 CFM; dust outlets on all (3) heads - 160 mm (6-1/4"). -- Compressed air requirements of 90 PSI; 4 CFM air consumption per cycle; machine net weight of approx. 5,060 Lbs.Note from seller : Runs great but the KEB drive is bad that runs the feed conveyor. Have lots of sanding belts.
