Moulders For Sale

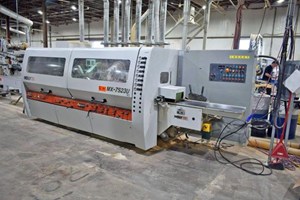

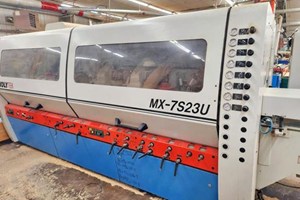

HOLYTEK MX-7S23 Through Feed Moulder:7-Head (B-R-L-T-T-B-U), working cap. 230 mm X 160 mm (9" x 6.3").Head sequence: -- Bottom 10 HP, right 10 HP, left 15 HP, top 15 HP, Top 15 HP , Bottom 15 HP and Universal 10 HP motor. -- Spindle dia. 40 mm with cutterhead speed of 6,000 RPM. -- Mechanical digital readouts, "Dual mechanical" readouts on all spindles.Mechanical readouts for pressure elements and chipbreakers; all chipbreakers and pressure elements with pneumatics. -- Feed works: Inverter-driven, 10 HP inverted feed system with feed speed 6 - 36 Meter/min (20 - 117 FPM). -- Infeed table 2M (6'6"), chromed tables and fences. Side pressure roller mounted at infeed. -- Phenolic insertion on the second top spindle -- Pneumatic chip breaker on the top head -- Universal head with inverted electric height adjustment -- Central lubrication, automatic table lubrication pump, side pressure roller mounted to infeed table, and sound enclosure.Net weight 12,500 Lbs

Specifications: - Working Width: 15 - 230 mm (19/32 to 9-1/16 inches) - Working Height: 6 - 150 mm (1/4 to 5-29/32 inches) - Spindle Speed: 6,000 RPM - Spindle Dia: 40 mm - Clamping Length of horiz. and universal spindles: 235 mm - Clamping Length of vertical spindles: 160 mm - Feed Speed (variable): 6-24 m/min (19-80 fpm) - Diameter of Feed Roller: 140 mm (5-1/2 inches) - Diameter of Table Rollers: 100 mm (4 inches) - Width of feed rollers: Shaft mounted to 9 inches - Width of rollers opposite left spindle: Stackable to 6 inch Head Power: - First head: 10 HP - Second head: 7.5 HP - Third head: 7.5 HP - Fourth head: 15 HP - Fifth head: 10 HP Additional notes: - Driven roller outfeed table: Smooth Steel - Driven table before first bottom spindle: Serrated Steel - Top Chipbreaker shoes: Dual receding (spring), Smooth - Manual lubrication pump - Tables and fences: Hardened Smooth Chrome Total Weight unskidded: 8,375 lbs.

KENTWOOD - M609S: 6-Head Feed Through MoulderHead Configuration -- 6-Head (B-R-L-T-T-B),Specifications -- Working cap.: 9-1/16" x 6". -- Head sequence: Bottom 10 HP; right: 10 HP; left: 10 HP; top: 15 HP; top: 15 HP; bottom: 10 HP motor. -- Spindle dia. 1-13/16" with: Cutterhead speed: 6,000 RPM. -- All spindles are equipped with: Mechanical digital readouts; mechanical readouts for: Pressure elements and chipbreakers.Equipped with & Features -- Feed works: Inverter driven 5 HP feed system with: Feed speeds of 20 - 80 FPM. -- Infeed. (2) Rollers above: (1) In the table prior to 1st bottom spindle. -- Infeed table: 2 M (6-1/2'); chromed tables & fences. -- Central lubrication; manual table lubrication pump. -- Side pressure roller: Mounted to infeed table & sound enclosure.INCLUDES additional heads and tooling

Kentwood M612HD Moulder 12" Capacity

Leadermac LMC-623H Moulder with Infeed Deck This system has not run in year and will need repair.

LEADERMAC LMC 923SP "SPEEDMAC" Feed Through Moulder 9-Head (B-T-B-R-L-R-L-T-B), working dims 9-1/16" x 6" capacity, with feed speeds of 20 - 260 FPM. -- Head sequence: Bottom 30 HP, top 40 HP, bottom 25 HP, right 20, left 20 HP, right 20 HP, left 20 HP and (opposing), bottom 20 HP and top 25 HP motor. -- Spindles: Dia. 2-1/8" with cutterhead speed of 7,200 RPM. Spindles (all) equipped with digital readouts, spindle brakes. Digital Setting of Top & Left Spindles -- All horizontal spindles with with Hydro-Loc outboard bearings. Chipbreaker and pressure elements include mechanical digital readouts for accurate positioning. Chipbreakers at left and top spindles with pneumatic pressure. -- Jointers: Straight knife jointer on spindle #1,2,3, and 8. -- Feed works: Invertor drive VFD 20 HP feed system with feed speeds of 20 - 260 FPM. -- Equipped with: Central lubrication, automatic table lubrication, 1.2 M (4'-0") infeed table, chromed tables and fences, swing-away intermediate short piece gearbox opposite left spindle. -- Features: Full width driven adjustable infeed & outfeed rollers in machine bed, lateral side pressure roller at infeed gate, feed jog/inch forward at top spindle and operator tools & manuals.Machine is currently wired for 460 Volt. Includes 10 heads, a spare spindle (never installed), and pullers for tooling.Approximate dimensions are 22’ long x 7’ wide x 6.5’ tall, and Approximate weight is 32,000 lbs.

LEADERMAC 623P PLATINUM Feed Through Moulder6-Head (B-R-L-T-T-B), "PLATINUM" working cap. 9-1/16" x 6". -- Head sequence: Bottom 15 HP, right 10 HP, left 15 HP, top 20 HP, top 20 HP and bottom 20 HP motor. -- Spindle dia. 1-13/16" with cutterhead speed of 8,000 RPM. -- All spindles equipped with electronic digital readouts, "Dual mechanical" readouts on left and top spindles. Mechanical readouts for pressure elements and chipbreakers; all chipbreakers and pressure elements with pneumatics. -- Feed works: Inverter driven 5 HP feed system with feed speeds of 20 - 100 FPM. -- Infeed table 2M (6'6"), chromed tables and fences. Side pressure roller mounted at infeed. -- Includes: Central lubrication, short stock attachment, automatic table lubrication pump, side pressure roller mounted to infeed table and sound enclosure.Machine has never been used, and is still on Original Shipping Pallet !

LEADERMAC 630P "PLATINUM" Feed Through Moulder 6-Head (B-R-L-T-T-B), working cap. 12" x 6".Specifications: -- Head sequence: Bottom 15 HP, right 10 HP, left 15 HP, top 20 HP, top 20 HP and bottom 20 HP motor. -- Spindle dia. 1-13/16" with cutterhead speed of 7,200 RPM. -- Outboard bearings on spindles 1,4,5 and 6. Pneumatic locks on outboard bearing supports on top heads. -- All spindles equipped with mechanical digital readouts, "Dual mechanical" readouts on left and top spindles. Mechanical readouts for pressure elements and chipbreakers; all chipbreakers and pressure elements with pneumatics. -- Feed works: Inverter driven 5 HP feed system with feed speeds of 20 - 100 FPM. -- Infeed table 2M (6'6"), chromed tables and fences. Side pressure roller mounted at infeed. Features and complete with: -- Central lubrication; -- Short stock attachment. -- Automatic table lubrication pump. -- Side pressure roller mounted to infeed table. -- Sound enclosure and includes: (1) set of cutter heads.

Leadermac LMC 418-S 4 head moulder 20-80 FPM feed spiral head on bottom 460 volt 3 phase

Lobo 6-Head Moulder 9" Wide capacity

2004 Lobo 5 Head Moulder

1997 NPN MACO Tie Machine, s/n 1997001, 100hp electric motor on side planers, includes electric control box, 4-1/2" capacity, power outfeed.

MATTISON 229 Push Feed Moulder4-Head Push Feed Moulder, 4" x 10" capacity. -- Head sequence: 10 HP Top head, 10 HP left head, 10 HP right head, 10 HP bottom head. -- 20 HP feed motor. -- 2-1/8" dia. top and bottom spindles; 1-13/16" dia. left and right spindles. -- Includes (6) extra heads that go with the machine.Approximate dimensions of 11 feet long, 4.5 feet deep, and 5.5 feet tall. The machine weight is approx. 5 Tons.

Infeed Deck & Conveyors. Infeed Deck: 12' motorized chain driven - 4 metal chains. Stationary table with 4 sets of 5.5" rollers for Moulder

Newman Power Feed 24"x12' rollcase with spiral positioner, infeed to planer, electric variable drive

PAULSON - 6NB: 4-HeadThrough Feed MoulderSpecifications -- 4-Heads (T-L-R-B): 6" x 2" Moulder. -- 7-1/2 HP Motor on the 1st top spindle. -- 7-1/2 HP Motor on the left & right. -- 7-1/2 HP Motor on the bottom spindle.Equipped with & Features -- 3 HP Variable speed feed works with: Feed speeds from 10 - 75 FPM. -- (2) Top & (1) Bottom powered feed rolls before the 1st top head. -- All spindles: Belted from the motors; driving at 8,000 RPM, 1-1/4" dia. -- Complete with: 1/3 Misc. cutterheads shown in the photo. Comes with: All dust covers, spindle nut; electric motors; spindles; rubber feed wheels; metal feed wheels; manuals. - In good running condition. No heads.

Renzo Borgonova Rope Moulder and Splitter

1999 Shun Kuang KP6-220S 6 Head Moulder S/N 990536

2002 Shun Kuang Machine KP6=230S 6 Head Moulder S/N 020705

SILVER 6023AH Moulder Feed Through 6-Head (B-R-L-T-T-B), working cap. 9-1/16" x 6". Head sequence: -- Bottom 10 HP, top 10 HP, right 10 HP, left 10 HP, top 15 HP, top 15 HP and bottom 15 HP motor. -- Spindle dia. 40 mm with cutterhead speed of 6,000 RPM. -- All spindles with mechanical digital readouts. -- Feed: Variable speed of 18 - 82 FPM, with 5 HP feed drive motor. Powered feed rollers top and bottom. -- Infeed: Straightening table 2 M (6'6"), with side pressure roller and table lubrication pump. Includes:: -- Centralized control panel, -- Sound and safety enclosure.
