Woodworking Equipment For Sale

AMERICAN STRAIGHT LINE RIP SAW

Stage #1 48” width 2 lights Stage #2 40” width 3 lights 220 volt singular phase

ANDI - STRATOS PRO: CNC Router. - 5 x 10 with: ATC, Boring -- Specifications5' x 10' Moving gantry; stationary table design in a front-to-back configuration. Double-zone phenolic vacuum plenum; (11) pop-up pins for part location within the table; (3) around the table perimeter for nested based manufacturing. --Equipped with: (1) 15 HP HSK-63F Type grease lubricated spindle with "C" axis; variable speed from: 1,000 - 24,000 RPM; 15 HP is achieved at: 15,000 RPM. -- ATC with: 8-Station tool carousel. -- (1) 9-Spindle vertical drill block. -- All Axes Powered by FANUC brushless AC Servo motors. X-Axis is driven by: Twin synchronous helical rack & pinion drive. Y- & Z-axis by: Precision ground ball screws with anti-lash ball nuts. -- All axes ride on: STAR linear guides; recirculating linear roller bearings for: Rapid feed rates up to 3,150 IPM on the X-axis; 2,362 IPM on the Y-axis; 1,181 IPM on Z-axis. -- Motion ComponentsServiced by an automatic lubrication system.Router spindle features an automatic damper dust collection shroud. -- ControlANDI - FANUC "0i" CNC PC front system with: WINDOWS XP & PLC Control; color monitor; large hard disk for program storage; USB & RS-232. -- FeaturesLinear, circular & helical interpolation; automatic acceleration & deceleration; fast corner function; handheld teach pendant; absolute & incremental programming; feed rate; spindle speed manual override. -- Includes(1) 10 HP Vacuum Pump; manuals; documentation.

ANDI - STRATOS PRO: Full Auto. MLS x 6 CNC; 5 x 12 with ATC/Boring/Loading/Unloading5' x 12' Moving gantry; stationary table design in a front-to-back configuration with: Double-zone phenolic vacuum plenum; (11) pop-up pins for: Part location within the table; (3) pop-pins around the table perimeter for nested base manufacturing.Automatic loading from: Self-indexing Scissors Lift Table and Unloading System onto Belt Conveyor Table (Sweeping Arm + Loading Vacuum cups). -- Equipped with:(1) 15 HP HSK-63F Type grease lubricated spindle; variable speed from; 1,000 - 24,000 RPM; ATC with; 10-Station tool carousel. - (1) 10-Spindle L-shape vertical drill block. -- All AxesPowered by: FANUC Brushless AC Servo motors.X-Axis. Driven by: Twin synchronous helical rack & pinion drive; Y- & Z-axis by: Precision ground ball screws with anti-lash ball nuts.All axes: Ride on STAR linear guides & recirculating linear roller bearings for rapid feed rates (up to): 3,150 IPM on the X-axis; 2,362 IPM on the Y-axis; 1,181 IPM on Z-axis. -- Motion componentsAre serviced by: Automatic lubrication system.Router spindle features: Automatic damper dust collection shroud. -- ControlANDI - FANUC "0i" CNC PC front system with: PC WINDOWS 10 & PLC control; color monitor; large hard disk for program storage; USB and RS-232 interface. -- FeaturesLinear, circular & helical interpolation; automatic acceleration & deceleration; fast corner function; handheld teach pendant; absolute & incremental programming; feed rate & spindle speed manual override. -- Includes(1) 40 HP "DEKKER" Liquid ring Vacuum Pump; assortment of: HSK-63 tool holders; assorted collets; documentation. -- Options IncludeFull auto. MLS x (6) Multizone CNC Loading/Unloading System as pictured.

ANDI NC-3116TC4 5' x 10' CNC ROUTER (MULTI-SPINDLE AND ATC):Specifications:• 5' x 10' (63" x 122") Stationary bridge,• Moving table design in a left-to-right configuration• 2 - Zone phenolic vacuum table.Equipped with: • (4) 15 HP ISO 30 type ATC spindles, with air-oil mist lubricated,• Infinitely variable spindle speed from 3,000 - 18,000 RPM,• Each Spindle with a 4-tool ATC carousel.• All axes are driven by precision ground ball screws with FANUC brushless AC Servo drives• Servo drives ride on rectangular box ways with linear tank type bearings,• Rapid feed rates up to 1,800 IPM,• Cutting feed rates up to 1,000 IPM;• Linear, & circular interpolation,• Automatic acceleration & deceleration.• Ball screw and way bearings are serviced by an automatic lubrication system.Operator Interface:• ANDI/FANUC Controller with a WINDOWS front end,• RS-232 Interface for communication with a PC,Includes:• (1) 40 HP "DEKKER" Liquid ring vacuum pump, • Tools, Tooling, Documents & Manuals• Actual Model is ANDI NC-3116TC4 5' x 10'

ANDI - STRATOS PRO CNC Router. - 5' x 12' with: ATC, Boring -- Specifications• 5' x 12' Moving gantry; stationary table design in a front-to-back configuration. • (1) 15 HP HSK 63F Liquid Cooled Router Head• (1) 10-Position Automatic Tool Changer• (1) Multiple Spindle Boring Head• Table size: 3700 mm x 1600 mm (146"; x 63";).• Pop-Up Positioning Pins: 15 (12+3).• Vacuum Zones per Table: 2.Axis stroke:• X axis: 3900 mm (153";). Y axis: 2180 mm (86";). Z axis: 350 mm (13.8";).Maximum Rapid Rate:• X axis: 80 meters/min (3,150";/min). Y axis: 60 meters/min (2,360";/min). Z axis: 30 meters/min (1,181";/min).Maximum Feed rate:• X-axis: 80 meters/min (3,150";/min). Y-axis: 60 meters/min (2,360";/min). Z-axis: 30 meters/min (1,181";/min)Spindle #1 - Router Spindle:• Spindle type Anderson 4-Pole, HSK63F. Motor power 13.5Kw. Spindle speed (RPM) 1,000-22,000. 10-Position ATC plate. C-Axis for 360° Horizontal processing.Spindle #2 - Boring Unit:• Spindle type: Line Boring Unit. Motor Power: 2 HP. Spindle speed: 4,500 rpm. Vertical Drills: 10 x 6. Horizontal Drills: 4. Drill Shank Dia: 10 mm.Vacuum hold down system:• 2 Becker Pump(s): Power (per pump) 9 HP Flow (per pump) 168 cfm. Total Pressure 24" Hg (new vanes installed May 2026)

ANDI - STRATOS PRO 20' CNC Router. - 5' x 20' with: ATC, Boring -- Specifications• Axis stroke: X axis: 6,100 mm (240";). Y axis: 2180 mm (86";). Z axis: 350 mm (13.8";).• Maximum Feed rate: X-axis: 80 meters/min (3,150";/min). Y-axis: 60 meters/min (2,360";/min). Z-axis: 30 meters/min (1,181";/min)• Spindle #1 - 18 HP Air Cooled HSK63F Router Head• Spindle type Anderson 4-Pole, HSK63F. Motor power 13.5Kw.• Spindle speed (RPM) 1,000-22,000.• (1) 10-Position ATC plate. • Spindle #2 - Line Boring Unit. Motor Power: 2 HP. Spindle speed: 4,500 rpm. • Spindle type: Vertical Drills: 10 x 6. Horizontal Drills: 4. Drill Shank Dia: 10 mm.Features• 5' x 20' Moving gantry; stationary table design in a front-to-back configuration. • (1) 18 HP Air Cooled HSK63F Router Head.• Full Torque is achieved at 9,000 RPM• Full HP is achieved at 12,000 RPM. • (1) 10-Position Automatic Tool Changer Plate• ATC mounted on the spindle carriage for "On the Fly" ATC• Tool length touch probe• (1) Drilling block with 16 independently selectable Vertical spindles & 4 horizontal boring spindles for all 4-edges• Table size: 6100 mm x 1600 mm (240"; x 63";).• Pneumatic Pop-Up Positioning Pins: 15 (12+3).• Vacuum Zones per Table: 2.• (2) Becker Vacuum Pumps: Power (per pump) 9 HP Flow (per pump) 168 cfm. Total Pressure 24" Hg

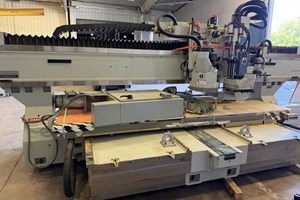

ANDI - EXXACT PLUS/TC+D 5'x12' CNC Router w/ATC & Boring: -- Specifications• Rigid Fix-Bridge, Moving-Table Design• Vacuum Table Size: 63" x 145"• Anderson Industrial Electrospindle: 14.75 HP• Accepts HSK63F Tool Holders• Ten-Position Rotary Carousel Automatic Tool Changer• Vertical Drill Block, 5 x 5• Two Horizontal Drills in Y• Grooving Saw in Y• Four Pop-up Reference Blocks• PC Front-End with FANUC Industrial Controller• Operator Control Pendant• Integrated Transformer for 208, 240, or 480v, 3ph Power• Includes Dekker 20 HP Vacuum Unit• Actual Model: ANDI - EXXACT PLUS/TC+D 5'x12'

//This machine is in an Auction on exfactoryauctions.com// //Link to machine: http://exf.ac/i6e ARMENTIA RE-40-1000DE Vertical Resaw, with Power Feeder Specifications: Throat 16-3/4” Front table size 24” x 36” x 33-1/2” H. Max. cutting height 11". Blade width 3". Equipped with: 25 HP - 1,760 RPM Motor. 19-1/4" Cast-iron wheels. 10” W x 1’ L & 4" W x 1' L Vertical gravity rollers, with 1-1/2” Dia. Rollers on 2” Centers. (2) 2” W x 8” Dia. Sprocket-type feed wheels. Complete with: HOLZ-HER "ET 117" 3-Roll 8-Speed Power Feeder.

AXYZ Panel Builder 5018 CNC Router

AYEN SKB-50 Construction Hole Boring Machine for 32 MM System Boring; -- 50-Spindles total in (2) swivel heads with (25) spindles each, drills vertically from top & horizontally from rear, drills at any angle between 0° - 90° with a positive stop at 45°. -- Equipped with: 50-Spindle swivel head assembly converts quickly into (2) 25-spindle heads for double line boring, 5 1/8" min. distance between heads when line boring. -- Features: 3 HP - 3,450 RPM gear box motor, 39" panel width cap. with a 30-1/4" drilling width. -- Complete with: (2) 39" Fences with flip stops, (3) pneumatic quick-set hold-down clamps, quick fence setting gage, foot pedal control for drilling cycle / head positioning.Seller states that it was in good working condition when taken from service

Machine for manufacturing mitered doors…cuts trims, drills and finger joints corners 3 HP saw with 400 mm blade (2) 7-1/2 HP shaping heads clockwise/counter clockwise PLC controlled

This item is in an Auction on exfactoryauctions.com. Go here to view item: http://exf.ac/i6o BACCI MOD Double-Sided Oscillating Slot Mortiser Specifications: Max. slot depth 80 mm (3.15"), Max. slot length 4-3/8". Chuck size 16 mm (0.63"). Max tool dia. 50 mm (1.97"). Vertical table adjustment 100 mm (3.94"). Oscillation range 120 mm (4.72"). Oscillation speed 224 OPM. Equipped with: (2) 8” x 19-1/2” Tables, Each with Tilt 20° Left & Right. 3 HP - 9,500 RPM Spindle motor, 3 HP Oscillation motor. Hydraulic table feed. (2) Pneumatic hold-downs.

Bader BIII Knife Grinder Includes Many Extra Drive Wheels Extra Attachments For Contact Wheels Tool Rest Very Well Maintained

Baileigh WR-84V, 220V 1 Ph, 7.5HP CNC ROUTING TABLE with Cyclone DC2100C Dust Collector 3hp Shipping Weight 3000lbs Actual Working Area 97" x 48" Spindle 7.4hp Z Axis Stroke 5.375" Maximum Moving Speed (Inches Per Minute) 590 Maximum Engraving Speed (Inches Per Minute) 590 Reposition Accuracy 0.0019 Tool Diameters ER32 Power 220V Single Phase Length 118" Width 78" Height 65" Weight (lbs) 2500 Table Style T-Slot with Vacuum Option 4x8' Table w/ Perfect for solid wood processing, making closet doors, furniture, signs, and much more. 0 to 18,000 rpm variable spindle speed range. 7.4 hp spindle has the power to cut hardwoods quickly and precisely. Spindle is air-cooled to prevent overheating, prolong the machine’s lifespan, keep it producing high-quality cuts. 15,000 mm per minute maximum engraving or travel speed. Solid steel gantry can tackle hardwoods at high speeds without flinching. Stepper motors with square rails ensure smooth movement along the X, Y, and Z axes. Use the handheld digital controller to move the spindle, adjust the speed, and go through your design. Comes standard with software that allows you to set up almost any kind of design. (Details below.) Upload your cut pattern to the table with a USB drive. Rack and pinion mechanism holds up over long periods of heavy use and allows for more fluid and precise movement than a ball and screw mechanism. 4 collets accept any standard tooling profiles with ?”, ¼”, 3/8", and ½” bit sizes. Includes 10 different tooling profiles. Steel T-clamps hold the material down on the table to reduce vibrations and prevent errors. Table is pre-plummed 4 vacuum zones, each with a separate valve and handle, ready to accept optional 7hp vacuum pump. Extremely rigid steel structure reduces vibrations and helps the table stay accurate for years. Dust shroud covers the spindle and vacuums out sawdust and wood chips while you’re cutting.

Has Cyclone DC2100C Dust Collector 3hp 220V Single Phase Table Style T-Slot with Vacuum Option 4x8' Table w/ Perfect for solid wood processing, making closet doors, furniture, signs, and much more. 7.4 hp spindle has the power to cut hardwoods quickly and precisely. Handheld digital controller to move the spindle, adjust the speed, and go through your design. Comes standard with software that allows you to set up almost any kind of design. Rack and pinion mechanism holds up over long periods of heavy use and allows for more fluid and precise movement

BALA DPM ED 1955 Vertical Panel Saw (216" x 74"), Vertical-Horizontal Digital Readouts Top to Bottom cutting height is 74", 70" horizontal cutting height; saw head w/motor rotates 90° for rip or crosscutting; cutting length 216"; cuts single or stacked panels up to 60 mm (2.36") in thickness.Standard features: -- 5.0 HP Motor; 250 mm (10") dia. 80-tooth main saw blade. -- Auto-shifting material back support grid; shifting away from the saw blade cut line, prevents cutting into the grid support strips while rip cutting horizontally. Equipped with: -- Precision ground bottom edge steel support rollers to facilitate easy loading and positioning of the larger or heavy panels; both standard inch and metric preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm increments to lock in the saw beam for vertical crosscuts. -- (2) Adjustable flip-stops on inch (metric available) measuring scales, one located on the lower rail and the other on the foldout shelf at the middle of the frame. -- Repeat Rip Gauge for duplicating multiple horizontal cuts. -- Retractable Material Support Shelves throughout the entire length of the machine frame allows for ergonomic cutting of smaller parts, at any cutting station without the need for the operator to bend down.Includes: Vertical-Horizontal Digital Readouts; (1) 250 mm (10") dia. 80-teeth, 30 mm bore main blade.Optional: -- Scoring unit with (3.15") dia. scoring blade, belt driven at 7,800 RPM; single-screw adjustment for side-to-side and depth.

BALA DPM ED 1631 Vertical Panel Saw w/Vertical-Horizontal Digital Readouts Top to Bottom cutting height is 63", saw head w/motor rotates 90° for rip or crosscutting; cutting length 122"; cuts single or stacked panels up to 60 mm (2.36") in thickness.Standard features: -- 5.5 HP Saw motor with a 250 mm (9.8") dia. 80-tooth main saw blade. -- Auto-shifting material back support grid; shifting away from the saw blade cut line, prevents cutting into the grid support strips while rip cutting horizontally. Equipped with: -- Precision ground bottom edge steel support rollers to facilitate easy loading and positioning of the larger or heavy panels; both standard inch and metric preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm increments to lock in the saw beam for vertical crosscuts. -- (2) Adjustable flip-stops on inch (metric available) measuring scales, one located on the lower rail and the other on the foldout shelf at the middle of the frame. -- Repeat Rip Gauge for duplicating multiple horizontal cuts. -- Retractable Material Support Shelves throughout the entire length of the machine frame allows for ergonomic cutting of smaller parts, at any cutting station without the need for the operator to bend down.Includes: Vertical-Horizontal Digital Readouts; (1) 250 mm (10") dia. 80-teeth, 30 mm bore main blade.Optional: -- Scoring unit with (3.15") dia. scoring blade.

BALA DPM ED 1651 Vertical Panel Saw w/Vertical-Horizontal Digital Readouts Top to Bottom cutting height is 63", saw head w/motor rotates 90° for rip or crosscutting; cutting length 200.787"; cuts single or stacked panels up to 60 mm (2.36") in thickness.Standard features: -- 5.5 HP Saw motor with a 250 mm (9.8") dia. 80-tooth main saw blade. -- Auto-shifting material back support grid; shifting away from the saw blade cut line, prevents cutting into the grid support strips while rip cutting horizontally. Equipped with: -- Precision ground bottom edge steel support rollers to facilitate easy loading and positioning of the larger or heavy panels; both standard inch and metric preset "beam lock" stations. -- Vertical cutting stations are spaced at 40" or 1,000 mm increments to lock in the saw beam for vertical crosscuts. -- (2) Adjustable flip-stops on inch (metric available) measuring scales, one located on the lower rail and the other on the foldout shelf at the middle of the frame. -- Repeat Rip Gauge for duplicating multiple horizontal cuts. -- Retractable Material Support Shelves throughout the entire length of the machine frame allows for ergonomic cutting of smaller parts, at any cutting station without the need for the operator to bend down.Includes: Vertical-Horizontal Digital Readouts; (1) 250 mm (10") dia. 80-teeth, 30 mm bore main blade.Optional: -- Scoring unit with (3.15") dia. scoring blade.

BALESTRINI MINI C 2500 DOUBLE SIDED TEMPLATE PROFILE SHAPERSpecifications: -- (2) Offset shaping heads with 10 HP (7.5 kW), 230/460 volt three phase drives. (1 each side) -- Maximum reciprocating length 98" (2500 mm). -- Maximum height 7" (180 mm). -- Maximum width between spindles 8", and shaping heads are staggered for full end rounding. -- 1¼"; Diameter work arbors with 7″ under the nut capacity, and Spindle speed of 8400 RPM -- Hydraulic stroke of 9-3/4″ wide x 110″ long tee slotted work table, with feed speeds of 3 - 49 feet per minute (1-15 m/Min.) powered by 3 HP, 230/460 volt three phase hydraulic pump -- Overhead beam clamp bar with (4) adjustable clamps. -- Push button operator control station.
