Description:

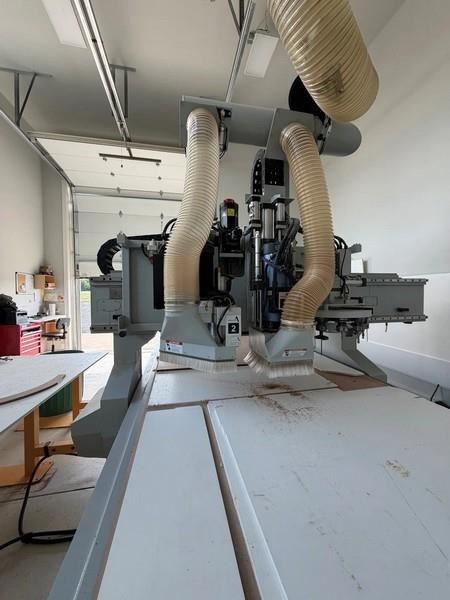

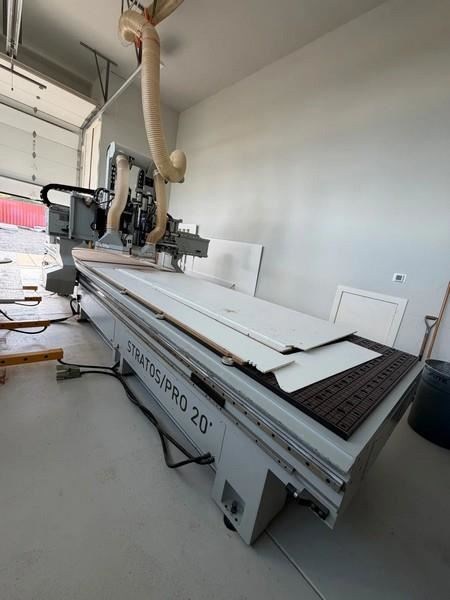

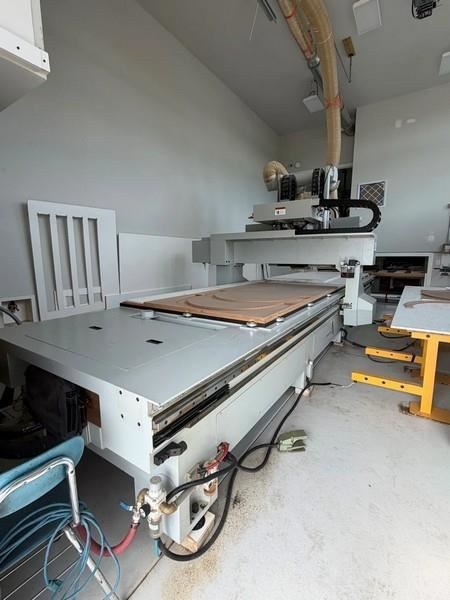

ANDI - STRATOS PRO 20' CNC Router. - 5' x 20' with: ATC, Boring -- Specifications• Axis stroke: X axis: 6,100 mm (240";). Y axis: 2180 mm (86";). Z axis: 350 mm (13.8";).• Maximum Feed rate: X-axis: 80 meters/min (3,150";/min). Y-axis: 60 meters/min (2,360";/min). Z-axis: 30 meters/min (1,181";/min)• Spindle #1 - 18 HP Air Cooled HSK63F Router Head• Spindle type Anderson 4-Pole, HSK63F. Motor power 13.5Kw.• Spindle speed (RPM) 1,000-22,000.• (1) 10-Position ATC plate. • Spindle #2 - Line Boring Unit. Motor Power: 2 HP. Spindle speed: 4,500 rpm. • Spindle type: Vertical Drills: 10 x 6. Horizontal Drills: 4. Drill Shank Dia: 10 mm.Features• 5' x 20' Moving gantry; stationary table design in a front-to-back configuration. • (1) 18 HP Air Cooled HSK63F Router Head.• Full Torque is achieved at 9,000 RPM• Full HP is achieved at 12,000 RPM. • (1) 10-Position Automatic Tool Changer Plate• ATC mounted on the spindle carriage for "On the Fly" ATC• Tool length touch probe• (1) Drilling block with 16 independently selectable Vertical spindles & 4 horizontal boring spindles for all 4-edges• Table size: 6100 mm x 1600 mm (240"; x 63";).• Pneumatic Pop-Up Positioning Pins: 15 (12+3).• Vacuum Zones per Table: 2.• (2) Becker Vacuum Pumps: Power (per pump) 9 HP Flow (per pump) 168 cfm. Total Pressure 24" Hg
