SCM S 630 PLANER WITH TERSA HEADSpecifications: -- 24" Width cap.; 12 HP main motor, 2 HP feed motor; 4-3/4" dia. with reversible knife TERSA Planer Head rotates @ 4,500 RPM; -- 1/8" - 11-3/4" Thickness opening via motorized bed with LED readout for fine adjustment. -- Max. depth of cut 5/16"; 10" min. length of work piece; variable infeed speed from 20 - 56 FPM.Equipped with: -- 20-3/4" x 39" Cast iron table, sectional chip breaker, sectional grooved infeed & solid outfeed rollers, adjustable bed rollers. -- neoprene out feed rollersComplete with: -- Magnetic starter and dust hood w/6" dia. dust outlet.Owner states: Condition- like new 24" thickness planer- third owner in a one man shop. Machine has seen very few hours of operation.

SCM PRATIX S-15-B FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:Single 5' x 12' traveling "Bridge Gantry" and stationary aluminum dual vacuum table with a MATRIX square grid pattern for fixturing parts.Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining".(8) Part location pop-up pins mounted on the table perimeter. -- Working field:"X" Axis is 145.11" (3,686 mm); "Y" axis is 61.2" (1,555 mm); "Z" axis stroke is 9.8" (250 mm); max. material thickness 4" (100 mm). -- Positioning Speed:"X" & "Y" Axis 115 FPM (35 MPM); "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system.High precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screws "Z" axis; all axes ride on extra large precision profile linear guideways. -- Boring Unit:3 HP (2.2 kW) - 6,000 RPM motor; (7) vertical spindles on 32 mm centers, (5) in "X" axis & (2) in "Y" axis. -- Machining:(1) 9 HP (6.7 kW) Air-cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 14-Position ATC tool rack mounted to the machine base. -- Operator & Machine Control:PC Front End with: "XILOG Plus" + Windows "XP Pro" Operating System; 17" high resolution LCD; ergonomic keypad.USB Ports, serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible.All computer components are mounted on a mobile stand.XILOG Plus Offers: Incredible list of functions from: (a) Auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- Additionally equipped with:Onboard mini-CAD with built-in programming for writing circles, ellipses & angles with only a few keystrokes; Onboard cycle optimization, onboard calculator, mirror-imaging, and repeat imaging. -- Complete with:(1) 300 m³/Hr Vacuum Pump; external transformer 208/230/480 Volt; safety enclosure around the spindle carriage; tool length probe sensor; manual centralized lubrication.Includes: (1) Universal Remote Pendant, 7" color display allows for the effective management of all machine functions from manual Jog Mode to loading & execution of a program.The pendant is fitted with a USB port to allow quick load & setup of new programs; safety "bump-stop" bumpers; emergency stop rope & manuals. -- Actual Model is SCM - PRATIX S-15-B.

SCM - SI 400 NOVA: Sliding Table Panel SawSpecifications & Features -- 126" Stroke with scoring; telescoping crosscut fence with panel support; back squaring fence: (2) Flip-stops; 3/4" dado capacity. -- Max. cutting height: 3-3/4" at 90°; 2-3/4" at 45°; 51" rip cut cap. with movable fence; "EZ Dial" adjustable split scoring blade assembly. -- 35" x 21" Main fixed table.Equipped with: -- 9 HP Main blade motor; 1 HP scoring blade motor; tilting arbor 0° - 45°; 300 mm (11.8") main saw blade dia.; 1" main blade arbor; 4,000 RPM. -- 100 mm (3.9") scoring blade dia.; 3/4" scoring blade arbor; 8,000 RPM; 2-position table lock mechanism. Complete with: -- "EZ Dial" adjustable split scoring blade assembly: Simply turn the dial to adjust the width of the score. This system eliminates the need for shims and is fully adjustable in 0.1 mm increments. -- Handwheels in front for lifting & tilting of saw blades; blade guard on riving knife with dust outlet. Includes: 120 mm Main dust collection outlet.

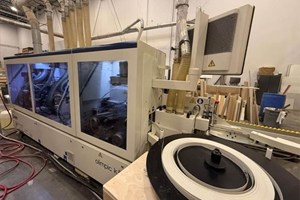

SCMI OLIMPIC K 560 R HP EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications Edge Capacity: 0.4 to 6 mm (0.016 to 1/4") for strip feeding. -- Panel Capacity:Min. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Pre-milling Station: (2) 2.0 HP (1.5 kW) motors; servo controlled, to rectify/clean panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator, pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with quick-change/disconnect Teflon glue pot for fast glue tanks change if needed. Heat up time approx. 10 Min. -- Pressure Section: Manual digital positioning; Teflon coated pneumatic driven roller, and (2) spring-loaded idle rollers.Workstations: -- End Trimming Station: Front & rear (2) 0.5 HP - 12,000 RPM motors mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit: (2) 0.7 HP - 12.000 RPM motors; capable of tilting & pneumatic positioning for (3) settings: flush/bevel/radius trimming for quick setup. -- Top & Bottom Profile Scraping Unit with: Digital indicators; large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue Scraping Unit: Eliminates any excess glue. -- Buffing Unit: Top/Bottom; (2) 0.25 HP - 2,800 RPM motors; tilting up to 12°.Operator & Machine Control: -- "STARTOUCH" Controller with: 21.5" Touchscreen display; capable of storing (100) programs. Machine automation by: PLC Function and encoder positioned in the panel feed track pinion.Diagnostics for a quick solution to errors; process statistics data: i.e., No. of pieces/edges and track feeding.Features & Complete with: -- 2-Speed feed speed of 40 & 60 FPM (12 & 18 MPM); (1) 2.5 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Servo Controlled adjustable top hold-down pressure beam. -- Auto panel spacer to eliminate premature loading -- Anti Adhesive spray -- Full sound enclosure cover and outboard panel support. -- THIS MACHINE IS FULL SERVO CONTROLLED -- Actual Model: SCM OLIMPIC K 560 R HP

SCM - FORMULA S35: Sliding Table SawSpecifications -- 10' Cap. with: Scoring; 9 HP motor for main & scoring blade; tilting arbor: 0° - 45°. -- 126" Table stroke; 51" rip cut capacity with movable fence. -- 350 mm (13-3/4") Main saw blade dia.; 120 mm (4-3/4") scoring blade dia.; max. cutting height: Approx. 120 mm at 90°; 4,000 RPM. Complete with: -- Overhead guard with: 4" Dust extraction outlet. -- Crosscut fence assembly with: (2) Flip stops.

SCM T 110 I Tilting Spindle Shaper -- Specifications: 6.6 HP Motor, 1-1/4" interchangeable spindle tilts -5° to +45°, (5) spindle speeds of 3,000 - 4,500 - 6,000 - 8,000 & 10,000 RPM. 39" x 29-1/2" Table, 13.4" max. insert opening. -- Digital readout for spindle height setting, 6-1/8" working height under nut; adjustable fence guard assembly. -- Complete with: Mechanical spindle brake, hand spindle lock, reverse rotation switch, (5) table insert rings, and (2) 3" dust outlets. -- Includes: 3-Roll Maggi Steff 2034 Power Feeder

SCM Minimax T-50 Tilting Spindle Shaper -- Specifications: -- 1-1/4" Dia. interchangeable spindle tilts -5° to +45°, -- 6.6 HP motor; 3-1/2" cap. under nut, (4) spindle speeds of 1,700 - 4,000 - 7,000 & 9,000 RPM. -- Table size 18" x 43" with adjustable side extension tables; 3" - 5" - 7" & 8" table insert openings -- 4-1/2" max. spindle height above table -- 2" max. tooling retraction under table with 7" max. tooling dia.; working height 37".Equipped with: Outrigger Sliding Table, micro-adjustable fence, spindle lock, magnetic starter w/overload protection, reversing switch, and 4-3/4" dia. dust outlet. Includes: Several New Cutter-heads

SCM OLIMPIC K 560 T-ER2 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- SpecificationsEdge Capacity: 0.4 to 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity: Min. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Pre-milling Station: (2) 2.0 HP (1.5 kW) motors; rectifies/cleans panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: "SGP" for EVA (Hot Melt) with quick change/disconnect Teflon glue pot for fast glue tanks change if needed; heat up time approx. (10) Min. -- Pressure Section: Manual digital positioning; Teflon coated pneumatic driven roller, and (2) spring loaded idle rollers.Workstations -- End Trimming Station: (2) Front & rear 0.5 HP - 12,000 RPM motors, mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit: (2) 0.7 HP - 12.000 RPM Motors; capable of tilting & pneumatic positioning for (3) settings: Flush/bevel/radius trimming for quick setup. -- Corner Rounding Unit "Round 2M" with: (2) 0.8 HP Independent motors that slide on THK guides. -- Top & Bottom Profile Scraping Unit with: Digital indicators; large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue scraping Unit "RC-N": Eliminates any excess glue. -- Buffing Unit "SP-V": (2) Top/bottom 0.25 HP - 2,800 RPM motors; tilting up to 12°.Operator Interface -- "STARTOUCH" Controller with: 12" Touchscreen display; capable of storing (100) programs. -- Machine automation by PLC function and encoder positioned in the panel feed track pinion. -- Diagnostics for a quick solution to errors: Process statistics data (i.e., number of pieces/edges) and track feeding.Features & Complete with: -- 2-Speed feed speed of 40 & 60 FPM (12 & 18 MPM); (1) 2.5 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Electronic Positioning of the top hold-down pressure beam. -- Nesting Copying Device. -- Full sound enclosure cover and outboard panel support. -- Actual Model is: SCM OLIMPIC K 560 T-ER2

Worktable dimensions: 145? x 61? Z -Axis stroke: 9.84? Spindle speed: 24,000 RPM Electrospindle (S1/S6 rating): 7.5 HP / 9HP Tool Changer: 10 position Spindle Taper: HSK 63 Boring Block (7) Spindles: 6,000 RPM Maximum positioning vectorial speeds: X/Y axis: 115 feet/minute Electrics: 208/230/460 volts, 3-phase, 60 cycles EQUIPPED WITH: Windows Based Operating system 17” Flat Panel Monitor Remote Pendant with 7? Display 7-Spindle Boring Block Touch Probe Spindle Air Blowers Built In Vacuum Pumps- 2 Zones

SCMI - K201 HFE: Single Sided Edgebander1/8" Max. edge cap.; 1-1/2" max. panel thickness; semiautomatic strip & coil feed magazine (manual single strip feed); Teflon coated glue pot w/fast 8-Minute heat up time; 1.2 mm cap. guillotine. -- Workstations: Single motor front & rear end trim; 0.8 HP - 10,000 RPM motor; top & bottom flush trims, 0.8 HP - 27,000 RPM ea. motor; straight or 12° bevel cutters. -- Top & Bottom buffing unit, 0.25 HP - 2,800 RPM motors; 25 FPM fixed feed speed with 0.8 HP drive. -- Complete with: Sound enclosure, frequency converter, and used tooling.

Manufacturer's Specification 149.6" capacity 4.2" saw projection (380 mm blade) 12 HP motor/2 Hp scoring motor 20-98 FPM feed Programable controller 230 Volt 3-phase

gabbiani g 2 Single beam panel saw for industrial applications - Cutting dimensions: 4500 x 4300 mm - Max. blade protrusion: max 130 mm - Max. saw carriage speed: 170 m/min - Max. pusher speed: 135 m/min - max 22 kW-50Hz main blade engine - Saw carriage runs on rectified round guides (opt. prismatic) - HI-TRONIC device - FLEXCUT 1/S for simultaneous execution of differentiated cuts flexstore elr Loading flexible warehouse with 3-axes - Variable configuration of number station – available surface up to 12 x 60 mt - Storage widtht: 7 - 9 - 12 m - Panel length: mm 1.800 ÷ 3.200 mm (2200 ÷ 4250 mm. Opt.) - Panel width: 800 ÷ 2.200 mm - Panel thickness: 10 ÷ 40 mm (3mm. Opz.) - Max. panel weight: 200 Kg - Loading arm with 3 degrees of freedom + rotation (opt.) - Vacuum loading arm with electronic adjustment depending of the dimension of the panels - Device for the automatic detachment of the panels - Check device for the detachment of the panels - Offcuts management - Mixed stacks management Price includes dismantling and install.

SCMI 1998 Drum Sander

1995 SCMI Sliding Table Saw 230V 60HZ Model SI16 W

SCMI "Olimpic S-215" Edgebander Edge thickness capacity, 0.4 - 15 mm Minimum working width, 4-3/4" 59 FPM feed speed Motorized top pressure beam Controller Edgebanding infeed table 230V/60HZ

Electric:230 Voltage 3 Phase Aporox 6.6 HP 1/4" to 5/8" collet size 6 adjustable spindle depths 4" spindle travel 29.5" throat depth 30" x 36" non-tilting cast iron table 7-7/8" vertical table movement Note: There may be some variances in the above features.

Electric:230 Voltage 3 Phase Aporox. 6.6 HP 1/4" to 5/8" collet size 6 adjustable spindle depths 4" spindle travel 29.5" throat depth 30" x 36" non-tilting cast iron table 7-7/8" vertical table movement Note: There may be some variances in the above features.

53” wide vacuum feed belt 48” load space (approx.) Belt size 53" X 102" 1st head rubber contact 29 kW, 460V, 3 phase 2nd head combination 21.4 kW, 460V, 3 phase 3rd head platen 18.5 kW, 220/380V, 3 phase 4th head panel cleaning felt type head 1.74 kW, 460V, 3 phase 5th Air cleaning heads Variable speed feed motor/gear box assembly Free-standing operator/electrical control cabinet Dust manifold included

SCMI K360 Edgebander

SCMI K230 Edgebander Manufacturer specs (to be confirmed): · Edgebanding thickness: .4mm - 3mm (.016-1/8”) · Guillotine capacity: 3.0mm · Feed speed: 30 ft/min. · Panel height: 3/8” min – 1 15/16” max · Minimum panel length: 5 1/2” · Minimum panel width: 2 3/8” · Minimum distance between panels: 22”
