Description:

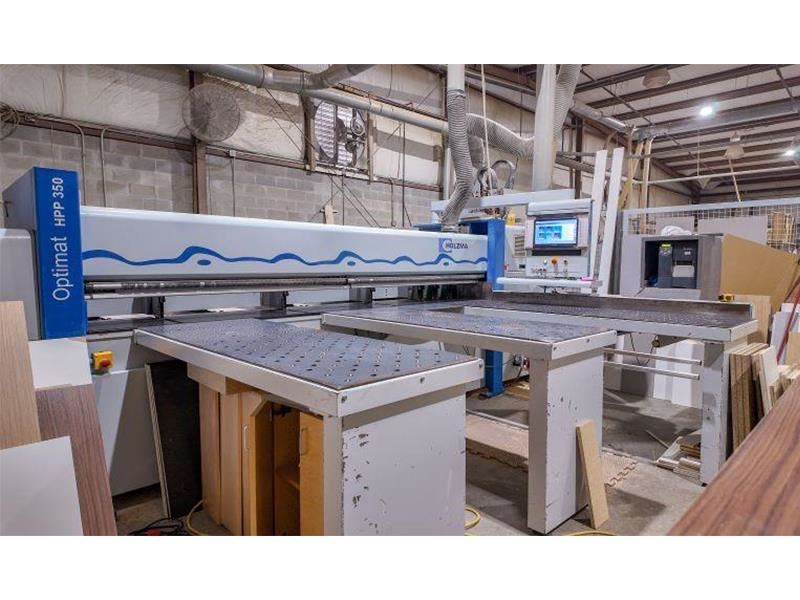

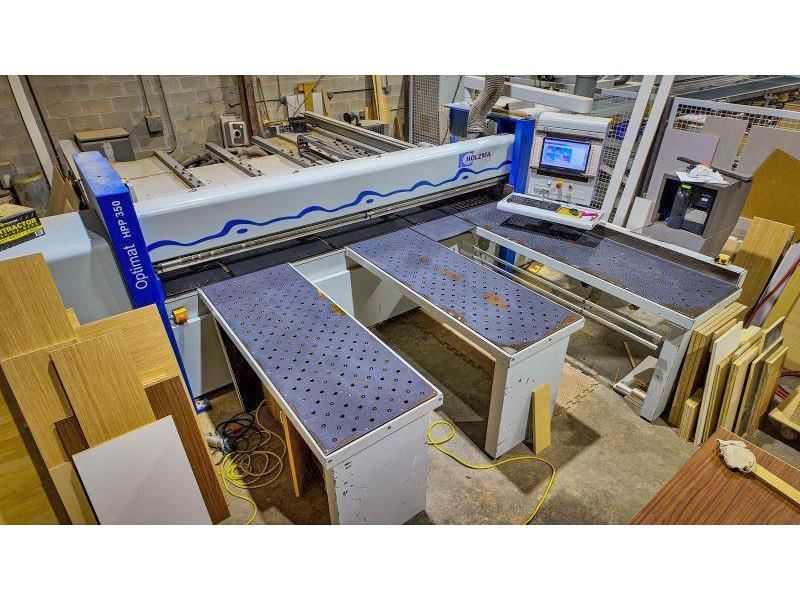

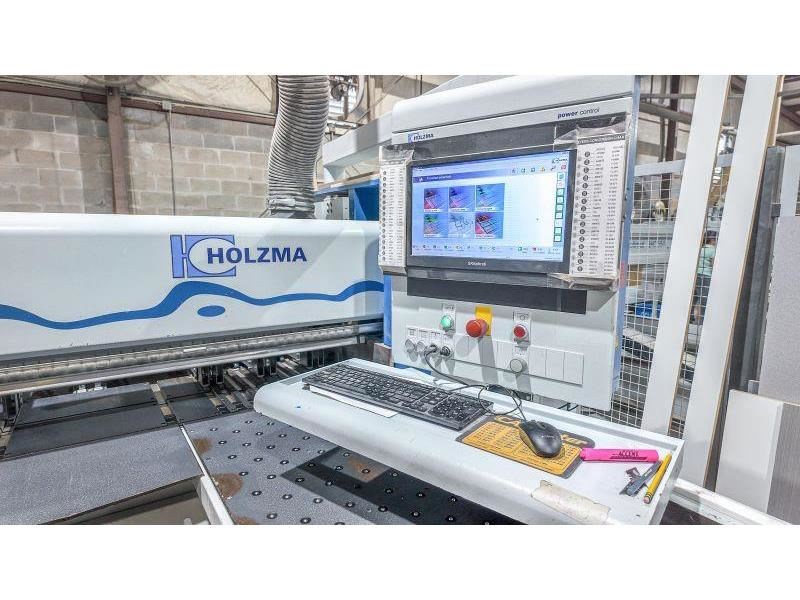

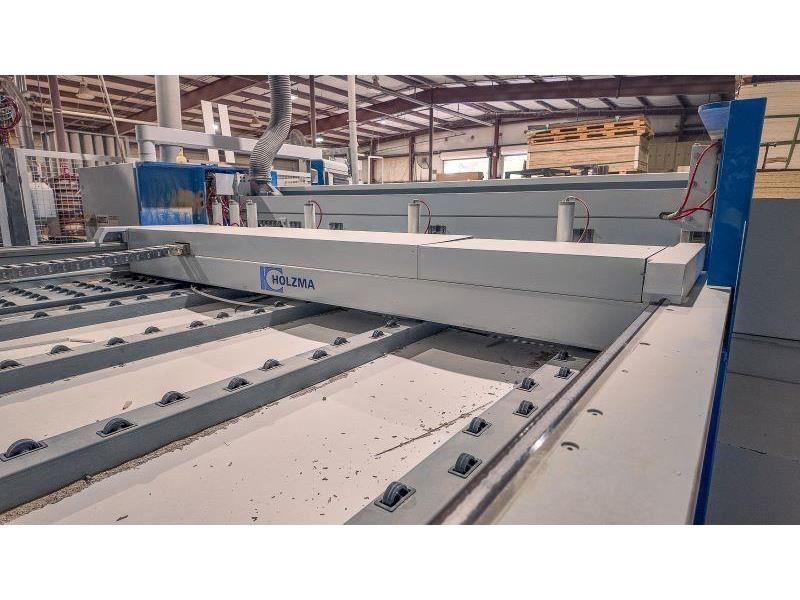

HOLZMA Optimat HPP 350 31/31, ...Front Load Automatic Panel SawSpecifications: -- 122" (3,100 mm) Cut length, 122" (3,100 mm) pull back;(80 mm) main saw blade projection;12 HP (9 kW) main saw motor and 3 HP (2.2 kW) scoring motor; scoring saw adjustment is from the "CADMATIC 4.0" control. Saw Carriage: --Travel speed from 16 - 426 FPM (5 - 130 MPM); constant return of 426 FPM (130 MPM). Pusher Fence: -- Overhead program fence with: (6) Gripper clamps; clamps open up to 90 mm (3-1/2"); rack & pinion drive on both sides; forward speed from 82 to 262 FPM (24 - 80 MPM); return speed of 262 FPM (80 MPM). Operator & Machine Control: -- HOLZMA Power Control with: "CADMATIC 4.0" + "Windows XP" operating system; virtually unlimited cutting dimensions memory;TFT 17" flat screen monitor, REAL TIME moving graphics; panel grooving & numeric display. -- Industrial keyboard: 1.44MB floppy & CD ROM drives; capable of online operation via RS 232 or USB port for possible link to office PC.Complete with: -- Automatic "CENTRIC" side aligner with front & rear forks holding ripped strips squarely against the right-angle fence. -- (3) Front air floatation tables 86" x 25" (2,160 mm x 650 mm). -- Actual model is HOLZMA OPT. HPP 350 31/31.
