Description:

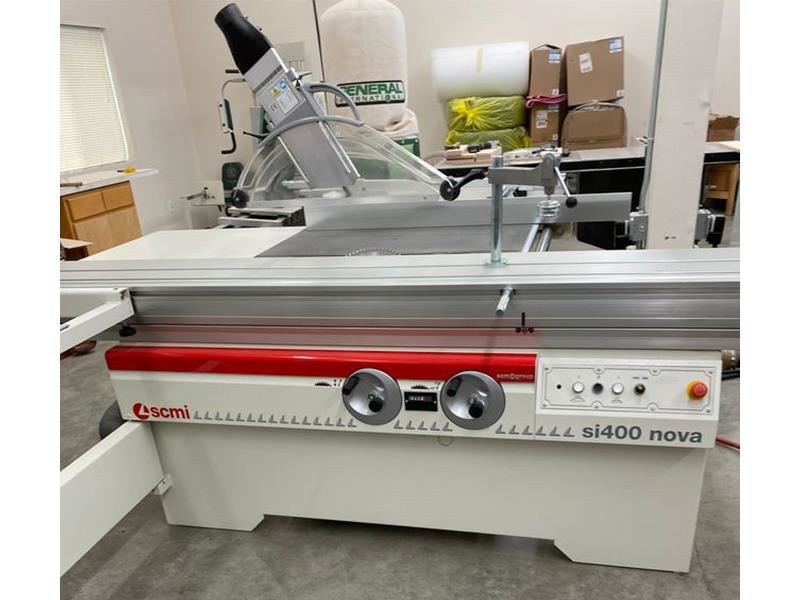

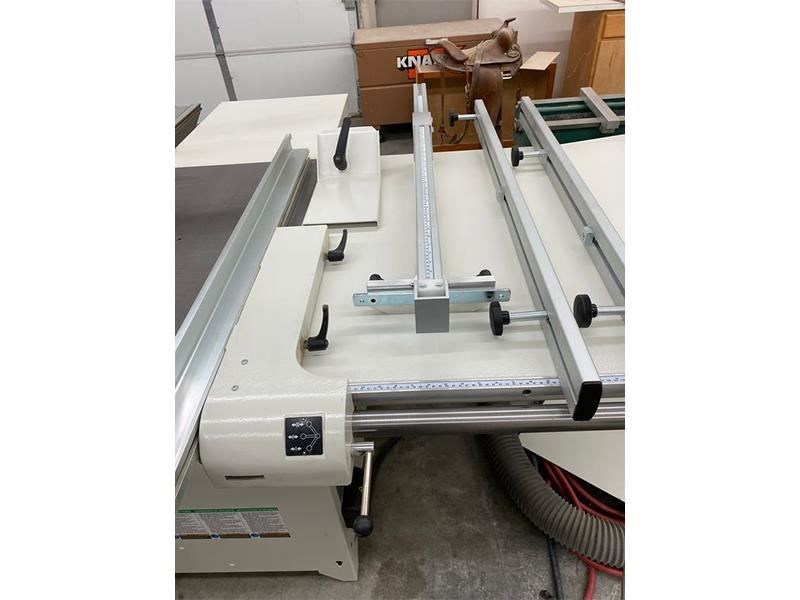

SCM SI 400 NOVA Sliding Table Panel SawSpecifications & Features: -- 126" Stroke and with scoring, telescoping crosscut fence with panel support, and back squaring fence (2) flip-stops; 3/4" dado capacity. -- Max. cutting height is 3-3/4" at 90° and 2-3/4" at 45°; 51" Rip cut cap. with movable fence, "EZ Dial" adjustable split scoring blade assembly. -- 35" x 21" Main fixed table.Equipped with: -- 9 HP Main blade motor, 1 HP scoring blade motor; tilting arbor 0° - 45°; 300 mm (11.8") main saw blade dia., 1" main blade arbor, 4,000 RPM. -- 100 mm (3.9") scoring blade dia., 3/4" scoring blade arbor; 8,000 RPM; 2-position table lock mechanism. Complete with: -- "EZ Dial" adjustable split scoring blade assembly - simply turn the dial to adjust the width of the score. This system eliminates the need for shims and is fully adjustable in 0.1mm increments. -- Handwheels in front for lifting and tilting of saw blades; blade guard on riving knife with dust outlet. Includes: 120 mm Main dust collection outlet.
