Woodworking Equipment For Sale
1773 Results Found
$ 60,000

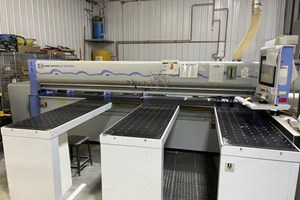

HOLZMA HPP 250 38/38 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications: 149.6" (3,800 mm) Cutting length & pull-back; 2.95" (75 mm) saw blade projection; 18 HP (13.5 kW) - 4,700 RPM main saw motor, 350 mm main saw dia; 1.5 HP (1.1 kW) - 5,100 RPM scoring motors, 200 mm scoring saw dia.;NC controlled scoring saw adjustment from "CADMATIC" control. -- Saw carriage: Variable travel speed from 16 - 328 FPM (5 - 100 MPM), constant return of 328 FPM (100 MPM). -- Pusher Fence:Electronically controlled overhead program fence, rack & pinion driven on both sides; forward speed capacity 197 FPM (60 MPM);(5) Gripper clamps, 1st (3) clamps with (2) fingers & others with (1) finger; clamps open up to 3.2" (80 mm). -- Operator & Machine Control:PC Front-End with: HOLZMA "CADMATIC 4" Practive Controller+ Windows Operating System "designed for industrial environments"; virtually unlimited cutting dimensions memory;17" TFT Flat screen monitor, DVD ROM drive, RS-232 port, USB port, analog modem, online operation from an office PC is possible."Real-Time" Cutting sequences with 2-D moving graphics; high-tech error diagnostics with true photos & video clips for immediate identification of the source problem. -- Complete with:HOLZMA Patent: Automatic "CENTRIC" full cutting length side pressure device with front & rear forks holding ripped strips squarely against the right angle fence (reduces cycle time ...25% compared to conventional systems)."POWER-LOCK" quick-change saw blade system; (3) front air floatation tables 71" x 24" (1,800 x 600 mm). -- Options Include:Holzlink software with information handling package to print labels from CabinetWare, Label Printer,230 V Transformer & 10-sets main & scoring blade. (5 blade sets sharpened only one time). --Actual model is HOLZMA HPP 250/38/38 OPTIMAT.
Call for Price
HOLZMA HPP 380 31/31 FRONT LOAD AUTOMATIC PANEL SAWSpecifications: -- 122" (3,100 mm) Rip cutting capacity & pull back; 3.74" (95 mm) saw blade projection. -- 15 HP Variable speed main saw motor and 3 HP (2.2 kW) scoring motor; scoring saw adjustment via "CADMATIC 4.0" control. -- Saw Carriage: -- Variable saw carriage travel speed from 16 - 426 FPM (5 - 130 MPM), constant return of 426 FPM (130 MPM). -- Pusher Fence: -- Electronically controlled overhead program fence, equipped with (6) clamps that open up to 100 mm (3.9"). -- Rack & pinion driven on both sides, forward speed of 262 FPM (80 MPM), return speed of 262 FPM (80 MPM). -- Operator & Machine Control: -- HOLZMA Power Control with "CADMATIC 4.0" + "Windows XP" operating system; virtually unlimited cutting dimensions memory; TFT 17" Flat Screen monitor, REAL-TIME moving graphics; panel grooving & numeric display; Industrial keyboard, 1.44MB Floppy & DVD R/W drives, capable of online operation via RS 232 or USB port for possible link to an office PC. -- Complete with: -- Automatic "CENTRIC" side aligner with front & rear forks, holding ripped strips squarely against the right angle fence; (1) Front air flotation table, 86" x 25" (2,160 mm x 650 mm) & (2) front air flotation tables, 67" x 25" (1.700 mm x 650 mm); rear support rails with non-marking roller modules. -- Actual model is HOLZMA HPP 380 31/31.
$ 15,000
HOLZMA HPP 380 /31/31 Front Load Automatic Panel Saw: Specifications:• Saw Blade Projection 3.74"• Cutting Length 122"• Book Height up to 3.3"• Saw Carriage 16 to 426 fpm• Program Fence Up to 262 FPM• 6 Clamps with 3.9" Opening• Side Aligner• Air Flotation Tables• Cadmatic 4 w/17" Touch Screen • Touch Screen needs to be replaced.• Currently Running external screen.
Call for Price
Call for Price
Holzma Saw Cutting length 3,200 mm (126"), 95 mm (3.7") cutting height, 18 HP (13.4 kW) main and 3 HP (2.2 kW) scoring motor. Variable saw carriage travel speed 0 - 229 FPM (0 - 70 MPM), constant return of 229 FPM ( 70 MPM). Equipped with: Electronically controlled overhead program fence, rack and pinion driven on both sides, forward speed 131 FPM (40 MPM), return speed 131 FPM (40 MPM), equipped with (6) clamps which open up to 4" (102 mm). The HOLZMA HPP-81 has a CADMATIC control, version 2.2, with (500) cutting dimension memory with color monitor, moving graphics and numeric display. CAD input, floppy disk drive and direct input by keyboard or RS-232 port for possible direct downloading from PC. Complete with: Combi-rollers rear machine table with profile rails at 50 mm centers, front with (3) air flotation tables 24" X 86" (609 x 2,184 mm) each. Includes: Cross cut fence, side pressure device for cross cutting on pressure beam.
Call for Price
Call for Price
HOMAG CENTATEQ T-700/PROFI (BOF 712/32/18/A): Twin Pod Shuttle Table Machine w/ATC/Boring -- Specifications Twin Pod Shuttle Table; Bridge Gantry machine: NC Controlled, User-Friendly support rails & vacuum pods. -- Working Area"X" Axis: 126" (3,200 mm; "Y" axis: 72" (1,828 mm); "Z" axis stroke Routing: 12.8" (325 mm); "Z" axis stroke Boring: 7.3" (185 mm) Max. material thickness of 4" (100 mm). -- Positioning Speed"X" & "Y" Axes: 426 FPM (130 MPM); "Z" Axis: 66 FPM (20 MPM); machine head: Travels on THK linear motion guides on all axes. -- Worktable x (2) Twin pod table "Bridge Gantry" machine. NC Controlled; User-Friendly support rails & vacuum pods with: Electronic surveillance of all vacuum rails/pods/stops.(2) Independent 10-1/2' x 6' working areas for: Pendulum processing during loading & offloading of the materials being processed. -- Boring Unit x (2)(1) 3 HP (2.3 kW) Motor; variable speed: 1,500 - 7,500 RPM; (21) independent "Quick Change" vertical spindles: (13) In "X" axis; (8) in "Y" axis.10-Horizontal Spindles: (3+3 in X axis & ( 2+2) in Y axis. (1) 100 mm X-Axis Saw slot. -- Machining x 2(1) 20 HP (15 kW) Air-Cooled, high-speed constant duty Router with HSK F63 adaptor & tool length "touch off" probe.Programmable speed from 1,250 - 24,000 RPM; Constant torque achieved: 9,000 RPM; RH or LH rotation.Router is powered by: 14 kW Frequency inverter; integrated air jet blow off located in the extraction hood.(1) 10-Position ATC plate mounted: At the back of each head. -- Operator InterfacePC87 Front-End includes: "Power Control with: PowerTouch2" + Windows© 10 + woodWOP Operating System.21" TFT Color graphic touchscreen for data entry; PC 85T hand control pendant; INTEL Core 2 Duo Processor; 1 SATA 160 GB hard disk CD R/W drives.Ethernet Connection 10/100 MBIT RJ45 (without switch) for LAN connection to office PC; USB ports & central USB connection at the operating panel.BECKHOFF Programmable logic control for (3/4) axes; linear, circular & helical interpolation.The machine control is contained on a separate freestanding console that can be placed at either the LH or RH side of the machine. woodWOP can be programmed offline with the same intuitive icon-driven software that the Operator has on the machine controller. -- Shuttle Tables x 2Manual LH & RH facing/loading & automatic shuttle into & out of the working field. Integrated dust/scrap/chip conveyor to clean/remove material form the work/processing area. -- Complete with (2) 100 m³/Hr Vacuum Pump: All zone perimeter Safety System. -- Actual Model is: HOMAG - CENTATEQ T-700/PROFI (BOF 712/32/18/A).
Call for Price
Call for Price
HOMAG BAZ 211 VENTURE 21M Machining Center with ATC & "C" Axis -- Maximum Working field: X-Axis 3,225 mm (126.9"), Y-axis 1,500 mm (59"), Z-axis stroke 300 mm (11.8"), max work piece thickness 60 mm (2.4"). -- X-axis travel speed 80 MPM (262 FPM), -- Y-axis travel speed 60 MPM (197 FPM), -- Z-axis 40 MPM (131 FPM), AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Working area: Working tables consist of (6) adjustable support rails, (2) vacuum cups per rail; laser unit to aid in the quick positioning of the vacuum cups. -- Machining unit: (1) 14.75 HP (11 kW) liquid cooled electro-spindle router (1,500 - 18,000 RPM), "HSK F63" quick change tooling; 12-position ATC automatic tool changer, "C" axis for 360ø horizontal processing. -- Drilling Unit: Vertical drilling head with (17) individual vertical spindles, 11-spindles in "X", 7-spindles in "Y", spindles on 32 mm centers. (1) saw blade aggregate, 125 mm dia; (1) 4-spindle lock case horizontal trimming unit aggregate. -- "POWER CONTROL PC 85" Numerical control with: "WOODWOP + BAZ" interface software, "WINDOWS NT"; icon driven with a graphical interface to allow the operator to quickly and efficiently create programs. -- Includes: 144 MB Disk drive, CD ROM drive, 12" color LCD monitor. -- Features: RS-422 Serial & USB connection to PC (up to 300 meters), (2) line adaptors RS-232 & 485.2 with 9-25 pin and card for RS-232 line (cable not included). -- Features: Multitask operating system, input/output modules, axes override, 4-axis interpolation, "WOOD SCOUT" diagnostic graphics aid for programming, machine data & tool management. -- Editor Module for PC with same look and functionality of software on the machine, allows transmission of programs and work lists; Required office PC configuration (not included): Pentium processor, 8 MB RAM, 8 MB hard disk; VGA video card. Complete with: -- ELMO 100 cm/h vacuum pump; perimeter protection cage; user & maintance manuals on CD with wiring diagrams and operation of Numerical Control. -- "C" Axis -- Actual Model is BAZ 211 VENTURE 21M.Riggers are required for tear down and loading
$ 18,000
HOMAG - OPTIMAT BOF 211/30/R: Flat Table Machine (W/ATC/Boring/"C"Axis) -- Specifications4' x 10' Flat Matrix grid Phenolic working table. -- Working Field"X" Axis 120" (3.050 mm); "Y" axis 51" (1,300 mm); "Z" axis stroke 21" (535 mm); max material thickness 8.2" (210 mm). -- Positioning Speed"X" & "Y" Axis is 260 FPM (80 MPM); "Z" axis is 98 FPM (30 MPM). -- Boring Unit4.2 HP (3 kW) Variable speed from 1,500 - 7,500 RPM; (12) independent vertical spindles: (6) in "X" axis & (6) in "Y" axis. -- Machining(1) 19.4 HP (14.5 kW) Liquid-Cooled electrospindle router with: HSK 63F Adaptor; variable speed from 1,000 - 24,000 RPM. -- (1) NC Controlled C-axis for 360° horizontal processing. -- (1) 12-Positon automatic tool changer mounted at the back of the head for "on the fly" ATC. -- Operator Interface PC Front-End with: "HOMATIC" PC 85 Power Control + Windows "NT" + WoodWOP Operating System. -- 14" Color graphic monitor; industrial keyboard for data entry; 1.44 MB & CD RW disk drives; EtherNET interface for possible LAN connection to office PC. -- USB & RS-232 Serial interface for simple PC connection. -- NUM (PLC) With 3D Linear interpolation; 4-axis control for "X", "Y", "Z", & "C" axes. -- All mounted in separate free-standing control cabinet. -- Complete with:(1) 40 HP DEKKER "VMX055" Vacuum Pump; safety fencing; safety mats (will stop machine if operator enters work area); handheld pendent control. -- Actual Model: HOMAG OPTIMAT BOF 211/30/R
Call for Price
Homag BOF 311/37/15/R CNC Router Specs (to be confirmed): Homag "Vantage 12L" CNC Router Aluminum router table 60" x 144" working area Gridded Pneumatic reference stops Vacuum gauges Foot pedal control Drill unit Nine (9) vertical spindles One (1) horizontal spindle (two outlet) in X axis One (1) horizontal spindle (two outlet) in Y axis Router 16 HP HSK (quick-change) CW/CCW rotation Variable RPM Ten (10) position rotary tool changer Sound enclosure Front safety mats Safety fencing with interlocked access door Controller Flat screen monitor Standard keyboard and mouse Remote control pendant Also included: Laser projecting unit Ceiling mount
Call for Price
HOMAG AMBITION 2274 (KAL 370/6/A3) EDGEBANDER (W/PRE-MILL): -- Specifications: Working Capacity: Coiled stock min/max Edge thickness 0.3 - 3 mm (0.011. - 0.118"), Strip material min/max Edge Thickness 0.4 - 1 mm (0.016 - 0.039"),Panel stock min/max thickness 8 - 60 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18").Minimum workpiece width: 2.36" (60 mm) with workpiece thickness ≤ 22 mm) & 4.13" (105 mm) with workpiece thickness > 22 mm). -- Cleaning Agent Spraying Units:Top/Bottom spraying device prior to workpiece pre-milling. Designed for applying a separating agent, for easier cleaning of any residual glue on the panel. -- In-Feed Fence: Pre-heated manually adjustable in-feed fence with digital indicators. -- Pre-Milling Station:(2) 2.2 HP (3.0 kW) - 150 Hz, 9,000 RPM vertical jointing spindle motors; equipped with panel blow-off device and SIKO digital counters for adjustments. -- Panel Pre-Heat Unit: Quartz lamp for heating substrate edge before glue application. -- Edge Magazine:A multi-purpose 2-coil magazine expands capability by running coiled material & strips. Maximum roll diameter: 400 mm & 830 mm.Magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panelon the edgebanding. -- Gluing System Homag Quickmelt: QA 3 - Quick Melt Overhead Unit & heated roller applicator digitally displayed thermostat for both upper and lower unit.34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gatesLower melting unit equipped with automatic glue level control. Melting capacity: 12 kG/Hr (26 Lbs/Hr). Ultra-fast five-minute (5) heat-up time. -- Pressure Section: Programmable (Servo), automatic pressure zone adjustment, (1) large 150 mm dia. driven & (4) 70 mm dia. idle rollers, pneumatic pressure control depending on edgebanding material used.Workstations: -- End Trimming Unit:(2) 1 HP (0.8 kW) - 200 Hz, 12,000 RPM Motor ea. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer to straight snip. Programmable (Servo). -- Rough/Pre-Trimming Unit:(2) 0.55 kW 0.74 HP (0.55 kW) - 12,000 RPM Motors, tilting range +/- 1° & counter-rotating to machine feed to prevent blowout & .Height adjustment synchronized with the top pressure-beam .With digital counters. -- Scraping Unit:Top & bottom for thick PVC/ABS, electro-pneumatic positioning & pneumatically activated. Pneumatically-controlled blow off nozzles. Height adjustment synchronized with top pressure beam. -- Flat Glue Scraper Unit:Top & bottom to remove potential glue squeeze-out, electro-pneumatic positioning in and out of the processing area & electro-pneumatically activated height adjustment synchronized with top pressure beam. -- Buffing Unit:Top & bottom edge buffing/polishing. Operator & Machine Control: -- Power Touch Control Multi-Touch Screen C
Call for Price
HOMAG - AMBITION 2480: Edgebander (w/Premill & Corner Rounding) -- SpecificationsWorking Capacity. Coiled stock: Min./max. edge thickness 0.3 - 3 mm (0.011. - 0.118").Strip material min./max. Edge Thickness: 0.3 - 20 mm (0.011 - 0.78").Solid Wood Material min./max. Edge Thickness: 0.6 - 20 mm (0.024 - 0.78").Panel stock min/max thickness: 8 - 60 mm (0.472" - 1.574"); panel overhang: 30 mm (1.18").Min. workpiece width 2.36" (60 mm) with workpiece thickness ≤ 22 mm; 4.13" (105 mm) with workpiece thickness > 22 mm). -- Cleaning Agent Spraying Units Top/Bottom spraying device prior to workpiece premilling. Designed for applying a separating agent for: Easier cleaning of any residual glue on the panel. -- Infeed FencePreheated, manually adjustable infeed fence with: Digital indicators. -- Premilling Station(2) 2.2 HP (3.0 kW) - 150 Hz - 9,000 RPM: Vertical jointing spindle motors; equipped with: Panel blow off device & SIKO digital counters for adjustments. -- Preheat UnitQuartz lamp for: Heating substrate edge before glue application. -- Edge MagazineMultipurpose 2-coil magazine expands capability by: Running coiled material & strips. Max. roll diameter: 400 mm & 830 mm.Magazine height adjustment. Allows greater usage of varying panel heights by raising & lowering the magazine table; allows the Operator to center the panelon the edgebanding. -- Gluing System: HOMAG Quickmelt Premelting Unit. QA 3: Quick Melt Overhead Unit & Heated roller applicator; digitally displayed thermostat for both upper & lower unit. 34 mm Dia. Glue Roller. Allows excellent control of temperature for: Optimum bonding results with individual adjustment for leading & trailing glue gates.Lower melting unit equipped with: Automatic glue level control. Melting capacity: 12 kG/Hr (26 Lbs/Hr). Ultra-fast 5-minute heat up time. -- Pressure SectionProgrammable (Servo). Automatic pressure zone adjustment: (1) Large 150 mm dia. driven; (4) 70 mm dia. idle rollers; pneumatic pressure control depending on edgebanding material used.Workstations -- End Trimming Unit: PK 25(2) 1 HP (0.8 kW) - 200 Hz - 12,000 RPM Motor ea.: Cuts excess edge on the front & back of the panel; pneumatic adjusting from chamfer to straight snip. - Programmable (Servo). -- Rough/Pre-Trimming Unit - BF 10(2) 0.55 kW (0.74 HP) - 12,000 RPM Motors; tilting range: +/- 1° & Counterrotating to machine feed to prevent blowout.Height adjustment synchronized with: The top pressure-beam. -- 4-Motor Corner Rounding Unit: FF 32(4) 0.54 HP (0.4 kW) - 12,000 RPM; Motors to fine trim the edge overhangs at the workpiece front & rear vertical edge.Max. feed speed: 20 MPM (66 FPM) when using "Corner Rounding Unit". -- Open Space -- Profile/Bevel Scraping Unit PN 10Top & Bottom for thick PVC/ABS; electro-pneumatic positioning & pneumatically activated. Pneumatically controlled blow off nozzles. Height adjustment synchronized with: Top pressure beam. -- Flat Glue Scraper Uni
Call for Price
HOMAG ABD 050 CNC BORE, GLUE & DOWEL INSERTER: -- Specifications:(1) Horizontal drilling aggregate with (1) individual spindle; with servo control of the "X" Axis; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder. -- Working Capacity:Part size: Length 20 mm - 1,250 mm (.75" - 49") Width 20 mm - 800 mm (.75" - 31.5") Thickness 10 mm - 60 mm (.4" - 2.4") thick.Machine is set up for 8 mm Dia. x 30 or 35 mm long dowels -- Work Area(2) Separate working fields with (4) pneumatic top clamps can process up to (2) parts independently on the left-hand, right-hand or center stops; work pieces can be loaded in (1) field while being machined in the other to allow fast production of varying parts. -- Operator Interface:PC Front-end with Homag Power Control PC 85T, WoodWOP 5.0 operating system with graphic programming & error messaging.17" TFT flat screen monitor, CD-RW drive, 1.44 MB floppy drive, standard keyboard & mouse; Software allows program design with automatic mirror-image by use of an active center stop located 600 mm (23.6") from zero. -- Complete with:All manuals, documentation provided with machine. -- Actual Model is HOMAG ABD 050.
Call for Price
HOMAG VANTAGE 12L (BOF 311) 5'x12' CNC Router w/C-axis -- Specifications:• Table sizes: Vantage 12L,145.6" x 61" (3.700 x 1.550 mm)• Aluminum grid table• Main Router Power: 20 HP (14.9 kW)• Spindle Speed: Variable up to 24,000 RPM• Spindle Taper: HSK-F63 quick-change system.• Axes Capability: 3-axis• C-axis capabilities for aggregate clamping (4-axis functionality).• Aggregate Interface: Compatible with specialized HOMAG units, including the Flex5 5-axis aggregate• 10-position rotary/disc for ATC, mounted to the gantry• Drilling unit with 17 vertical and 4 horizontal drills• Drilling speed max: 7,500 RPM.• Homatic Power Control PC85• integrated with HOMAG's woodWOP software for programming• woodWOP with additional software for Nesting and engravings• Vacuum pump(s) with production capacity 500 m³/Hr• Safety cage/devices to minimize access to machine and vacuum pump.
Call for Price
HOMAG - EDGETEQ S-240: Edgebander (w/Premill & Corner Rounding)Specifications • Solid Strip & Coil Stock; 0.3 - 3 mm (0.016 - 0.11") • Workpiece width 70 mm = thickness 8 - 22 mm• Workpiece width 120 mm = thickness 23 - 50 mm• Standard Workpiece thickness: 8 - 50 mm / 1.96" max.)• Fixed Feed of 11 MPM (36 FPM)Equipped with • Premilling Station: (2) Motors @ 2.25 kW (3.0 HP) - 12.000 RPM, LH & RH rotation. Diamond cutterheads & pneumatic jump control for chip-free and clean panel edges. • Integrated heated glue roller.• Automatic Edge Magazine for Solid Strip & Coil Stock; up to 3 mm. • "Heavy-Duty" Guillotine for Solid Strip & Coil Stock; up to 3 mm. • "Quick-Change" glue pot & roller application unit. • Pressure Section. 1st Roller driven plus: (2) Idle rollers; timed pneumatic pressure controlled. Operator Interface • HOMAG "easyTouch" Operator Interface with: 7" Graphic color touch display & soft keypad; intuitive, user-oriented navigation. (20) Storable programs guarantee flexibility when processing a wide variety of edge materials and changing customer requirements. Clear overview of the help & assistant functions, including the glue pot temperature or troubleshooting in plain text.Workstations • End Trimming: (2) Motors, each @ 0.35 kW (1/2 HP) 12,000 RPM.• Top/Bottom Flush-Fine Trimming Unit: (2) Motors, each @ 0.55 kW (3/4 HP) - 12,000 RPM.• Corner Rounding Unit. (1) Motor, 0.35 kW (1/2 HP) - 12,000 RPM. • Top/Bottom Scraping, with vertical & horizontal copy wheels & PVC scrape collection box.• Top/bottom Buffing Unit: (2) motors, each @ 0.10 kW (0.125 HP) - 2,800 RPM. Complete with • Hold-down top pressure beam; padded sound enclosure, used tooling, and original factory machine documentation. • Actual Model: HOMAG EDGETEQ S-240 (aka: KDF 230)
Call for Price
HOMAG EDGETEQ S-500 EDGEBANDER (W/PRE-MILL) (aka "TAPE ROCKET" 2.0 LH): -- Specifications:• HOMAG Edgebanding Machine Tape Rocket 2.0 Left-Hand Feed Machine• Edge Thickness Capacity: 0.3 - 3mm• Edge Height Capacity: 12 - 64mm• Minimum Workpiece Width: 60mm (w/ Workpiece Thickness 22mm or Less), 100mm (w/ Workpiece Thickness Greater Than 22mm)• Workpiece Thickness Capacity: 8 - 60mm• Release Agent Spraying Unit• Pre-Milling Unit w/ Two Counter-Rotating 3kW Motors• Panel Pre-Heating• QA-65 P Gluing Unit for PUR & EVA• EVA Quick Melt Pre-Melter for EVA only• Pneumatic Guillotine• Five-Roll Pressure Section• Two-Motor End-Trimming Unit, Programmable Reset from Chamfer to Straight• Two-Motor Fine-Trimming Unit, HSK Interface "I" System Tooling• Top & Bottom Profile Scraping Unit, Electro-Pneumatic Positioning, Quick-Change• Top & Bottom Glue-Scraping Unit, Electro-Pneumatic Positioning• Top & Bottom Edge-Buffing• Cleaning Agent Spray Unit• Homag powerTouch Control System w/ 24" Touch-Screen• Windows 10 Professional Operating System• Programmable Thickness Adjustment• Variable Speed Feed: 16 - 25 m/min• Rubber Padded Feed Chain w/ Double-Wide Hold-Down V-Belt• Pneumatically-Actuated Pop-Up Pin for Appropriate Feeding/Spacing of Workpieces•Adjustable Outrigger Support• Sound/Safety Enclosure• Actual Model is HOMAG EDGETEQ S-500, OPTIMAT KAL375/14/V25 (aka "TAPE ROCKET" 2.0 LH).
Call for Price
HOMAG EDGETEQ S-500 EDGEBANDER (W/PRE-MILL) (aka "TAPE ROCKET" 2.0 RH): -- Specifications:• HOMAG Edgebanding Machine Tape Rocket 2.0 Right-Hand Feed Machine• Edge Thickness Capacity: 0.3 - 3mm• Edge Height Capacity: 12 - 64mm• Minimum Workpiece Width: 60mm (w/ Workpiece Thickness 22mm or Less), 100mm (w/ Workpiece Thickness Greater Than 22mm)• Workpiece Thickness Capacity: 8 - 60mm• Release Agent Spraying Unit• Pre-Milling Unit w/ Two Counter-Rotating 3kW Motors• Panel Pre-Heating• QA-65 P Gluing Unit for PUR & EVA• EVA Quick Melt Pre-Melter for EVA only• Pneumatic Guillotine• Five-Roll Pressure Section• Two-Motor End-Trimming Unit, Programmable Reset from Chamfer to Straight• Two-Motor Fine-Trimming Unit, HSK Interface "I" System Tooling• Top & Bottom Profile Scraping Unit, Electro-Pneumatic Positioning, Quick-Change• Top & Bottom Glue-Scraping Unit, Electro-Pneumatic Positioning• Top & Bottom Edge-Buffing• Cleaning Agent Spray Unit• Homag powerTouch Control System w/ 24" Touch-Screen• Windows 10 Professional Operating System• Programmable Thickness Adjustment• Variable Speed Feed: 16 - 25 m/min• Rubber Padded Feed Chain w/ Double-Wide Hold-Down V-Belt• Pneumatically-Actuated Pop-Up Pin for Appropriate Feeding/Spacing of Workpieces• Adjustable Outrigger Support• Sound/Safety Enclosure• Actual Model is HOMAG EDGETEQ S-500, OPTIMAT KAL375/14/V25 (aka "TAPE ROCKET" 2.0 RH).
Call for Price
HOMAG DRILLTEQ V-310 CNC Machining Center (Vertical, W/ATC/Boring): -- Specifications:Flexible "Vertical" Machining Center with "ATC" that uses less than 11-meter² of valuable floor space in addition to an innovative panel handling system. -- Working Capacity:Max. workable part size for "X" axis is 120" (3,050 mm), "Y" axis 49.2" (1,250 mm), and max. part thickness 3.1" (80 mm).Min. worktable part size for "X" axis is 7.8" (200 mm), "Y" axis 1.97" (50 mm), min. part thickness of 0.31" (8 mm). Max. workpiece weight 132 LBS (60kg)LH or RH infeed & outfeed. -- Positioning Speed:The V-310 can reach vector speeds of 210 FPM (64 MPM) in "X" & "Y" axis, & 66 FPM (20 MPM) in "Z" axis with total safety, providing an unmatched working capacity. -- Boring unit BHV310:(1) 3 HP (2.3 kW), variable speed from 1,500 - 7,500 RPM motor. Boring Head with (12) independent Vertical spindles, (6) Horizontal spindles with (2+2) in "X" axis & (1) in "Y" axis. (1) "X" / "Y" 90° grooving saw, 125 mm saw blade dia. -- Machining:(1) 13.4 HP (10 kW) Air cooled Electro spindle router with HSK-F63 adaptor, variable speed from 6,000 - 24,000 RPM. (1) 8-position ATC tool rack mounted on the side of the machine base for easy access. -- Operator Interface:HOMAG "powerTouch2" + Windows + WoodWOP operating system; "IntelCore 2 DUO" Processor. 21" TFT Monitor with pop up keyboard display, Industrial keyboard & mouse, Serial ports, USB ports, modem, Ethernet connection. Real-time multitask processing. -- Complete with:Pneumatic part clamping; sound enclosure and safeSCAN safety technology. -- Actual Model is HOMAG DRILLTEQ V-310
Call for Price
HOMAG - KAL 210 AMBITION 2262: Edgebander (w/Premill & Corner Rounding) -- SpecificationsCoiled stock min./max. Edge thickness: 0.3 - 3 mm (0.012. - 0.118"); strip material min./max. edge thickness: 0.4 - 6 mm (0.16 - 0.234"). -- Panel stock min./max. thickness:12 - 40 mm (0.472" - 1.574"); panel overhang: 30 mm (1.18"). -- Infeed Fence. Adjustable infeed fence with: Manual digital indicator positioning. -- Premilling Station: (2) 3.0 kW (4.0 HP) 150 Hz - 9,000 RPM Motors; equipped with: Trimming column, (2) horizontal & cross slides with: Spindle adjustment; electropneumatic horizontal jump movement of the 1st motor.Includes: Electronic frequency inverter for control of motor speed & braking; (2) dust extraction hoods; air jet panel blow off device, & SIKO digital counters for adjustments. -- Panel Preheater: Brings the panel to an appropriate temperature for better adhesion; this is especially beneficial in cooler temperatures. -- Multipurpose Magazine: 2-Coil magazine expands capability by running coiled material & strips; magazine height adjustment allows for greater usage of varying panel heights by raising & lowering the magazine table, allowing the Operator to center the panel on the edgebanding. -- Gluing System (EVA - Hot Melt): QA 3 -Quick Melt Overhead Unit & heated roller applicator; digitally displayed thermostat for both upper & lower unit.34 mm Dia. Glue Roller": Allows excellent control of temperature for optimum bonding results with individual adjustment for: Leading & trailing glue gates; lower melting unit equipped with: Automatic glue level control. Melting capacity: 12 kG/Hr (26 Lbs/Hr). -- Pressure Section: Automatic pressure zone adjustment (Servo); (1) large 160 mm dia. driven & (6) 70 mm dia. idle rollers; pneumatic pressure control depending on edgebanding material used. -- WORKSTATIONSEnd Trimming Unit HL 81: 0.8 kW (1.0 HP) x (2) 200 Hz - 12,000 RPM Motors to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer 30° to straight cut. -- Top & Bottom Flush Trimming Unit. Top & Bottom: 0.4 kW (0.74 HP) x 2 - 12,000 RPM Motors; height adjustment with the top pressure beam and tilting range +/- 1°. -- Profile/Bevel/Corner Rounding Unit: FF 12. Multifunction 0.4 kW (0.54 HP) x (2) - 12,000 RPM motor to fine trim the edge overhangs at the workpiece upper & lower edge, as well as trimming around the front & rear vertical edge. - Max. feed speed: 20 MPM (65.6 FPM). -- Profile/Bevel Scraping Unit PN 10. Top & Bottom for: Thick PVC/ABS; pneumatically activated/adjustment. -- Flat Glue Scraper Unit. Top & Bottom: Pneumatically activated to remove potential glue squeezeout. -- Buffing Unit FA 11. Top & Bottom: Edge buffing/polishing; pneumatically activated. -- Operator & Machine ControlHOMATIC - PC 22: Power Control w/Touchscreen. Controller functions in Windows environment and features: Keypad w/LCD flatscreen display, fault diagnostic, OS9 real-time Operating System.Handheld remote c
