Description:

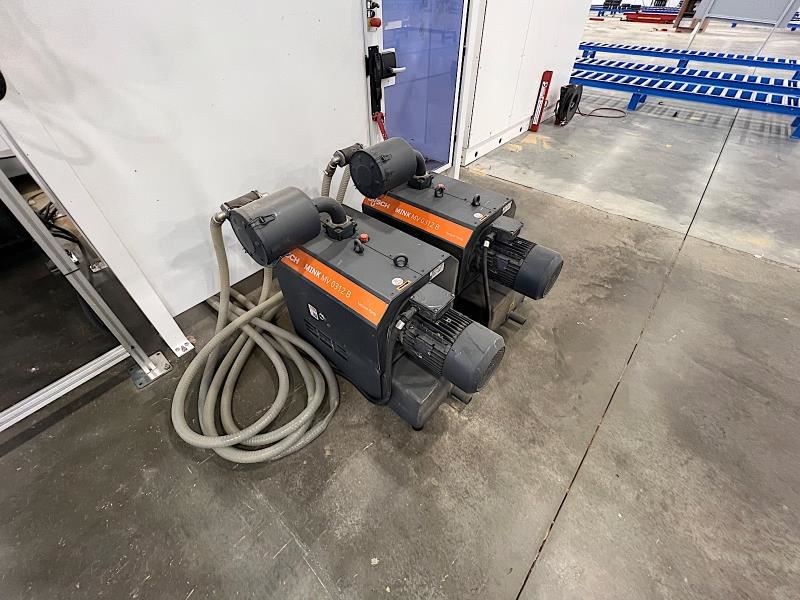

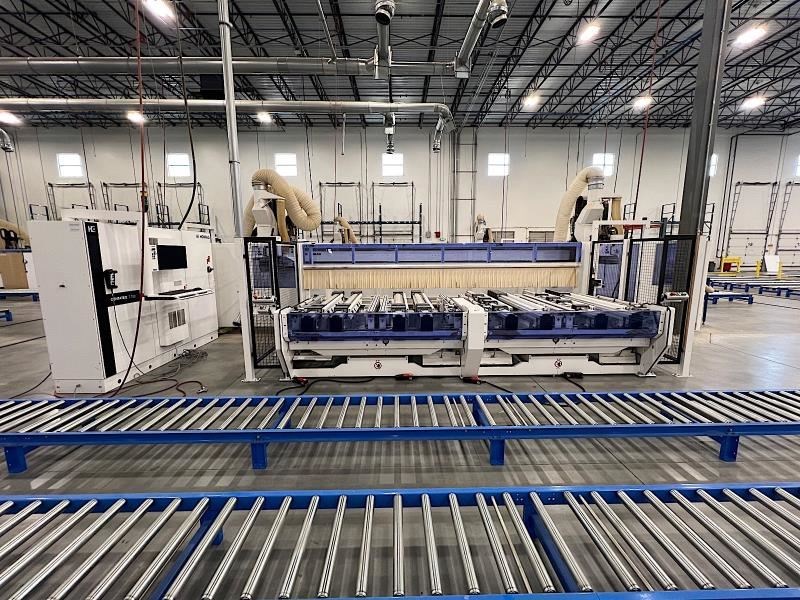

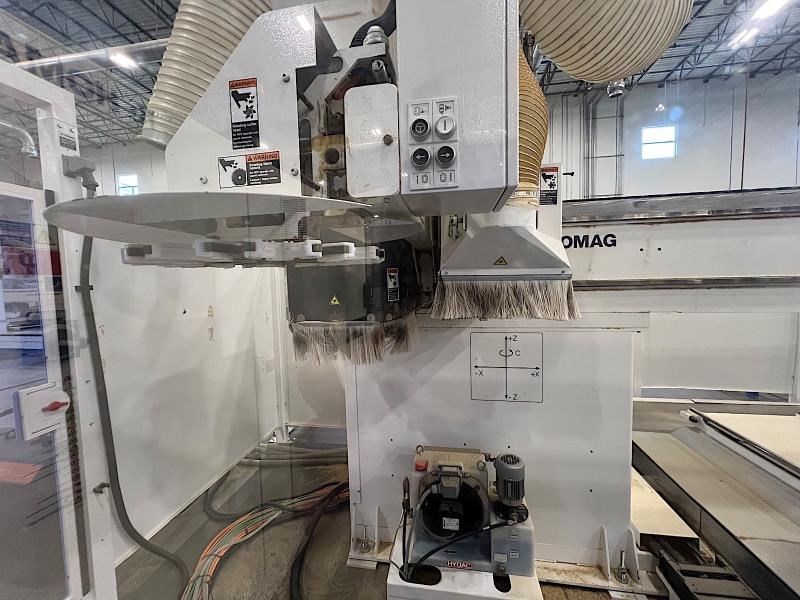

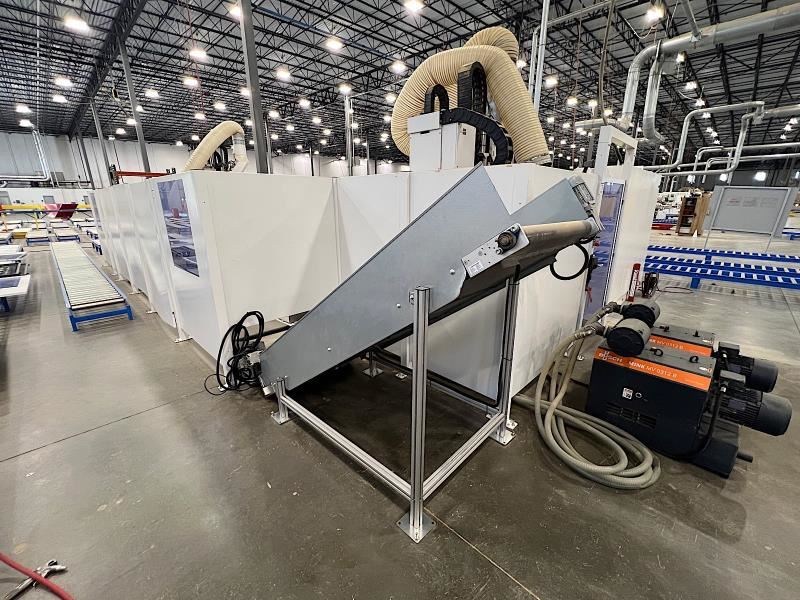

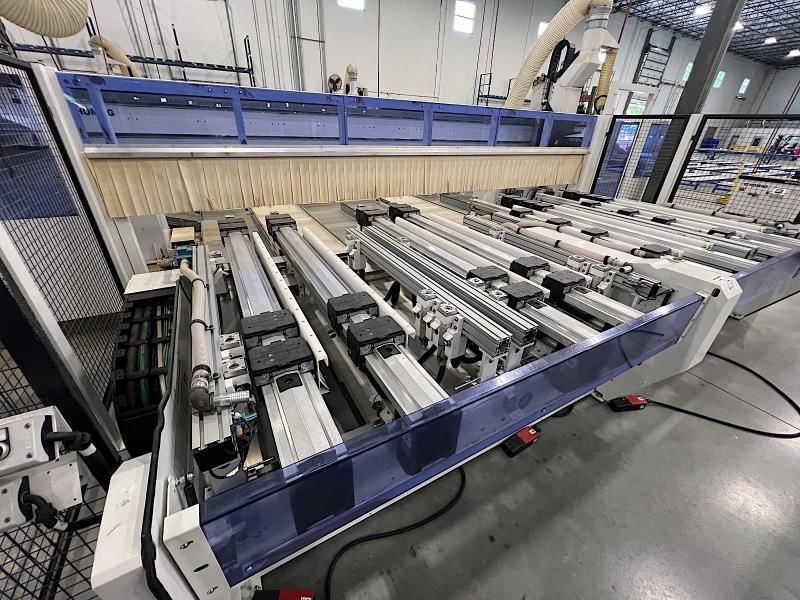

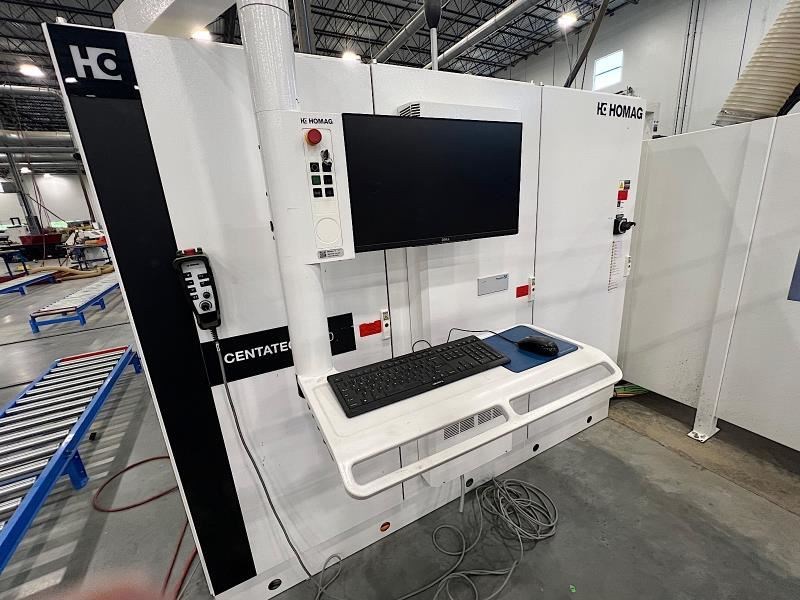

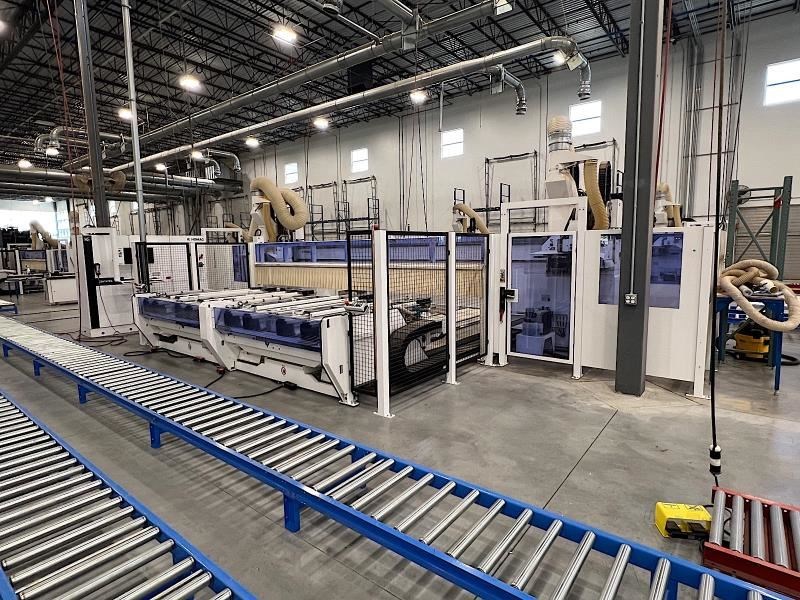

HOMAG VANTAGE 12L (BOF 311) 5'x12' CNC Router w/C-axis -- Specifications:• Table sizes: Vantage 12L,145.6" x 61" (3.700 x 1.550 mm)• Aluminum grid table• Main Router Power: 20 HP (14.9 kW)• Spindle Speed: Variable up to 24,000 RPM• Spindle Taper: HSK-F63 quick-change system.• Axes Capability: 3-axis• C-axis capabilities for aggregate clamping (4-axis functionality).• Aggregate Interface: Compatible with specialized HOMAG units, including the Flex5 5-axis aggregate• 10-position rotary/disc for ATC, mounted to the gantry• Drilling unit with 17 vertical and 4 horizontal drills• Drilling speed max: 7,500 RPM.• Homatic Power Control PC85• integrated with HOMAG's woodWOP software for programming• woodWOP with additional software for Nesting and engravings• Vacuum pump(s) with production capacity 500 m³/Hr• Safety cage/devices to minimize access to machine and vacuum pump.
