Woodworking Equipment For Sale

2019 Gabbiani P 55 Front Loading Panel Saw Like New !

Gabbiani Gallixy 125 Rear Loading Panel Saw

Gabbiani Galaxy 125 Panel Saw Manufacturer Specifications to be confirmed: Cutting length; 3800mm Pusher stroke; 3800mm Speed is variable, via VFD Number of grippers; 9 Main motor power; 18.5kw (25.5hp) Saw blade diameter max; 420mm Saw blade projection 125 mm

GANNOMAT COMBI 110 CONSTRUCTION LINE BORER(23) Spindle head, 2 HP - 2,800 motor, 31-1/2" max. working width, 3" drilling stroke, drills vertically from bottom and horizontally from rear, tilts pneumatically from lower to rear position with positive stop at 45° for angle drilling. -- Holddown clamp assembly tilts 90° for clamping short panels vertically for edge boring, no need to swivel boring head, hydraulic brake for through boring. -- Complete with: (4) Pneumatic holddowns, mirror imaging fences, 4,000 mm line boring fence w/stops and 1,500 mm butt joint fence with (2) flip stops.

GANNOMAT Vantage 76: Boring Machine (CNC Line Boring) -- Specifications(1) Boring aggregate with: 76 Spindles; pitch 32. -- The unit (aggregate) consists of: (4) 19-Spindle drill heads; each drill head is powered by: 1.5 kW motor.Up & down travel for each aggregate is by pneumatic/hydraulic feed. -- Boring depth: 0 - 35 mm Wit9990oh 70 mm tooling installed. -- 2-Depth Selection for: Blind boring & through boring is programmable through the PLC. -- (38) Drill bits: 5 x 70 mm V-Point, right hand. -- 38 Drill bits: 5 x 70 mm V-point, left hand. -- (8) Holddown clamps for: Workpieces up to 40 mm thick. -- "Y" Axis travel for the drilling unit; NC controlled from 20 - 580 mm from the fixed backstop ruler. -- Travel speed: 250 mm Per second. -- Back fence with: (2) End stops; adjustable from: 0 - 150 mm. -- Electronic control with: LCD Display; (99) programs with: max. of (4) rows of holes per program. -- Fully automatic electronic control with: Foot pedal initiation of the clamping/reclamping; drilling cycle; safety control. -- Dims: 142" L x 58" W x 60" T; machine weight: 3,100 Lbs. -- Actual Model - GANNOMAT VANTAGE 76

GANNOMAT - CONCEPT 70 ECO PLUS: Case Clamp (Semi-Automatic): -- SpecificationsMultipurpose Case Clamp with: Interlocking vertical & horizontal pressure beams specially designed to save time & labor. -- Clamping pressure is applied across the entire vertical & horizontal beams for clamping of case goods, drawers, etc. -- Working CapacityLength: Min. 6" (150 mm); max. 98.4" (2,500 mm); height: Min.: 6" (150 mm); height max.: 51" (1,300 mm); depth max.: 27-1/2" (700 mm). (2) Potentiometer for stepless adjustable pressing force; adjustable clamping cycle time with automatic opening.Minimum pressing force: 300/500 kG; max. pressing force: 2,200 kG.(4) Pressing velocities & adjustment rates: 5 /10 / 25 / 50 mm per Sec (with fine positioning/creep feed). -- Operator InterfaceElectronic controller with Keypad for the following functions: Manual operation; (6) individual push buttons for: (8) Motion sequences; pressure regulation; workpiece count; clamping dwell time. -- Actual model: GANNOMAT CONCEPT 70 ECO PLUS.

GANNOMAT - 260: Case Clamp (Semi-Automatic): -- Specifications 100" x 50" x 26" Clamping Cap.; (3) vertical combination air cylinders & shoes mounted on horizontal beam for top pressure; 0.33 HP motor for up/down travel. -- (2) Combination air cylinders & shoes mounted on adjustable vertical, side pressure beam.Vertical beam locks in place with: (4) Air cylinders and rides on bearings for quick and easy positioning. -- Push button operated with: Independent pressure control for top or side; air pressure up to 125 PSI (Clamp shoe assemblies are interchangeable from vertical to horizontal). -- Complete with: -- Pressure gauges and timer control with (0 - 30) Min setting.

Gannomat Pro-Line 50 • Row of holes as well as line drilling in the SYSTEM 32 mm • 50 (2 x 25) holes in one drilling cycle

GANNOMAT VANTAGE 152 LINE BORER (CNC Line Boring)Specifications: -- (1) Boring aggregate with: 152 Spindles; pitch 32. --The unit (aggregate) consists of 2 independent sets: (4) 19-Spindle drill heads; each drill head is powered by: 1.5 kW motor. -- Up & down travel for each aggregate is by pneumatic/hydraulic feed. -- Boring depth: 0 - 35 mm Wit9990oh 70 mm tooling installed. -- 2-Depth Selection for: Blind boring & through boring is programmable through the PLC. -- 76 Drill bits: 5 x 70 mm V-Point, right hand per -- 76 Drill bits: 5 x 70 mm V-point, left hand. -- (8) Holddown clamps for: Workpieces up to 40 mm thick. -- "Y" Axis travel for the drilling unit; NC controlled from 20 - 580 mm from the fixed backstop ruler. -- Travel speed: 250 mm Per second. -- Back fence with: (2) End stops; adjustable from: 0 - 150 mm. -- Electronic control with: LCD Display; (99) programs with: max. of (4) rows of holes per program. --Fully automatic electronic control with: Foot pedal initiation of the clamping/reclamping; drilling cycle; safety control. -- Dims: 142" L x 58" W x 60" T; machine weight: 3,100 Lbs. -- Actual Model -GANNOMAT VANTAGE 152

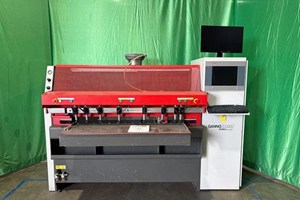

GANNOMAT INDEX 130 TREND/470 TB CNC BORE, GLUE & DOWEL INSERTER: -- Specifications:CNC Controlled Point-To-Point Drilling/Gluing/Dowel Insertion Machine with variable programming of boring patterns.(1) Single spindle horizontal boring unit with 0.87 HP (.65 kW) motor; 3,000, 5,000, 8,000 RPM spindle speed selectable from the control software(1) Gluing, dowel inserting unit currently set up for 8 mm dowel dia, 25 to 50 mm dowel length -- Working Field:Working length 1,300 mm (51") single part, 650 mm (25.5") 2-parts, 320mm (12.5") 4-parts;Working width 0.75" - 7.75", material thickness 0.5" - 3.1".Total of (4) fields 2-LH / 2-RH for up to (4) zone processing of small parts like drawers, stretchers etc.(8) Dual-acting, adjustable hold-down cylinders for part processing. -- Positioning Speed:246 FPM (75 MPM) positioning speed. "X","Y" & "Z" Axis travel via precision ball-screw drive, "Y" & "Z" Axis adjusted by manual digital indicators. -- Dowel driving & horizontal boring:Integrated into (1) station; the dowel driving unit is located along side the boring station; both units are mounted on (1) support. Horizontal drilling & boring station head is capable of processing 6 - 8 or 10 mm dia dowels & lengths from 25 - 50 mm with required, additional optional items. -- Doweling station includes:(1) Vibrating hopper; insertion head & dowel driving with air impulse. Electronic inductive glue insert control system monitoring glue injection.Selector switch (glue/water) for quick rinsing of entire system; Glue control warning light indicating low volume in the glue container -- Operator & Machine Control:Industrial PC Control" + Windows "XP" Professional operating system;15" Monitor display, USB drive port, Serial & parallel interface, Bar code capable. -- Complete with:(1) stainless steel 1.5 gallon container for glue and (1) stainless steel 1.5 gallon container for water;Closed pressurized gluing system requires 88 PSI (6 BAR) constant air pressure; Selector switch (glue/water) for quick rinsing of entire system;Glue control warning light indicating low volume in the glue container.Actual Model is GANNOMAT INDEX 130 TREND/470 TB

GANNOMAT INDEX TREND/470 CNC BORE, GLUE & DOWEL INSERTER: -- Specifications:CNC Controlled Point-To-Point Drilling/Gluing/Dowel Insertion Machine with variable programming of boring patterns.(1) Single spindle horizontal boring unit with 0.87 HP (.65 kW) motor; 3,000, 5,000, 8,000 RPM spindle speed selectable from the control software(1) Gluing, dowel inserting unit currently set up for 8 mm dowel dia, 25 to 50 mm dowel length -- Working Field:Working length 1,300 mm (51") single part, 650 mm (25.5") 2-parts, 320mm (12.5") 4-parts;Working width 0.75" - 7.75", material thickness 0.5" - 3.1".Total of (2) fields 1-LH / 1-RH for up to (2) zone processing of small parts like drawers, stretchers etc.(8) Dual-acting, adjustable hold-down cylinders for part processing. -- Positioning Speed:246 FPM (75 MPM) positioning speed. "X","Y" & "Z" Axis travel via precision ball-screw drive, "Y" & "Z" Axis adjusted by manual digital indicators. -- Dowel driving & horizontal boring:Integrated into (1) station; the dowel driving unit is located along side the boring station; both units are mounted on (1) support. Horizontal drilling & boring station head is capable of processing 6 - 8 or 10 mm dia dowels & lengths from 25 - 50 mm with required, additional optional items. -- Doweling station includes:(1) Vibrating hopper; insertion head & dowel driving with air impulse. Electronic inductive glue insert control system monitoring glue injection.Selector switch (glue/water) for quick rinsing of entire system; Glue control warning light indicating low volume in the glue container -- Operator & Machine Control:Industrial PC Control" + Windows "XP" Professional operating system;15" Monitor display, USB drive port, Serial & parallel interface, Bar code capable. -- Complete with:(1) stainless steel 1.5 gallon container for glue and (1) stainless steel 1.5 gallon container for water;Closed pressurized gluing system requires 88 PSI (6 BAR) constant air pressure; Selector switch (glue/water) for quick rinsing of entire system;Glue control warning light indicating low volume in the glue container.Actual Model is GANNOMAT INDEX TREND/470

GANNOMAT INDEX 230 TREND: CNC Bore, Glue & Dowel Inserter -- SpecificationsCNC Controlled horizontal point-to-point Drilling, Gluing & Dowel Inserting Work Center for: Absolute, incremental, variable (parametric) programming of boring patterns. -- Working FieldStop system (side fences) with: Right hand, left hand, and center stop (all removable).(4) Independent zones for individual processing of (1 to 4) pieces. -- "X" Axis:Positioning speed: 246 FPM (75 MPM); CNC controlled and driven by rack & pinion for fast acceleration/deceleration of working unit. -- "Y" AxisSet by mechanical digital counters. -- "Z" AxisCNC Centering height adjustment of boring/inserting from the control. -- Working Length2,300 mm (90-1/2") x 1/2" - 3-1/8" Material thickness; use as 2-field, LH, RH @ 1,150 mm (45-1/4") wide or 4-field with center fence; LH/RH - LH/RH @ field 570 mm (22.4") wide to increase throughput on smaller parts like drawers, stretchers, etc. -- Hold-down CylindersTotal of (8) pneumatic, "quick change". -- Dowel Driving & Horizontal BoringIntegrated into: 1-Station; dowel driving unit located alongside the Boring station; both units mounted on: (1) Support. -- Horizontal Drilling SpindleCan be setup for: 6 - 8 or 10 mm; Dowel length from: 25 - 50 mm. -- Doweling Station includes Vibrating Hopper with: (1) Single-drop device; (1) outlet tube; insertion head & dowel driving with: Air impulse; mechanical dowel diameter & dowel length control prevents the insertion of any oversized dowels; setup for 8 mm dia. x 35 mm long dowels. -- Glue Valve/AmountControlled via software; can be adjusted by milliseconds; (2) standard separate stainless steel 1-1/2-gallons pressurized tanks (one for glue, one for water for occasional rinsing cycle). -- Operator & Machine ControlWindows "XP Pro" Operating System interphase & BECKHOFF "C3640 Twincat" PLC; easy to program GANNOMAT production software.Equipped with: 15" Color monitor; CD-ROM drive; network card (for online operation); serial, parallel & USB interphase & softfoil covered keyboard. -- Complete with: Unit in "good working" condition; includes: Docs; manuals; software CD's. -- Options includedNew backup PLC that is unused. -- Actual model: GANNOMAT - INDEX 230 TREND.

GANNOMAT - INDEX 130 LOGIC: CNC Bore, Glue & Dowel Inserter -- SpecificationsGANNOMAT "INDEX LOGIC": CNC Controlled Point-to-Point Drilling/Gluing/Dowel Insertion Machine for variable programming of boring patterns. -- "X", "Y" & "Z" Axes set by manual digital indicators. -- Working Width1,300 mm (51") x 3/4" - 7-3/4" Width x 1/2" - 3-1/8" material thickness with: (4) Independent working zones & LH/RH (mirror image).Table size: 4-1/2" x 52-3/4" x 35" H with 9" x 52" extension. -- (8) Vertical hold-down cylinders & zero center stop for horizontal part processing. -- Dowel Driving & Horizontal Boring: Integrated into (1) station; dowel driving unit is located alongside the boring station; both units are mounted on (1) support. -- Horizontal Boring Station. Head can be setup for: 6 - 8 or 10 mm, Dowel length from 25 - 50 mm (currently setup for 8 mm dia. x 50 mm long dowels). -- Doweling Station: Vibrating hopper; insertion head & dowel driving with air impulse; glue valves are controlled individually at the control cabinet; central adjustment for the amount of glue by means of a digital timer. -- Operator Interface: MS-XP & GANNOMAT Production software; 15" color touchscreen monitor interface; USB drive; bar code capable. -- Controller & Drive: BECKHOFF "C3620 TWINCAT V2.10". -- Complete with: (1) Glue tank; (1) water tank; auto lubrication system; all original manufacturer's machine documentation. -- Actual Model: GANNOMAT INDEX 130 LOGIC

GANNOMAT - INDEX 280 PRO: CNC Bore, Glue & Dowel Inserter -- SpecificationsCNC Controlled horizontal Point-to-Point Drilling, Gluing & Dowel Inserting Work Center for: Absolute, incremental, variable (parametric) programming of boring patterns. "Z" Axis NC-controlled with: Ball screw drive and dynamic positioning. -- Working Field(4) Independent zones for individual processing: (1- 4) pieces; pneumatically activated Stop system (side fences) consisting of: Right hand, left hand, and center stop. Max. single part length: 2,300 mm (90-1/2") with: 2nd Glue & Dowel inserting unit the max. length is 2,150 mm (84.6"). Min./Max. material thickness: 1/2" - 3.125". NOTE. Machines with Top drilling unit: Max. thickness (Z) will be reduced by 0.78" (20 mm) to 2.345" max. material thickness. "X" Axis Positioning speed: 246 FPM (75 MPM); driven by rack & pinion for fast acceleration/deceleration of working unit. "Y" Axis: Set by mechanical digital counters. Z" Axis with: NC Controlled height adjustment for boring/inserting units. -- Hold-down ClampsTotal of (8): Pneumatic, "quick-change" hold-down Clamps. -- Dowel Driving & Horizontal Boring(2) Gluing & (2) dowel inserting units: (1) For 6 mm; (1) for 8 mm; with (2) separate hopper feeds. Dowel Driving Unit: Located alongside the Boring Station; both units are mounted on: (1) Support; desired dowel diameter is programmable by controller. -- Horizontal Drilling Unit1.5 kW Motor with Mult spindle drill head: (3) Individually single selectable drilling spindles on 32 mm centers in "X" axis.Can be setup for 6 or 8 mm; dowel length from: 25 - 50 mm. (3) Selectable spindle speeds: 3,300 / 4,950 / 6,600 RPM for Horizontal drilling. -- Vertical Top Drilling Unit1.5 kW Motor with multi-spindle drill head with: (3) Individually single selectable drilling spindles on 32 mm centers in "X" axis.Can be setup for 6 or 8 mm; dowel length from 25 - 50 mm. (3) Selectable spindle speeds: 3,300 / 4,950 / 6,600 RPM for vertical drilling. NOTE: For machines with top drilling unit, the maximum workpiece thickness (Z): Will be reduced by 0.78" (20 mm). -- Doweling Station includes:(2) Vibrating hoppers, each hopper with: (1) Single drop device and (1) outlet tube; (1) insertion & dowel driving unit with: Air impulse for each Hopper.Mechanical dowel diameter & dowel length control: Prevents the insertion of any oversized dowels. -- Glue StationRetractable close-range glue nozzle: glue nozzle mounted between drilling and inserting station.Glue amount controlled via: Software; can be adjusted per milliseconds. -- Operator InterfaceGANNOMAT + BECKHOFF TWINCAT TFT Operating System.15" Touchscreen color monitor; network card (for online operation); serial, parallel, USB ports. -- Complete with:(2) Standard stainless steel 1-1/2 gal. pressurized tanks (one for glue, one for water to clean/purge the glue tubes).(1) 5 KVA 208 / 230 / 460 / 480 Volt transformer. -- Actual model: GANNOMAT INDEX 280 PRO.

Gau Jing GS-623 Moulder 6 Head 460V 3ph 60hz Good Running Condition Recently Removed From Service

GENERAL - 350 10", ...Tilting Arbor Table Saw with: 5 HP Motor & Rip FenceSpecifications: -- Table size: 20" LR x 28" FB x 34-1/2" H. -- Arbor dia. 5/8"; tilt 0° - 45° to right; blade speed: 4,000 RPM. -- Max. depth of cut: 3-1/8" at 90°; 2-1/8" at 45°; max. width of dado cut 13/16". -- Max. rip cap.: 52" Right.Equipped with: -- 8" Left & right table extensions. -- 5 HP Motor.Complete with: -- DELTA "Unifence Saw Guide"; 43" L x 3-1/2" H Rip Fence System. -- Blade Guard. -- Miter Gage.

GIARDINA DUALTECH 605 Automatic Reciprocating Sprayer:System includes: -- In-feed roller conveyor with panel reading/detection 60-cell photodiode bar to monitor and regulate spray application, further maximizing application transfer efficiency. -- (2) Reciprocating trolleys with spray gun supports, and adjustable speed, providing a consistent speed and pattern across entire conveyor width. - Each trolley to carry (4) adjustable guns on each head (8 guns total). -- Two (2) coating circuits, suitable for solvent and water-based coatings. -- Motorized height adjustments of spray gun supports. -- Spray guns are independently adjustable in inclination; and manual adjustment. -- Through Feed Conveyor: Max. working width of 1,300 mm (51"), variable speed adjustable by means of an inverter. -- Synthetic Belt Conveyor: Ring-closed by means of an "overlapped" joint and with solvent-resistant surface treatment.Features: -- Total recovery of the lacquer deposited on the belt and cleaning of the belt with the possibility of reusing it in the spraying circuit. - Rapid repositioning of the conveyor belt system thanks to the special design of the frame. -- Air exhaust system and separation of the solid content from the air by means of two (2) suction boxes located on the two sides of the conveyor, equipped with high-efficiency twin Dry-Filters. The filtered air is exhausted to the outside by means of a centrifugal fan. -- The Enclosure Booth is made with structural irons and coated sheet steel panels. -- Control and set-up of the work parameters by means of a PLC located on a pivoting arm mounted to the machine.NOTE: Is being "Cleaned, checked and Serviced" by on of the most experienced Finishing Equipment Technician!

GIBEN - KG-320, ...Edgebander (Compact)0.4 - 3 mm Edge thickness capacity min. panel width 80 mm; panel thickness 10 - 60 mm; variable feed speeds: 12 - 20 MP; electronic adjustment of the upper pressure beam.Equipped with: 2 KG Glue pot & adjustable pressure roll section with: (1) Driven roller and (3) idler rollers.Workstations -- 2-Motor end Trimming Unit. -- Top & Bottom radius Fine Trim Station. -- Top & Bottom Buffing Station.Complete with & Features: -- Programmable PLC Control. -- Sound cabin for all workstations. -- Adjustable outboard panel support.

GIBEN - WIBJ-5: CNC Machining Center -- SpecificationsAutomatic CNC through-feed Point-to-Point Boring Machine that combines flexibility & high productivity.Perfectly suited solution for small to mid-size companies & artisans in need of: Automatic solution for precision drilling with a low-cost investment.Parts can be discharged at the opposite end of the machine for automated material handling or returned to the Operator for manual unloading. -- Working FieldMax. panel size: "X" Axis: 98.4" (2,500 mm); "Y" axis: 33.4" (850 mm); "Z" axis: 2.3" (60 mm).Min. panel size "X" axis: 7.9" (200 mm); "Y" axis: 2.8" (70 mm); "Z" axis: 0.39" (10 mm). -- Positioning Speed"U-Axis" Panel feeding speed: 197 FPM (60 MPM); "X" & "Y" axis: 197 FPM (60 MPM); "Z" axis: 49 FPM (16 MPM).Axes positioning by: AC Drives & brushless motors; the "Panel" moves in "X" axis & the "Machining Units" move in "Y & Z" axis. -- Work AreaNC Controlled "Optical Material Sensor" creates: “0“ Panel reference point by reading the panel's ends; ensures: RH & LH (mirror image) panels will always be symmetrical.Fixed RH ("U" Axis) panel clamping device with: Automatic panel adjustment according to the programed information.LH Side pressure clamp with: Automatic adjustment & pneumatic locking according to the panel width.Scratch resistant idle rollers for: Panel positioning from the bottom & sides. -- Boring Unit2 HP (1.5 kW) - 4,800 RPM Motor; (12) independent vertical spindles with: (6) In "X" axis; (6) in "Y" axis.(6) Horizontal spindles with: (2 + 2) in "X" axis; (1 + 1) in "Y" axis; (1) 4,200 RPM "X" axis grooving saw with: Max. 120 mm di. blade.Max. dia. of horizontal drill bits: 12 mm; Max. dia. of vertical drill bits: 35 mm; max. drilling depth: 43 mm -- Machining(1) 5 HP (3.7 kW) electrospindle Router with: ER 25 Collet adaptor; variable speed from: 1,000 - 18,000 RPM; 16 mm max. tool dia. -- Operator & Machine Control: User friendly; icon driven; fully parametric control housed on: Control console mounted to the machine base.17" LCD Display; keyboard & mouse with: Network card & USB; displays: Programming graphics; functions; machine data; subroutines.Capable of running production while programming & editing. -- Complete with:User's & maintenance manuals. -- Actual Model: GIBEN WIBJ-5.

Giben Panel Saw
