Description:

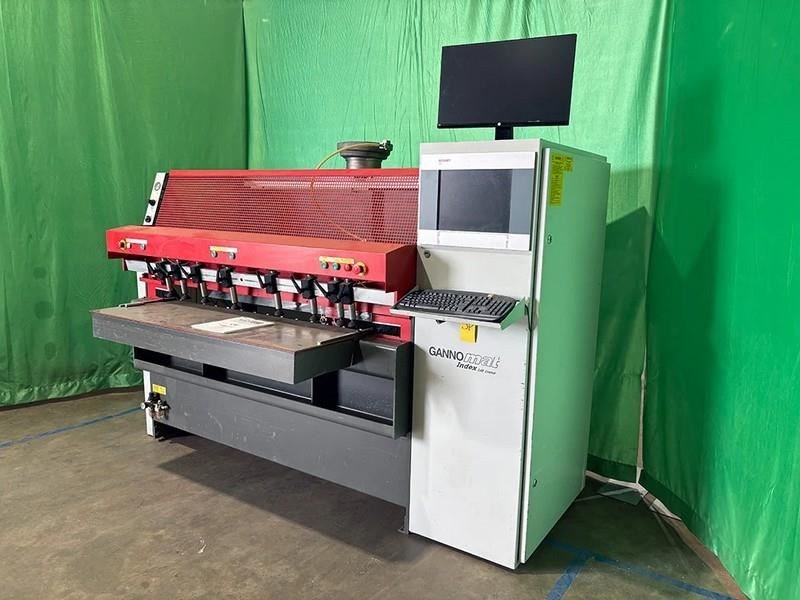

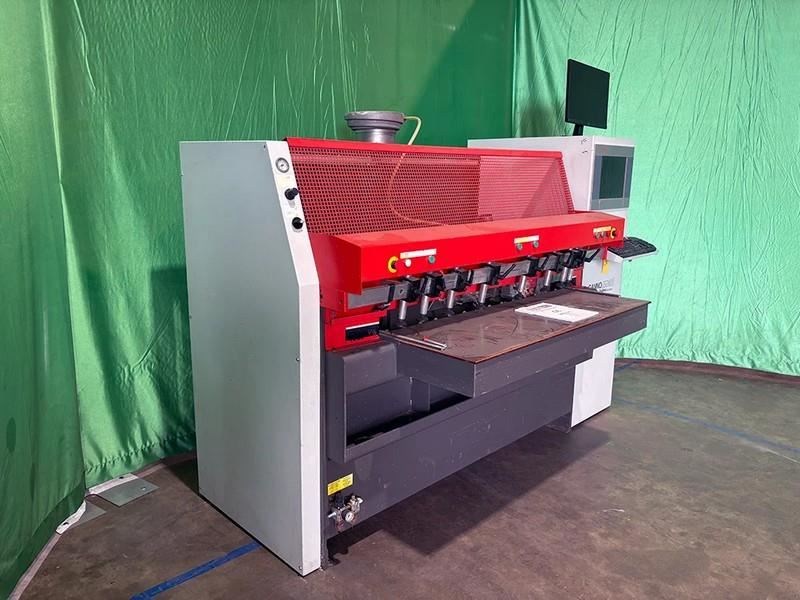

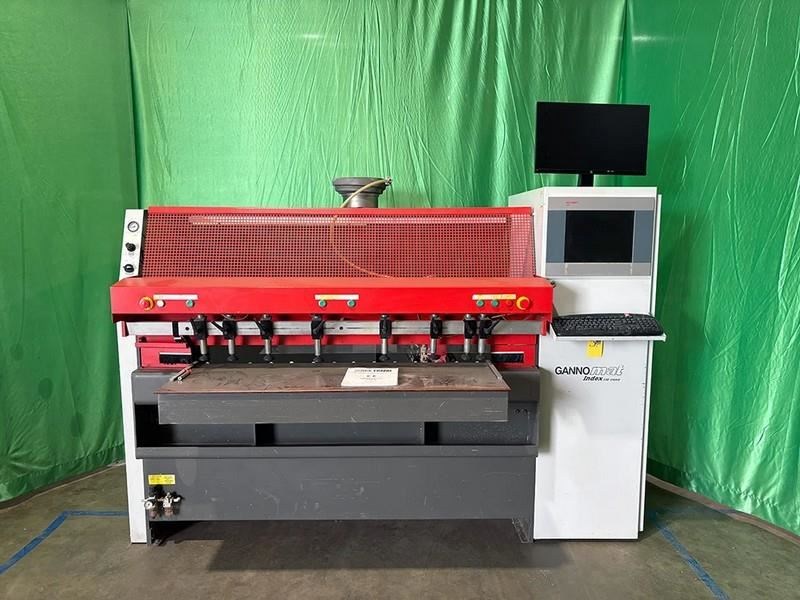

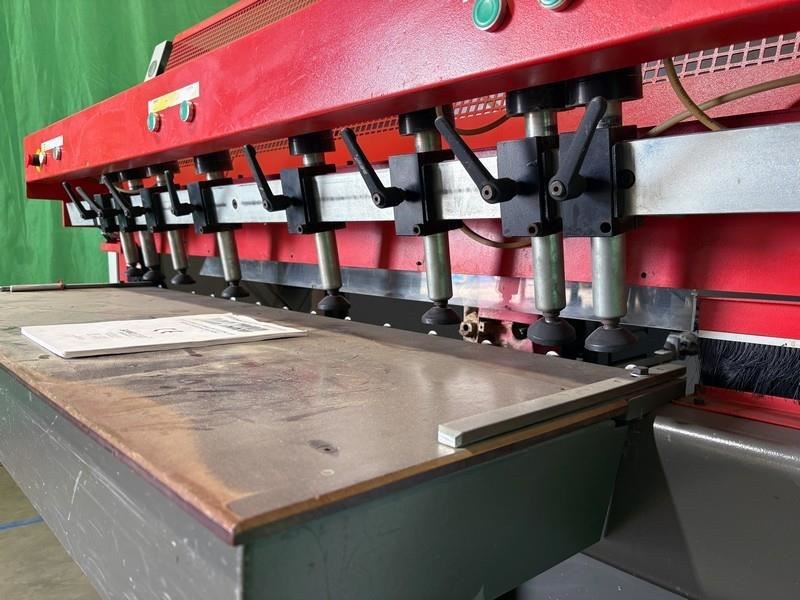

GANNOMAT INDEX TREND/470 CNC BORE, GLUE & DOWEL INSERTER: -- Specifications:CNC Controlled Point-To-Point Drilling/Gluing/Dowel Insertion Machine with variable programming of boring patterns.(1) Single spindle horizontal boring unit with 0.87 HP (.65 kW) motor; 3,000, 5,000, 8,000 RPM spindle speed selectable from the control software(1) Gluing, dowel inserting unit currently set up for 8 mm dowel dia, 25 to 50 mm dowel length -- Working Field:Working length 1,300 mm (51") single part, 650 mm (25.5") 2-parts, 320mm (12.5") 4-parts;Working width 0.75" - 7.75", material thickness 0.5" - 3.1".Total of (2) fields 1-LH / 1-RH for up to (2) zone processing of small parts like drawers, stretchers etc.(8) Dual-acting, adjustable hold-down cylinders for part processing. -- Positioning Speed:246 FPM (75 MPM) positioning speed. "X","Y" & "Z" Axis travel via precision ball-screw drive, "Y" & "Z" Axis adjusted by manual digital indicators. -- Dowel driving & horizontal boring:Integrated into (1) station; the dowel driving unit is located along side the boring station; both units are mounted on (1) support. Horizontal drilling & boring station head is capable of processing 6 - 8 or 10 mm dia dowels & lengths from 25 - 50 mm with required, additional optional items. -- Doweling station includes:(1) Vibrating hopper; insertion head & dowel driving with air impulse. Electronic inductive glue insert control system monitoring glue injection.Selector switch (glue/water) for quick rinsing of entire system; Glue control warning light indicating low volume in the glue container -- Operator & Machine Control:Industrial PC Control" + Windows "XP" Professional operating system;15" Monitor display, USB drive port, Serial & parallel interface, Bar code capable. -- Complete with:(1) stainless steel 1.5 gallon container for glue and (1) stainless steel 1.5 gallon container for water;Closed pressurized gluing system requires 88 PSI (6 BAR) constant air pressure; Selector switch (glue/water) for quick rinsing of entire system;Glue control warning light indicating low volume in the glue container.Actual Model is GANNOMAT INDEX TREND/470
