Woodworking Equipment For Sale

CASADEI FLEXA 27 RMA8 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications:FLEXA 27 RMA8: CA1297 Standard equipment: Electrical data: E-Stop on main control panel: 230 V – 3 Ph – 60 Hz. 37 Amps. -- Equipped with:CA2074 Anti-adhesive Unit “RA"; to avoid glue deposits on top & and bottom surfaces. -- Kit for “NESTING"; processing. -- CA4048 Spray Mist Device for edge finishing improves panel. -- Cleaning and polishing of the applied edge. -- Welded Steel Frame & Steel pressure hold-down beam with (2) rows rubber rollers. -- Feed chain with industrial high grip rubber. -- Chain on hardened steel guides. -- Guides consist of one circular and one flat. -- Manual adjustment of the pressure beam w/ readout. -- Automatic pos. of the working units w/ reference to panel. -- Mechanical digital indicators for panel thickness. -- High Frequency Motors w/ Inverter. -- Centralized dust extraction. -- Adjustable panel support rollers. -- Sound enclosure & lockable switch cabinet -- Working Units:Glue pot and edge processing magazine. -- 2-Motor end trimming Unit. 0 - 15 deg. -- 2- Motor Top and bottom trimming unit. -- Edge scraping unit for 3mm. -- CA5695 Glue Scraping Unit “GS/K2". -- CA9360 Brushing/ Buffing Unit “BFK";. -- Machine Features:• Guided by a chain for accurate feeding and long lasting perfection • Thick, Steel top pressure beam complete with two rows of rubber coated wheels.• Robust panel support which can be extended according to the size of the parts MEGA 120 Controller• Ergonomic positioning• 4";Graphic Display w/ multi language selection • Glue temp. control w/ temp • Unit operation and feed track start/ stop• Digital readouts • Parameter/ setting control • On board diagnostics • Partial and absolute statistical info: # of pieces worked, edge used and feeding information Pre-milling unit • Two cutter heads with automatic timing • Independent high frequency motors with Stock removal determined by infeed fence with digital display • Timed blower to clean the machined surface • Diamond tools 2.4 HP each. Tools D=100mm H=49mm Max stock removal is H=45 mm / 55 mm • ²Nesting Kit Allows processing of predrilled parts • 3 contacting rollers on Trimming Unit • Edge Scraping Unit • Rubber coated copy wheel for end trimming unit • Anti- Adhesive Unit RA • Perfect cleaning of the panel • Prevents glue from sticking to the top and bottom surfaces GP-200 • Two Pressure rollers (1 large, 1 flat) • Teflon coated glue pot• Automatic glue temperature regulator to reduce glue temperature if machine is not in use to reduce glue heat time• Automatic recovery of glue • Automatic loader for strips • 2.4 kW. 3.3 HP Power. 1.5 Kg Capacity End Trimming Unit IK/200 • (2) Independent high frequency motors w/blades • Pneumatic tilting of the saw blade 0 – 15 deg. from control panel • Units slide on THK guideways • Mounted to the base for vibration-free machining• 12,000 RPM and .3 HP each. Trimmin

CASADEI/SCM - FLEXA 37: Edgebander with Corner RoundingEdge material thickness: 0.4 - 3 mm Coil & 6 mm (1/4") strips. ~ Min./max. panel thickness: 8 - 60 mm (0.31 - 2.36"). ~ Min. panel width: 80 mm (3.1") and 140 mm (5-1/2") Min. length.Equipped with: Automatic coil & strip feed magazine with: Heavy-Duty 3 mm PVC cap. guillotine; Gluing Unit: "GP-300"; Teflon coated quick-change glue tank; approx. 10-minute heat up time; programmable temperature control w/timer if machine idles to prevent glue overheating/burning.Side Pressure Unit - 3-Roll pressure unit with: 1st Roller: Power driven via clutch with pneumatic in & out positioning; (2) idler rollers.Workstations -- End Trimming -- Front & rear end trim: 2 x 0.3 HP - 12,000 RPM motor ea.; pneumatic tilting feature: 0° - 15° from control panel.Top & Bottom Trimming. -- Combination flush/bevel/radius trimming: 2 x 0.65 HP - 12,000 RPM ea. motor; tilts from 0° - 25°; pneumatic 3-position pre-sets programmable from Control Panel. -- Corner Rounding Station. -- Top & Bottom PVC Scraper: Up to 3 mm radius. Programmable, pneumatic exclusion on/off. --Top & Bottom buffing unit: 2 x 0.2 HP - 1,400 RPM motor each; tilting range: 8°.

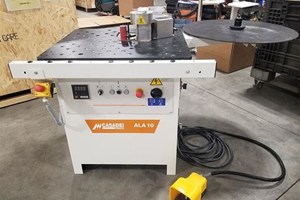

CASADEI - ALA 10: Contour EdgebanderDouble Glue Roller for straight and contour edges. Versatile and easy to use for all manner of shaped parts and components: Wood - Wood Veneer - Melamine - PVC - ABS.Coiled or strips can be applied to external & internal radii.Technica DataPanel thickness: 8 - 80 mm.Precut strip edge thickness: 0.4 - 3 mm.Min internal radius: 25 mm.Min panel width: 50 mm.Min edge length: 210 mm.(2) Feed speeds: 4 & 8 MPM.Installed power: 3.5 kW.

Panel height: 0.3 – 2.36” Coil edge thickness: .12” Strip edge thickness: .015 – .24” Max Overhang Total Top and Bottom: 0.16” Min panel width (min length of 8 ¼”: 3.54” Min panel length (min width of 3-15/16?): 5.5” Feed Speed: 33 f/min Glue Tank GP-200 Power: 2.4 kW Glue Capacity: 3.3 lbs End Trimming Unit IK/200 (each): .3 HP Cutting Speed: 12,000 RPM Blade Tilt: 0-15 deg. Top and Bottom Trimming TT/K Motor (each): .4 HP Cutting Speed: 12,000 RPM Shipping Footprint: 13' x 4' x 5' Weight: 2500 lbs Equipped With: – Pre-Milling Unit – Glue Applicator and Pressure Rollers – Edgebanding Trimming Guillotine – End Trim With 2 Tiltable Motors 0-15 deg. – Top and Bottom Trimming via 2 Motors – Profile/ Radius Scrape – Glue Scraping – Buffing

2016 Casadei Flexa 47 Edgebander 230 V/3 PH

CASADEI FLEXA 47 RMA8 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING):Specifications: -- 0.4 mm - 3 mm Max. edge thickness cap., (0.5 mm to 3 mm for solid strip edge thickness). 8 mm - 50 mm (0.3" - 1.97") panel thickness cap. (when edgebanding 3 mm PVC max. thickness is 40 mm). -- Minimum panel dimensions 80 mm wide x 140 mm long (3.15" x 5.5"). -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine.Equipped with: -- Teflon coated glue pot w/fast (10 - 12) Min heat-up time; 1 Kg. capacity. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled pressure section with (3) pressure rollers; 1st drive, (2) idle.Workstations: -- Pre-milling unit with 3 HP - 8,300 RPM High Frequency motors. -- Cutting group moves on rounded ways made of hardened steel, to guarantee high precision and reliability; cutting movement from the top of the panel is synchronized by the PLC control. -- Single motor, double-end trimming saw unit with (1) 0.25 HP - 12,000 RPM High Frequency motor. -- Top & Bottom Trim station with (2) 0.45 HP - 12,000 RPM High-Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutter-head position by mechanical digital readouts, quick release (electrical & mechanical). -- Includes (2) 3 mm radius cutters. -- Corner Rounding Unit: 2-Motor Corner Rounding unit for leading & trailing edges. -- Top & Bottom 3 mm scrape station -- Top & Bottom Buffing unit with (2) 0.20 HP - 1,400 RPM motors. -- Fixed feed speed 23 FPM. -- Actual Model is CASADEI FLEXA 47 RMA8

CASADEI ALA 23 EDGEBANDER WITH CORNER ROUNDING0.4 - 15 mm (1/2") Edge cap., panel thickness 10 to 60 mm (.39" to 2.36"). Minimum panel length 120 mm (4-3/4") and 55 mm (2-1/8") minimum width. Equipped with: -- Quick heat-up glue system,(approx. 12 Min) 1.5 Kg glue pot capacity. -- Pressure roll section with (3) rolls - one driven. Pneumatic cut-off guillotine.Workstations: -- Double end trim, chamfers 0° - 15° -- Top & bottom flush/radius trim, bevels 0° - 15°. -- Double motor Corner Rounding station -- Top & bottom scraping for 3 mm radius, -- Top & bottom buffing (0.25 HP - 2,800 RPM motors).NOTE: Seller states that the buffing unit appears to have an electrical issue and is not currently being used by the current owner";Actual Model: "ALA 23 R"

CASADEI RANGER MC 3012 CNC MACHINING CENTER (VERTICAL, W/ATC): -- Specifications: Flexible "Vertical" Machining Center reaches movement speeds of 131 FPM (40 MPM) in X-axis, 98 FPM (30 MPM) in Y-axis, & 66 FPM (20 MPM) in Z-axis. -- Work Capacity:Max. part size for: X-Axis is 118" (3,000 mm); Y-axis 47.2" (1,200 mm); max. part thickness 3.9" (100 mm). -- Worktable:Vertical Phenolic MATRIX Grid table with: (5) Adjustable "tubeless" pneumatic locking panel supports, (3) adjustable vacuum pods per support.Pop Up Pneumatic backstops & pneumatic side stops for material positioning on the LH or RH side of the machine for mirror imaging. -- Boring Unit:(1) Boring block with: 2.25 HP (1.7 kW) - 4,000 RPM Motor.(10) Vertical spindles with: (5) Spindles in X-axis & (5) spindles in Y-axis.(6) Horizontal spindles with (2 + 2) in X-axis & (1 + 1) horizontal spindle in Y-axis.(1) X-Axis grooving saw: 5,000 RPM; for max. 120 mm dia. saw blade. -- Machining:(1) 6.7 HP (5 kW) Router with: ISO 30 Adaptor, variable speed from 1,000 - 18,000 RPM.(1) 5-Position ATC rack mounted on the side of the working unit. -- Operator & Machine Control:CNi PC Front End + Windows "XP" Operating System; 17" LCD, TFT monitor; international keyboard, soft touch keypad & industrial mouse; RS-232 Serial ports, USB ports; Ethernet connection.Real-time multitask processing; programs can be transferred via USB or downloading by wire is possible. -- Complete with:(1) 100 CBM/Hr BECKER Vacuum Pump; sound enclosure & perimeter safety devices. -- Actual Model is: CASADEI - RANGER MC 3012.

CASOLIN ST SA Entry Door ClampSpecification: -- 6' x 12' Opening. -- Hydraulically operated.

Castaly Chop Saw and End Feed Model CS-24L 440V 3 ph

CASTLE TSM-21 Pocket Hole Boring Machine;Single hole routing system for use with material from 1/2" - 3/4" thickness; -- CASTLE'S "A-Frame" motor carriage engineered to first route a pocket and then drill hole from the other direction. -- Equipped with: 1.5 HP Porter Cable router w/standard "4-flute" router bit for pocket routing and Porter Cable #7301 drill for pilot hole drilling with 9/64" brad point drill bit; foot pedal actuated cycle, will cycle as quickly as (2) cycles/sec. -- The large 2" dia. holddown cylinder firmly clamps material and the low 6" boring angle minimizes shifting, reduces screw breakout and splitting.The TSM-21 is an improved version on the TSM-20. It features a more accurate carriage design, magnetic switches, and solit state electronics.Complete with: -- Custom-Built Mobile Base, with (2) Swivel & (2) Fixed Casters.NOTE: Door hinge is broken.

MANUFACTURER SPECS: 2000 C.B. LEVIGATRICI 52" DUAL HEAD WIDE BELT SANDER. 1ST HEAD: 12" SPIRAL RUBBER ADJUSTABLE HEIGHT CONTACT DRUM. SECOND HEAD: DIGITAL PLATEN. VARIABLE SPEED EVERYTHING. LONG BELT LENGTH OF 103". OSCILLATING BELT BLOWERS. VARIABLE SPEED EVERYTHING. DIGITAL POSITIONING. 220 volt 3 phase. includes 18 spare belts…approximately half new, rest lightly used.

Maximum workpiece height mm. 320 Maximum workpiece width mm. 320 Minimum workpiece length mm 700 Brush diameter mm. 160 Brush rotation adjustable with inverter rpm 0 – 1400 Blower motor power under inverter kw 4 Brush motor power under inverter nr. 4 x kw 0,55 Work speed adjustable with inverter mt/1’ 8 - 45 Feeding motor power kw 1,1 Electrical system MACHINE DIMENIONS: Volt 380± 5% Lenght mm 3350 Width mm 1350 Height mm 2350 Machine weight kg 1150

Cefla and Delle Vedove Finishing Line

CEFLA EASY 2000/D Automatic Spray Finishing Machine: 2010 CEFLA "EASY 2000 D" Reciprocating Sprayer: -- Sprayer fabricated using coated sheet panels, uses a Centrifugal fan for intake of room air to upper air diffusion hood inside of cabin to pressurize the spray area. -- Conveyor speeds variable from 2 - 8 MPM. Belt width capable to carry 1,600 mm (5') wide charge through the machine. -- Machine is PLC Controlled. The Superior Coating application is achieved by utilizing a "back spray" technique. The machine uses a slide-out material recovery system consisting of (2) rollers. -- Infeed & outfeed Conveyors with lift cylinders. -- Includes: (2) Reciprocating arms traveling on polished rods, hydraulic shock absorber provides smooth operation. -- Parts are read at the Infeed of the Conveyor by a photodiode light bar that reads the size of the part and sends that information to the PLC to control the Spray Gun action. -- Machine is equipped with (2) paint circuits.

CEFLA EASY 2000D Reciprocating Feed Through Sprayer and Vertical Oven Finishing Line:This line is still in operation with the original owners, it have never run full time, there are weeks when it is 1 day per week. It is recommended with a line of this age to do a full recondition prior to or as it is being installed. If that is not possible, it is still running and can be seen that way. CEFLA Complete 52" (1,300 mm) Finishing Line with: SORBINI Panel Cleaner, "EASY D 2000 W" Reciprocating Sprayer, Conveyor(s), and CEFLA Hot Water Vertical Oven. The line is composed of the following:001) Belt conveyor CEFLA "TN 2500"002) Panel cleaning / brushing machine SORBINI "VS 33"003) Automatic spraying machine CEFLA "EASY 2000 DRY SYSTEM" with pressurized cabin004) Transfer conveyor005) CEFLA PIEFFE PF2 VL/6 7500 pass through oven006) Vertical Oven, (3) chambers with belts CEFLA "VN 2000"007) Unloading Conveyors

CEFLA - MITO, ...Complete Spraying System with SORBINI Cleaning Brush.Reciprocating Feed Through System for Waterborne & Solvent-Borne Coatings: The max. flexibility and technology for the continuous spraying of any kind of raised panels.Features: -- Machine designed with a solid structure: LASER 3D; full accessibility, thanks to the wide use of glass superficies, access doors, and extractable parts. -- Conveying System with: CFB Belt with sealed edge, driven by inverter. -- Axis driven by the powerful brushless motor and by a sophisticated toothed belt handling system, with recycling sphere bearings. The best performances in speed, acceleration, and the softness in guns motion allows to achieve the max. application quality. -- The central axis holds: (1) Gun supporting arm (removable), equipped with quick-release (predisposed for max. 4 guns); complete with: Manual height adjustment, (3) high pressure lacquer feeding circuits with recycle; lacquer filters with stainless steel fittings. -- Exclusive pressurization flows analysis and sophisticated air diffusion plenum with double fan for air intake and filtration results in: Higher lacquer saving, better machine cleaning. Circulation provided by floor mounted MZ RLQ 560, Direct-drive 4 KW , 1755 RPM motor. -- Tanks with supporting areas for filters by COLUMBUS or ANDREAS-type filters.Electronic Scanner for: Shape reading and workpieces positioning; max. efficiency in managing the guns' spraying.TECHNICAL FEATURES:Total length of the machine: 4,650 mmTotal width of the machine: 3,850 mm (4,210 mm with fan)Machine structure height: 2,500 mmElectronic control unit with: PLC and software for machine managing.Main control cabinet: Pressurized, placed at the machine infeed, along the service side complete of cable and wiring system for connection to all the users.Spraying parameters management is operated by PLC:Working programs setup, measurements of the lacquered surface & lacquer consumption, 5" color touchscreen display for diagnostic and control; possibility to exchange data from and to PLC managing complete Lines.Possibility to manage pumps for color change/washing (up to 4 pumps). -- Comes with: 2006 SORBINI/CEFLA VS/33-ACT-F, 460/3/60 Panel Cleaning Brush with brush for the top roll followed by a nozzle blow off station. (1) Head, 53" width cap. Top brush head; features timed rotating air blowers, air liner blower with nozzles. Upper mounted Anti-static ionization bar; 400 RPM brush speed.With CEFLA TM 3000, 600/3/60 V, infeed belt conveyor. -- Line is disconnected/dismantled per last (8) photos.

CEFLA "ROTOSTAIN RT 2000 10 + 10 Rotary Stain Machine with: -- 20 Guns; utilized for automatic application of stain material on workpieces; the "Roto-Stain ROT 10 + 10" represents a new generation Spray Machine from CEFLA, the leader in CEFLA "ROTOSTAIN RT 2000 10 + 10 Rotary Stain Machine with: -- 20 Guns; utilized for automatic application of stain material on workpieces; the "Roto-Stain 2000 10 + 10" represents a new generation Spray Machine from CEFLA, the leader in technology development for spraying applications. -- The "Roto-Stain 2000 10 + 10" incorporates CEFLA's previous innovative developments into a machine with maximum capabilities (line speed and production output) for stain application. -- Continuous 65" width carbon fiber belt enables the recovery of over sprayed coating material for reuse. -- Cefla's patented conveyor belt system for coating recovery and belt cleaning is controlled by the PLC and recovers approximately 98% of the coating material deposited on the belt, which is then automatically cleaned with "Coating Appropriate Solvents" -- The automatic air flow system monitors and maintains consistent air flow/pressurization through spray booth. When filters become too plugged to maintain sufficient air flow, system operation is ceased --electronic control unit utilizes a 60 cell photodiode bar to monitor and regulate spray application, further maximizing application transfer efficiency -- Spraying is performed through a rotary system designed for the installation of ten plus ten (10 + 10) guns in (2) coating supply circuits with recycle.TECHNICAL SPECIFICATIONS: Working width from 0 - 1300mm ( 0 - 51") Minimum workpiece length 305mm (12") Speed range from 2 - 11 m/min (6.6 - 36 ft/min) Power consumption 10.7 kW Compressed air required 50 NI/min (1.8 cfm) Exhausted solvent /air mix 10000 mc/h (5886 cfm)

CEFLA ROCTRE D Automatic Spray Finishing Machine: for HIGH VOLUME PRODUCTIONThickness: Max. 50 mm (2"); Min. 5 mm (0.2").Maximum Line speed: 20 MPM (65 FMP).Equipment Specifications:CEFLA, model ROC 3 D. Is a Two Arm reciprocating Spray Machine: -- Parts are fed under the Part Reading Bar to measure size and spray parameters on a continuous CFB belt conveying system. -- Lacquer recovery and belt cleaning are accomplished by means of a "cleaning trolley" located under the exist end feed belt. Made up of counter-rotating rollers with scraper and belt cleaning unit, with 3 rollers and stainless-steel troughs: all the rollers are fitted on the motorized trolley longitudinally removable by hand pulling of trolley out. -- Powered outfeed tilt able belt lifts to approach the cleaning trolley. -- (2) Oscillating arms equipped to accept a maximum of (8) guns, four per arm and driven by a Brushless servo motor.There are (2) Separate lacquer feeding circuits with recycling system. -- This is a fully pressurized spray cabin with an exhaust air filtering system for overspray using double dry filters set, primary filter and secondary . -- Electronic control cabinet to monitor spraying functions.Booth consists of sandwich paneling and air is pushed in through (2) air intake ducts (positioned between guns) above the slanted perforated top panels made up of fine filter material help to reduce turbulence. parts running through the sprayer can be viewed by means of a large front viewing window/access panel which can be lifted to access the guns and interior of the sprayer. Note: EX-FACTORY’s Logistic Department is experienced and set up to provide “Full Service Logistic"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.

CEFLA 5 Ft. Wide Single Lamp UV OvenGreat for handing those "extra wide" Panels!Features: -- UV-R Super Focus: This configuration is suitable for reducing the heating effect of the lamps on artifacts sensitive to high temperatures (e.g. resinous wood). -- The particular shape of the lamp parabolas focuses the UV ray beam at the same point of the panel, allowing to reduce significantly reducing the number of lamps needed to dry the paint and avoiding the dispersion of rays, also guaranteeing significant savings in terms of space and energy consumption. -- This configuration can be integrated with the "SMART-THICK" system for adjusting the thickness of the pieces in line, usually on roller application lines.UV-R SP: Allows the cross-linking of the paint applied even on the edges of the pieces, thanks to the use of inclined lamps and a greater energy impact of the lamps themselves on the edges.UV-R: Equipped with an electronic system for regulating the power of each lamp; it also allows you to automatically activate the energy-saving function by checking the presence of material under each lamp.The Electrical Panel is integrated into the machine body and does not require additional spaces in the line layout.
