Northfield For Sale

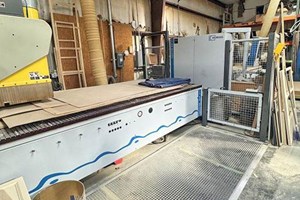

Homag Centateq N300 CNC Router 5 X 10 Infeed system Outfeed table Boring block (2) Vacuum Pumps Main Hours: 1,101 Secondary Hours: 370

Homag Centateq N300 CNC Router 5x10 Table Offload conveyor Schmaltz overhead gantry system

Homag D-200 Drill & Dowel Inserter

- Min. panel height 0.47 inch - Max. panel height 1.57 inch - Min. edge thickness 0.01 inch - Max. edge thickness 0.24 inch - Max. forward feed speed 82.02 ft/min - Top pressure with rubber belt - No. Panel Sizing / Milling units 2 Pre-milling unit - Lamps to preheat the side of the panel - Edge coil magazine - Gluing system - glue pot for EVA hot melt glue - premelter for EVA hot melt glue - QA65 - Roller set to press the edge - no. pressure roller 7 - with positioning by NC No. Edge Processing Units 6 First Processing Unit - End trimming Constructor model HL81 - no. motors 2 - with positioning by NC Second Processing Unit - top and bottom rough trimming - no. motors 2 - with positioning by NC Third Processing Unit - Multi Function trimming and corner rounding - Constructor model - FK11 - no. motors 2 - with positioning by NC Fourth Processing unit - edge scraping - with positioning by NC Fifth Processing Unit - glue scraping - with positioning by NC Sixth Processing Unit - buffing - no. motors 2 Spray unit Control system Power Touch

Weeke Model Optimal BHX050 Vertical CNC Machine 8 Vertical Drilling Spindels 2 Horizontal Spindle in X-Direction 1 Horizontal Spindle in Y-Direction Grooving Saw in X-Direction 1 Powerful 5kW ETP 25 Routing Spindle Vector Speed: X-30M/Min Y-30M/Min Z-15M/Min

HOMAG KAL 310/4/A3/S2 Edgebander (w/Pre-Milling): -- Specifications:Working Capacity: 0.3 - 3 mm Edge thickness cap., min. panel width 22 mm; max. panel thickness 60 mm; Dual speed -- Equipped with: Pre-Milling Unit 3481: (2) motors, 3 kW, 9000 RPM each, pneumatic controlled/jump milling spindles and adjustable, manual with digital indicator in-feed fence. -- Hot Melt Glue System "QA 34" Quick-Melt Unit: with heated glue roller; -- Edge Magazine Unit 2456: Automatic (2) coil/strip magazine, coils 0.3 - 3.0 mm. -- Pressure Section: Pressure roll section with (3) rollers, (1) large dia. driven & (2) idle rollers; with pneumatic pressure control for straight edges -- HOMATIC "NC 21" Power Control System: Controller operates in Windows-XP environment; Keypad w/LCD display, fault diagnostic, etc.; diagnostic analysis from HOMAG service support via Modem. -- Workstations:End Trimming Unit: (2) motors, 0.18 kW - 12,000 RPM each, to cut excess edge on the front & back of the panel. -- Flush/Pre-Trimming Unit 3201: Top & bottom trim station, 0.55 kW - 12,000 RPM +/- 1° angle adjustment, manual positioning with digital counters. -- Fine/Bevel Trim Unit 3216: (2) motors 0.4kW - 12,000 RPM each, manual positioning with digital counters -- Profile Edge Scraping Unit: with electro-pneumatic adjustment -- Buffing Unit 4402: Top and bottom with oscillation. (2) motors, 0.25kW, 2850 RPM -- Complete with & Features:Electronic DC brakes on all trim motors; sound cabin for all workstations. -- Adjustable outboard panel support with swing out arms for up to 800 mm. -- 80 mm Feed track pads; manually adjusted V-groove belt on top pressure beam and Sound/Safety enclosure over workstations. -- Actual Model is HOMAG KAL 310/4/A3/S2Note: This machine has a new display and a new back up one as well!

HOMAG DRILLTEQ V-200 CNC MACHINING CENTER (VERTICAL/W/BORING): -- Specifications: Flexible "Vertical" Machining Center with "BORING": Uses less than 5 sq. meter of valuable floor space in addition to an innovative panel handling system. -- Working Cap.Max. workable part size for "X" axis is 120" (3,050 mm); "Y" axis 33.4" (850 mm); max. part thickness 3.1" (80 mm).Min. worktable part size for "X" axis is 7.8" (200 mm); "Y" axis 2.75" (70 mm); min. part thickness of 0.31" (8 mm). - Automatic infeed & outfeed from the LH or RH side. -- Positioning SpeedThe "V-200" can reach movement speeds of 164 FPM (50 MPM) in "X" & "Y" axis & 50 FPM (15 MPM) in "Z" axis with total safety, providing an unmatched working capacity. -- Boring Unit(1) 3 HP (2.3 kW); Variable speed from 1,500 - 7,500 RPM motor; (13) independent spindles with: (8) spindles in "X" axis & (5) spindles in "Y" axis.(6) Horizontal spindles with (2+2) in "X" axis & (1+1) in "Y" axis; boring block has "QUICK CHANGE" spindle system. -- Operator Interface:HOMAG "POWERTOUCH" + Windows + WoodWOP Operating System; "IntelCore 2 DUO" Processor.21" TFT Monitor; international keyboard, soft touch keypad & industrial mouse; RS-232 Serial ports, USB ports; (1) 1.44 MB floppy disk drive, (1) CD RW drive, modem, Ethernet connection.Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Pneumatic part clamping devices; sound enclosure and complete set of safety devices. -- Options Include:(1) "X" Grooving Saw; 9,000 RPM, max. saw blade dia. 100 mm.(1) 12 HP (9 kW) Electro Spindle router with manual Quick-Change adaptor; variable speed from 6,000 - 24,000 RPM. -- Actual Model is: HOMAG DRILLTEQ V-200 OPTIMAT BHX 055.

Homag Optimat NBP084/ Vantech 480 4x8 Bed 12 HP Spindle (replaced in 2019) 7-Position Boring (3) Vacuum Pumps Clean Machine

Optimat KFL 526/6/A3/30 Wiring Diagram: 0-202-09-6535 Supply: 480y/277V 3 Phase - 60HZ Largest Motor: 13A Largest Heater: 6A Enclosure: 12

HOMAG AMBITION 2262 (KAL 210) PRODUCTION EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications:Working Capacity: Coiled stock min/max Edge thickness 0.4 - 3 mm (0.016. - 0.118"), Strip material min/max Edge Thickness 0.4 - 6 mm (0.16 - 0.234"). -- Panel stock min/max thickness12 - 40 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18"). -- In-feed Fence: Adjustable in-feed fence with manual digital indicator positioning. -- Pre-Milling Station: Two3.0 kW(4.0 HP), 150 Hz, 9,000 RPM Motors; equipped with trimming column,(2) horizontal and cross slides with spindle adjustment, electro-pneumatic horizontal jump movement of the first motor; includes electronic frequency inverter for control of motor speed and braking, two (2) dust extraction hoods, air jet panel blow-off device &SIKO digital counters for adjustments. -- Panel Pre-Heater: Pre-heating the panel brings the panel to an appropriate temperature for better adhesion; this is especially beneficial in cooler temperatures. --Quartz lamp for heating substrate edge before glue application improved edge quality and optimum bonding. -- Multi-Purpose Magazine: A multi-purpose 2-coil magazine expands capability by running coiled material, strips, and solid wood bands. -- Magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panel on the edgebanding. -- Gluing System: (EVA - Hot Melt) QA 34 -Quick Melt Overhead Unit & heated roller applicator digitally displayed thermostat for both upper and lower unit. -- 34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gates. -- Lower melting unit equipped with automatic glue level control. Melting capacity: 12 KG/Hr (26 Lbs/Hr) -- Pressure Section: Manual Adjustment with digital counter, (1) large 160 mm dia. driven & (6) 70 mm dia idle rollers, pneumatic pressure control depending on edgebanding material used. -- WORKSTATIONSEnd Trimming Unit HL 81: 0.8 kW(1.0 HP)x 2 - 200 Hz, 12,000 RPM Motors. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer 30 deg. to straight cut. -- Rough/Pre-Trimming Unit: Top & bottom,0.55 kW (0.74 HP)x 2 - 12,000 RPM Motors; Height adjustment with the top pressure-beam and tilting range +/- 1°. -- Manually adjusted with digital counters. -- Profile/Bevel/Corner Rounding Unit FK 11: Multi function0.4 kW(0.54 HP) x 2)- 12,000 RPM Motor to fine trim the edge overhangs at the work-piece upper& lower edge, as well as trimming around the front & rear vertical edge; Servo controlled, Max. feed speed 20 MPM (65.6 FPM). -- Profile/Bevel Scraping Unit: Top & bottom for thick PVC/ABS, pneumatically activated. -- Flat Glue Scraper Unit: Top & bottom, pneumatically activated to remove potential glue squeeze-out. -- Buffing Unit: Top & bottom edge buffing/polishing. -- Spraying Units: Top/Bot

--MAKE AN OFFER---EXCELLENT CONDITION HOMAG - Centateq N-300 NBP084/VANTECH 512, ...5' x 12' CNC Flat Table Machining Center with ATC, Boring, Nesting, Infeed Roller & Outfeed Specifications: 5' x 12' x 37” H Flat table "Bridge Gantry" machine. Working Area: X-Axis 3,683 mm (145"); Y-Axis 1,550 mm (61.02"); Z-Axis 100 mm (3.9"). Travels: X-Axis 193" (4,900 mm); Y-Axis 1,965 mm (77.36"); Z-Axis 245 mm (9.65"). Positioning Speed: X-Axis 72 MPM (236 FPM); Y-Axis 62 MPM (203 FPM); Z-Axis 25 MPM (82 FPM). (2) Synchronized X-Axis drives, AC brushless drives on head, THK linear motion guides on all axes. Worktable: User-Friendly "S/C Tech MATRIX" grooved phenolic vacuum table for easy vacuum pod placement. (1) Pneumatic locator/positioning rail in X-Axis & (1) pneumatic locator/positioning rail in Y-Axis; (10) CNC-Controlled vacuum table work zones. Boring Unit: 2 HP (1.5 kW) Motor; (7) independent vertical spindles with: (4) In X-Axis & (3) in Y-Axis; variable spindle speeds 1,500 - 7,500 RPM. Machining: (1) 13 HP (10 kW) High-speed electro-spindle router with: HSK F 63 Adapter, constant duty, variable spindle speeds 1,250 - 24,000 RPM, left-hand or right-hand rotation. (1) 14-Position carousel-type automatic tool changer on left-hand side of machine. Operator & Machine Control: "powerControl" Control, with MICROSOFT "Windows" + "WoodWOP 5.0" Operating System. "powerTouch" 21.5“, 16:9 full-HD multitouch display, Ethernet, RS-232, USB ports, and remote pendant control. BECKHOFF Programmable logic control for (3/4) axes; linear, circular, & helical interpolation, Tapio-ready. Complete with: Infeed electric/hydraulic Scissor Lift platform with roller top; 4’ x 4’ transfer Roller Section with: 2-1/8” Dia. x 3/4” W wheels on 12” & 9-1/2” centers; vacuum arm with (2) 10” dia. vacuum pads; rake off-feed System; 61” W x 13’ L outfeed motorized Belt Conveyor; (2) 2018 BECKER "VTLF2.250/0 - 79" 10 HP 200 mbar Vacuum Pumps; light curtain; 6' H safety Fencing, Touch-off tool length Measuring Device. Control Cabinet Dimensions: 44" x 39" x 96" H. CURRENCY NOTE: Negotiable Price is listed in U.S. Dollars.

Houfek Buldog 7-3M-1100-RRC 3 Head wide belt sander43" width cap, Roller / Roller / Combination-headHead Configuration1st Head – Rubber – 90 shore @ 200mm (7.9";) dia.2nd Head – Rubber - 90° shore @ 2000mm (7.9";) dia.3rd Head– Rubber - 45° shore @ 200mm (7.9";) dia. with adjustable platen.Specifications -- Sanding width 1100 mm 43" -- Work piece height 3-160 mm 0.118"~6.3" -- Sand belt size 1120 x 2620 mm 44" x 103" -- Conveyor feed speed 3~15 m/min 9.8~49 FPM -- Table motor 0.18 kW 1/4 HP Equipped with & Features -- Main motor 1st head 18 kW 24HP -- Motor 2nd head 15 kW 20HP -- Motor 3rd head 15 kW 20HP -- Voltage 460/3/60 -- Exhaust outlet (4) 180mm; (1) 100mm (4) 7"; (1) 4" -- CFM requirements 6700 m3/hr 3950 CFM -- Weight 3100 kg (approx) 6820 lbs -- Floor space 3885x1715x2260mm153"x68"x89"

Hunton Limited Punch Grinder

HYDREX HPX410-5 Hot Press 160 Tons using (8) hydraulic cylinders, Five daylight openings. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to nominal 4' x 10' (about 51" x 126"). -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time , emergency pedal, quad temperature protection device. -- (8) Cylinders (upstroke) -- 160 Tons of overall pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- Platen size 1300 mm x 3200 mm (51" x 126") approx. Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick; -- (8) Hydraulic "upstroke cylinders", approx. 85 mm dia.; rack & Pinion guide system for parallel closing of the platens. -- 40 PSI specific pressure over the entire platen area; 54 kW heating power. Approx. 7.5 kW (10 HP) hydraulic pump motor. -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Max Working height is 4"; Loading from (3) sides; 39-1/2" from floor with lower platen in the down position; Heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Overall press weight is approx. 27.500 Lbs. -- Optional: Extra Large Oil Heating Tank for Special Higher Temperatures if needed.

HYDREX HPX510-5 Hot Press 120 Tons with (5) Daylight openings. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to 5' x 10', -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time, emergency pedal, and quad temperature protection device. -- (8) Cylinders (upstroke) -- 120 Tons of overall pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- 122" x 61" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick; -- (8) Hydraulic "upstroke cylinders", approx. 85 mm dia.; Rack & Pinion guide system for parallel closing of the platens. -- 120 Ton total pressure; 54 kW of heating power. 40 PSI specific pressure over the entire platen area; 4.5 kW (6 HP) hydraulic pump motor. -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Max Working height is 4"; Loading from (3) sides; 39-1/2" from the floor with lower platen in the down position: heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Features: "Last" (2) cylinders can be turned off to press shorter panels. - Overall press weight is approx. 24,000 Lbs. -- Overall dimensions: 3,800 length (+610mm -boiler + 610mm -pump/tank) x 1,790 wide x 2,450 mm high.

HYDREX HPX48-1 Hot Press, Single daylight opening. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to 4' x 8', -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time, emergency pedal, and quad temperature protection device. -- (6) Cylinders (upstroke) -- 80 Tons of overall pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- 98" x 51" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick, 4" Max Working height.. -- (6) Hydraulic "upstroke cylinders", 85 mm dia.; rack & Pinion guide system for parallel closing of the platens. -- 80 Ton total pressure, 40 PSI specific pressure over the entire platen area; 4 KW (5.5 HP) hydraulic pump motor. Platen moving speed 5 FPM -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Loading from (3) sides; 39-1/2" from the floor with lower platen in the down position: heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Overall press weight is approx. 12,500 Lbs). Overall dimensions 129" x 65" x 102" high.Also available with (3) openings - 100 Tons and (5) openings - 100 Tons.

HYDREX HPX510-1 Hot Press, Single daylight opening. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to 5' x10', -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time , emergency pedal, quad temperature protection device. -- (8) Cylinders (upstroke) -- 120 Tons of overall pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- 122" x 61" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick, 4" Max Working height.. -- (8) Hydraulic "upstroke cylinders", 85 mm dia.; rack & Pinion guide system for parallel closing of the platens. -- 120 Ton total pressure, 40 PSI specific pressure over the entire platen area; 4.5 KW (6 HP) hydraulic pump motor. Platen moving speed 5 FPM -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Loading from (3) sides; 39-1/2" from floor with lower platen in the down position: heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Features: "Last" (2) cylinders can be turned off to press shorter panels. - Overall press weight is approx. 19,500 Lbs).

2004 Hymmen Proficoater 60" Roll Coat Line - Model ULX-S: Includes spare drum and lights SCMI Finish Sander

IMA Combiform I/R75/1260/V

IMA ADVANTAGE 500 L EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): Production Edgebander -- Specifications:Edgebanding capacity: Coiled material 0.3 - 3 mm (0.012 - 0.118"); strips 3.0 - 12.0 mm (0.118 - 0.472); panel thickness min./max. 8 - 60 mm (0.315 - 2.362").Equipped With:Premill Unit - 08.379 with: 4 kW x 2 (5.3 HP x 2) 9,000 RPM Vertical joining spindles, SIKO digital readouts, particle & debris air jet blower. -- Glue System - EVA (Hot Melt) with: "Quick-Lock" System. -- Pressure Section with: (1) Large dia. driven and (5) idle rollers. Workstations:End Trimming Unit - 08.415: Dual motor, 0.66 kW x 2 (0.88 HP x 2) suspended from the hold-down beam; automatic chamfer adjustment 0° - 8°. -- Rough Trimming Unit - 08.055: Top & Bottom flush trimming, W 1.0 x 2 (HP 1.34 x 2) - 12,000 RPM ea. motor; against the feed (up-milling), vertical & horizontal tracing wheels, digital readouts for adjustments. -- Contour Unit - CT U-L: Multiuse, Top & Bottom linear and vertical corner trimming; total motors: (4) 2 x 180 W and 2 x 400 W; 12,000 RPM. -- Profile Scraper Unit - 08.519: Profile Scrapers for up to 3 mm thick PVC banding, vertical & horizontal tracing shoes. -- Glue Scraping Unit - 08.521: Flat, Top & Bottom self-tracing Glue Scraper. -- Buffing Unit - 08.617-2: Top & Bottom 0.18 kW x 4 (0.25 HP x 4) - 1,400 RPM. -- Edge Smoothing Unit: Top & Bottom for 1, 2 & 3 mm edge.Control System ICOS OPEN TS: Large color LCD display; displays stored data, on/off workstation sequence, troubleshooting diagnostic; data input by touchscreen, alphanumeric keyboard, and mouse. Microprocessor adjusts according to stored programs or input; pressure section position & pressure control, vertical positioning of all hold-down beam mounted workstations.Complete with:Heavy-Duty "sliding" feed chain with: 70 mm Wide x 60 mm long rubber pad inserts; central lubrication of transport chain; variable feed speed from 4 - 20 MPM (13 - 65 FPM). -- Motorized central height adjustment of top pressure beam with double V-belt hold-down. -- Sound Enclosure - All stations; all trimming & milling motors DC electrical motor brakes for immediate stopping. -- Spraying Units: Upfront at infeed for anti-stick solvent and polishing solvent prior to Buffing Station. -- Actual Model is IMA ADVANTAGE 500 L
