Mortisers For Sale

This item is in an Auction on exfactoryauctions.com. Go here to view item: http://exf.ac/i6o BACCI MOD Double-Sided Oscillating Slot Mortiser Specifications: Max. slot depth 80 mm (3.15"), Max. slot length 4-3/8". Chuck size 16 mm (0.63"). Max tool dia. 50 mm (1.97"). Vertical table adjustment 100 mm (3.94"). Oscillation range 120 mm (4.72"). Oscillation speed 224 OPM. Equipped with: (2) 8” x 19-1/2” Tables, Each with Tilt 20° Left & Right. 3 HP - 9,500 RPM Spindle motor, 3 HP Oscillation motor. Hydraulic table feed. (2) Pneumatic hold-downs.

BALESTRINI MICRON ... Oscillating Slot Mortiser with Twin TablesAutomatically mortises or bores round holes in chairs, frames or case good parts; features (2) Tables eliminating dead cycle time; produces approx. (400 - 500) mortises/Hr..Specifications: -- Twin tables, tiltable 0° - 20°, vertical adjustment 0 - 100 mm (0 - 4"). -- (2) Vertical pneumatic holddowns, (1) for each side. -- Motors: Cutting spindle motor 3 HP - 9,000 RPM spindle speed, oscillating movement motor 1 HP with (50 - 350) Osc./Min. -- Mortise length is 120 mm (4.72"). -- Mortise depth max. of 80 mm (3.14"). -- Max. cutting bit dia. is 20 mm (0.78"). -- Max. mortise angle is 20°.Note from the seller : We have two of these machines, one is 220V and the other is 440V. Both are in very good condition

CANTEK - PCM 120, ...Hollow Chisel MortiserFeatures: -- Power stroke of head permits easy, fast, and accurate successive cuts. -- Separate fan blower to keep work clean and free from dust & chips. -- Manual adjustable table height and lateral position. -- Heavy-Duty cast iron construction. -- Convenient centralized control panel. -- Foot pedal actuated cycle. -- Pneumatic workpiece clamping by lever.Specifications: -- Chisel range: 1/4" - 3/4"; Motor; 2 HP; Spindle speed: 3,400 RPM. -- Table: 16-3/4" x 21-1/4; Table tilts 30°. -- Air pressure: 8kG Clamping; Cylinder: 2-1/2"; (63 mm). -- Head traveling cylinder: 3.15"; (80 mm); Table cross travel: 5";. -- Table longitudinal travel: 18";; Table vertical travel: 12";. -- Max. stock width: 12";; Max. mortising depth: 4";. -- Machine weight: 572 Lbs. -- Shipping weight: 726 Lbs; Shipping dimension: 35"; x 38"; x 70"; (880 x 960 x 1,780 mm).

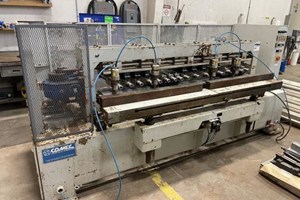

Comec Model MMS-2000 Twenty (20) Spindle Horizontal Slot MortiserSpecifications -- Spindle Speeds 4,500 and 9,000 RPM/Min. -- Single Oscillating carriage with dovetail profile, 2,000 mm (78.75") length -- Oscillation motor, 3 PH -- Min./Max. spindle center-to-center distance: 55/1,945 mm (2.16" - 76.57"). -- Five (5) motors for spindles power 4.0/3 HP, with two speeds. -- Advancement of the spindles on guides with balls recirculation with pneumatic cylinder and hydraulic brakeEquipped with & Features -- Adjustable table 8" Wide X 87" Long -- Locking cylinders and Four (4) Pneumatic Holddown ClampsNote from the seller -- Production 300 - 400 pieces per hour

Dincmak Model DMT120 Double Sided Slot MortiserSpecifications -- Max Mortise Width: 120mm --Max Depth: 50mm --Max Workpiece Height: 100mmEquipped with and Features -- Two Independent Working Table w/ up to 45 Degree Tilt -- Oscillation Motor: 3/4HP (.55kW) -- Cutting Motor: 4HP (3kW)

Grutter Mortison Tennoner Machine with (2) 25HP Motors, control Panel & Valves.

Grutter Dado Blade Windstop Machine with 2 10HP Motors

3-Head oscillating chisel, 96" long table, 1.8 HP each head, all heads adjustable side to side. -- Mortise cap.: 3/4" min. x 7" max. length, 5/64" min. x 7/8" max. width, 4" max. depth. -- Complete with: (2) Horizontal & (3) vertical pneumatic clamps, and foot pedal; table advances hydraulically for mortise cutting. -- Oscillation heads and infinitely adjustable table feed speed. -- No Tooling is included. -- Includes: Heads were fully rebuilt and has had minimal, only about (10) hours of use since.

Newman T-20 MortiserSpeifications -- 0.5 HP Motor, push button magnetic starter, foot treadle operation, with compound tilting table, manual holddown.

OLIVER - 92-D: MortiserSpecifications -- Bit/chisel capacity: 1/4 - 3/4"; stroke from: 2-1/2 - 4"; shank size: Up to 3/4".Equipped with & Features -- 5 HP - 3,450 RPM Motor; power feed provides: 16 - 40 Strokes/Min. -- Push-button controls for: Operation of the (2) motors. -- Universal compound table. -- 6" Wide x 36" long; moves horizontally by rack & pinion; table can be tilted or clamped up to a 45° angle, either right or left for angle mortises.

This item is in an Auction on exfactoryauctions.com. Go here to view item: http://exf.ac/i6m WYSONG & MILES 284 Automatic Vertical Hollow Chisel Mortiser Specifications: Max. chisel dia. 1-1/4", Max. bit dia. 5/8". Throat 6-1/4”. Max. distance from table to chisel 16". Table size 8” x 42”, with Tilt 45° Left & Right. Longitudinal table travel 13", Cross table travel 3-3/4", Vertical table travel 12". Max. chisel stroke 4-1/4". Speeds 15, 30, & 45 SPM. Equipped with: 5 HP - 3,480 RPM Spindle Motor. 1-1/2 HP Feed motor. (2) Stroke stops. Spacing gauge, with (6) Adjustable spring stops. Screw clamp. (2) Hold-downs. Foot pedal for Single stroke or continuous operation. Complete with: Fence.

Wysong & Miles NO. 284 Vertical Chisel MortiserSpecifications -- 1-Head, 5 HP direct drive motor, rack & pinion table adjustment; -- Table size 8" x 42" and tilts to right or left up to 45ø, -- Moves 13" laterally, 12" vertically and 3-3/4" cross-line. -- Max.depth 4-1/4", max. chisel shank 1-1/8" dia., smaller chisel require bushing, 5/8" straight bit chuck.Equipped with n& Features -- The table is raised and lowered by means of a crank. -- A quick acting screw type clamp holds material securely in position , smaller chisel require bushing, 5/8" straight bit chuck.Note from the seller -- Having spent it's entire life in humid Florida this 284 has a Levi’s blue jean patina on it’s painted surfaces and well seasoned cast iron from environment and age. Quiet running! Mechanical power feed,
