Woodworking Equipment For Sale

SCM SANDYA 15S (3) Head Wide Belt Sander42" Width cap, Drum, Drum, Combination HeadHead Configuration:1st Head: Steel contact roll, 7" dia., 35 HP motor;2nd Head: Rubber-covered contact roll, 24 HP motor3rd head: Combination head, rubber-covered contact roll (45 Shore) and 3" wide finishing platen, 17.4 HP motor.Specifications: -- 43" x 103" Abrasive belts -- Electronic tracking & pneumatic belt tensioning, abrasive belt grit compensation. -- Conveyor belt feed with dual feed speed, 4 HP motor -- Automatic part thickness adjustment -- Motorized thickness opening via (4) precision conveyor bed jacksEquipped With & Features: -- LED readout, 0" - 6-1/4" opening. -- Infeed & outfeed spring loaded rubber covered hold-down rollers -- Motor load meters -- Infeed and outfeed roller conveyor extensions.

SCM Minimax T-50 Tilting Spindle Shaper -- Specifications: -- 1-1/4" Dia. interchangeable spindle tilts -5° to +45°, -- 6.6 HP motor; 3-1/2" cap. under nut, (4) spindle speeds of 1,700 - 4,000 - 7,000 & 9,000 RPM. -- Table size 18" x 43" with adjustable side extension tables; 3" - 5" - 7" & 8" table insert openings -- 4-1/2" max. spindle height above table -- 2" max. tooling retraction under table with 7" max. tooling dia.; working height 37".Equipped with: Outrigger Sliding Table, micro-adjustable fence, spindle lock, magnetic starter w/overload protection, reversing switch, and 4-3/4" dia. dust outlet. Includes: Several New Cutter-heads

SCM T 160 TILTING SPINDLE SHAPER9 HP Main motor, (5) speeds of 2,900 - 4,400 - 6,000 - 7,800 & 10,000 RPM (..but currently with single speed 6,000 RPM pully only!); 1-1/4" dia. interchangeable spindle, 7" spindle length with 4-3/4" motorized vertical spindle adjustment, 9" max. height above table. -- Features: 0° - 45° Motorized tilting, degree tilt gauge, spindle height gauge; max. insert opening 16-1/2", and 39" x 40" table size. -- Complete with: Adjustable fence, mechanical spindle brake & lock, dust hood & reversing switch; NOTE: 3-ROLL FEEDER IS NOT INCLUDED

SCM Olimpic K560 Automatic Edgebander: --Heavy-duty industrial edgebander designed for professional cabinet, millwork, door, panel-processing, and production applications. --Equipped with: --Automatic edge-feeding and gluing system for consistent edge application. --Automatic panel-feed system designed for continuous productions. --Work Stations: --Automatic end-trimming station. --Top and bottom buffing station for clean finished edge. --Complete with: --Operator control system for machine setup, adjustment and production control. --÷Machine specifications: --Manufacturer: SCM Group --Model: Olimpic K560 ÷Year: 2014 ÷Serial Number: AH/117660÷Electrical: 220V/3-Phase/60Hz÷Rated Current: 51 amps÷Machine Weight: 1,386kg (approximately 3,056lbs)÷Country of Manufacture: Italy --This SCM Olimpic K560 is a substantial production machine well suited for processing cabinet components, panels, doors and architectural millwork.

SCM - OLIMPIC K 201 HFA, ...Automatic Compact Edgebander with: 3 mm Max. coiled edgebanding thickness & High Frequency motorsSpecifications: -- Edgebanding thickness cap. (for both coil & strip): 0.4 - 3 mm (0.02" - 0.19"). -- Min. panel length for coiled edges (min. width 200 mm) 140 mm (5.51"). -- Min. panel width for coiled edges: 65 mm (2.56"). -- Panel thickness: 8 - 40 mm (0.31" - 1.57"). -- Feed speed:9 MPM (29 FPM).Equipped with: -- Automatic adjustment of all units when panel thickness is changed. -- 20" Dia. coil table. -- Automatic coil feed magazine; manual strip feed. -- Teflon-coated glue pot. -- 1.2 mm (0.05") Cap. guillotine. -- Eye-level control with: GEFRAN "1000" LED Temperature controller. -- Adjustable feet.Workstations: -- Single-motor end trimming unit with: (1) 0.19 kW (1/4 HP) - 12,000 RPM High-frequency motor & copying device. -- Top & bottom flush trimming unit with: (2) 0.35 kW (1/2 HP) - 12,000 RPM high-frequency motors, and front & vertical copying devices.

SCM - OLIMPIC K 560 R HP SERVO: Edgebander w/Premill & Corner Rounding -- Specifications Edge Capacity: 0.4 to 6 mm (0.016 to 1/4") for strip feeding. -- Panel CapacityMin. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Premilling Station. (2) 2.0 HP (1.5 kW) motors; Servo controlled; to rectify/clean panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine. For straight edges; 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with quick-change/disconnect TEFLON glue pot for fast glue tanks change if needed. - Heat up time approx. (10) Min. -- Pressure Section. Manual digital positioning: TEFLON Coated pneumatic driven roller; (2) spring-loaded idle rollers.Workstations -- End Trimming Station. Front & rear: (2) 1/2 HP - 12,000 RPM Motors mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit. (2) 0.7 HP - 12.000 RPM motors; capable of tilting & pneumatic positioning for (3) settings: flush/bevel/radius trimming for quick setup. -- Corner Rounding Unit. With: (2) 0.8 HP Independent motors that slide on THK guides. -- Top & Bottom Profile Scraping Unit. Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Glue Scraping Unit. Eliminates any excess glue. -- Buffing Unit. Top/Bottom; (2) 1/4 HP - 2,800 RPM motors; tilting up to 12°.Operator Interface -- "STARTOUCH" Controller with: Touchscreen display; capable of storing (100) programs. Machine automation by: PLC Function; encoder positioned in the panel feed track pinion.Diagnostics for a quick solution to errors; process statistics data: i.e., Number of pieces/edges and track feeding.Features & Complete with: -- 2-Speed feed speed: 40 & 60 FPM (12 & 18 MPM); (1) 2-1/2 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Servo controlled, adjustable top hold-down pressure beam. -- Automatic panel spacer to eliminate premature loading. -- Antiadhesive spray. -- Full sound enclosure cover & outboard panel support. -- Actual Model: SCM - OLIMPIC K 560 R HP SERVO.

SCM OLIMPIC K 360 COMPACT EDGEBANDER WITH PRE-MILLING Specifications: -- Edge Capacity: 0.4 - 6 mm (0.016" - 1/4") for strip feeding. -- Panel Capacity: Min. width: 65 mm; min. length: 140 mm min. length (2-3/8" and 5-1/2"). - Panel thickness: Min./max.: 8 - 60 mm (3/8" - 2-1/2").Equipped with: -- 2-Head Pre-milling station model (2.5 HP - 19,000 RPM motors ea.). -- Adjustable infeed fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Premilling Station RT-VP: Spindles (2) x 2.0 HP 19,000 RPM; (1) PLC controlled jump action and diamond cutterheads. -- Automatic strip & coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat up time approx.: 10 Min. -- Pressure Section: Manual digital positioning; (3) pressure rollers; 1st larger Teflon coated and powered. Workstations: -- End Trimming Station - Front & rear: (2) x 1/4 HP - 12,000 RPM motors mounted on THK guides; swivels 0° - 15°; rapid set up between straight & angled cutting with the automatic swivel cylinder. -- Trimming Unit Flush/Bevel/Radius: Top/Bottom remote (via control panel) pneumatic positioning for (3) settings: Flush. bevel, radius trimming; (2) x 0.7 HP - 12.000 RPM motors: Precision digital indicators for quick set up. -- Profile Scraping Unit "RAS/V": Top/Bottom; manual preset up with digital indicators; large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Buffing Unit: Top/Bottom; (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°. Complete with & Features: -- Feed speed: 36 FPM fixed; (1) x 2.0 HP Feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable holddown pressure beam; full sound enclosure cover; outboard panel support.Condition: ATFS

SCM - OLIMPIC K230ERT EVO: Edgebander (w/Premilling & Corner Rounding) -- Specifications0.4mm to 3mm Edge thickness; panel thickness 8 mm to 50 mm (0.3" to 1.96"); minimum part width 60mm (2.36"); minimum part length 160 mm (6.30").Minimum distance between panels: 559 mm (22";); 29-1/2 FPM (98 MPM) Fixed feed speed; 1.0 HP (0.75 kW) feed drive.Premilling Station RT-VP(2) 2.0 HP (1.5 kW) Motors to rectify/clean panels already sized. -- Adjustable infeed fence: Manually preset with digital indicator, pneumatic in/out positioning.Equipped with: 1.5 kG TEFLON Coated glue pot; glue roller application system complete with: Automatic recycling device for unused glue.Digital thermostat adjustment for temperature control; pneumatic guillotine; heating time approx. (8 - 10) Min.3-Roll pressure unit with: Pneumatic controls for all pressure rollers. -- Automatic strip & coil feed magazine.Workstations2-Motor front & rear End Trimming (1/2 HP - 12,000 RPM ea. motor.); tilts 0° - 15°; end trimmers mounted on THK guide. -- Top & bottom flush & bevel trims with: Quick release mount and plug-in motors for quick tooling changes.0.5 HP - 12.000 RPM Motor ea.; bevels 0° - 15° with: Precision digital indicators for quick setup. -- Corner Rounding Unit from .5 to 3mm. -- Top & bottom scraping unit with: Manual positioning. -- RC-V Top & bottom Glue Scraping Unit -- Top & bottom buffing unit (1/4 HP - 3,000 RPM motors); tilts up to 12°. Operator & Machine Control"ORION 1 Plus" Controller: Located at the infeed of the machine; capable of operating all the work units via soft touch buttons.It pneumatically tilts the end trim unit from the Control Panel; eliminates the use of micro switches, as well as controls the temperature of the glue.Control is tilted slightly upward for a more ergonomically friendly position for the Operator. -- Actual Model is: SCM OLIMPIC K230ERT EVO

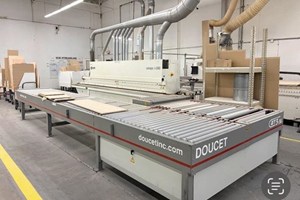

SCM - OLIMPIC K360 HP: Compact Edgebander (w/Premill & Corner Rounding) + Doucet BT-3-36 ReturnSpecifications -- Edge Capacity: 0.4 - 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity: Min. width 65 mm & 140 mm min. length (2-3/8" & 5-1/2"); panel thickness: Min./max. 8 - 60 mm (3/8" - 2-1/2").Equipped with: -- Adjustable Infeed Fence. Manually preset with: Digital indicator; pneumatic in/out positioning. -- Premilling Station RT-VP: Spindles (2) x 2.0 HP - 19,000 RPM. -- Automatic Strip & Coil Feed Magazine: For straight edges & 3 mm guillotine for coils. -- Gluing Station for EVA (Hot Melt) with: Teflon coated glue tank & quick disconnect to change glue tanks fast if needed; heat up time: Approx. (10) Min. -- Pressure Section: Manual digital positioning; (3) pressure rollers: First larger; Teflon coated & powered. Workstations -- End Trimming Station. Front & rear: (2) x 1/4 HP - 12,000 RPM motors; mounted on THK guides; swivels 0° - 15°; rapid setup between straight & angled cutting. -- Trimming Unit. Flush/Bevel/Radius: Top/Bottom with pneumatic positioning for (3) settings; Flush/bevel/radius trimming: (2) x 0.7 HP - 12.000 RPM motors with: Precision digital indicators for quick setup. -- Corner Rounding Unit. "Round 2M" with: (2) 0.8 HP Independent motors that slide on THK guides. -- Profile Scraping Unit. "RAS/V": Top/Bottom, manual preset up with digital indicators; large dia. copy wheels for max. accuracy & pneumatic in/out positioning. -- Buffing Unit. Top/bottom: (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°. Operator Interface -- ORION "1 Plus" Controller. Fixed at infeed of machine with: "Touch Screen" control; softkeys; graphics; LCD display panel.Complete with & Features -- Feed speed: 36 FPM Fixed; (1) x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable hold-down pressure beam; full sound enclosure cover; outboard panel support. Included Options: -- 2017 Doucet BT-3-36-5-21-D-PT Return Conveyor as pictured. -- Actual Model: SCM OLIMPIC K360 ERT HP

1998 SCM Double End Tenoner Great Working Condition Recently Removed From Service

Worktable dimensions: 145? x 61? Z -Axis stroke: 9.84? Spindle speed: 24,000 RPM Electrospindle (S1/S6 rating): 7.5 HP / 9HP Tool Changer: 10 position Spindle Taper: HSK 63 Boring Block (7) Spindles: 6,000 RPM Maximum positioning vectorial speeds: X/Y axis: 115 feet/minute Electrics: 208/230/460 volts, 3-phase, 60 cycles EQUIPPED WITH: Windows Based Operating system 17” Flat Panel Monitor Remote Pendant with 7? Display 7-Spindle Boring Block Touch Probe Spindle Air Blowers Built In Vacuum Pumps- 2 Zones

Tubeless Vaccum (TNV) Electro-Spindle with HSK63F quick release Toolholder Rotation speed 600-2400 rpm Air Cooling by rear electrofan Static Inverter Centralized dust collection system with automatic blast gates

2008 SCM Morbidelli Universal 3612

1998 SCM TECH 30 Super Router

SCM - OLIMPIC K 360: Compact EdgebanderSpecifications -- Edge capacity: 0.4 to 6 mm (0.016to 1/4") For strip feeding. -- Panel capacity: Min. width 65 mm & 140 mm min. length; 2-3/8" & 5-1/2". Panel thickness min./max.: 8 - 60 mm (3/8" - 2-1/2").Equipped with: -- Automatic Strip & Coil Feed Magazine: For straight edges & 3 mm guillotine for coils. -- Gluing Station for EVA (Hot Melt) with: TEFLON Coated glue tank & quick disconnect to change glue tanks fast if needed. Heat-up time approx.: 10 Min. -- Pressure Section: Manual digital positioning; (3) pressure rollers, 1st larger & TEFLON coated & powered. Workstations -- End Trimming Station: Front & rear: 2 x 0.25 HP - 12,000 RPM Motors mounted on: THK Guides; swivels 0° - 15°; rapid set up between straight and angled cutting with: An automatic swivel cylinder. -- Trimming Unit Flush/Bevel/Radius: Top/Bottom remote (via control panel); pneumatic positioning for: (3) Settings: Flush/bevel/radius trimming; (2) x 0.7 HP - 12.000 RPM motors with: Precision digital indicators for quick setup. -- Buffing Unit: Top/bottom, (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°. Controls -- "ORION 1 Plus" Controller; fixed at infeed of machine with: soft keys; graphics; 4" LCD display panel. It handles most machine setup functions and workstations. Complete with & Features -- Feed speed: 36 FPM Fixed; (1) x 2.0 HP Feed drive motor; 200 Hz frequency inverter for all trimming units. -- Manual adjustable holddown pressure beam; full sound enclosure cover & outboard panel support.Condition: ATFS

SCMI - K201 HFE: Single Sided Edgebander1/8" Max. edge cap.; 1-1/2" max. panel thickness; semiautomatic strip & coil feed magazine (manual single strip feed); Teflon coated glue pot w/fast 8-Minute heat up time; 1.2 mm cap. guillotine. -- Workstations: Single motor front & rear end trim; 0.8 HP - 10,000 RPM motor; top & bottom flush trims, 0.8 HP - 27,000 RPM ea. motor; straight or 12° bevel cutters. -- Top & Bottom buffing unit, 0.25 HP - 2,800 RPM motors; 25 FPM fixed feed speed with 0.8 HP drive. -- Complete with: Sound enclosure, frequency converter, and used tooling.

SCM - OLIMPIC K230R EVO: Edgebander (w/Premilling) -- Specifications0.4mm to 3mm Edge thickness; panel thickness 8 mm to 50 mm (0.3" to 1.96"); minimum part width 60mm (2.36"); minimum part length 160 mm (6.30").Minimum distance between panels: 559 mm (22";); 29-1/2 FPM (98 MPM) Fixed feed speed; 1.0 HP (0.75 kW) feed drive.Premilling Station(2) 2.0 HP (1.5 kW) Motors to rectify/clean panels already sized. -- Adjustable infeed fence: Manually preset with digital indicator, pneumatic in/out positioning.Equipped with: 1.5 kG TEFLON Coated glue pot; glue roller application system complete with: Automatic recycling device for unused glue.Digital thermostat adjustment for temperature control; pneumatic guillotine; heating time approx. (8 - 10) Min.3-Roll pressure unit with: Pneumatic controls for all pressure rollers. -- Automatic strip & coil feed magazine.Workstations2-Motor front & rear End Trimming (1/2 HP - 12,000 RPM ea. motor.); tilts 0° - 15°; end trimmers mounted on THK guide. -- Top & bottom flush & bevel trims with: Quick release mount and plug-in motors for quick tooling changes.0.5 HP - 12.000 RPM Motor ea.; bevels 0° - 15° with: Precision digital indicators for quick setup. -- Top & bottom scraping unit with: Manual positioning. -- Top & bottom buffing unit (1/4 HP - 3,000 RPM motors); tilts up to 12°. Operator & Machine Control"ORION 1 Plus" Controller: Located at the infeed of the machine; capable of operating all the work units via soft touch buttons.It pneumatically tilts the end trim unit from the Control Panel; eliminates the use of micro switches, as well as controls the temperature of the glue.Control is tilted slightly upward for a more ergonomically friendly position for the Operator. -- Actual Model is: SCM OLIMPIC K230R EVO

SCM - OLIMPIC K 600 T-ERL: Edgebander with Premill & Corner RoundingSpecifications -- Edge Capacity: 0.4 to 8 mm (0.016 to 0.31") for strip feeding. -- Panel Capacity Min. panel width: 52 mm (2"); Min Panel length: 140 mm (5-1/2").Min./Max. panel thickness: 8 - 60 mm (0.36" - 2.4"); Min. distance between panels: 600 mm (24").Equipped with: -- Adjustable Infeed Fence. Manually preset with: Digital indicator; pneumatic in/out positioning. -- Premilling Station "RT-E": 2 x 3.0 HP Spindles; 12,000 RPM motor each. -- Automatic Strip & Coil Feed Magazine. For straight edges; 3 mm guillotine for coils. -- Gluing Station "VC/6". EVA (Hot Melt) with: Quick change/disconnect TEFLON glue pot for fast glue tanks change, if needed. Heat-up time: 8 - 10 Min. (approx.) -- Pressure Section: Manual digital positioning; TEFLON coated pneumatic driven roller; (2) spring loaded idle rollers.WORKSTATIONS -- End Trimming Station "K-SEL 2". Front & rear: (2) x 1/2 HP - 12,000 RPM motors; mounted on THK guides; swivels 0° - 15°; rapid set up between straight & angled cutting with: Automatic swivel cylinder. -- Top & Bottom Trimming Unit "RI/100" with: (2) x 1.0 HP - 12.000 RPM motors; capable of tilting from: 0° - 25° with adjustment & pneumatic positioning for (3) settings; flush/bevel/radius trimming for quick setup. -- Corner Rounding Unit "Round-K" unit with: (2) 0.80 HP Independent motors that slide on THK guides -- Top & Bottom Profile Scraping Unit "RAS/K". Unit with: Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Buffing Unit. Top/bottom: (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°.Operator Interface -- "STARTOUCH" Controller with: 12" Touchscreen display; capable of storing (100) programs. Machine automation by: PLC Function; encoder positioned in the panel feed track pinion.Diagnostics for a quick solution to errors.Process statistics data, i.e.: Number of pieces/edges and track feeding.Features & Complete with: -- 2-Speed feed speed of: 36 & 52 FPM (11 & 16 MPM); 1 x 2-1/2 HP feed drive motor; max. speed when using CR unit is: 36 FPM (11 MPM). -- 200 Hz Frequency Inverter: All trimming units. -- Manual adjustable holddown pressure beam. -- Full sound enclosure cover & outboard panel support. -- Actual Model - SCM OLIMPIC K 600 T-ERL

SCMI - OLIMPIC K 360: Compact Edgebander with PremillingSpecifications -- Edge Capacity: 0.3 - 3 mm (0.012 to 0.118") For coiled edges (0.3 - 6 mm for strips with 6 x 60 mm kit included). - Coil holder-plate dia.: 780 mm (31"). -- Panel Capacity: Min. width: 90 mm & 140 mm Min. length (3-1/2" and 5-1/2").Panel thickness. Min./max.: 8 - 50 mm (3/8" - 2") to max. 60 mm (2.4" with 6 x 60 kit included).Equipped with: -- Adjustable Infeed Fence. Manually preset with: Digital indicator; pneumatic in/out positioning. -- Premilling Station: RT-VP. Spindles 2 x 2.0 HP - 19,000 RPM; (1) with; PLC Controlled jump action & diamond cutterheads. -- Automatic Strip & Coil Feed Magazine. For straight edges & 3 mm guillotine for coils. -- Gluing Station. For EVA (Hot Melt) with: TEFLON Coated glue tank; quick disconnect to change glue tanks fast if needed; heat up time approx. 10 Min; includes: 1.5 kG Glue pot instead of standard. -- Pressure Section. Manual digital positioning: (3) Pressure rollers; 1st larger TEFLON coated & powered. Workstations -- End Trimming Station - K2: Front & rear 2 x 1/2 HP (included extra); 2,000 RPM motors mounted on: THK guides; swivels 0° - 15°; rapid setup between: Straight & angled cutting with the automatic swivel cylinder.Automatic positioning for: (3) Cutting modes: Straight, chamfered, and radiusing of thick edges. -- Top & Bottom Trimming Unit: R-K. Remote (via control panel) pneumatic positioning for: (3) Settings: Flush/bevel/radius trimming; (2) x 0.7 HP - 12,000 RPM motors with: Precision digital indicators for quick setup. -- Top & Bottom Profile Scraping Unit: Manual preset up with: Digital indicators; large dia. copy wheels for: Max. accuracy & pneumatic in/out positioning. -- Buffing Unit - SP-V. Top/bottom; (2) x 1/4 HP - 2,800 RPM motors; tilting up to 12°; cleaning & polishing of edges.Controls -- Orion 1 Plus Controller. Fixed at infeed of machine with: Soft keys; graphics; 4" LCD display panel. Handles most machine setup functions & workstations. Machine automation by: PLC Function & encoder positioned in the panel feed track pinion. Diagnostics for: Quick solution to many errors. Process statistics data, i.e.: No. of pieces/edges and track feeding.Features & Complete with: -- Feedspeed: 36 FPM Fixed; (1) x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units; manual adjustable holddown pressure beam; full sound enclosure cover & outboard panel support. -- Overall dimensions:3,600 mm (142") x 900 mm (36") x 1,600 mm (63"); weight approx.: 997 kG (2,200 Lbs). -- Owner states: Several motors/groups replaced recently as routine maintenance. -- UL/CSA Approved version; has "Ontario Hydro Special Inspection" approval sticker. --Actual Model: OLIMPIC K 360 T-ER1

SCM - ACTION TF 2500: Case Clamp (Automatic Feed Through) -- Specifications Max. standard working dimensions: 2,500 mm (98.4") Wide x 1,250 mm (49.2") high x 800 mm (31.5") depth. -- Min. standard working dimensions: 250 mm (9.8" Wide x 250 mm (9.8") high x 250 mm (9.8") depth. -- Working table height: 600 mm (23.6"). -- Max. Vertical pressing force: 1,500 kG (3,300 Lbs). Max. Side pressing force: 1,200 kG (2,640 Lbs).Features -- Full top & bottom platen for maximizing pressing PSI on the box. -- Rack & Pinion guides at: All (4) corners of the top platen & side pressure to keep the top platen parallel and the side pressure square. -- Sizes of box can be input for efficient cycle control when running repetitive box closings. -- Machine can also find the size of the box, so all the Operator does is place the box onto the powered infeed belt to be clamped. -- The vertical & horizontal pressure is adjustable according to the type of furniture to be assembled. -- Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention. -- Pressure supplied by infinitely adjustable brushless electric motors.Complete with: -- 5.7" Touchscreen panel with: Software by CPC to program cycles. -- Rack & Pinion system; Brushless motors. -- Front & rear photocell barriers. -- Actual Model SCM ACTION TF 2500
