Woodworking Equipment For Sale

CANTEK C251 24" WIDE BELT SANDERSpecifications: -- 24" Width cap. - sanding head with a rubber covered contact roll and adjustable finishing platen, 10 HP motor main drive motor. -- 25" x 60" Abrasive belts, pneumatic abrasive belt tensioning. -- 0" - 5.9" thickness capacity, Power elevation for thickness opening with digital thickness programming. -- Variable conveyor feed speed from 15 - 50FPM, 1 HP feed motor. -- 5.9" Max. working thickness, 13" min. working length, -- Spring loaded holddown rolls.Complete with: -- Magnetic controls, (2) 4" dia. dust collection outlets, and safety shutoff. - 825 CFM Dust collection required. Optional: 10 HP Single Phase motorElectronic belt tracking for optimum belt life and sanding results. Ammeter for load monitoring main drive motor. Disc brake on the main motor. Pneumatic belt tensioning with quick release outboard support. Safety Interlocks are located on all access doors.

CANTEK E6 6" Oscillating Edge Brush SanderSpecifications: -- Ideal for sanding cabinet doors edges, stair treads, or furniture components. -- Brush abrasive sands into profiles or breaks edges. -- Oscillation ensures optimum usage of abrasive & quality result. -- Table size 31-1/2"; x 22"; x 33" H. -- Sanding head length 6". -- Oscillating stroke 0.82". Equipped with: -- Variable speed sanding head, with 1/2 HP Motor. -- Adjustable spindle height for max. usage of abrasive. -- Adjustable & removable back fence for linear or curved sanding. -- Magnetic starter, with Emergency stop button. Complete with: -- (1) Set of 150 grit abrasives.

CANTEK D405A 10' Sliding Table SawSpecifications: -- Max. cutting length 126". -- Max. depth of cut: 4.13" at 90° (355 mm), 5.12" at 90° (400 mm), 2.75" at 45° (355 mm). -- Main saw: 7-1/2 HP Motor, Blade dia. 16", Arbor dia. 30 mm (1.18"), Arbor tilt 0° - 45°, & Blade speeds 3,000, 4,000, & 5,000 RPM. -- Scoring saw: 1 HP - 8,000 RPM Motor, Blade dia. 120 mm (4.72"), & Arbor dia. 20 mm (0.79").Equipped with: -- 15-1/2"; x 126"; x 35-1/4"; H Precision anodized aluminum sliding table with Prismatic rollers running on precsion ground steel guides, 21.6"; x 35"; x 35.3"; H Cast-iron fixed table, 12.6"; x 32.7"; x 35.3"; H Auxiliary table. -- Main saw blade motorized height & tilt adjustment. -- 39-1/2"; L x 3-1/2"; H Aluminum rip fence, with 130 mm (51.18";) Cutting cap. -- Aluminum extruded crosscut fence, with (2) Flip stops with miter angle adjustment, & Sliding outrigger support. -- Eye-Level touchpad control, with LED Displays for main saw blade height & tilt. -- Overhead blade guard.

CANTEK D405A SLIDING TABLE SAWThe Cantek D405A Sliding Table Saw is the ideal sliding panel saw for high accuracy cutting of sheet materials to produce kitchen cabinetry, furniture, millwork operations, and more. This is our most industrial saw with a manual setting rip fence. The 10' sliding table is made from a precision aluminum extrusion and runs on precision linear guide rails. It has motorized rise/fall and tilt of the blades. Features: -- 126" Cutting length w/scoring; 126" x 15.5" Anodized sliding table that locks in any position for easy loading. -- Motorized Saw blade up or down movement by 1/4 HP electric servo motor; tilting by manual handle wheel. -- Scoring unit for clean, accurate chip-free cutting, ready for edge banding. Specifications: -- 7.5 HP Main saw motor; 45° tilting (30 mm) main saw arbor; 14" Main blade dia.; 3,000/4,000 & 5,000 RPM arbor speed. -- 5.3" Max. material thickness at 90°; 3.1" at 45°. -- 1 HP Scoring saw motor, 5" dia. scoring blade; 8,000 RPM. -- Equipped with: 49" Max. ripping cap.; micro-adjustable rip fence and extendable crosscut fence to 10' with (2) flip stops. -- Articulating overarm protection guard; outboard and rear extension tables. -- Includes: -- Saw Blade(s), Maintenance Tools, Operators' & Parts Manual and covered by (1) Year Warranty.

CANTEK D405ANC 1-Axis SLIDING TABLE SAWSpecifications: -- 126" Cutting length w/scoring; 126" x 15.5" Anodized sliding table that locks in any position for easy loading. -- Motorized Saw blade up or down movement; motorized tilt with digital readout via 1/4 HP electric servo motor. Equipped with: -- 7.5 HP Main saw motor; 45° tilting (30 mm) main saw arbor; 14" Main blade dia.; 3,000/4,000 & 5,000 RPM arbor speed. -- 5.3" Max. material thickness at 90°; 3.1" at 45°. -- 1 HP Scoring saw motor; 20 mm arbor; 4.72" dia. scoring blade; 8,000 RPM. -- Features: -- Motorized rip fence control with eye level control; 51" Max. ripping cap.; crosscut miter fence to 10' with (2) flip stops. -- Articulating overarm protection guard; outboard and rear extension tables. -- Includes: -- Saw Blade(s), Maintenance Tools, Operators' & Parts Manual and covered by (1) Year Warranty.

102" Width cap. Veneer Clipper completely reconditioned to modern mechanical and safety standards to meet todays manufacturing needs. Original machine frame will be fully disassembled cleaned and repainted. The frame is the only part of the original machine used and all components are upgraded.Mechanical upgrades include:1. 2-Hand anti-tie back push button cycle activation 2. Photo safety eyes located on both front and back side of blade3. Full safety guarding including a fully enclosed knife section 4. New electric motor and gear box main drive system5. New knife and shear bar6. All new electrical/control box with Components and Wiring7. All new upgraded bearings including replacing Babbitt bearings Machine comes with a full (1) year warranty

CARGATE D-860 Rotary Veneer Lathe, Heavy Duty: -- Built specifically to handle large-diameter logs as well as small logs. It has a log length capacity of an easy 8'-6" and a diameter capacity of up to 5', peeling down to perfect 4" cores for optimal log utilization. -- This moneymaker looks like a big brother to a Premier Lathe. It comes complete with beefy Bull Gears and boasts plenty of output capacity along with the following main features and components:Specifications: -- BRUNETTE MACHINE WORKS Hydraulic Retractable Spindles - 4" inner, 8" and 11" outer. These are the same spindles as are utilized on a Premier Lathe. -- The spindles are driven by angle-cut 72" diameter Oil-Bath Bull Gears. (This is actually identical to an upgrade to Premier lathes still running.) -- Factory Hydraulic Backup Roll. (This backup roll rides on adjustable rollers riding down on top of the carriage. This prevents the backup roll from pushing excessively hard against the core. It produces perfect 4" cores).Equipped with: -- DURAND Charger and Pumps (self-centering). -- Factory Log Deck - Complete with S-drive and Gearbox. -- Factory Air Trash Gate, Infeed Conveyor (infeed to chipper). Infeed to PRENTICE Air Bag Clipper, Timing Wheel and Holddowns. -- Factory 5' Wheel, 6-knife, Veneer Chipper with Hold-down Drum Roller, and S-drive complete. -- 6' FERANO Chip Screen and Conveyor. -- Steel Framework and 450 FPM plus unwind speed!Highlights & Background: -- This lathe is capable of peeling very high production. In 1967 it was regularly peeling 225,000 sq. ft. 3/8 basis, or 400 - 500 cubic meters per 8-hour shift. The lathe is in wonderful overall condition and portions can be turned on today although it has not seen service since 2005. When you think "CARGATE" think "big PREMIER" and you will have the right idea.Price shown is in US Dollars. - Experienced Owner is flexible to assist in removal and perhaps installation.

CARLSON CD PINNER PLUS Cabinet Door Clamp & Pinner; 30" Wide x 48" High max. Capability. The ProMax Cabinet Door Pinner is an affordable system that squares, clamps and fastens a variety of cabinet door styles and sizes. This machine is designed to handle stile widths between 1-1/4" and 3-1/2" in 1/8" increments and any rail widths. Standard product minimum: approximately 7" wide X 6" tall for 2" stile and rail cabinet doors. Standard product maximum: approximately 30" wide X 60" tall for 2" stile and rail cabinet doors.General Specifications: -- Standard joy stick operation allows quick and accurate size adjustments. -- The frame is ergonomically designed at an angle for easy placement of sub-assembled door parts and fast removal of the finished product. -- Operating controls are simple and convenient to minimize training time. -- Machine functions are air powered with programmable electrical controls for accurate and reliable operation.Includes: -- Air motor drive system. -- Standard clamp pads. -- Cope & Stick door fastening. -- Spare tool assembly. -- Size upgrade - Height 60". -- Miter capability. -- Safety light curtain. Features: -- Heavy duty frame, low maintenance, powered size adjustments, precision linear bearings, overhead mar-proof clamping, programmable controller.

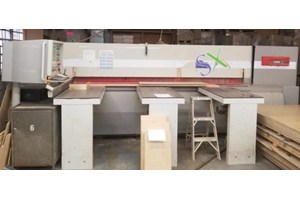

CASADEI - SP 32 STANDARD, ...Horizontal Beam Saw --Specifications: -- 126" Length of cut, 3-1/8" cutting height; 12 HP main motor; 1.5 HP scoring motor selectable from control panel. -- Variable speed saw carriage travel from 10 - 80 FPM; detecting device for automatic adjustment of saw stroke. -- Pusher retracts 118" behind saw line for crosscutting; electronically controlled pusher fence w/rack & pinion drive; feed speed from 1 - 68 FPM forward & 68 FPM return. --Equipped with: -- (7) Material clamps; 59" long crosscutting fence in front & back of the pressure beam; (1) mechanical stop; double material side aligner with 47" crosscut stroke. -- Model "CNI 4" Controller: 16-Bit processor; 10" color video display (for cutting pattern & self-diagnostic); alphanumeric keypad floppy disk drive for unlimited program storage; RS-232 port for direct downloading while machine is in operation. --Complete with: -- (3) Front air float tables and safety cage/fence around pusher area. -- Includes: (4) Sets of saw blades; extra pneumatic clamps; operations manual & parts list.

2016 Casadei Flexa 47 Edgebander 230 V/3 PH

CASADEI FLEXA 47 RMA8 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING):Specifications: -- 0.4 mm - 3 mm Max. edge thickness cap., (0.5 mm to 3 mm for solid strip edge thickness). 8 mm - 50 mm (0.3" - 1.97") panel thickness cap. (when edgebanding 3 mm PVC max. thickness is 40 mm). -- Minimum panel dimensions 80 mm wide x 140 mm long (3.15" x 5.5"). -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine.Equipped with: -- Teflon coated glue pot w/fast (10 - 12) Min heat-up time; 1 Kg. capacity. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled pressure section with (3) pressure rollers; 1st drive, (2) idle.Workstations: -- Pre-milling unit with 3 HP - 8,300 RPM High Frequency motors. -- Cutting group moves on rounded ways made of hardened steel, to guarantee high precision and reliability; cutting movement from the top of the panel is synchronized by the PLC control. -- Single motor, double-end trimming saw unit with (1) 0.25 HP - 12,000 RPM High Frequency motor. -- Top & Bottom Trim station with (2) 0.45 HP - 12,000 RPM High-Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutter-head position by mechanical digital readouts, quick release (electrical & mechanical). -- Includes (2) 3 mm radius cutters. -- Corner Rounding Unit: 2-Motor Corner Rounding unit for leading & trailing edges. -- Top & Bottom 3 mm scrape station -- Top & Bottom Buffing unit with (2) 0.20 HP - 1,400 RPM motors. -- Fixed feed speed 23 FPM. -- Actual Model is CASADEI FLEXA 47 RMA8

CASADEI ALA 23 EDGEBANDER WITH CORNER ROUNDING0.4 - 15 mm (1/2") Edge cap., panel thickness 10 to 60 mm (.39" to 2.36"). Minimum panel length 120 mm (4-3/4") and 55 mm (2-1/8") minimum width. Equipped with: -- Quick heat-up glue system,(approx. 12 Min) 1.5 Kg glue pot capacity. -- Pressure roll section with (3) rolls - one driven. Pneumatic cut-off guillotine.Workstations: -- Double end trim, chamfers 0° - 15° -- Top & bottom flush/radius trim, bevels 0° - 15°. -- Double motor Corner Rounding station -- Top & bottom scraping for 3 mm radius, -- Top & bottom buffing (0.25 HP - 2,800 RPM motors).NOTE: Seller states that the buffing unit appears to have an electrical issue and is not currently being used by the current owner";Actual Model: "ALA 23 R"

Panel height: 0.3 – 2.36” Coil edge thickness: .12” Strip edge thickness: .015 – .24” Max Overhang Total Top and Bottom: 0.16” Min panel width (min length of 8 ¼”: 3.54” Min panel length (min width of 3-15/16?): 5.5” Feed Speed: 33 f/min Glue Tank GP-200 Power: 2.4 kW Glue Capacity: 3.3 lbs End Trimming Unit IK/200 (each): .3 HP Cutting Speed: 12,000 RPM Blade Tilt: 0-15 deg. Top and Bottom Trimming TT/K Motor (each): .4 HP Cutting Speed: 12,000 RPM Shipping Footprint: 13' x 4' x 5' Weight: 2500 lbs Equipped With: – Pre-Milling Unit – Glue Applicator and Pressure Rollers – Edgebanding Trimming Guillotine – End Trim With 2 Tiltable Motors 0-15 deg. – Top and Bottom Trimming via 2 Motors – Profile/ Radius Scrape – Glue Scraping – Buffing

CASADEI FLEXA 17 Edgebander with Pre-Mill --÷Good versatile machine for small shop use, with fairly simple adjustments. --Specifications:0.4 mm - 3 mm Max. edge thickness cap., (0.5 mm to 3 mm for solid strip edge thickness ). 8 mm - 50 mm (0.3" - 1.97") panel thickness cap. (when edgebanding 3 mm PVC max. thickness is 40 mm). -- Minimum panel dimensions 80 mm wide x 140 mm long (3.15" x 5.5"). -- Automatic feed of coil banding and semi-automatic strip fed magazine (strips 1- 3 mm max.) with 3 mm PVC cap. guillotine. --Equipped with: --Teflon coated glue pot w/fast (10 - 12) Min heat-up time; 1 Kg. capacity. -- Guillotine to cut edgebanding in coils up to 3 mm thick. -- Pneumatically controlled pressure section with (3) pressure rollers; 1st drive, (2) idle. --Work stations: -- Premilling unit with 3 HP - 8,300 RPM High Frequency motors. -- Single motor, double end trimming saw unit with (1) 0.25 HP - 12,000 RPM High Frequency motor. -- Cutting group moves on rounded ways made of hardened steel, to guarantee high precision and reliability; cutting movement from the top of the panel is synchronized by the PLC control. -- Top & Bottom Trim station with (2) 0.45 HP - 12,000 RPM High Frequency motors; unit features adjustable copying on vertical & horizontal floating movements, adjustable cutterhead position by mechanical digital readouts, quick release (electrical & mechanical). -- Includes (2) 3 mm radius cutters. -- Top & Bottom 3 mm scrape station -- Top & Bottom Buffing unit with (2) 0.20 HP - 1,400 RPM motors. -- Fixed feed speed 23 FPM.

CASADEI RANGER MC 3012 CNC MACHINING CENTER (VERTICAL, W/ATC): -- Specifications: Flexible "Vertical" Machining Center reaches movement speeds of 131 FPM (40 MPM) in X-axis, 98 FPM (30 MPM) in Y-axis, & 66 FPM (20 MPM) in Z-axis. -- Work Capacity:Max. part size for: X-Axis is 118" (3,000 mm); Y-axis 47.2" (1,200 mm); max. part thickness 3.9" (100 mm). -- Worktable:Vertical Phenolic MATRIX Grid table with: (5) Adjustable "tubeless" pneumatic locking panel supports, (3) adjustable vacuum pods per support.Pop Up Pneumatic backstops & pneumatic side stops for material positioning on the LH or RH side of the machine for mirror imaging. -- Boring Unit:(1) Boring block with: 2.25 HP (1.7 kW) - 4,000 RPM Motor.(10) Vertical spindles with: (5) Spindles in X-axis & (5) spindles in Y-axis.(6) Horizontal spindles with (2 + 2) in X-axis & (1 + 1) horizontal spindle in Y-axis.(1) X-Axis grooving saw: 5,000 RPM; for max. 120 mm dia. saw blade. -- Machining:(1) 6.7 HP (5 kW) Router with: ISO 30 Adaptor, variable speed from 1,000 - 18,000 RPM.(1) 5-Position ATC rack mounted on the side of the working unit. -- Operator & Machine Control:CNi PC Front End + Windows "XP" Operating System; 17" LCD, TFT monitor; international keyboard, soft touch keypad & industrial mouse; RS-232 Serial ports, USB ports; Ethernet connection.Real-time multitask processing; programs can be transferred via USB or downloading by wire is possible. -- Complete with:(1) 100 CBM/Hr BECKER Vacuum Pump; sound enclosure & perimeter safety devices. -- Actual Model is: CASADEI - RANGER MC 3012.

CASOLIN ST SA Entry Door ClampSpecification: -- 6' x 12' Opening. -- Hydraulically operated.

Castaly Chop Saw and End Feed Model CS-24L 440V 3 ph

CASTLE TSM-21 Pocket Hole Boring Machine;Single hole routing system for use with material from 1/2" - 3/4" thickness; -- CASTLE'S "A-Frame" motor carriage engineered to first route a pocket and then drill hole from the other direction. -- Equipped with: 1.5 HP Porter Cable router w/standard "4-flute" router bit for pocket routing and Porter Cable #7301 drill for pilot hole drilling with 9/64" brad point drill bit; foot pedal actuated cycle, will cycle as quickly as (2) cycles/sec. -- The large 2" dia. holddown cylinder firmly clamps material and the low 6" boring angle minimizes shifting, reduces screw breakout and splitting.The TSM-21 is an improved version on the TSM-20. It features a more accurate carriage design, magnetic switches, and solit state electronics.

MANUFACTURER SPECS: 2000 C.B. LEVIGATRICI 52" DUAL HEAD WIDE BELT SANDER. 1ST HEAD: 12" SPIRAL RUBBER ADJUSTABLE HEIGHT CONTACT DRUM. SECOND HEAD: DIGITAL PLATEN. VARIABLE SPEED EVERYTHING. LONG BELT LENGTH OF 103". OSCILLATING BELT BLOWERS. VARIABLE SPEED EVERYTHING. DIGITAL POSITIONING. 220 volt 3 phase. includes 18 spare belts…approximately half new, rest lightly used.

Maximum workpiece height mm. 320 Maximum workpiece width mm. 320 Minimum workpiece length mm 700 Brush diameter mm. 160 Brush rotation adjustable with inverter rpm 0 – 1400 Blower motor power under inverter kw 4 Brush motor power under inverter nr. 4 x kw 0,55 Work speed adjustable with inverter mt/1’ 8 - 45 Feeding motor power kw 1,1 Electrical system MACHINE DIMENIONS: Volt 380± 5% Lenght mm 3350 Width mm 1350 Height mm 2350 Machine weight kg 1150
