Description:

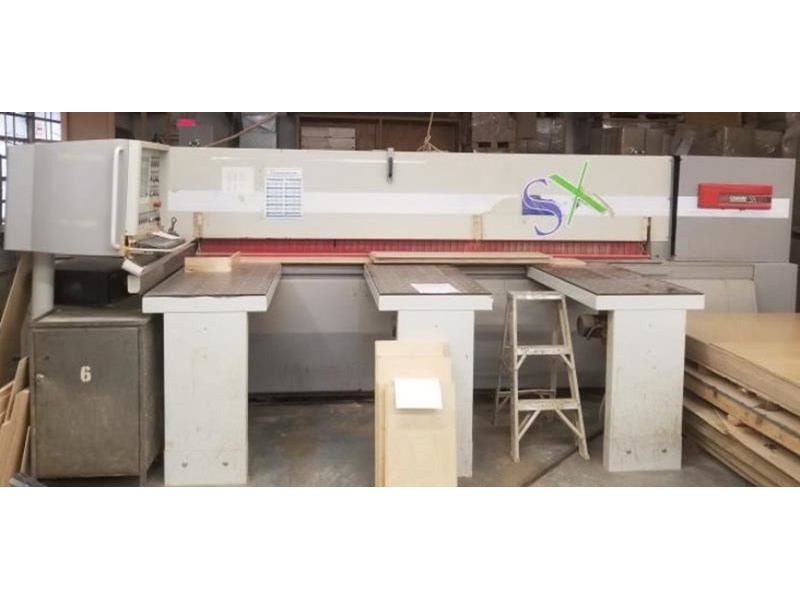

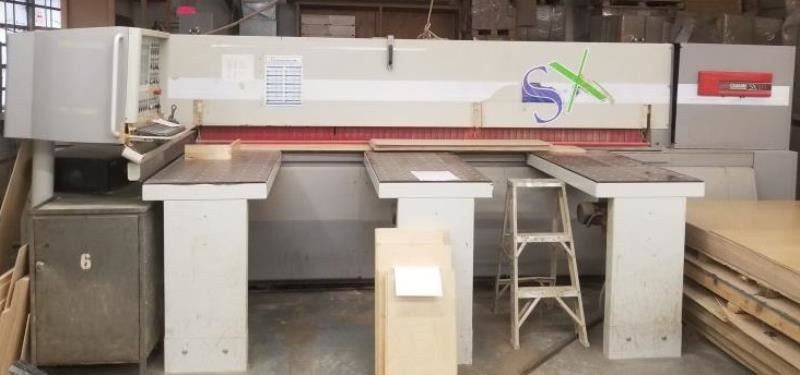

CASADEI - SP 32 STANDARD, ...Horizontal Beam Saw --Specifications: -- 126" Length of cut, 3-1/8" cutting height; 12 HP main motor; 1.5 HP scoring motor selectable from control panel. -- Variable speed saw carriage travel from 10 - 80 FPM; detecting device for automatic adjustment of saw stroke. -- Pusher retracts 118" behind saw line for crosscutting; electronically controlled pusher fence w/rack & pinion drive; feed speed from 1 - 68 FPM forward & 68 FPM return. --Equipped with: -- (7) Material clamps; 59" long crosscutting fence in front & back of the pressure beam; (1) mechanical stop; double material side aligner with 47" crosscut stroke. -- Model "CNI 4" Controller: 16-Bit processor; 10" color video display (for cutting pattern & self-diagnostic); alphanumeric keypad floppy disk drive for unlimited program storage; RS-232 port for direct downloading while machine is in operation. --Complete with: -- (3) Front air float tables and safety cage/fence around pusher area. -- Includes: (4) Sets of saw blades; extra pneumatic clamps; operations manual & parts list.
