Woodworking Equipment For Sale

Paul AB920 Rip Saw Scanning Fenceless Infeed Infeed & Outfeed (not including decks) The machine has one fixed and 2 moving blades. The minimum distance between the moving blades is 44 mm (1.73"). The maximum distance between the moving saw blades is 210 mm (8-1/4"). The machine is designed for incoming boards with the following min./max. dimensions Length: 4' - 16' Width: 2" - 19" Ripped widths: 1.75" - 8" Thickness: 1" - 2" 480 Volt, 60 hz., 3 phase electrics 75 HP main motor Automatic edging separation after the saw Feed speed up to 300 fpm Fenceless infeed system with automatic skewing capability 16 width sensors on the infeed system

4 Head drill station 20' with powered roll case Hydraulic set stops

PHI IR-3 Preheater;Overall dimensions 5' wide x 4' long, consisting of: (3) IR Medium Wave heating banks, each 1" wide x 54" long, bank has gold foil quartz heating elements.This IR unit is designed to preheat the board to facilitate out gassing and help eliminate solvent pop and air bubbles in the coatings of deep pored materials such as oak. Also used to standardize board temps during colder months as well as decrease dry times of other substrates. These units are primarily (but not exclusively) designed for use before the application of stain and sealer coats. Features: Explosion proof electrics, electrical heat temperature adjustable from 100° - 150° F, variable feed speed from 8 - 30 FPM (2.5 - 9 MPM).

PILLAR MACHINE HPLD 96" CNC BORE & LOCK-DOWEL INSERTER: -- Specifications:(4) Working zones of 24" each and "OPTIONAL" working table length of 96"; CNC controlled head assembly with rapid (side-to-side) traverse.Head assembly with: (1) Horizontal boring & insertion unit with a 3 HP - 18,000 RPM Direct-Drive Spindle motor; "X" Axis is servo controlled for positioning; Digital Mechanical Readouts For Height and DepthHead is currently set up to bore/machine/insert 20 mm Lock-Dowel "Eclips", H-clips, Channel Locks & 8 mm Spring Pin Fasteners.Material thickness capacity 0.5" - 1" max. Material thickness with digital readout for height adjustment. -- Clamping System:(8) Pneumatic, quick side-to-side adjustable hold-down clamps for horizontal "Lock-Dowel" processing on the panel edge.(1) Pneumatic Clamping Bar for vertical boring into the panel face/back. -- Operator Interface:15" Color Touchscreen control + Windows 10 Operating System. Ethernet 1 x PCIE Broadcom GbE (or similar), USB: 2 x USB 2.0 (or similar), Serial Port: 1 x RS-232 (or similar)The on-screen graphics of the operator interface have been designed to allow for quick programming at the machine. Typically, programs can be written and recalled in less than one minute.The Interface is open architecture allowing it to integrate with design software that can give hole locations in the form of a .xml file or a bar code (with bar code reader purchase found in options).Standard Features in the software include: 1. Graphic interface to show where holes are to be drilled and if a dowel is to be inserted. 2. Pattern Drilling/Inserting.3. Password protection of certain features/functions. 4. Online diagnostic capability (if machine is connected to an internet connection). 5. Toggle between Metric or Imperial programing parameters. -- Features: This machine will insert H-clips, Channel Locks and Spring Pins with ease. Using CNC control, this machine positions the drilling spindle to bore holes and insert the Lockdowel hardware. -- Complete with:Anti slip table surface, rack & pinion drive, and centralized dust collection manifold. -- Actual model is: PILLAR MACHINE HPLD

PINHEIRO MODEL MF 4-630 4-SIDED PLANER. -- 24" Planing width and 20" Molding width cap., 8" max. motorized opening via 1/2 HP motor; -- Top head 18 HP, 5" X 25", 4 knives, 5,500 RPM, Cutting circle 5 1/4", Max chip removal 3/8" -- Bottom head 12 HP motor,5" X 25", 4 knives, 5,500 RPM, Cutting circle 5 1/4", Max chip removal 3/8" -- (2) side heads (opposed) with 8" spindle capacity, 9 HP motor each., Vertical adjustment 4" -- 11/16" Max. profile depth, 5-1/2" max. tool dia., 1-13/16" spindle dia.X 8" long at 5,000 RPM; -- 4 HP feed drive, variable feed speed 10 - 100 FPM, 39" infeed bed, (6) powered feed rolls, sectional feed rolls, sectional chipbreaker, central lubrication system. Complete with: -- high speed steel knives in the top and bottom heads, and dust hoods.

The seller has confirmed that this Pinheiro planer is in good working/running condition. - Double sided planer with side saw - Complete package - Manual - no year...Motor HP 20 bottom, 10 top

12” blades 1-1/2 HP motors - 3 phase foot pedal control

(2) 2-1/2 HP motors 5/8” arbors 12” blade capacity max width 3 - 5/16” nax depth 2-5/8”

PMK C 1203 Single End Coping/Tenoning Machine -- With the C-1203 Coping Machine you can run stiles first or cope first, this machine using a 5 HP motor has counter rotating spindles to insure chip free coping of either square, single profiled or double profiled parts. -- Since we are only coping one end at a time the length doesn't matter. We can also cope more than one part at a time up to 9.5" wide on the C-1203. -- (2) Counter rotating spindles 1.25" diameter. -- Spindle Speed 7,000 RPM; cycle time approx. (4) seconds. -- Side Pressure Clamp to insure proper alignment with fence. -- Cutter Heads totally enclosed for Safety!

PMK C 1205 Single End Coping Machine -- With the C-1205 Coping Machine you can run your Styles first or run your cope first, this machine using a 7.5 HP motor has counter rotating spindles to insure Chip free coping of either square. -- Single profiled or double profiled parts. Since we are only coping one end at a time the length doesn't matter. We can also cope more than one part at a time up to 13.5" wide on the C-1205. -- Two counter-rotating spindles 1.25" in Diameter. -- Capacity of maximum (2) cutters on stack tooling -- Spindle Speed 7,000 RPM; cycle time approx. (4) Seconds. -- Side Pressure Clamp to insure proper alignment with a fence. -- Cutter Heads totally enclosed for Safety!

Pneumafil 13.5 460-10 304 Stainless Steel Reverse Air Bag House, 5,922 SQ/FT Cloth Media, 47,000 CFM @ 8:1 Air/Cloth Ratio, Very Good Condition, $82,000.00

Porter Planer Model 700 S/N 5916, Straight Knifes 10HP Motor

20" Dia. dynamically balanced aluminum disc, 3 HP - 1,740 RPM direct drive motor; 15" x 27-1/4" table w/miter gage slot, tilts 30° upward & lowers 45° downward, 90° positive table stop; rack mechanism for raising & lowering table by hand crank, heavy bolt-down steel base. Complete with reversing switch and miter gauge. Also available in Single-phase in 2 HP motor.

POWERMATIC Shaper PM 2700, Spindle Shaper model 128-0102C 5 HP, Single Phase, 230 V - 1280101-CSpecifications & Features: -- Digital readout gives the use of exact spindle height and allows for 0.001" adjustments. -- 4" Spindle travel. -- 5 HP Motor -- Heavy-duty 30" x 40" precision ground tabletop for smooth stock feeding and Heavy-duty cast iron base. Includes: -- 3/4" and 1-1/4" spindles -- Independently adjustable fence sides. -- Micro-adjust control knobs allow for precision adjustment for the fence. -- Integrated casters can be raised and lowered to mobilize shaper. -- Superior clear cutter guard promotes safety, allows observation of the entire cut. -- Table predrilled and tapped for Power Feeder mounting.Dust Collection Minimum CFM Required (CFM) 600; 4"Dust Port Outside Diameter

TABLE SAW TOP MEASURES 44" WIDE X 76 ½" LONG TABLE HEIGHT FROM FLOOR 34% " COMES WITH 5 - 12" DADO BLADES 1 HORSE POWER POWERMATIC MATERIAL FEEDER 5 HORSE POWER SAW ARBOR MOTOR 440 VOLT 3 PHASE

POWERMATIC - RB-37, ...Single Head Wide Belt Sander1-Head, 36" width cap., combination sanding head. -- Includes: 4" Dia. contact roll & 2" wide polishing platen, micro-adjust platen; 15 HP main motor. -- Abrasive belt size: 37" x 60"; with air tensioning, air jet abrasive belt tracking.1 HP Feed drive; variable feed speed of 15 - 30 FPM conveyor speed.0" - 5-1/4" Opening with: (4) Screw jacks; double infeed & outfeed rubber covered holddown rolls. -- Complete with: Magnetic starter; overload protection; load meter; emergency brake.

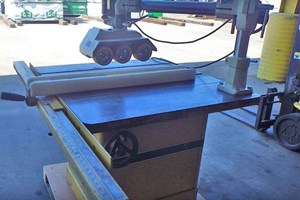

POWERMATIC 72A 14" Table Saw w/Power FeederSpecifications: -- 7.5 HP - 3,600 RPM motor, takes 12" or 14" blade, (max. depth of cut is 5-1/8" with 14" blade), 1" dia. arbor and three V-belt drive, 0° - 45° to left tilting arbor. -- 24" Max. rip to left and right of blade; standard 38" x 48" table. -- Complete with: -- Accu-Fence Rip fence, standard table extensions, and magnetic switch. -- Includes: -- STEFF 2034 Power Feeder.

POWERMATIC 100 Single Sided PlanerSpecifications: -- 12" Cap. with 1/16" to 5" thickness opening -- 5 HP motor - 5,300 RPM -- 3-knife cutterhead with high speed steel knives -- 3-1/8" dia. head; 18 FPM fixed feed speed. -- Solid infeed rolls; 12" x 24" precision ground cast iron table. -- 1/4" max. depth of cut -- 7-1/2" min. stock length (unbutted). -- Complete with: Magnetic controls, cutterhead guard with dust chute on enclosed steel stand. -- Belt driven head

1 HP tenoner Approx. 2HPsaw Approx 28" x 16" table

POWERMATIC - 26, ...Single Spindle Shaper -- Specifications: 5 HP - 3,600 RPM belt drive motor; 7,000 & 10,000 RPM spindle speeds via 2-speed step pulley; with reversing switch. -- 1" Dia. solid interchangeable spindle; featuring 3-7/8" cap. under the nut & 3" spindle travel w/handwheel adjustment. -- Complete with: 24" x 26" Cast iron table w/miter slot & 7" insert opening. -- Equipped with: Adjustable fence and Magnetic controls. - 4-Roll 4-speed Power Feeder.
