Woodworking Equipment For Sale

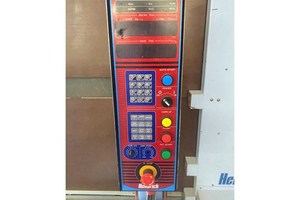

HENDRICK PRO-V 126 Automatic Vertical Panel SawSpecifications & features: -- 126" Cutting length (cuts vertically top to bottom), adjustable depth of cut up to 2-3/8", 14" blade dia. with 1" dia. bore, single blade scoring; 7.5 HP main motor. -- Equipped with: -- Heavy Duty precision machined squaring fence, formica laminated back table surface, full length pneumatic holddown bar with sensitive safety tape on both sides of holddown, 1 HP drive, 2-speed automatic saw carriage, travels 30 & 60 FPM (saw travel/return adj. to cut length). -- Complete with: -- (5) Adjustable flip stops on (3) positioning bars; ready for dust collector hookup. Actual model is Pro-V MP3 - specifications subject to verifications.

High Point 12" Resaw with Return Conveyor

Single Head Horizontal Band Re-saw System Model : HP-11P-SMART • Single saw head configuration. • Motor powered set works for accurate saw wheel elevation. • Digital position controller permits accurate saw wheel height positioning. • Automatic blade tension is controlled by hydraulic cylinder. • Variable feed speed by hydraulic motor drive. • The big pressure roller is air cylinder loaded to hold wood down firmly. Specifications HP- 11P-SMART 1. Saves Time and labor costs 2. Pneumatic pressure roller infeed 3. Digital position controller permits accurate saw wheel height 4. Easy to operate and set up Feed speed: 4-27m/min (13-90FPM) Max. cutting height: 250mm (10”) Max. cutting width: 300mm (11 3/4”) Min. workpiece length: 400mm; 205mm with extension set Max. workpiece length: 580mm Distance from blade to conveyor: 4-125mm Saw wheel Diameter: 711.5mm (28”) Saw wheel width: 22.7mm (1”) Saw blade size: 4265 x 27mm (168” x 1’) Blade speed: 2816m/min (9240FPM) Saw Motor: 15kW(20HP) Feed unit: 0.75kW(2HP) gearbox motor with frequency converter Cooling system Oil mist Blade tensioning Hydraulic system Motor for blade positioning: 0.18kW(1/4HP) Dust post: Ø4” x 4 Table height: 902.5mm Machine weight: 951kgs Machine dimensions: 2835 x 2052 x 1678mm (LxWxH)

HOFER HOP 160 K Hydraulic Door/Veneer Heavy Duty Cold PressSpecifications:Platen size 63" deep x 98" long, Total Daylight/Opening 32".available. Currently set at about 13" opening. Top platen is hydraulically powered by a 2.2 KW power pack. and has (10 sets) of bolt holes for manual adjustment of daylight opening.Equipped with:(8) 3-1/4" Diameter Hydraulic cylinders, Rack & pinion platen leveling adjustment.Front and back loading (access on all sides).Heavy duty steel structural beams. Bolted top and bottom platens.Features:Pneumatically loaded 3 +1 rows of idle rollers on bottom platen for ease of feeding the load in and out front of press. Air valve for up/down selection of bottom platen rollers.Hydraulic closing speed adjustment.Electrical controls on right hand side.Dimensions/Weight: 124" x 72" x 122" H. Approx. 12,000 Lbs.

HOFFMANN PU 2 DOVETAIL ROUTER (SINGLE SPINDLE) Pneumatic Dovetail Routing Machine - Dovetail routing machine for use with HOFFMAN dovetail butterfly connectors. - Maximum routing height 4", Max. workpiece height 5-3/4" - Table size 15-1/2” x 27-1/2” x 36-1/2” H - Production speed: Approx. 16 SPM (2 Complete rectangular frames) - (1) HOFFMANN "UAD 33 F" 33,000 RPM 1,000 W Router motor - 45° Fence, Accurately positions material with guide in table keyway, Quick adjustments made by adjusting fence plate - Pneumatic hold-down, Pneumatic foot pedal Includes: - Extra HOFFMANN "UAD 33 F" 33,000 RPM 1000 W Router Motor - 2007 HOFFMANN "FM1000" 35,000 RPM 1,000 W Router Motor - (2) 16” x 48” x 35” H Left-Hand & Right-Hand Aluminum Frame Tables, with 3/4” Thick Top, & 2” x 2” Aluminum frame - Palletized Dimensions: 42” x 42” x 60” H

Hoffman PU2

Holytek heavy duty band vertical resaw

HOLYTEK MHB 242 Top/Bottom Wide Belt SanderHeavy-duty and powerful double surface sander providing significant time saving and improved productivity.Smooth and quiet oscillation. Belts oscillation controlled electronically by an infrared system which resists dust.Pneumatic sanding belts tensioning ensuring fast and easy belt replacement.Independent motor for each sanding belt.Pneumatic disc brake system automatically activated if power supply is interrupted, thus preserving the sanding belts from being damaged. Top and bottom 24" wide belt sanderFeatures: -- Spiral grooved 8" (D) rollers (R) and 3-1/2" (D) rollers (K) keep the sanding belts cool. -- Sanding belts: 75" Long. -- Elevation of table with digital readout and activated by independent motor. -- Control panel with: Ammeters indicating main motors current. Specifications: -- Upper Drum motor: 15 HP; 600 V; 60 Hz - 3-Ph. -- Upper Combination head motor: 10 HP; 600 V; 60 Hz - 3-Ph. -- Lower Drum motor: 15 HP; 600 V; 60 Hz - 3-Ph. -- Lower Combination head motor: 10 HP, 600 V, 60 Hz - 3-Ph. -- Feeding motors: 2 HP (x2). -- Table elevation motor: 0.5 HP. -- Electrical intensity: 53 A. -- Drums: 8" (D) - 75 DUROS. -- Max. working width: 24". -- Min. working length: 13-3/4". -- Working thickness: 3/16" ~ 5" -- Sanding belts dimensions: 25" x 75". -- Variable feeding speed: 8 - 16 MPM. -- Dust hoods Top: 4 x 4"(D); Bottom: 3 x 4"(D). -- OAL 127" x 70" x 75" high. -- Weight: 9,460 Lbs.

HOLYTEK - KL-36PC, ...2-Head Sander 2-Head Planer Sander 36" with planer head & combination head.Description: -- Planing Head (P): 6'' Dia. made of steel with spiral design for heavy stock removal. 228 TCT Tips: 15 x 15 x 2.5 mm; each disposed on (6) rows. Each knife has: (4) Usable cutting edges; easy access to planing head for tips rotation or replacement. -- Precise dial indicator showing the exact positioning of the sanding pad; quiet & smooth oscillation! Pneumatic oscillation system controlled electronically by an infrared system, which is not affected by dust. -- Combination Head: (1) Drum & (1) sanding pad (C) for superior quality of finishing. Sanding belt with: 120 or 150 Grit; allows finishing sanding in a single pass. -- Elevation Table: (4) Screws. -- Infeed roller table extension: 15-3/4". -- Outfeed roller table: 15-3/4" with (2) Rollers. -- Centralized Control Panel with: Electronic digital readout (Metric or Imperial) for elevation; precise positioning at the elevation requested. -- Ammeter indicating: Electrical intensity on the spiral cutterhead and the combination head motors. -- Electrical box with: CSA Approved electrical components ensuring maximum dependability and an outstanding long-lasting performance.Specifications -- Spiral cutterhead motor: 20 HP - 600 V; 60 Hz - 3 Ph. -- Combination head motor: 15 HP - 600 V; 60 Hz - 3 Ph. -- Table elevation motor: 1/4 HP - 600 V; 60 Hz - 3 Ph. -- Feed motor: 2 HP - 600 V; 60 Hz - 3 Ph. -- Spiral cutterhead dia.: 6''. -- TCT Tips dim.: 15 x 15 x 2 mm (228); (6) rows. -- Max. working width: 36". -- Min. working length: 12". -- Max. working thickness: 5". -- Sanding belt dim.: 37" x 75". -- Dust hoods dia.: 4'' x 2 & 5" x 2. -- Machine dim.: 71" L x 76" W x 77'' H. -- Net weight: 1,450 kG or 3,190 Lbs.

HOLYTEK SS-512 TS Shaper with Tilting Spindle, and Power FeederSpecifications: -- 1-1/4" Interchangeable spindle, 7.5 HP motor with (5) spindle speed settings of 3,000 - 4,000 - 6,000 - 8,000, & 10,000 RPM. -- Approx. 6" max. cap. under nut, 31" x 39" cast iron table. -- Insert ring diameters 2.8", 4/3", 6" and 8". -- Tilting spindle +10° and -45° -- Vertical movement of the spindle 7" -- sliding tableComplete with: -- Reverse rotation switch, adjustable fence assembly, and dust hood. -- 3-Roll Power Feeder

HOLYTEK - HRS-12TK, ...Straight Line Rip SawSpecifications: -- Overhead saw arbor, 15 HP motor belt driven, 4,500 RPM arbor. -- 12" Dia. max. saw blade. -- 3-3/8" Max. depth of cut. -- 18" Max. throat depth. -- 2 HP Stepped feed speeds of 50 - 65 - 83 - 100. -- Automatic lubrication of chain. -- Magnetic controls. -- Saw is glue line rated.Equipped with & Features: -- Overhead holddown rolls. -- Double-row of antikickback fingers. -- (6) Pressure rollers. -- Infeed adjustable fence line. -- Cast Iron table with rip fence.

HOLYTEK - YRT 100: Round End Tenoner -- Twin positioning tables with: Traversing single cutterhead design; fully automatic work cycle; tables alternate into the cutting cycle for continuous operation; rotational movement of cutterhead is externally adjusted. Capacity: -- Width of tenon: 0" - 3.9" Plus both radii; thickness of tenon: 1/8" - 1-3/16"; depth of tenon: 3/8" - 1-3/4"; 1/4" - 3-1/2" with special tooling. Specifications: -- Belt driven cutterhead, 3 HP - 6,000 RPM spindle; 1 HP motor with variable rotational movement of cutterhead; straight, simple or compound angles are easily adjusted with tables. -- (2) 14" x 9" Tilting tables: 0° - 15° Up, 0° - 30° down, and 0° - 20° to the side; each table with: Pivoting fences & miter gauges, vertical height adjustment. -- Overhead pneumatic holddowns. -- Production rate approx.: (13) Pieces per Min.

Holytek 37DA Wide Belt Sander (2) Heads37" Width cap Drum, Combination Head1st Head: 7" Dia. spiral grooved rubber covered contact roller, 20 HP motor;2nd Head: Combination sanding head with 5" dia. spiral grooved rubber covered contact roll & 2" wide polishing platen, 15 HP motor.Specifications -- Abrasive belt size of 37" x 60" -- Pneumatic belt tensioning and electronic abrasive belt tracking -- 12" min. working length. -- 2 HP Conveyor belt motor, -- Variable feed speed from 13 - 52 FPM,Equipped with & Features -- Infeed & outfeed rubber covered holddown rolls; -- 0" - 4" motorized thickness adjustment by 0.5 HP motor. -- Safety stop bar, emergency rail stop across the front of conveyor -- Motor load meters.

HOLYTEK - HRS-12TK, ...Straight Line Rip SawSpecifications: -- Overhead saw arbor, 15 HP motor belt driven, 4,500 RPM arbor. -- 12" Dia. max. saw blade. -- 3-3/8" Max. depth of cut. -- 18" Max. throat depth. -- 2 HP Stepped feed speeds of 50 - 65 - 83 - 100. -- Automatic lubrication of chain. -- Magnetic controls. -- Saw is glue line rated.Equipped with & Features: -- Overhead holddown rolls. -- Double-row of antikickback fingers. -- (6) Pressure rollers. -- Infeed adjustable fence line. -- Cast Iron table with rip fence.

HOLYTEK - GES 920 RK: Wide Belt Sander(2) Heads; drum and combination head. -- 2-Head; 36" width cap. -- 1st Head: Heavy-Duty rubber covered contact drum; 15 HP motor. -- 2nd Head: Combination head with 6" dia. contact roll; 20 HP motor. -- 2 HP Feed motor; 16 - 55 FPM variable feed speed. -- 37" x 75" Abrasive belts; electronic oscillating belt system. -- Motorized table elevation with: 0.25 HP Motor; max. height: 125 mm (4.9").Equipped with: -- Digital readout and infeed & outfeed spring loaded holddown rolls.

HOLZ-HER - 1329 SPRINT: Premium Edgebander (with Premill & Corner Rounding) + GLU-JET EVA & PUR Gluing TechnologySpecifications -- Edgebanding Cap.: Edge thickness min./max.: 0.4 - 15 mm (0.016 - 0.59"); coiled material: 0.4 - 3 mm (0.016 - 0.157"); panel thickness: 8 - 60 mm (0.236 - 2.362"); workpiece width min.: 60 mm (2.36"); workpiece length min.: 160 mm (6.29"); feed speed: 10 - 18 MPM (33 - 59 FPM). -- Programmable Logic Control (PLC) for: Premilling, edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, buffing. -- HOLZ-HER - PPC 315 "EDGE CONTROL TOUCH": Electronically controlled setup processes with ...100% repetition accuracy. 18-1/2" Flat Touchscreen with: Brilliant graphic display of machining process. Simple operation: Rotating & swiveling control panel at eye height.Programs can be easily created & recalled at will; graphic interface makes programming easy.Icon of each unit may be displayed on the screen to show the Operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without the necessity to write a program.Machine Infeed Configuration -- Premilling Station: (2) 2.0 kW (2.68 HP) - 12,000 RPM motors; equipped with "ProLock" - Quick-change flange including: Height adjustment for optimum utilization of cutters. -- Edge Feeder Magazine - "SYNCRO" drive: The magazine with its synchronous adaptation to the feed rate guarantees short intervals between workpieces & simultaneously optimizes edging protrusions.Small 3° feed angle (thanks to nozzle design) with: Easy feeding of coils, strips up to 3 mm; solid wood edging up to 15 mm (0.059").Exclusive "Tractor Belt Feed System". Edge guide equipped with: Automatic guillotine lockout for safety. -- Pressure Section: Servo controlled pressure section with: (1) Large driven roller; (2) cantered idle rollers.Straight & tapered pressure rollers for perfect glued joints -- GLUING SYSTEM - GluJet: Thin film technology processes "EVA" or "PUR" Glue in cartridge of granulate gorm; motorized, programmable glue nozzle (upper glue line) height positioning.Workstations -- End Trimming Unit (1918-P): Front & rear: (2) x 0.35 kW (1/2 HP) - 9,000 RPM each motor; uniPoint swivel axis for no reindexing when changing from flush to bevel end trim (0° - 10° bevel);"PCS" programmable pneumatic changeover from flush to bevel. -- Multifunction Trimming Unit (1826). Servo controlled; (2) Servo motors: (1) For horizontal copy wheel & (1) for tool spindle position; programmable top & bottom unit: (2) x 0.65 kW (0.87 HP) - 12,000 RPM each motor.UniPoint design with: No second adjustment; pneumatic, programmable tilt action for changing the degree of bevel; digital counters for vertical copy wheel position & pneumatic air cylinder for in/out prepositioning of trimming motor. -- Trimming & Corner Rounding Unit (1833 MOT4). For linear edge trimming or vertical corner rounding with: (4) Servo Max. feed

HOLZ-HER 1402 HF Compact EdgebanderFeatures: -- Cartridge glue system, 3 mm edge thickness cap., -- Semi-automatic feed magazine, coil stock feeds automatically with guillotine cutoff, all strip stock is fed manually with pusher bar to advance the edging.Digital glue height indicator.Workstations: -- Double motor end trim (1 HP - 10,500 RPM motor ea.) -- Universal top & bottom fine trim (1942M) for bevels from 0° - 15³; allows simultaneous bevel & profile trimming (1 HP - 18,000 RPM motor ea.; trim motors are 0.6 kW HF - 300 Cy). -- Top & bottom PVC scraper unit (1929) for 0.8 - 3 mm radius. -- Top & bottom buffing (1940), 0.3 HP - 1,620 RPM motor ea. -- Single feed speed of 35 FPM.Complete with: -- Fixed outboard panel support, frequency converter, sound enclosure, and used tooling.

HOLZ-HER 1402 HF Compact EdgebanderFeatures: -- Cartridge glue system, 3 mm edge thickness cap., -- Semi-automatic feed magazine, coil stock feeds automatically with guillotine cutoff, all strip stock is fed manually with pusher bar to advance the edging. Digital glue height indicator.Workstations: -- Double motor end trim (1 HP - 10,500 RPM motor ea.) -- Universal top & bottom fine trim (1942M) for bevels from 0° - 15³; allows simultaneous bevel & profile trimming (1 HP - 18,000 RPM motor ea.; trim motors are 0.6 kW HF - 300 Cy). -- Top & bottom PVC scraper unit (1929) for 0.8 - 3 mm radius. -- Top & bottom buffing (1940), 0.3 HP - 1,620 RPM motor ea. -- Single feed speed of 35 FPM. -- Complete with: Fixed outboard panel support, frequency converter, sound enclosure, and used tooling.

HOLZ-HER - ARCUS 1335: Edgebander (w/Premilling) -- Specifications Edgebanding cap. edge thickness: Min./max. 0.4 - 15 mm (0.016 - 0.59"); coiled material: 0.4 - 3 mm (0.016 - 0.157"); panel thickness: 6 - 60 mm (0.236 - 2.362").Workpiece width min.:60 mm (2.36"); workpiece length: min. 160 mm (6.29"); variable feed speed: 10 - 18 MPM (33 - 59 FPM).Machine Infeed Configuration -- Premilling Station: (2) 2.0 kW (2.68 HP) - 12,000 RPM motors; equipped with "ProLock" quick-change flange including height adjustment for optimum utilization of cutters. -- Edge Feeder Magazine: Small 3° feed angle thanks to nozzle design with easy feeding of coils; strips up to 3 mm & solid wood edging up to 15 mm (5/8"). Exclusive "Tractor-Belt Feed System": Edge guide equipped with automatic guillotine lockout for safety. -- 3 mm Guillotine: For up to 3 mm coiled & strip materials. -- Gluing Section: HOLZ-HER Patented cartridge system with unrivaled properties with: 95% Less energy consumption & 70% shorter heat up time of 205° Celsius in just 3-1/2 minutes.Changing glue types takes just a minute and no special tools are required for glue and color. All that is changed is the cartridge. The time-consuming cleaning procedure of the glue pot, previously essential, is no longer necessary. The patented HOLZ-HER Cartridge System is a practical solution. -- Pressure Section: (1) Large & (3) cantered driven pressure rollers for perfect glued joints.Workstations: -- Front & Rear End Trimming: (2) 0.35 kW (0.5 HP) - 9,000 RPM each motor for edge thicknesses up to 20 mm. -- Multifunction Top & Bottom Trimming Unit Manual adjustment: (2) x 0.65 kW (0.87 HP) - 12,000 each motor.Digital counters for vertical copy wheel position and pneumatic air cylinder for manual in/out pre-positioning of trimming motor. -- Top & Bottom Fine Trimming Unit Manual Adjustment: 2 x 0.65 kW (0.87 HP) - 12,000 each motor.Digital counters for vertical copy wheel position and pneumatic air cylinder for manual positioning of fine trimming motors. -- Top & Bottom Profile Scraping Unit: For PVC edges.Reversible insert carbide knives. -- Top & Bottom Glue Scraping Unit: Flat, top/bottom, ball bearing guided. -- Top & Bottom Buffing Station: Top & bottom buffing motors with 150 mm (6.0") cloth buffing wheel diameter; 1,440 RPM wheel rotation.Operator Interface: -- HOLZ-HER "Edge Control" Electronically controlled setup processes with ...100% repetition accuracy.Flat Screen 8.4" VGA Color Monitor: Dustproof soft key input panel surface; programs can be easily created and recalled at will; graphic interface makes programming easy.Icon of each unit may be brought up on the screen to show the Operator the status of the unit and the parameters that can be programmed; Edgebander can be operated manually when required, without the necessity to write a program. Programmable Logic Control (PLC) for Pre-milling: Edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner

2019 Holz-her Sprint 1327 Call for more information
