Description:

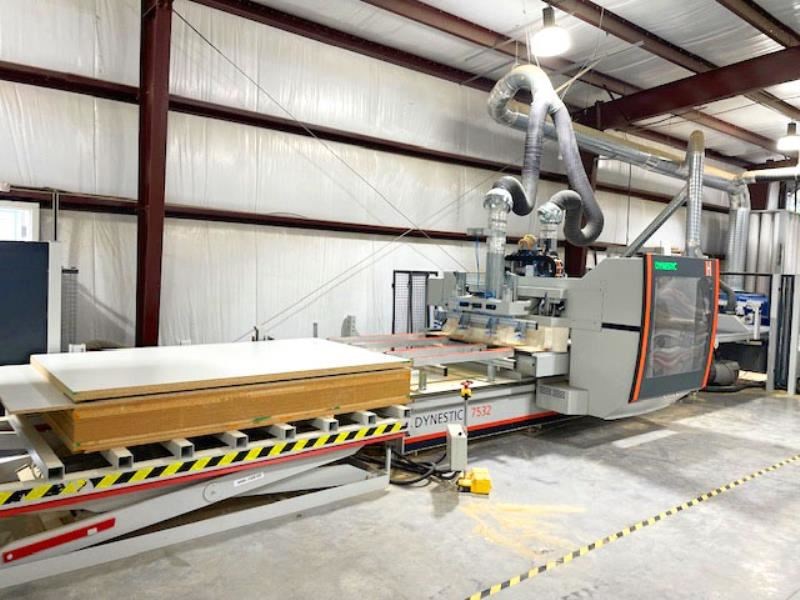

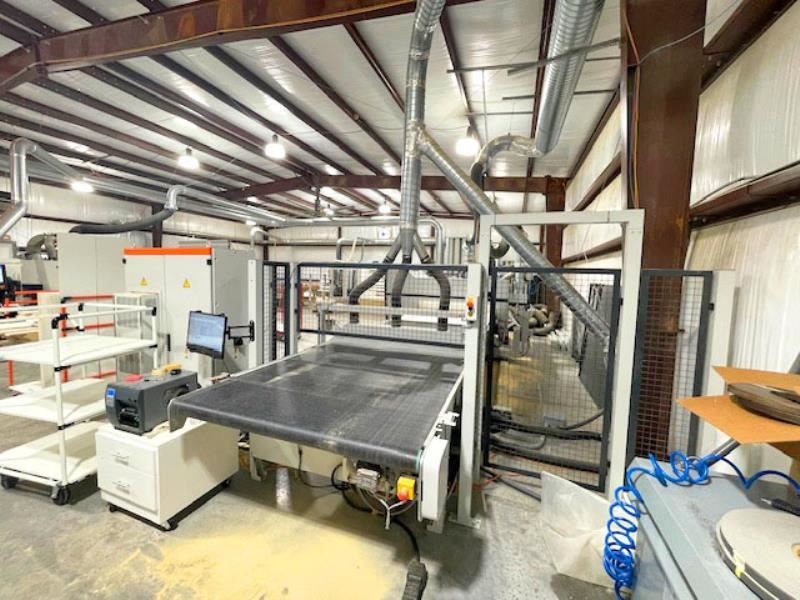

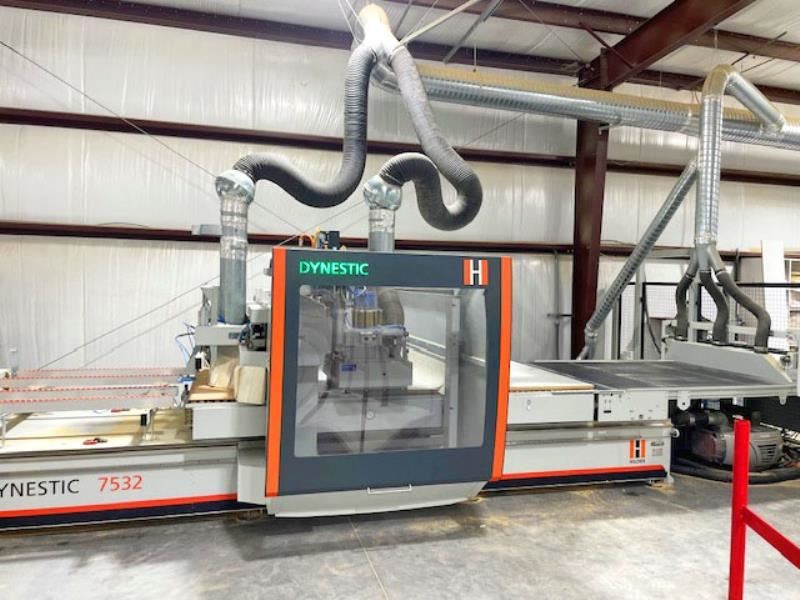

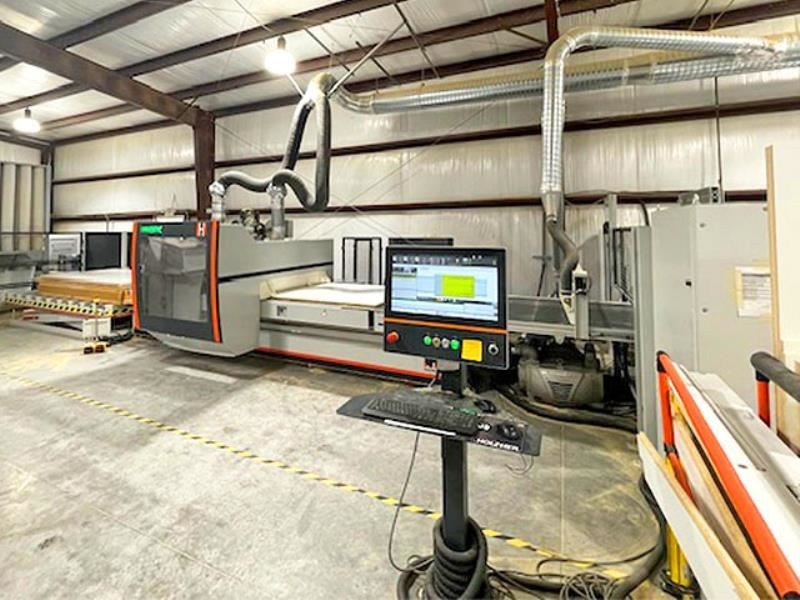

HOLZ-HER DYNESTIC 7532 FLAT TABLE MACHINE (W/LOADING, UNLOADING) -- Specifications:5' x 10' Phenolic MATRIX Table for "Nested Base" Manufacturing. -- Working Area:"X" Axis 1122" (3,100 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 4.72" (120 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing";(4) Pneumatically controlled reference stop pins with (3) in "Y" axis & (1) in "X" axis. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 6,000 RPM; (13) independent vertical boring spindles with (5+4) spindles in the "X" axis & (4+2) spindles in the "Y" axis;(4) Horizontal spindles with (1+1) in "X" axis & (1+1) in "Y" axis. -- Machining unit: (1) 15 HP (11 kW) Electro-spindle Router with HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 14-position ATC tool plate for "on the fly" ATC. -- Operator & Machine Control: PC Front-End with Holz-Her "CAMPUS" V 7Basic Bundle + Windows operating system Intel Core i5-6600; 17" Color monitor; standard keyboard, mouse & CD ROM for data entry; (3) axes simultaneous control; feed rate and spindle speed override & axis movement.CAMPUS/NC Hops offers "Real Time" 2D or 3D graphics; Campus aCADemy is a full fledged, high-performance CAD/CAM software package with versatile import features. -- Complete with:(1) 25 HP BECKER Vacuum Pump; "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Options Include:(1) NC Controlled infeed Scissor Lift table with vacuum loading; (1) Rake system; (1) Outfeed table with vacuum sweeping system; Manual label printer at the outfeed table. Actual Model is HOLZ-HER DYNESTIC 7532.
