Woodworking Equipment For Sale

BIESSE ROVER - A 3.30: CNC Machining Center (w/ATC/Boring) -- SPECIFICATIONSWorking cap. - "X" Axis: 118" (3,000 mm) any unit; "Y" Axis: For routing, 45.2" (1,150 mm; "Y" Axis for: Boring; 49.6" (1,260 mm); "Z" Axis stroke: 7.8" (198 mm); max. material thickness: 5.9" (150 mm). -- Positioning Speed Both "X & Y" Axis is: 262 FPM (80 MPM); "Z": 111 FPM (34 MPM); helical rack & pinion drive: On "X" axis; precision ball screw on: "Y & Z" Axes. -- Worktable (6) Support rails with: (3) Vacuum pods per rail; (6) pop-up back stops, (4) pop-up side-stops; (2) independent working areas.Prepared for (optional) "quick fit" vacuum outlets for: Optional clamping of small or awkward shaped parts; each work zone with (1) "Quick connect" vacuum outlet: For custom vacuum fixtures. -- Boring Unit(14) Independent vertical boring spindles forming an L-configuration with: (7) Spindles in "X" Axis & (7) spindles in "Y" Axis.(6) Horizontal spindles with: (2 + 2) in "X" axis; (1 + 1) in "Y" Axis; (1) "X" Axis grooving saw for: Max. 120 mm dia. blade. -- Machining (1) 9.5 HP (7 kW) Vertically mounted HSD electrospindle router with: HSK F63 Adaptor.Inverter driven 1,000 - 24,000 RPM with: Max. torque from 12,000 - 24,000 RPM. (1) 18-Position "Ride-Along", "on the fly" automatic tool changer. -- Operator & Machine ControlPC Front-End with: BIESSE "XP600" + Windows "XP" + BIESSE "WORKS" Operating System.INTEL "Celeron" 2.0 GHz Processor; 4 GB Hard drive; 15" color monitor; international keyboard; soft touch keypad & industrial mouse; RS-232 serial port; (1) 1.44 MB floppy disk drive.BiesseWORKS: An easy CAD program that can be done from the office or at the machine; Operating System: Real-Time multitask processing; programs can be transferred via diskette or downloaded by wire. -- Complete with: (1) 250 M³/Hr Vacuum Pump; 11 KVA stabilized autotransformer for voltages between: 220 - 600 Volts. Equipped with: Centralized manual Lubrication System for guides & ball screw; built-in 1,500 W air conditioner for constant temperature & dust-free environment. Emergency stop rope & sound absorbing protective head enclosure with: Debris curtain around bottom edge. -- Actual model: BIESSE ROVER - A 3.30

BIESSE - ROVER A 3.40 FT: Flat Table Machine (w/ATC/Boring) -- Specifications4' x 12' Flat Table with: "Matrix" grid phenolic surface for "Nested Base Manufacturing". -- Working cap:"X" Axis: 145" (3,683 mm); "Y" axis: 53-1/2" (1,360 mm); "Z" axis stroke: 6.3" (160 mm); max. material thickness 5.9" (150 mm). -- Positioning Speed"X" & "Y" Axes are: 262 FPM (80 MPM); "Z" axis: 98 FPM (30 MPM); helical rack & pinion drive on "X" axis; ball screw on: "Y" & "Z" Axis. -- Work AreaFlat table design with: "Matrix" grid phenolic surface for "Nested Base Manufacturing"; (2) independent working areas; (4) external pop-up reference pins with: (3) On the back of the table & (1) on the LH side.Prepared for: (Optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; each work zone with: (1) "Quick connect" vacuum outlet for custom vacuum fixtures. -- Boring Unit (1) 2-1/2 HP (1.7 kW) - 4,000 RPM Motor: (12) Independent vertical spindles: (6) In "X" axis & (6) in "Y" axis.(6) Horizontal spindles with: (2 + 2) In "X" axis; (1 + 1) in "Y" axis; (1) 120 mm dia. "X" axis grooving saw. -- Machining(1) 10.2 HP (7.5 kW) Electrospindle with: ISO 30 Adaptor; variable speed from: 1,000 - 20,000 RPM.(1) 10-Position ride along tool changer plate for: "On the fly" ATC. -- Operator InterfacePC Front-End with: BIESSE "XP600 + WINDOWS "XP" Operating System; 15" color CRT; 40 GB hard drive; full keyboard & mouse; Ethernet connection capabilities. -- Complete with: Universal Autotransformer for voltages between 200 - 600 V, 50/60 Hz; (2) 10 HP; (7.5 kW) BUSCH Vacuum Pumps; safety mats & fencing. -- Actual Model: BIESSE ROVER A 3.40 FT.

BIESSE ROVER A 2231 G FT FLAT TABLE MACHINE (W/LOADING, UNLOADING): -- Specifications:7' x 10' "Matrix" grid Phenolic surface for "Nested Base Manufacturing". Cell Configuration for sheets moving from the RH side to LH side of the line.The loading section is on the RH side, the offloading on the LH side from the operator standpoint. -- Working Capacity: "X" Axis 123 (3,130 mm), "Y" axis 86.6" (2,200 mm), "Z" axis stroke is 12.7" (325 mm), max. material thickness 4.7" (120 mm). -- Positioning Speed: "X" axis 262 FPM (80 MPM), "Y" axis 197 FPM (60 MPM), "Z" axis 66 FPM (20 MPM). All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors. All motion components are maintained by an automatic lubrication system. "X" & "Y" Axes use a precision rack & pinion system; "Z" axis uses precision ball screws. -- Work area:Flat table design with HI-FLOW, multi-zone Matrix" grid Phenolic surface for "Nested Base Manufacturing". Automatic NC controlled zoning of the vacuum table with (16) individual zones. (2) Pneumatic "side" pop-up reference stops, (1) pneumatic "back" pop-up reference stop, & (1) pneumatic "front" pop-up reference stop. Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; with "quick connect" vacuum outlet for custom vacuum pods & fixtures. -- Boring Unit:(1) 2.5 HP (1.7 kW) Motor, variable speed up to 6,000 RPM: Boring block with (10) independent vertical spindles, (7) in "X" axis & (3) in "Y" axis. (6) Independent Horizontal Spindles with (4+4) in "X" axis & (2+2) in "Y" axis. (1) "X" axis grooving saw for max 120 mm dia blade. -- Machining:(1) 18 HP (13.2 kW) Air cooled HSD Electro Spindle with HSK 63 adaptor, variable speed from 1,000 - 24,000 RPM. (1) 8-position ATC tool changer plate located at the back of the machine base. NC controlled presetting for the measurement of the tool length. -- Operator & Machine Control:PC Front-End with: BIESSE BH 660 + BiesseWORKS + BiesseNest + Windows XP/WRT operating system. 17" TFT Flat screen monitor; server, full keyboard, & mouse all mounted on a mobile cart; Ethernet connection capabilities. BiesseWORKS Graphic interface makes full use of the operating methods typical of the WINDOWS operating system: Assisted graphic editor used to program machining operations; programming, and guided creation of parametric macros. Import of CAD and other external software files in DXF & CID3 format; 3D simulation of the tool path, calculation of machining time & the ability to create rotate virtual faces. -- Complete with:(2) 300 m³/Hr BUSCH Vacuum Pump; Safety mats/devices & fencing; Tool touch-off probe for automatic program update according to the tool length. Automatic Lubrication System for linear guides, rack & recirculating ball screw. Tele-Service capabilities. -- Options Include: • (1) NC Controlled infeed Scissor Lift table with vacuum loading; • (1) Rake system; • (1) NC controlled & power

BIESSE - ROVER A 1564 G FT: "GANTRY"5' x 21' "Matrix" Grid phenolic surface for: Nested Base Manufacturing.Working Cap."X" Axis: 251.9" (6,400 mm); "Y" axis: 62.4" (1,585 mm); "Z" axis stroke: 12.7" (324 mm);, max. material thickness: 6.7" (170 mm).Positioning Speed"X" & "Y" Axis: 279 FPM (85 MPM); "Z" axis: 98.4 FPM (30 MPM). - All axes movement: On precision linear guides & ways; controlled by: Digital, brushless AC Servo motors.All motion components maintained by: Automatic lubrication system. "X" & "Y" Axes use: Precision rack & pinion system; "Z" axis uses: Precision ball screws.WorktableFlat table design with: Matrix grid phenolic surface for Nested Base Manufacturing; (2) external pneumatic pop-up reference stops in "Y" axis; (4) pneumatic pop-up reference stops in "X" axis; (2) zone tables with: Automatic NC controlled zoning of each vacuum table. Prepared for (optional): "Quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; with: "Quick connect" vacuum outlet for custom vacuum pods & fixtures. Boring Unit(1) 2-1/2 HP (1.7 kW) Motor. Variable speed: up to 6,000 RPM; (10) independent vertical spindles with: (5) In "X" axis; (5) in "Y" axis. (4) Horizontal spindles with: (1 + 1) In "X" axis; (1 + 1) in "Y" axis; (1) "X axis grooving saw with: 120 mm Dia. blade.Machining(1) 16.1 HP (12 kW) Air-cooled HSD electro-spindle with: HSK F63 Adaptor; variable speed from: 1,000 - 24,000 RPM; (1) 16-position ride-along tool changer for "on the fly" ATC; NC controlled presetting for: measurement of the tool length. Operator & Machine ControlPC Front-End with: BIESSE "XP 600" + WINDOWS WRT Operating system. 15" TFT Flat screen monitor; server; full keyboard & mouse: All mounted on a mobile cart; Ethernet connection capabilities.Graphic interface makes full use of the operating methods typical of the Windows Operating System: Assisted graphic editor used to program machining operations; programming & guided creation of parametric macros. Import of CAD and other external software files in: DXF & CID3 format; 3D simulation of the tool path; calculation of machining time; ability to create rotate virtual faces.Complete with:25 HP TRAVAINI Vacuum Pump; safety mats & fencing; Tool Touch Off Probe; automatic lubrication system for: Linear guides; pads; recirculating ball screw; Tele-Service capabilities; Universal Autotransformer for: Voltages between 200 - 600 V 50/60 Hz.Actual Model: BIESSE ROVER A 1564 G FT.

BIESSE ROVER AS FT 1224 - 4'x8' FLAT TABLE MACHINE (W/LOADING, UNLOADING): -- Specifications:4' x 8' "Matrix" grid Phenolic surface for "Nested Base Manufacturing". -- Working Capacity: "X" Axis 97" (2,465 mm), "Y" axis 50" (1,260 mm), "Z" axis stroke is 8" (203 mm), max. material thickness 6.7" (170 mm). -- Positioning Speed: "X" axis 279 FPM (85 MPM), "Y" axis 197 FPM (60 MPM), "Z" axis 66 FPM (20 MPM). All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors. All motion components are maintained by an automatic lubrication system. "X" & "Y" Axes use a precision rack & pinion system; "Z" axis uses precision ball screws. -- Work area:Flat table design with HI-FLOW, multi-zone Matrix" grid Phenolic surface for "Nested Base Manufacturing". Automatic NC controlled zoning of the vacuum table with (9) individual zones. (2) Pneumatic "side" pop-up reference stops, (4) pneumatic "back" pop-up reference stops, & (6) pneumatic "front" pop-up reference stops. Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; with "quick connect" vacuum outlet for custom vacuum pods & fixtures. -- Boring Unit:(1) 2.5 HP (1.7 kW) Motor, variable speed up to 6,000 RPM: Boring block with (10) independent vertical spindles, (7) in "X" axis & (3) in "Y" axis. (1) "X" axis grooving saw for max 120 mm dia blade. -- Machining:(1) 12 HP (9 kW) Air cooled HSD Electro Spindle with HSK 63 adaptor, variable speed from 1,000 - 24,000 RPM. (1) 8-position ATC tool changer plate located at the back of the machine base. NC controlled presetting for the measurement of the tool length. -- Operator & Machine Control:PC Front-End with: BIESSE bTouch 21.5"; touch screen operating system. -- Complete with:(2) 10 HP Vacuum Pump; Perimeter Safety system/fencing. Automatic Lubrication System for linear guides, rack & recirculating ball screw. Tele-Service capabilities. -- Options Include: (1) NC Controlled infeed Scissor Lift table with vacuum loading; (1) Rake system; (1) NC controlled powered belt outfeed table with vacuum sweeping system; (1) Additional NC controlled powered belt outfeed table; Bar code label printer. -- Actual Model is BIESSE ROVER AS FT 1224.

BIESSE ROVERB 4.35 CNC MACHINING CENTER (W/ATC & BORING) -- Specifications:Working capacity "X" Axis is 126" (3,200 mm) any unit, "Y" axis for routing is 51.7" (1,315 mm), vertical drilling "Y" axis is 59" (1,495 mm), "Z" axis stroke 6.3" (160 mm). -- Positioning speed:"X" & "Y" Axis is 262 FPM (80 MPM) & "Z" axis is 66 FPM (60 MPM). -- Worktable:(6) Panel support rails with (4) lifting bars to assist with panel loading/unloading, (3) "ATS" vacuum pods per panel support; digital display readouts for rail & pod placement according to the programs, -- (2) Independent working areas with pop-up locating pins for positioning of parts on the worktable; prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; each work zone with: (1) "Quick Connect" vacuum outlet for custom vacuum fixtures. -- Boring unit:(1) 2.5 HP (1.7 kW) motor, variable speed up to 6,000 RPM: (12) Independent vertical boring spindles with (6) spindles in "X" axis & (6) spindles in "Y" axis. -- (6) Horizontal spindles with: (2 + 2) in "X" axis & (1 + 1) in "Y" axis; (1) "X" axis grooving saw with 120 mm dia. blade. -- Machining Unit:(1) 10 HP (7.5 kW) Vertically mounted HSD "Electro-Spindle" Router with HSK-F63 adapter, inverter driven 1,000 - 20,000 RPM with max. torque from 12,000 - 20,000 RPM. -- (1) 10-Position ride-along ATC for "on the fly" tool change. -- Operator Interface:PC Front-End with: BIESSE "XP 600" + Windows "XP" operating system; INTEL "Celeron" 2.0 GHz processor; 4 GB Hard drive; --15" Color monitor, international keyboard, soft touch keypad & industrial mouse, RS-232 serial port, USB ports, CD ROM & 1.44 MB disk drives. -- Separate control panel with built-in 1,500 W air conditioner for constant temperature & dust-free environment; 11 KVA Stabilized auto-transformer for voltages between 200 - 600 Volts. -- Complete With:(1) 100 m³/Hr Vacuum Pump; centralized manual lubrication system for guides & ball screw; emergency stop rope; safety mat protection barrier & sound absorbing protective head enclosure with debris curtain around bottom edge. -- Option Included: Pre-arranged for a "C" axis for 360° horizontal processing capabilities. -- Actual Model is BIESSE ROVERB 4.35

BIESSE ROVER B EDGE 1667 CNC MACHINING CENTER (W/EDGEBANDING) -- Specifications:This "Bridge Gantry" machine is "IDEAL" for window, stair, door & component parts manufacturing:Working Field considering "all" units when Routing, "X" Axis is 265" (6,735 mm), "Y" axis is 62.9" (1,600 mm), "Z" axis stroke 13.6" (345 mm), max. material thickness when machining 9.6" (245 mm)When "Edge Banding" "X" Axis is 227" (5,780 mm), "Y" axis is 62.9" (1,600 mm), the max. material thickness is 2.3" (60 mm); the minimum internal radius is 30 mm & minimum external radius is 8 mm (depending on flexibility of the banding material). -- Positioning Speed: "X" & "Y" axis is 279 FPM (85 MPM), "Z" axis is 98 FPM (30 MPM); AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Worktable: (8) Vacuum bar support rails with pneumatic lifting blades, (4) "ATS" vacuum pods per rail; set up assistance according to the program to process.(8) Pneumatic pop-up back stops, (8) pneumatic pop-up front stops, (4) pop-up side stops, (2) pop-up central stops create (2) independent work zones.Edge Banding unit:The edgebanding is automatically applied to square or irregularly shaped parts as the CNC head rotates along the "X" "Y" & "Z" axis and simultaneously rotates the tooling up to 360° on a high precision "C" axis.Floating "hot melt" glue pot & application roller with separate thermostats apply glue on the panel edge.Pneumatically controlled pressure roller with manually adjustable guides for coil & strip feeding; numerically controlled with encoder that measures strip feeding process.(1) 4-Coil tape magazine with warning sensor when the end of the spool is near; edge banding unit precisely applies 0.4 - 3 mm ABS & PVC with 60 mm (2.3") max. edge height.Pneumatically activated saw blade performs the end trimming at a 35° angle for precise fitting of overlapping joints on adjoining edges. -- Boring Unit: BH17 Boring Head with 4 HP (3 kW) motor, variable speed from 1,500 - 7,500 RPM; (10) Independent "Quick Change" vertical spindles with (6) spindles in "X" axis & (4) spindles in "Y" axis.(6) Horizontal boring spindles with (2+2) in "X" axis & (1+1) in "Y" axis; (1) "X" axis grooving for up to 120 mm dia blade. -- Machining: (2) 18 HP (13.2 kW) liquid cooled electro-spindle router with HSK F63 adaptor; 1,500 - 24,000 RPM.(1) NC controlled "C" axis for 360° horizontal processing; (1) 22-position ATC tool Plate mounted at the back of the machine. -- Operator & Machine Control: PC Front End with Biesse "BH 660" + "BiesseWORKS Advanced" + "bSOLID" + "bEDGE" + WINDOWS "XP" operating system.15" CRT monitor, full keyboard, mouse, 1.44MB & CD ROM disk drives, RS 232 & USB ports, Ethernet connection.Multitask operating system with specific function controls & and internet trouble shooting capabilities; input/output modules, axes override, 4-axes interpolation, diagnostic graphics aid for programming, machine data & to

BIESSE ROVER B EDGE 1967 CNC MACHINING CENTER (W/EDGEBANDING) -- Specifications:This "Bridge Gantry" machine is "IDEAL" for window, stair, door & component parts manufacturing. -- Working Field considering "all" units when Routing, "X" Axis is 265" (6,735 mm), "Y" axis is 75.9" (1,930 mm), "Z" axis stroke 13.6" (345 mm), max. material thickness when machining 9.6" (245 mm)When "Edge Banding" "X" Axis is 227" (5,780 mm), "Y" axis is 75.9" (1,930 mm), the max. banding material thickness is 2.55" (65 mm); the minimum internal radius is 30 mm & minimum external radius is 8 mm (depending on flexibility of the banding material). -- Positioning Speed: "X" & "Y" axis is 279 FPM (85 MPM), "Z" axis is 98 FPM (30 MPM); AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Worktable: (10) "EPS" (Electronic Positioning System) Vacuum bar support rails with pneumatic lifting blades, (4) "ATS" (auto Table Setting) vacuum pods per rail; set up assistance according to the program to process.(10) Pneumatic pop-up back stops, (10) pneumatic pop-up front stops, (4) pop-up side stops, (4) pop-up/removable central stops create (2) independent work zones.Edge Banding unit:The edgebanding unit GU60C with glue pot automatically applied EVA glue to square or irregularly shaped parts as the CNC head rotates along the "X" "Y" & "Z" axis and simultaneously rotates the tooling up to 360° on a high precision "C" axis.Floating "hot melt" glue pot & application roller with separate thermostats apply glue on the panel edge.Pneumatically controlled pressure roller with manually adjustable guides for coil & strip feeding; numerically controlled with encoder that measures strip feeding process.(1) 4-Coil tape magazine with warning sensor when the end of the spool is near; edge banding unit precisely applies 0.4 - 3 mm ABS & PVC with 60 mm (2.3") max. edge height.Pneumatically activated saw blade performs the end trimming at a 35° angle for precise fitting of overlapping joints on adjoining edges. -- Boring Unit: BH17 Boring Head with 4 HP (3 kW) motor, variable speed from 1,500 - 6,000 RPM; (10) Independent "Quick Change" vertical spindles with (5) spindles in "X" axis & (5) spindles in "Y" axis.(6) Horizontal boring spindles with (2+2) in "X" axis & (1+1) in "Y" axis; (1) "X" axis grooving for up to 120 mm dia blade. -- Machining: (2) 18 HP (13.2 kW) Air cooled electro-spindle router with HSK F63 adaptor; 1,000 - 24,000 RPM. (1) NC controlled "C" axis for 360° horizontal processing.(21) Total ATC slots, with(1) 6-position ATC Tool Plate mounted on the "Y" carriage at the back of the machine & (1) 16-position ATC Changer on the "X" carriage. -- Operator Interface: PC Front End with Biesse "BH 660" +"bTouch" +"bSolid" + "bEdge" + Windows "WRT" (Windows Real Time) operating system.21" LCD monitor, CPU Intel(R) Core I5 or superior, 8 GB RAM memory, 128 SSD GB hard disk or superior. graphic card, LCD disp

BIESSE ROVER B EDGE 1967 CNC MACHINING CENTER (W/EDGEBANDING) -- Specifications:This "Bridge Gantry" machine is "IDEAL" for window, stair, door & component parts manufacturing. -- Working Field considering "all" units when Routing, "X" Axis is 265" (6,735 mm), "Y" axis is 75.9" (1,930 mm), "Z" axis stroke 13.6" (345 mm), max. material thickness when machining 9.6" (245 mm)When "Edge Banding" "X" Axis is 227" (5,780 mm), "Y" axis is 75.9" (1,930 mm), the max. banding material thickness is 2.55" (65 mm); the minimum internal radius is 30 mm & minimum external radius is 8 mm (depending on flexibility of the banding material). -- Positioning Speed: "X" & "Y" axis is 279 FPM (85 MPM), "Z" axis is 98 FPM (30 MPM); AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Worktable: (10) "EPS" (Electronic Positioning System) Vacuum bar support rails with pneumatic lifting blades, (4) "ATS" (auto Table Setting) vacuum pods per rail; set up assistance according to the program to process.(10) Pneumatic pop-up back stops, (10) pneumatic pop-up front stops, (4) pop-up side stops, (4) pop-up/removable central stops create (2) independent work zones.Edge Banding unit:The edgebanding unit GU60C with glue pot automatically applied EVA glue to square or irregularly shaped parts as the CNC head rotates along the "X" "Y" & "Z" axis and simultaneously rotates the tooling up to 360° on a high precision "C" axis.Floating "hot melt" glue pot & application roller with separate thermostats apply glue on the panel edge.Pneumatically controlled pressure roller with manually adjustable guides for coil & strip feeding; numerically controlled with encoder that measures strip feeding process.(1) 4-Coil tape magazine with warning sensor when the end of the spool is near; edge banding unit precisely applies 0.4 - 3 mm ABS & PVC with 60 mm (2.3") max. edge height.Pneumatically activated saw blade performs the end trimming at a 35° angle for precise fitting of overlapping joints on adjoining edges. -- Boring Unit: BH17 Boring Head with 4 HP (3 kW) motor, variable speed from 1,500 - 6,000 RPM; (10) Independent "Quick Change" vertical spindles with (5) spindles in "X" axis & (5) spindles in "Y" axis.(6) Horizontal boring spindles with (2+2) in "X" axis & (1+1) in "Y" axis; (1) "X" axis grooving for up to 120 mm dia blade. -- Machining: (2) 18 HP (13.2 kW) Air cooled electro-spindle router with HSK F63 adaptor; 1,000 - 24,000 RPM. (1) NC controlled "C" axis for 360° horizontal processing.(21) Total ATC slots, with(1) 6-position ATC Tool Plate mounted on the "Y" carriage at the back of the machine & (1) 16-position ATC Changer on the "X" carriage. -- Operator Interface: PC Front End with Biesse "BH 660" +"bTouch" +"bSolid" + "bEdge" + Windows "WRT" (Windows Real Time) operating system.21" LCD monitor, CPU Intel(R) Core I5 or superior, 8 GB RAM memory, 128 SSD GB hard disk or superior. graphic card, LCD disp

BIESSE ROVER C 6.40 CONF 3 FT - 5' x 12' CNC Machining Center with ATC/Boring (5-AXIS PROCESSING): -- Specifications: Working Capacity: "X" Axis 144" (3,650 mm); "Y" axis 60.2" (1,530 mm); "Z" axis stroke 26.1" (663 mm); max. material thickness 10.8" (275 mm). -- Positioning Speed:"X" & "Y" Axes 328 FPM (100 MPM) each; "Z" axis 98 FPM (30 MPM). -- Worktable:(10) EPS (Electronic Positioning System) Panel supports with: (8) Lifting bars; (4) ATS vacuum pods with universal clamping systems per panel support.(2) Independent working areas with: (10) Pneumatic back stops, (2) pneumatic side stops & (2) pneumatic central stops. -- Boring Unit:4 HP (3 kW) Motor with variable speed from 1,500 - 7,500 RPM; (5) independent vertical spindles in "Y" axis.(4) Horizontal boring spindles with: (1+1) in "X" axis & (1+1) in "Y" axis. -- Machining:(1) 16 HP (12 kW) Liquid Cooled 5-AXIS electro spindle router with HSK F63 adaptor; variable speed from 3,000 - 24,000 RPM.(1) 8-Position ATC tool plate, mounter at the Router's head for "On the Fly" Tool change. -- Operator & Machine Control:PC Front-End with BIESSE "NC 1000" + "BiesseWORKS" + WINDOWS "XP" Operating System. 15" Color CRT, full keyboard, mouse, 1.44 MB & CD ROM disk drives. RS 232 & USB ports. Ethernet connection, specific function controls, & and Internet trouble shooting capabilities. Air-conditioned control cabinet & dust free environment. "BiesseWORKS" is a multitask Operating System with: Input/output modules, axes override, (4) axes interpolation, diagnostic graphics aid for programming, machine data & tool management. -- Complete with:(1) 250 m³/Hr Vacuum Pump; safety fences & mats; original documentation; user & maintenance manuals, wiring diagrams & operation of Numerical Control. -- Options Include:(1) Ingersoll Rand Air Compressor & Air Dryer, and (1) MicroAir Dust Collector, as pictured -- Actual Model is BIESSE ROVER C 6.40 CONF 3 FT

Capacity; Edge thickness; strips (0.4 - 22mm) Edge Thickness; coiled stock; (0.4 - 3mm) Panel thickness; 10 - 60 mm (0.39 - 2.36") Work piece width min.;85 mm (3.34") Work piece length min.; 140 mm (5.51") Feed speeds 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM) Machine Layout Motorized top beam positioning Adjustable infeed fence Pre-Milling Station "FL-502": (2) LH & RH Rotating NC controlled spindles with automatic center positioning. Infrared Heating Lamp: Preheating workpiece edge to ensure best possible surface adhesion EVA (Hot Melt) gluepot, equipped with quick pre-melting 2 Coil Magazine Pressure Section: Servo controlled programmable pressure section with (1) large driven roller and (4) idle rollers. End Trimming; Front & rear trimming motors, swivel to 0° - 15° bevel, programmable pneumatic change Rough Trimming (first set); Top/Bottom pre- or flush trimming motors Fine Trim/Bevel/Radius Trimming; Servo controlled, pneumatic pre-positioning of motors Corner Rounding; (2) Motor corner rounding Profile Scraping; Top/Bottom 2-axis NC programmable knife positioning Glue Scraping; Flat, top/bottom, digital positioning indicators, pneumatic controlled positioning Buffing; Top & Bottom buffing motors with 150 mm (6") cloth buffing wheel. fully adjustable Hot air blowers Overhead belt hold down Centralize lubrication system External multitap transformer

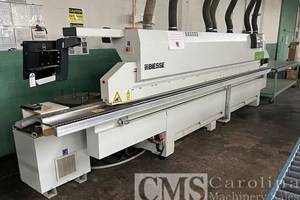

BIESSE ROXYL 5.5 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Features: Gluing system VC-710 with TEKNO GLUE system to cover the full range of edgebanding processes in use today!Specifications: -- Edgebanding Capacity: Edge thickness for strips min./max. 0.4 - 22 mm (0.02" - 0.87"), coiled material from 0.4 - 3 mm (0.02 - 0.12"); panel thickness from 10 - 60 mm (0.39 - 2.36"), workpiece width min. of 85 mm (3.34"); workpiece length min. 140 mm (5.51"); feed speeds 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 82 FPM). -- Machine Interface: "Roxyl-Matic" Automated machine setup, Windows PRO Operating System, 4 GB HD; USB port, keyboard, and mouse interface. -- Flat Screen (17") with color graphics interface: Programs can be easily created and recalled at will; Graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters, which can be programmed; Edgebander may be operated manually when required, without necessity to write a program.Machine In-Feed Configuration: -- Pre-Milling Station "FI-502": (2) 12000 rpm and 4.7 HP motors LH & RH Rotating NC controlled spindles with automatic center positioning. -- Anti-Adhesive "ADZ-700" Automatic Spray Unit with: Glue release agent preventing glue to adhere to work piece's surfaces. -- Infrared Heating Lamp IRL 700: Preheating workpiece edge to ensure best possible surface adhesion quality of edgebanding material. -- Edge Magazine: Automatic for processing coiled and strip edgebanding material. -- Pressure Section: Servo controlled programmable pressure section with (1) large driven roller and (5) idle rollers.Gluing System: -- EVA (Hot Melt) "QM-705": Quick premelting granulate with glue roller applicator to cover conventional edgebanding material.Workstations: -- End Trimming Unit "IN-801": 12,000 RPM, 1 HP, Front & rear trimming motors, uni-point swivel 0° - 15° bevel, programmable pneumatic change-over from flush to bevel. -- Rough/Flush Trimming Unit "RS-100": 12,000 RPM, 2.7 HP, Top/Bottom pre- or flush trimming motors -- Disc Pro-Nesting for RS-100: To permit processing of panels with holes up to a maximum diameter of 35 mm and/or grooves -- Flush/Bevel/Radius Combination Trimming Unit "RF-400": 12,000 RPM, 2.7 HP. Servo controlled, (4) NC axes driven by brushless motors and recirculating ball screws. -- PAIR OF MULTIFUNCTION CUTTERS: For tilting trimming unit. Possible machining operations: chamfering (max 25 degrees) for different thin edges + R=2mm + R=3 mm + flush solid wood trimming. -- Disc Pro-Nesting for RF-400: For tilting top and bottom edge trimming unit. It is composed of 2 copiers with bearing in addition to the vertical copier to permit processing of panels with holes up to a maximum diameter of 35 mm and/or grooves -- Corner Rounding Unit "CR-202": 12,000 RPM, 0.9 HP, (2) Motors for front/back corner and upper & lower edge profiling. -- Profile Scraping Unit "RBK-503": Top/Bottom 2-axis NC pro

BIESSE - ROXYL 5.5: Edgebander (w/Premill & Corner Rounding)SpecificationsEdgebanding Cap. - Edge thickness for strips: Min./max.: 0.4 - 22 mm (0.02" - 0.87"); coiled material from: 0.4 - 3 mm (0.02 - 0.12"); panel thickness from: 10 - 60 mm (0.39 - 2.36"); workpiece width; Min.: 85 mm (3.34"); workpiece length min.: 140 mm (5.51"); feed speeds: 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM). Machine Interface -- "Roxyl-Matic" Automated machine setup; MS/Windows XP Operating System; floppy drive; 4 GB HD; USB port, keyboard, and mouse interface. -- Flat-Screen (17") with Color graphics interface: Programs can be easily created & recalled at will; graphic interface makes programming easy: Icon of each unit may be brought up on the screen to show the Operator the status of the unit & parameters, which can be programmed; Edgebander may be operated manually when required, without necessity to write a program.Machine Infeed Configuration -- Premilling Station "FL-502". (2) LH & RH Rotating NC controlled spindles with: Automatic center positioning. -- Anti-Adhesive: "ADZ-700" Automatic Spray Unit with: Glue release agent preventing glue to adhere to workpiece surfaces. -- Infrared Heating Lamp. Preheating workpiece edge to ensure best possible surface adhesion quality of edgebanding material. -- Edge Magazine. Automatic for processing coiled & strip edgebanding material. -- Pressure Section Servo controlled programmable pressure section with: (1) Large driven roller and (4) idle rollers.Gluing System -- EVA (Hot Melt) "QM-705" Quick premelting granulate with: Glue roller applicator to cover conventional edgebanding material. Workstations -- End Trimming Unit "IN-801": Front & Rear trimming motors; unipoint swivel: 0° - 15° Bevel; programmable pneumatic change-over from flush to bevel. -- Rough/Flush Trimming Unit "RS-701": Top/Bottom pre- or flush trimming motors. -- Flush/Bevel/Radius Combination Trimming Unit "RF-400": Servo controlled: (2) Servo motors (one for horizontal tool position; one for tool up/down position); uses combination bevel/radius/flush insert knives; prepositioning of motors by pneumatic air cylinders. -- Corner Rounding Unit "CR-202": (2) Motors for front/back corner and upper & lower edge profiling. -- Profile Scraping Unit "RBK-503": Top/Bottom 2-axis NC programmable knife positioning (i.e. 2 - 3 mm radius) for PVC edges. -- Glue Scraping Unit "RCC-701": Flat top/bottom; digital positioning indicators; pneumatic controlled for in/out position. -- Buffing Station "SP-501" Top & Bottom buffing motors with: 150 mm (6") Cloth buffing wheel diameter; adjusts in multiple directions. -- Edge Reactivation Unit "PH-700": Top/Bottom hot air blowers to restore original color to profile scraped PVC edge material.Complete with: -- Top Pressure Beam with: Driven flat belt & programmable height positioning.Includes: Multi-Tap Transformer. - Sound Hoods with interior lights. - Outboard panel support.

BLACK BROTHERS - 775 SPRD: Top/Bottom Glue Spreader -- 68" Working width; 7-3/4" dia. neoprene coating rolls; 6-1/2" dia. rubber doctor roll; upper elevator opening: 0" - 4-1/2"; handwheel on right hand side with: Digital roll opening indicator to 0.001" increments. -- Variable speed of: 40 FPM - 120 FPM; 2 HP - 1,850 RPM feed drive.

BLACK BROTHERS - 410-56: Panel Brush Cleaner56"+ Top & Bottom Panel Cleaner; upper elevator: 0" to 4-3/4" upper elevator opening; standard: 30" passline height. -- (2) New 61-1/2"; wide (max. brush width) fiber brush rolls. -- 3 HP Speed drive; 230 /460 V/3-phase motor voltage; currently wired for: 230 Volt / 3-phase power. -- Feed speed approx. 80 FPM -- (2) 3-1/2" Upper infeed & outfeed spring loaded idler rollers; (2) 3-1/2" lower infeed & outfeed feed rollers. -- Operating handwheel & magnetic starter: Located on left-hand side. -- Complete with: Sheet metal hood w/separate (2) exhaust ducts for upper & lower cleaning brushes; requires 2,800 CFM. Machine was refurbished & never put into production. Cleaned & checked: "New" brushes; "new" feed rollers; (3) spare feed rollers; fresh paint.

BLACK BROTHERS APP 4012 4' x 12' End Loading Fixed Pressure Air Pod Press, with Manual Opening AdjustmentSpecifications: -- Platen size 50" x 146". -- Lower platen height 16". -- Opening size 4 - 60". -- Max. stroke 5". -- Distance between tie rods: 54" Width & 82" Length. -- Fixed air pressure 10 PSI.Equipped with: -- Lower platen, with Dual air-actuated roller tracks with 2-1/4"; Dia. x 3/4"; W rollers on 6"; centers & Automatic retraction when pressure is applied to stack & platen air is on. -- (10) 12"; Dia. Neoprene-covered fabric air pods. -- (16) Return springs. -- Manual opening adjustment.Complete with: -- Operating, Servicing & Safety Instructions.Machine Dimensions: 148" x 72" x 108" H (at Max. Opening.)

BLACK BROTHERS APP 4012 4' x 12' End Loading Fixed Pressure Air Pod Press, with Manual Opening AdjustmentSpecifications: -- Platen size 50" x 146". -- Lower platen height 16". -- Opening size 4 - 60". -- Max. stroke 5". -- Distance between tie rods: 54" Width & 82" Length. -- Fixed air pressure 10 PSI.Equipped with: -- Lower platen, with Dual air-actuated roller tracks with 2-1/4"; Dia. x 3/4"; W rollers on 6"; centers & Automatic retraction when pressure is applied to stack & platen air is on. -- (10) 12"; Dia. Neoprene-covered fabric air pods. -- (16) Return springs. -- Manual opening adjustment.Machine Dimensions: 148" x 72" x 108" H (at Max. Opening.)

BLACK BROTHERS - APP 4016: 4' x 16' End Loading Fixed Pressure Air Pod Press, with Manual Opening AdjustmentSpecifications -- Platen size 50" x 194". -- Lower platen height: 16". -- Opening size: 4 - 60". -- Max. stroke: 5". -- Distance between tie rods: 54" Width & 64" length. -- Fixed air pressure: 10 PSI.Equipped with: -- Lower platen with Dual air-actuated roller tracks with: 2-1/4"; Dia. x 3/4"; W rollers on 6"; centers; automatic retraction when pressure is applied to stack & platen air is on. -- (12) 12"; Dia. Neoprene-covered fabric air pods. -- (24) Return springs. -- Manual opening adjustment.NOTE: Machine is palletized for shipping.Machine Dimensions: 199" x 72" x 108" H (at Max. Opening)Palletized Machine Dimensions: 199" x 50" x 54"; H

BLACK BROTHERS APP 4016 4' x 16' End Loading Fixed Pressure Air Pod Press, with Manual Opening AdjustmentSpecifications: -- Platen size 50" x 194". -- Lower platen height 16". -- Opening size 4 - 60". -- Max. stroke 5". -- Distance between tie rods: 54" Width & 64" Length. -- Fixed air pressure 10 PSI.Equipped with: -- Lower platen, with Dual air-actuated roller tracks with 2-1/4"; Dia. x 3/4"; W rollers on 6"; centers & Automatic retraction when pressure is applied to stack & platen air is on. -- (12) 12"; Dia. Neoprene-covered fabric air pods. -- (24) Return springs. -- Manual opening adjustment.Complete with: -- Operating, Servicing & Safety Instructions.Machine Dimensions: 199" x 72" x 108" H (at Max. Opening.)

BLACK BROTHERS APP 4016 4' x 16' End Loading Fixed Pressure Air Pod Press, with Manual Opening AdjustmentSpecifications: -- Platen size 50" x 194". -- Lower platen height 16". -- Opening size 4 - 60". -- Max. stroke 5". -- Distance between tie rods: 54" Width & 64" Length. -- Fixed air pressure 10 PSI.Equipped with: -- Lower platen, with Dual air-actuated roller tracks with 2-1/4"; Dia. x 3/4"; W rollers on 6"; centers & Automatic retraction when pressure is applied to stack & platen air is on. -- (12) 12"; Dia. Neoprene-covered fabric air pods. -- (24) Return springs. -- Manual opening adjustment.Machine Dimensions: 199" x 72" x 108" H (at Max. Opening.)
