IST (Industrial Surface Technologies) - AW 80, ...Industrial Washer with vibration.ISTpure's Stir Wash Tanks are designed to clean complex parts with an adjustable stirring platform for up to 100 stirrings per minute.Parts washers by stirring are very effective in thoroughly cleaning the surface and interior cavities of parts or batches of parts of any size.Simply load the parts into the tank through the opening in the top, set the cycle time and agitation speed Specifications: -- Tank capacity: 80 gallons -- Stirring System: Self-cleaning stirring platform with top loading that facilitates loading/unloading operations -- Adjustable Stirring Speed: Ranges from 0 to 100 stirrings per minute -- Pneumatic System: Operates at 120 psi pressure -- Inner tub made entirely of stainless steel components -- Included Attachment: Hand Wash Brush with Continuous Flow -- Standard Pump: Electric Motor -- Fluid Capacity 80 gallons -- Fluid Level 12" 17 1/2" -- Load Capacity 250 lbs 750 lbs --Overall Dimensions (D x W x H) 33" x 51 1/2" x 66 1/2" -- Interior Dimensions (D x W x H) 27 1/4" x 44 1/2" x 28" -- Tub Dimensions (D x W) 17 1/2" x 41 1/2" 27 3/4" X 54" -- Shipping Weight 556 lbs -- Compressed air required 8 cfm@ 120 p

IST (Industrial Surface Technologies) - PW 4, ...Industrial Pail Washer.Industrial Pail Washer is designed to wash the interior & exterior of open pails ranging from 1/4 to 5 gallons in size or other types of containers.An optional potholder can be used to hold smaller containers in place during washing. The PW is fully pneumatic, features all explosion proof components, and can be located in Class I, Division I hazardous areas. -- Heavy-Duty PW2 to PW12 solvent washers are made of industrial quality painted steel for durable use and trouble-free. An optional stainless steel finish is available to resist rusting and solvent spillsSpecifications: -- Capacity: (4) x 5 Gallons/19 Liter. -- Pump capacity: 46.2 GPM. -- Air Input: 75-100 PSI. -- Air Consumption: 40 CFM. -- OAL 67" x 45 1/2" x 72 3/8". -- Weight : 650 Lbs.

ITALPRESSE R4/130 Top Glue Spreader with 51" working width, -- max. 4" opening, 9" dia. grooved at 13 grooves per inch rubber spreading rolls, -- Rubberized doctor roll 7" diameter -- 65 FPM feed speed, 0.5 HP feed drive.

Italpress Matrix membrane-less press. See photos for specifications. Heating platen dimensions................................ 1,450 x 2,800 mm (57" x 110") Maximum useful lamination area........................1,250 x 2,600 mm (49" x 102") Maximum work piece thickness ......................... 43 mm (1.7") PVC foil width...................................................... 1,420 -1,450 mm (55.9" - 57") Maximum laminating pressure..............................200 metric tons (220 US tons) Maximum platen temperature................................ 150° C (302° F)

ITALPRESSE SP/1-A SPECIAL CASE CLAMP (AUTOMATIC FEED THROUGH): -- Specifications:Case goods capacity: 92" (2,340 mm) max. & 12" (300 mm) min. length; 48" (1,220 mm) max. & 10" (250 mm) min. height, 27.5" (700 mm) max. width. -- 10' (3,500 mm) Infeed belt conveyor, 14' (4,267 mm) overall belt length inside clamp & infeed, standard belt width 27.5" (700 mm); Feed speed 53 FPM with 0.5 HP drive. -- Complete automatic reading of the case size, fast approach action to reduce clamp cycle, (1) scissor on top & (1) scissor on each end close & clamp the case. -- Hydraulic actuated scissors with adjustable pressure up to 5,000 lbs, 3 KW hydraulic pump motor. -- Bottom & lateral intermediate locating bars from the top with pneumatic squaring; Intermediate side bars have electronic height positioning and are covered with PVC to prevent unwanted scratches. -- Clamp cycle is automatic with choice of three cycles (Manual, Semi-Auto & Automatic). Safety grid from rear and (6) electronic eyes from the front.

ITALPRESSE R4/160 Top & Bottom Glue Spreader Specifications: -- 63" working width, max. 3.5" opening, 7-1/4" dia. grooved rubber spreading rolls, -- 65 FPM feed speed, 0.5 HP feed drive.Also included: -- 1 New set of glue roller top/bottom.

ITALPRESSE - XL/6 30-13 120T: Veneer Hot PressPlaten Dimension: 3,000 mm x 1,300 mm (118" x 51"). Design allows loading from all (4) sides. -- 350 mm (13.8") Max. single daylight opening with infinitely variable stroke adjustment. -- (6) Hydraulic 85 mm dia. Chromium Plated upstroke cylinders. -- 120 Metric tons total pressure; 2.2 kW (3 HP) Hydraulic pump motor, dual stage & speed w/automatic pressure readjustment. -- Features a Rack & Pinion guide system made of self-lubricating material insures parallel closing of the platens. Equipped with: -- Patented, electrically heated platens w/automatic temperature adjustment; integrated electric heating system can heat up to 120°C max. platen temperature. Operating temperature 90° C. Power requirement: 19 kW (25 HP). -- Manual Open & Close or automatic open with adjustable cycle timer. -- Perimeter safety stop wire: On all (4) sides of Press; safety lockout for maintenance; safety circuit with 2-hand operation. -- Construction: Heavy I-beam; welded steel frame; cylinders have chromium plated steel pistons with Teflon bronze guides in cylinder.

J & P MACHINE - 4-RSDC: Pocket Hole Boring Machine Through-FeedPocket hole grooving & boring machine is ideal for making frames in kitchen, furniture and similar industries.Loading the hopper magazine holds: (25) Pieces of 3/4″ thick material.Machine operates automatically by: Feeding, stopping, clamping, grooving, and boring the material in (1) continuous operation.Specifications -- Fast setup for grooving & boring with: Precision mechanical indicators to the accuracy of 1/10 mm. -- (4) High Frequency router heads with drilling. -- Closes to a min.: 7″. -- Opens to a max.: 48″. -- Min. width: 1-1/2";. -- Max. width: 6″. -- (1 or 2) Grooves per side can be selected. -- High Frequency motors with: 1/2" Collets; adjustable from 12,000 - 18,000 RPM with electronic inverter. -- PLC Controls. -- Precision linear bearings in opening & closing base. -- Produces approx.: (10 – 15) Pieces/ per Min. -- Requires: (1) Operator. -- 440 Volts - 3-Phase. -- 90 PSI Air required. -- Dust Collector hoods. -- DIM: 90″ Long x 36″ wide x 55″ high. -- Weight: 2,000 Lbs (approx.). Also included: -- Dust hood (spider type).

J & P MACHINES 6V2HD2GC BORING MACH. (FEED THRU, DRAWER PARTS) -- SpecificationsDrawer part Boring Machine is ideal for small to medium size production: Drills approx. 15 parts/minute; 12" min. working length; 28" max. working length; 2" min. working width; 28" max. working width; hopper loading/belt feeding magazine for automatic (1-man) operation. -- (2) Horizontal boring units with: 5-Spindle drilling chucks on 32 mm centers; ea. with 2 HP - 3,600 RPM motors; (3) vertical boring units with: 5-Spindle drilling chucks on 32 mm centers; ea. with 2 HP - 3,600 RPM motors. -- Drilling heads travel on linear guides with: Manual digital counter adjustments;, manual digital counter boring depth adjustment; PLC control for cycle functions of the machine. -- Machine requires 100 PSI Air pressure; dimensions are approx. 55" long x 34" wide x 58" high; weight is approx. 1,300 Lbs.

125 HP 460 Volt 28” x 44” inlet 7” x 40” outlet hopper included as pictured

JENKINS - JSM, NC Controlled Shaper & MortiserNC Controlled with: (1) Shaper head with ATC (18) tools, (1) tenon head, and (1) mortising head.Machine Specifications: -- Total X-travel: 122". -- Y-Axis (useful zone-1 only): 8". -- Min. length rail: 4". -- Max. length rail (Zone 2, 3 only): 96". -- Min. width rail: 1-1/4". -- Max. width rail: 12". -- Min. stock thickness: 1/2". -- Max. stock thickness: 2-1/4". -- Max. arch height (Zone 1 only): 6".Spindles: -- (1) 10 HP - 12,000 RPM non-tilting Cope spindle. -- (1) 10 HP - 18,000 RPM non-tilting high-speed Tenon spindle. -- (1) 5 HP - 18,000 RPM non-tilting, high-speed Mortise spindle. -- Tool Changer Capacity: (18) Tools.Controls: -- Industrial PC: Base powered by NEXCOM PEAK "760VL2" all-in-one computer card, industrial-grade computer chassis, LCD color touchscreen. -- YASKAWA Model "V1000": Adjustable AC frequency drives. -- ALLEN-BRADLEY: AC Servo Plus drive model "Ultra 3000".Over all dimensions: -- 16-1/2' Length. -- 120" Width. -- Floor-to-top guarding: 55". -- Floor to tabletop: 37-1/2".

JET EHVS-80 6"; x 89" Non-Oscillating Horizontal/Vertical Edge SanderSpecifications: -- Table size 12-1/2"; x 37"; x 3/4"; Thick, Table tilt 0° - 90°. -- Platen size 7" x 34". -- Belt speed 3,900 SFPM.Equipped with: -- 6" x 89" Abrasive belt. -- 1-1/2 HP 3,600 RPM Direct drive motor.Palletized Dimensions: 50" x 31" x 44" H.

JET EHVS-80 EDGE SANDER (NON-OSCILLATING)(Single-Phase) ---Price Negotiable---Make an Offer!--- - 6” x 89" Non-Oscillating Horizontal/Vertical Edge Sander - Table size 12-1/2” x 37” x 3/4” Thick, Table tilt 0° - 90° - Platen size 7" x 34" - Belt speed 3,900 SFPM - 6" x 89" Abrasive belt - 1-1/2 HP 3,600 RPM Direct drive motor - Palletized Dimensions: 50" x 31" x 44" H

JT9-414483 Blade speed 82 - 330 fpm Blade 1/8 - 1/2” Motor 1 HP, 115/230V, 1Ph Dimensions 34 x 24 x 68” Table height 39” 20 x 20 Throat 14” Weight 634#

Jet J-2500 Drill Press Features: --3-1/8" stroke for deep hole applications -- Cast iron head -- Large ground steel column for maximum head and table support -- Telescoping safety spindle guard -- The enclosed spindle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracySpecifications: -- Capacity: 15" -- Motor: 3/4 HP -- Table Size (L x W) (In.) 11-1/2 x 11-1/2 -- Table Travel (In.) 24 -- Base Dimensions (In.) 11 x 19-1/2 -- Column Diameter (In.) 2-7/8 -- Distance Column to Spindle (In.) 7-1/2 -- Drilling Capacity Cast Iron (In.) 5/8 -- Drilling Capacity Mild Steel (In.) 1/2 -- Drills to Center of Circle (In.) 15 -- Number of Spindle Speeds 16 -- Range of Spindle Speeds (RPM) 200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630 -- Work Table Weight Capacity (Lbs.) 44

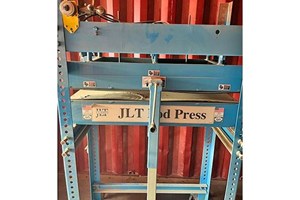

JLT CLAMPS 78H-12-42-40 Mini Pod PressSingle section 12" wide x 42" long cap., 40" max. opening, 13" daylight, 30 ton max.,clamping pressure at 120 PSI, Pod Press is powered by a total of (18) 20 square inch diaphragm cylinders, upper platen has a 2" stroke when air is activated.Features: Heavy duty upper and lower steel platens, single lever valve pneumatic operation with dial regulator pressure controls, stack multiple wood components up to 12" wide and ships pre-assembled. Includes: Manual jack for platen adjustment.

JLT Clamps 302-40-H-R DOOR AND PANEL CLAMP40" Capcity clamp (min 8-1/2") Patented Equalizer Design Provides Equal Clamping from the Front and Rear Jaws, Resulting in a Higher Quality Panel. #302 Style Clamp with Standard 3-1/2" High Jaws for Increased Durability and Less Clamps Per Glue Up.Also available with 36", 44" and 52" capacities.

JLT CLAMPS 180A-M2 Pneumatic Panel Flattener. -- Complete with; Air System and Docking attachment with 40" reach and up to 2-1/2" material thickness.Additional Thickness Capacities Available (4" & 6")...add $100

JLT CLAMPS 717C-CHBB Double Door Miter ClampAccurately clamp, square and adjust your miter joints with JLT large miter double door clamp. The “CH Big Boy"; Door Clamp has quick changeovers, protects MDF doors, has accurate corner pressure adjustment and with removable center bars. Specifications: -- Dial regulators: “Dial"; pressure A, B, C, D IN or OUT for adjustment of corners. -- Includes (2) vertical and (2) horizontal clamps. -- Maximum capacity: 38"; W x 96"; L. -- Installed center bar: (2) 30";W x 46";L. -- For use on stile and rail doors as well. -- Single lever valve air activation.

JLT CLAMPS 79F-M2-6-1R Single Row Panel ClampEdge Glue and Face Glue a variety of solid wood components. Produce 10+ edge glued panels per day with a Standard Setup. -- Taylor’s Patented and Successful Clamp Arm Design Features: -- 6' Single Row Panel Clamp level. -- Free Standing Unit with 500 lbs. Weight Capacity. -- 100% Complete Tubular Steel Construction. -- Complete 3 Year WarrantyIncludes: -- (6) 3 1/2″ High jaw 40″ Clamps. -- Optional 52″ Clamps Available on Request(Photo Is a Generic of Single Row Panel Clamps)
