Door Machines For Sale

COMEVA NICRON CNC Door Machining Center: Flexible Door Machining Center to machine Hinges, Locks, Grooves, etc. A device to allow machining of door jambs is an option available. Also vertical top router head with Automatic Tool Changer is available. See options below.Specifications: -- Max. door length, X-Axis 102.3" (2,600 mm). -- Max. door width, Y-Axis 47.2" (1,200 mm). -- Max. travel on Z-Axis 7.87" (200 mm)Working Heads: -- The machine is equipped with a (2) motors/heads 5 HP (3.5 kW) - 12,000 RPM each, routing/milling units: (1) vertical unit and (1) horizontal double spindle head.Working table: -- Table dimensions: 51.2" x 102,3" (1,300 x 2,600 mm). -- Manual table loading system with vacuum cup hold-down for the doors. For the optional jamb (door frame) table fixturing includes an air cylinder clamping system.Operator & Machine Control: -- Separate mobile control panel with powerful CNC to handle all the functions of the machine. -- Includes the unique COMEVA DOOR Software specially designed for machining of doors. It controls the movements of all axes, reference stops, vacuum zones and workgroups. It is user-friendly with macros(subroutines) for most of the hinges/locks on the market so operator can input the job parameters instead of complicated programs.Complete with: -- Users operator/maintenance manuals & back up disks.Engineered & Manufactured by COMEVA S.L, in Spain. - Stated price includes Machine (Jamb device not included), Software and Safety Barrier.Includes: Owner’s Manual with schematics; covered by a 1-Year Factory Warranty on parts.

COMEVA - NICRON DOOR C, ...CNC Door Machining Center with Automatic Tool Changer Flexible Door CNC Machining Center that can machine: Hinges, Locks, Door Face Patterns and many similar applications. A device to allow machining of door jambs on the same machine is an available option. See options below. -- Working Heads: -- (2) Heads; (1) Vertical with 12 HP (9 KW) - 12,000 RPM routing/milling units: and (1) Horizontal - double spindle (opposing spindles) unit, 5 HP (3.5 KW). -- Working table: Rails with suction cups holddown. -- Working area:: 43.3" x 125.98" (1,100 x 3,200 mm). -- Manual table loading system with vacuum cups for the doors. For the optional Jambs (door frame) table fixturing includes an air cylinder clamping system. Working Height is 220 mm (8.7"). -- Includes: Servomotors for gantry feed; 100 FPM (30 MPM.) axes locating movement with SI lineal guides; ( (4) Piston stops. Auto Lubrication system; Venturi for suction cups. Operator & Machine Control: -- Separate mobile control panel with powerful CNC to handle all the functions of the machine. -- Includes the unique COMEVA DOOR Software specially designed for machining of doors. It controls the movements of all axes, reference stops, vacuum zones, and workgroups. It is user-friendly with: Macros (subroutines) for most of the hinges/locks on the market so operator can input the job parameters instead of complicated programs. -- COMEVA DOOR PRO is additional CAD/CAM type software with capability to design your own CAD programs and post processor to load into machine. This software would be loaded on users own PC. -- Comes with: Owner’s Manual with schematics software disc/USB; covered by a 1-Year Factory Warranty on parts (Electrical components carry six months warranty). Also includes safety light/barrier meeting CE standards. -- OPTIONS: Increase door width capacity(Y-Axis) from 43.3" (1,100 mm) to 47.2" (1,200 mm) door width.. Also available with or without the door jamb fixture. With this device, the jambs are mounted on the same table and machined as a separate operation before or after the doors. -- This "new" model NICRON DOOR C is a similar machine (to NICRON DOOR, see DM-300044), but the vertical head is capable of working as an Automatic Tool Changer (ATC). A tool rack holding up to (6) different tools is added at the end of the worktable and is programmable via the same CNC controller. -- Machine dimensions 2100 x 3900 x 2100 mm (83" x 154" x 83"). Gross weight; 6450 Lbs (2,390 Kgs.). --Engineered & Manufactured by COMEVA S.L, in Spain.

COMEVA - NICRON DOOR PRO, ...CNC Door/Jamb Machining Center with Automatic Tool ChangerGantry style flexible Door CNC Machining Center which can machine Hinges, Locks, Grooves, Door Face Patterns and many similar applications. The advantage of this machine over the NICRON DOOR C is this model can also resize the doors and its ability to machine the top/bottom of doors with the 90° rotation feature. It also has a floating head for grooving designs on the door faces while compensating for uneven door surfaces. Specifications: -- Max. working area - door length on X-Axis is 118.1" (3,000 mm). Max. X-axis speed of 230 FPM (70 MPM). -- Max. door width on Y-Axis is 51.18" (1,300 mm). Max. Y-axis speed of 230 FPM (70 MPM). -- Max. travel on Z-Axis is 7.87" (200 mm). Max Z-axis speed of 98 FPM (30 MPM).Working Heads: -- The machine is equipped with: (1) 9 kW Vertical router head with a 5-position Automatic Tool Changer (ATC); (1) 3.5 kW Horizontal head with double-end output spindles and 0° - 90° rotation; (1) 3.5 kW Horizontal motor for the lock milling, and a 0.37 kW floating head motor for grooving patterns on the door face. All drives are powered by Servo motors, X- & Y-Axis movement are via Rack & Pinion; Z-movement is with a recirculating ball-shaft.Working table: -- Table work area is 51.1" x 118.1" (1,300 x 3,000 mm). Table equipped with: (2) Adjustable width bars and (6) suction cups Load wheels, regulated by (5) reference pistons that rise & fall to secure the workpieces. The bars have integral suction cups powered by a VENTURI vacuum system. To work with doors, the machine is equipped with stops and gaskets for securing the door. Stops are mobile, and they can be used to hold doors and other parts.Operator Control Panel/CNC: -- Floor-standing operator panel is mounted on casters and houses the PC & OSAI CNC control hardware. PC motherboard is an ''INTEL Atom" 1.6 GHz CPU, modular system that offers a solution for the control of Servo drives and distributed input/output modules in a digital field bus and integrated II/O's. The dual-axes gantry has a Velocity-Feed-Forward function (VFF) that tries to look ahead with 256 precalculated blocks. It also incorporates a firmness control (Jerk) of the axes through advanced algorithms as well as tool store management & tool life. Advanced NC control powered by OSAI which is set up to control the Interpolated axes and all machine functions.COMEVA Software: Specially developed COMEVA DOORS software allows the machining of the main designs of hinges and slots you may find all over the market, including the machining on the upper side/edge of the door. Software carries a series of predesigned macros that help the operator when performing the different operations, thus speeding up various job designs. The software carries out a special program of parametric macros for doors/door frames.Includes: -- Centralized machine lubrication system. Owner’s Manual with schematics software on USB

CORDES WEDGIT MODEL 30 Automatic Programmable Stair Wedge Cutter with PLC and coperator input display of parameters. Cuts wedges to fit your stairs automatically without an operator attending. This model was developed over (3) generations of improvement. Can change wedge angle and wedge thickness on-the-fly. Basic Operation: -- Operator selects the wedge length and board thickness parameters. Then he loads the riser board in the infeed hopper (linear back to back) and end of board stop is set, the run button is pressed, and the machine cuts notches automatically and continuously until the end of board stop, thus consumes entire boards with no left-over scrap. -- When board is finished the operator has the choice of repeating pitch, depth, and board length or changing parameters . Boards can be added to infeed without stopping/interrupting machine cutting.Specifications: -- Riser capacity approx. 4" - 12" by 1/4" to 1". Wedge lengths approx. 5" - 11". Saw motor 2 HP. PLC control with pneumatic power. Utilizes standard 10" saw blade with 5/8" bore. -- Features: The simple operation requires minimal operator training. Does not require programming, just parameter inputs. Operator chooses notch depth, notch pitch, and board length. High speed auto cutting. -- Note: machine will also cut Glue Sticks (no wedge), simple parameter change on PLCDimensions/Electrics: -- Foot print w/o overhang is 33" by 47", height w/cover down is 58" and weight is 500 Lbs. -- Electric Load is 15A @208-220V 1 PH; clean/dry 80 PSI of compressed air.

EMG Automatic Wedge Cutter. -- 3" Min. & 16" max. Wedge length, taper from 1/2" to 2" thickness, mixed in hopper; angle & width of wedge are fully adjustable, with one face at 90°. -- Equipped with: 10" Dia. saw blade with 2 HP direct-drive motor, hopper feeds material up to 16" long with a width up to 8"; air-operated with 6 CFM compressed air requirement, 1.8 Sec/stroke, 4-3/4" dust outlet. -- Features: Walk-away, "hands-free" operation. Auto-shutoff feature and capability to cut glued blocks. -- Note: This high-speed machine can produce up to 2,000 wedges per hour. -- Complete with Self-diagnostics, built-in starter, automatic shutoff, air filter & lubricator.

EMG Automatic Wedge Cutter -- 3" Min. & 16" max. wedge length; taper from: 1/2" - 2" Thickness; mixed in hopper; angle & width of wedge are fully adjustable; one face at 90°. -- Equipped with: 10" Dia. saw blade; 2 HP direct-drive motor; hopper feeds material up to: 16" Long up to 8" width; air-operated with: 6 CFM compressed air requirement; 1.8 Sec/stroke, 4-3/4" dust outlet. -- Features: Walkaway, "hands-free" operation; auto-shutoff feature; capability to cut glued blocks. -- NOTE: This high-speed machine can produce up to: 2,000 Wedges per hour. -- Complete with: Self-diagnostics; built-in starter; automatic shutoff; air filter; lubricator.

EMG SEMI-AUTOMATIC Twin Stair Trencher; 2" x 12" Max. stringer size, semi-automatic operation. The feed/indexing of boards is automated and the routers are moved manually for the stair cuts.Specifications: -- (2) 3 HP Belted motors to "top & bottom" 18,000 RPM spindles, 1-1/2" depth of plunge cut, T & B heads are arranged to advance in-and-out to facilitate open plain stairs. -- Pneumatic advance and twin table clamps each rated at over 2,000 Lbs.Features: -- Any rise and run, whether straight or tapered, can be achieved in just a few minutes of setup. Includes: -- Overload protection with on-control resets, individually timed motor startup with adjustable 2nd delay.NOTE: Available with CNC fully automatic operation. the top automated section is a bolt-on to the base of the semi-auto frame. Please ask for a Quote.

1996 NC Kval door lite machine.

Year: 1999 Fully automated door lite cutting system for high volume production. Equipped with: Handler automatic door loader draws from two door stacks, – DL-NCA programmable automatic door lite cutter – Dual heads for quick change between steel and fiberglass, – EP-1 automatic edge prep machine bores for latch and mortises faceplate pocket.

KVAL FACE CNC Entry Door Router/Drill/Mortiser for Architectural Doors.KVAL CNC and drill for mortise lock function holes, viewers and routed pockets necessary for exit devices and card locks. Features: -- Four PERSKE high frequency routers, (2) mounted above the door and (2) below. All holes larger than 3/8"; are routed either into the door face for half holes, or through both sides for through holes, with the bits almost touching in the middle of the bore. This eliminates any danger of tear-out on the door face. -- ATC for Router tooling. Axes/Drives X, Y, Z, U, V and W. GALIL Motion Controllers. -- Controller accepts many input parameters, for example: Locks Definition/Shape Definition; T-Strike; Cylindrical -Rectangular -Flushbolt. Face Lock Group: Face Hole, Face Rectangle, Face Special; DOORLITE Hole: Rectangle, Doorlite Special, Cylindrical for Architect or Commander . Machine foot print is 10' x 4' (crated dims 82"W x 178"L x 77"H). Ship weight 5,000 Lbs.

KVAL COMMANDER Pre-Hung Door Machine/Door Line. Automated Cylindrical Lock and Hinge Machine for Pre-Hanging Interior & Exterior Doors; for doors Up to 2-1/4" thick x 4' x 9'; Routes, makes a 3° bevel on one side of the door edge. -- Traveling hinge router stops at each collar on the index shaft and tilts into approx. 3-1/2" to 5-1/2" hinge pocket on square or bevel doors. -- Selector switch allows sequencing for (2 - 3 or 4) hinges, 1/4" or 5/8" corner radius, and door/jamb or door only machining. Turret stops determine hinge size. -- Hinge index bar with embedded scale can be interchanged with other pre-set index shafts for rapid hinge center adjustments, or collars can be adjusted along the scale. -- Heavy Duty lock section features 5 HP face bore, 3 HP latch bore and 1.5 HP plate router; adjustable for 2-1/4" - 5" back-sets with self-centering clamp system for faceplate & latch hole; plate router adjusts for square or beveled face plates up to 12" long. -- Jamb clamps front load for easy handling self-adjust; there is no jamb width limitation. -- This machine can produce 250 or more doors per shift, including lock prep and hinge mounting to the door and hinge jamb.

KVAL, INC. - THE COMMANDER: Door Line with KVAL 555: Door Sizer/Beveller. Used package consists of: -- KVAL COMMANDER Prehung Door Machining Center. -- NORFIELD Door Loader (Shared with adjacent NORFIELD 5000.5001/5002) -- KVAL 555 Door Sizer.NOTE: The following information/specifications are provided for reference & needs to be verified by Buyer prior to Purchase.Automatic Cylindrical Lock & Hinge Machine for: Prehanging interior & exterior Doors; for doors up to: 2-1/4" thick x 4' x 9'; routes & predrills for up to: (4) Radius hinges on bevel doors. -- Traveling hinge router stops: At each collar on the index shaft; tilts into dapp: 3-1/2" - 5-1/2" Hinge pocket on square or bevel doors. -- Microprocessor control allows: Selector switch sequencing for (2 - 3 or 4) hinges; 1/4" or 5/8" corner radius; door/jamb or door only machining.Turret stops determine hinge size. -- Hinge index bar with: Embedded scale can be interchanged with other preset index shafts for rapid hinge center adjustments; or collars can be adjusted along the scale. -- Heavy-Duty lock section features: 5 HP Face bore; 3 HP latch bore; 1-1/2 HP plate router; adjustable for 2-1/4" - 5" back-sets with: Self-centering clamp system for: Face plate & latch hole; plate router adjusts for square or beveled face plates up to 12" long. -- Jamb clamps front load for: Easy handling self-adjustment; there is no jamb width limitation. -- KVAL - 555 Door Sizer/Beveller. Single-sided feed through unit: (1) Vertical spindle with: 5 HP Main motor; spindle tiltable from: 0° - 3-1/2° for bevel edging of door; feed system with: Overhead feed rollers; fence line adjustable from: 12" - 48".NOTES -- All equipment as taken from service. -- Does not include: Setup, installation, or freight. - Available at additional cost. -- Photos describe the machinery as it was removed from service & not in reconditioned form. -- This equipment was installed adjacent to a Norfield 5000/5001/5002 sharing a common Norfield Loader. See DM-010596

NORFIELD - 5000 + 5100 + 5200 Package: Door Line. - Used NORFIELD Door Line includes: NORFIELD - 5000: Door Machining Center. NORFIELD - 5200: Automated Door Loader. NORFIELD - 5100: Assembly Center.NOTE: The following information/specifications are provided for reference and needs to be verified by Buyer prior to purchase. -- Door capacities: 1-1/2' to 3-1.5' Wide x from 6-1/2' to 7'-0" tall x from 1-3/8" to 1-3/4" thick. Jamb capacities: 2-1/2" to 10-1/2" wide x 6-1/2'" to 7'-0" tall x from 1/2" to 1-1/2" thick. -- For flush, stile, and rail; and louvered doors and: Flat, split, & rabbeted jambs. -- For lock: 2-3/8" & 2-3/4" backsets; hinge mortising for: 3-1/2" x 3-1/2" & 4" x 4" x 5/8" Radius; faceplate router up to: 1-1/4" x 2-3/4"; hinge radius of: 5/8"; hinge pattern adjustable from: 29" - 33" center-to-center. -- Machining cycle: Under (30) seconds. -- Door clamps up: Eliminating changeover for interior & exterior doors. -- Lock drilling from underside of door enables operator to: View exit cut & provide quality control. -- Automatic butt routing system with: Chip breaker for clean mortising. - Automatic changeover: Between 3-1/2" x 3-1/2" & 4" x 4" hinge mortising. -- Automatic lock machining; drills for lock & latch and routes for the faceplate in: (1) Cycle; centrally located electrical panel provide: Safe & easy operation. -- Automatic changeover for: Interior & exterior doors; eliminates adjustment time. -- Microprocessor technology: Minimizes maintenance downtime. -- 6 CFM @ 90 PSI; 1,900 CFM @ 8" Dust outlet.NOTES: -- All equipment as taken from service. -- Does not include: Setup or installation; freight. - Available at additional cost. -- Photos describe the machinery as it was removed from service and not in reconditioned form. -- This equipment was installed adjacent to a KVAL COMMANDER Door Machine and kval 555 Door Sizer/Beveller and shared with a Norfield Door Loader. See DM-010597

NORFIELD - 250-M: Strike Router -- Strike Router capacity: 9' Length x 1-5/8" thickness cap.; infinite width; mortising plate & bolt relief in: (1) Continuous operation. -- 1-1/2 HP Router: Processes any strike up to 4-7/8" long, including T-strike. -- Rectangular relief leaves more wood in jamb for greater strength and more professional appearance.

Prefilematic EZ-754 4-Station Shape & Sand Machine Seller’s Specification - 4 station shape sander - Station #1 – Shaper - Station #2 & #3 – Flexible Belt Sanding w/ felt “heads” - Station #4 – Spindle Sander - Specification – - 6? Chain Drive with non-marking rubber top pads traveling on a hardened and ground precision dia. 5/8? round rods. - Top Pressure Beam Driven - Heavy Duty fabricated transporter frame - Forward and reverse mode and block mode for creating tools - Precision X & Y mounting stands - 60° rotating tilt on mounting stands with positive lock

QUICK '6-SECTION HEAVY DUTY-P CLAMP CARRIER (Pneumatic). -- Overall Data: Heavy Duty 16.5' wide (16.5' maximum stock length capacity), 6-section Thick Stock Pneumatic Clamp Carrier with (72) 3.5" high, 40" opening clamps; (12) clamps per section. -- Includes: Pneumatic Clamp Tightener, Pneumatic Panel Flattener, Electric Motor Drive with Automatic Rotation Cycle. -- Major Parts & Components list as follows:Qty Part# Description Each Total (1) A-CCFP-16.5-06 CC Frame Pneumatic, 16.5' wide, 6 Sect. $9,900.00 $9,900.00(72) B-CLMP-3.5-40 Clamp, 3.5" high jaw, 40" opening 82.00 5,904.00(1) C-PCT1-16.5-06 Pneumatic Clamp Tightener, 16.5' wide, for 6-sect. CC 4,450.00 4,450.00(1) D-PPF1-16.5 Pneumatic Panel Flattener, 16.5' wide 2,200.00 2,200.00 (1) E-EMDR-06-16.5 Electric Motor Drive for 6 Sect. CC, 16.5' wide, #135 2,450.00 2,450.00 TOTAL ..................................................................................................................................... $ 24,904.00.OPTIONAL(24) B-CLMP-3.5-40 Clamp, 3.5" high jaw, 40" opening 82.00 $1,968.00 -- Note: Lead time is about (8 - 10) weeks.

1' x 10' pressing capacity via (10) 1' x 1' platens. Pod Press produces 78,000 lbs. total platen force (7,800 lbs. per platen) at 120 PSI supply air pressure; suitable for lighter-duty (high-pressure laminates to composite substrates) and heavier-duty (wood veneering) applications. 40" fixed daylight; vertical structural frame members and hinged containment fences arrangement for end-loading and side loading the press. -- Horizontally-adjustable vertical containment fences keep laminated material from sliding while under pressure. (10) 10"" maximum diameter air pods with 5" stroke; each air pod with separate hand-operated air valve; each air pod / platen activates individually. Main air valve controls all "activated" air pods at once; various pods are controlled together, or each pod can be controlled separately. -- NOTE: Special Press configuration for use in stile and rail entry and passage door operations.

TRIAD/RUVO/MERRICK MACHINE SSR CNC 'Smart Stair Router' with new PC, CNC controller and software.CNC Controlled Stair Trencher for 2" x 10" or 2" x 12" max. stringer size. -- Operation: Automatic operation by entering the parameters of the stringer on the touch screen and press the RUN button and the SSR will do the rest. -- Routers: (2) Heavy duty 2 HP Belted routers with 1/2" collet. Will cut the top or the bottom stringer only or both stringers simultaneously with the specified profile, it will automatically index the material the proper distance. -- Capability: Can accommodate standard stair profiles, no rise profiles and split stringer configuration, closed/open stringer; User configured hard or soft wood selections automatically adjust the router feed rate to maximize performance. Features: -- (2) Stepper-motors powering (2) linear actuators for cutting stair profile. -- Same stepper/actuators will move the board along indexed for macining subsequesnt steps -- 628 Lbs Vertical clamp and 352 Lbs pressure horizontal clamp. -- Tread 8" to 12-1/2"; Riser 5-1/2" to 9"; Nose clearance 1/2" to 3"; Nose extension 1/2" to 2"; tread thickness 1" to 1 3/4"; stringer material 2" x 10", 2" x 12", 3/4" x 10", 3/4" x 12". -- No riser menu selectable. -- Bit size: 7/8" Dia. straight flute RH or LH. Comes With: 'WIN 11' DELL compact PC mounted inside the main control panel; CENTROID/ACORN step and direction CNC control system w/built-in motion control CPU kit. Touch screen display/keyboard/mouse. Hand-Held remote control. Currently setup to program any jobs via G-Codes. An end user can also add a CAD/CAM software with post processor which will allow programming jobs from office.

RUVO 505, ...Prehung Door Machine.Handles a wide range of door, jamb, and hinge sizes. - Bevels doors and door hinges. - Designed for efficient handling and operation. - Fast, accurate hinge and lock backset adjustment. - Residential, Commercial, Architectural, and Labeled Fire Doors.Features: Heavy duty powered 3° beveler/sizer. Routers to ease door edges. Accurate target scales. The 4-hinge and jamb route location changes fast and precisely. A similar system for the backset on hinges & locks. Provision for single and double-belled doors. Controls interlocked by a PLC. Auto door sizing is fast to adjust the lifter bar by digital input and servo control. Reliable, long-lasting non-contact sensors. Fast push-pull controls with a friendly touchscreen HMI. Hinge screw gun and pre-drill included.Technical Details: Max Door Height: 6’ - 9’ or ADA Specs 6’ - 8’. -- Door Width: 1'-6"’ to 4’. -- Door Thickness: 1-3/8"; to 2-1/4. -- Jamb Size and Styles: Up to 1-1/4"; x 10";, all styles. -- Number of hinges: Up to (4); Hinge Size: 3-1/2" to 5";; Hinge Radius 1/4" to 5/8". -- Hinge Backset: Scaled as required -- Lock Bore Sizes: 2-1/8"; Standard. -- Lock bore Backset: Scaled to 5";. -- Lock Bore Latch plate: Up to 1-1/4"; x 8";.Machine Size: 18’ x 3’ x 7’; Approx. Machine Weight: 3,200 Lbs; Electrical: 4-Wire, 230/3/60 and draws 25 Amps. Requires a 1/2" airline using 40 CFM @ 90 PSI.Options Include: -- Built-In Power Beveler Vacuum System......$ Please call. -- Screw Driver............................................... Included. -- Pre-Drill Kit.................................................. Included -- Digital Readout ..........................................$ Please call.RUVO 512, ...Heavy Duty Strike Jamb Mortising Machine.For Jam Sizes up to 1-1/4"; x 9"; x 10";. Strike Plate mortise to 6";. Compliments Jamb Preparation of the RUVO 505 and 405. Operated by one worker.Unit Includes: -- Adjustable Jamb Stops. -- Heavy Duty Construction. -- Foot Pedal Actuated Clamp. -- 120 Volt, 1-Phase, 20 Amps. -- 1/2" Airline needs 0.5 CFM @ 100 PSI. -- 1.5 HP Router.@ 23,000 RPM. Additional Cost for the RUVO 512 above ...$Please call.Material Handling for the Line:Loading Device..........................................$ Please call.Unloading Device.......................................$ Please call.

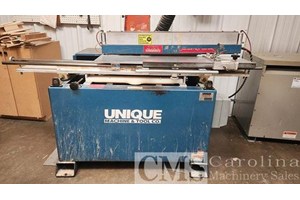

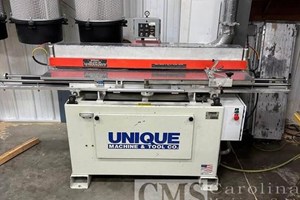

Unique 250 MC Raised Panel Door Machine Seller’s Specfication: - Cathedral and Crown Patterns Included - 50? capacity - 5HP main motor - 1-1/4? stackable mliti-cutter spindle to stile/ rail and raised panel profiles - Puch button preset indexing at each station, table w/ pneumatic hold-downs - 2-axis linear movements for straight or cathedral top doors and dust collector hood
