Huge 20" x 20" capacity on this Fast Track resaw, Equipped with 5" wide bandsaw blade, 50 HP motor with new bearings, extra blades included. Available for inspection. Photos show blade wheel guard assembly on ground. It was removed for transport and is included.
Equipment Location:Tompkinsville, KY
Sawmill Pallet Machine
971-271-8070
|
|
S O L D
The HBR-300 features hydraulic wheel tensioning, inverter feed drive, powerful 30hp main motor, oil mist cooling system, and automatic electronic digital blade height setup. This machine is in excellent used condition and mechanically sound.
Maximum material size 300 mm X 300 mm (12" x 12")
Saw wheel motor: 30 hp
Dust hood outlet diameter: 100 mm x 2 (4"x 2")
Feeding motor: 1 hp with inverter
Distance from blade to conveyor: 2-270 mm (5/64" - 10 5/8")
Saw blade width: 50 mm (2")
Saw blade length: 4980 mm (196")
Saw blade speed: 25.4 M/s
Conveyor belt size: 270 mm x 4200 mm (11" x 165")
Feed speed (variable): 0-30 M/min (0-100 ft/min)
Feed Conveyor Tilt: 30 Degrees
Conveyor height from floor: 1016 mm (40")
Saw wheel diameter: 700 mm (28")
Blade lift servo motor: 0.5 hp
Equipment Location:Sterrett, AL
Smith Companies
205-620-4455 ext:111
|
|

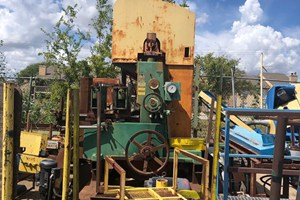

McDonough 62" Horizontal Resaw System Includes Resaw,Cab w/Setworks, Electrical, Complete Runaround Conveyors, Infeeds & Outfeeds, Ready to Run.
Set Up for Long Lumber & Bridgemat Production. Where cutting up to 40' Lengths.
Equipment Location:Clarksburg, TN
LPS Equipment & Acquisition Co.
731-986-4351
|
|
"What makes 'em tick" is the motto for our resaws! The original floating head resaw creates better accuracy, max log yields, and trouble free continuous production! Feed Belt Frame 4x6 tube with formed steel, Return Conveyor is formed steel, Return Transfer Chain 4x6 tube with 80 chain, Feed Transfer Chain 4x6 Tube with 80 chain, Setworks is Frick design with offset bolts for adjustable stops
Equipment Location:Centerville, PA
A.G. TruCut, LLC
814-694-2192
|
|
BAKER ABXX 40 HP Resaw, 12" H x 16" WSingle-Head Band Resaw can be used to cut boards, cants, or reclaim slabs, This Resaw can process a Timber up to 12" H x 16 W" in any desired length. Hydraulic variable speed from 0 - 95 FPM. -- This Model "ABXX" Resaw covers a large range of applications from small to large facilities, they are simple to operate and maintain with few moving parts and few adjustments. -- Complete With: 40 HP Electric Motor, 28" all-steel band wheels, 14'10" x 1" x 0.035" band saw blade, BAKER's exclusive Low-Profile Flat Guide System, spring blade tensioning and heavy duty construction. -- Included: Hydraulic infeed hold-down, extra wide hold-down wheel system.
Equipment Location:MIDWEST
Jim Reedy
800-374-5009 ext:455
|
|
2-Head, 30 HP TEFC motor, hydraulically driven feed from head motor, feed speed from 20 - 120 FPM, feed works with 12" wide rough top belt conveyor on self-centering rollers, and holddown wheel. -- Mechanical spring blade tensioning, 0.035" x 1" x 13-1/6' blades, 0.072" kerf. -- Baker flat guides for higher production, accuracy & extended blade life.
Equipment Location:MIDWEST
Jim Reedy
800-374-5009 ext:455
|
|
4-Head Re-Saw, each head equipped with a separate 30 HP TEFC motor and 3-sided feed works with: Rough-top belting, powered side feed rollers, non-powered hold-over wheels. -- Fully variable 20 - 120 FPM feed speed. The system is perfectly suited for resawing squares, and 3-sided cants into various thickness of lumber. -- Equipped with: Roughtop conveyor belt, powered side feed rollers, and non-powered holddown wheels, return conveyor, and air blade tensioning. -- Specifications: 12" Cutting height x 12 wide, uses 0.035" x 1" x 13'-2" band blades, creates less 1/16" kerf; 4" diameter, 500 CFM saw dust outlet per head recommended. -- Completely pre-wired with NEMA 12 enclosure with starter, disconnect and overload protection, and start/stop stations. -- Feedworks/Conveyor Hydraulic Motor driven by main motor. -- Features include: Air tensioning system; blade height adjustments can be made quickly via hand crank; Low-profile flat guides for maximum accuracy. 28" Dia. all-steel band wheels, with crown. -- Material is firmly held in place during the entire cut - the only continuous feedworks on the market today!
Equipment Location:MIDWEST
Jim Reedy
800-374-5009 ext:455
|
|
Product No. 4698

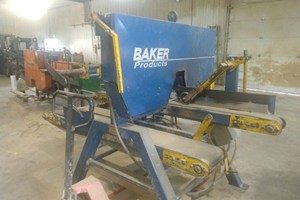

Baker B Resaw
Double Head
All Electric
With Return
240v 3ph
REDUCED
PRICE: $17500
Machine Type: Resaw Horizontal
Manufacturer: Baker
Model: B
Year:
Machine Location: Mid West
Equipment Location:Mid West
Mitch Stevens
828-773-6986
|
|
Baker single head band resaw w/20 hp. electric motor.
Equipment Location:Clarksburg, TN
LPS Equipment & Acquisition Co.
731-986-4351
|
|
BAKER 3 HEAD MDL BBR-O S/N 95-1256
Equipment Location:Clarksburg, TN
LPS Equipment & Acquisition Co.
731-986-4351
|
|

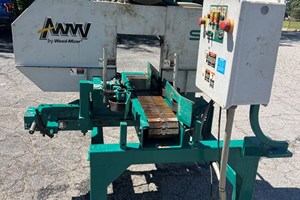

Band Saw. This machine is a Woodmizer 6-head bandsaw with runaround.
Item #C701
Equipment Location:Sturgeon Lake, MN
|
|
BAKER D Thin Kerf Horizontal ReSawWith a resawing capacity of 16" x 16". -- Saw is driven by a 40 HP motor; 10 HP feed motor from 10 - 60 FPM, variable speed controller. -- Dynamically balanced CNC machined solid steel wheels, 36" diameter. Wide, powered steel holddown rollers over 16" wide infeed belt. -- Hydraulically powered feed works driven by 10 HP unit with flow control valve and stop start controls. -- Band blade dimensions: 18'-5" x 1-1/4" x 0.035" tensioned and supported by BAKER low profile flat guides with steel plates. Tensioning in conjunction with hydraulic unit. -- Includes: 8 ' Extended Outfeed Conveyor and Frame Length.Note: Outfeed Conveyor is Removable.
Equipment Location:MIDWEST
Jim Reedy
800-374-5009 ext:455
|
|
BAKER BPQ-0 Single-Head Resaw -- Specifications: 20 HP TEFC Motor, 8" x 12" max. cap. -- Gear-driven feed from head motor, 0 - 120 FPM electronically controlled via frequency drive. -- Feed works with 6" wide rough top belt conveyor on self-centering rollers combined with holddown wheel. -- Equipped with: 28" Wheel dia., 0.035" x 1" x 13-1/6' blade size, 0.072" kerf, mechanical spring blade tensioning; BAKER's "Octaguide System" to reduce guide wear by up to (8) times as compared to conventional guide system.
Equipment Location:MIDWEST
Jim Reedy
800-374-5009 ext:455
|
|
BAKER BBR-O Horizontal Band Resaw. -- Equipped with: 12" Baker Single Head Re-Saw with 12" wide x 12" high capacity; 20 HP TEFC, 22 KW TEFC 3 Ph electric motor. -- 28" CNC machined dynamically balanced all steel band wheels -- Features: Spring blade tensioning system; fully variable speed from 20-120 FPM controlled by a hydraulic flow valve. -- Complete with: 12 wide rough top conveyor belt.
Equipment Location:MIDWEST
Jim Reedy
800-374-5009 ext:455
|
|
BAKER BBR-O Horizontal Band Resaw w/Powered Return12" Baker Single Head Re-Saw with 12" wide x 12" high cap.;Specifications: -- 1/4" - 4" Cutting height; 20 HP TEFC saw motor. -- 28" CNC machined dynamically balanced all steel band wheels. Spring blade tensioning system. Feed System: -- Powered infeed belt tilts 0° - 10°, variable speed from 20 - 120 FPM controlled by a hydraulic flow valve. -- Complete with: 12" Wide rough top conveyor belting with powered top hold down; powered return conveyor; 4" dust outlet (500 CFM).
Equipment Location:MIDWEST
Jim Reedy
800-374-5009 ext:455
|
|
BAKER A Single-Head Resaw -- Specifications: Max. 7" x 7" timber cap w/Slide Return; hydraulic variable feed speed rate 0 - 120 FPM; 6" Wide rough-top belted infeed conveyor for easy-to-produce lap siding. -- Few moving parts and few adjustments for quick mastery. -- Equipped with: 20 HP Electric motor, 28" dia, CNC machined all wteel band wheels; 1" or 1-1/4" x 13' - 2" x 0.035" hardback band blades; optional Diesel or Gasoline engines available. -- Includes: Operations manual, parts list & tool kit.
Equipment Location:MIDWEST
Jim Reedy
800-374-5009 ext:455
|
|
S O L D
Product No. 876
Compact Design
230/460 Volt
(2) 40 Hp Motors
4 Cuts Per Pass
6" Wide Capacity
Hyd Power Rollers
Spare Parts
PRICE: $8900
Machine Type: Resaw Horizontal
Manufacturer: Baker
Model: Bang Saw
Year: 1999
Machine Location: South East
Equipment Location:South East
Keith Comeau
704-929-9122
|
|
Baker Model C Multi-Head Resaw
Product No. 4927
Baker Model C Multi-Head Resaw
2017
New Machine
Never Used
Original Paperwork And Invoice Available
480v 3 Phase 60 HZ
5 Head
28" Band Wheels
20 HP TEFC Motors For Heads
7.5 HP Hydraulic Unit With Tank And Cooler
Hydraulic Three Sided Feed Works
NEMA 12 Panel With Starters And Disconnect
Pedestal Mounted Remote Start & Stop Station
Powered Return Conveyour
price: $66000
Machine Type: Resaw Horizontal
Manufacturer: Baker
Model: Model C Multi-Head
Year: 2017
Machine Location: South
Equipment Location:South
|
|
BREWCO B-800 Bandsaw (Horizontal Resaw) 2-Head Re-SawHeavy Duty with working dimensions: 8" x 8" x 21" to 72" length.. -- Motors: 40 HP on each saw head with each head incorporates a fixed height conveyor and precision individual blade height adjustments. -- Feed drive: 5 HP hydraulic motors with feed speeds up to 150 FPM. Powered Rough Top Belt with powered top rollers provides positive stock feed. . -- Blades: 2" wide x 20' 4" long blade dimensions generates significantly less sawdust yielding more lumber. Spring tensioning blade system. Dynamically balanced 40" steel band wheels. Specifications subject to verification.
Equipment Location:SOUTH
Jim Reedy
800-374-5009 ext:455
|
|
BREWCO MDL BSBH SUPER BAND 4 HEAD BAND RESAW W/20HP ON EACH HEAD; S/N SB4B414
Return available with it.
Equipment Location:Clarksburg, TN
LPS Equipment & Acquisition Co.
731-986-4351
|
