Equipment For Sale

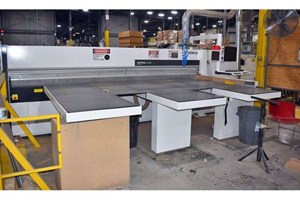

HOLZMA - HPP 350 38/38: Front Load Automatic Panel Saw -- Specifications149.6" (3,800 mm) Cut length; 3.7" (93.98 mm) saw blade projection. 28 HP (13.5 kW) Main saw motor; 3 HP (2.2 kW) scoring motor; scoring saw adjustment from "CADMATIC 4.0" control. -- Saw CarriageTravel speed: 16 - 492 FPM (5 - 150 MPM); constant return 492 FPM (150 MPM). Forward speed: 82 to 295 FPM (24 - 90 MPM); Return speed: 295 FPM (90 MPM). -- Operator InterfaceHOLZMA "Power Control 22" with: "CADMATIC 4.0 PROFESSIONAL" + "Windows XP" operating system. Virtually unlimited cutting dimensions memory.TFT 19" flat Touchscreen monitor, REAL-TIME moving graphics; panel grooving & numeric display.Industrial keyboard; 1.44 MB Floppy & CD ROM drives; capable of online operation via RS 232 or USB port for possible link to office PC. -- Complete with: Automatic "CENTRIC" side aligner with: Front & rear forks holding ripped strips squarely against the right angle fence.(3) Front air floatation tables. -- Actual model - HOLZMA HPP 300 38/38.

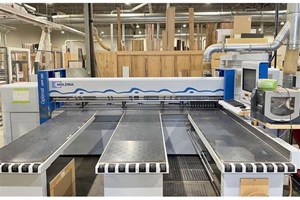

Holzma OPT.HpPS81/38 Panel Saw

HOLZMA - HPP 350 31/31: Front Load, Automatic Panel Saw -- Specifications122" (3,100 mm) Cut length; 122" (3,100 mm) pull back; 3" (80 mm) saw blade projection.18 HP (13.5 kW) Main saw motor; 3 HP (2.2 kW) scoring motor; scoring saw adjustment from the "CADMATIC 4.0" control. -- Saw CarriageTravel speed: 16 - 426 FPM (5 - 130 MPM); Constant return: 426 FPM (130 MPM). -- Pusher FenceElectronically controlled overhead program fence with: (6) Gripper clamps; clamps open up to 90 mm (3-1/2").Rack & Pinion drive on both sides; forward speed: 82 to 262 FPM (24 - 80 MPM); Return speed: 262 FPM (80 MPM). -- Operator InterfaceHOLZMA Power Control with: "CADMATIC 4.0" + "Windows XP" Operating System; virtually unlimited cutting dimensions memory.17" TFT Flat screen monitor; REAL-TIME moving graphics; panel grooving & numeric display.Industrial keyboard, 1.44 MB Floppy & DVD R/W drives; capable of online operation via RS 232 or USB port for possible link to office PC. -- Complete with: Automatic "CENTRIC" side aligner with: Front & rear forks holding ripped strips squarely against the right angle fence.(1) Front air floatation tables: 86" x 25" (2,160 mm x 650 mm); (2) front air floatation tables: 69" x 25" (1.760 mm x 650 mm); rear support rails with non-marking rollers. -- Options Include: ZEBRA "Z4M" Plus thermal label printer; (4) sets main/scoring blades; miscellaneous spare parts. -- Actual model: HOLZMA HPP 350 31/31

HOLZMA HPP 350 31/31 FRONT LOAD, AUTOMATIC PANEL SAWSpecifications: -- 122" (3,100 mm) cut length; 3" (80 mm) main saw blade projection; 18 HP main saw motor and 3 HP (2.2 kW) scoring motor; scoring saw adjustment is from the "CADMATIC 4.0" control. -- Saw carriage: -- Travel speed from 16 - 426 FPM (5 - 130 MPM), constant return of 426 FPM (130 MPM). -- Pusher Fence: -- Overhead program fence with (6) gripper clamps, clamps open up to 90 mm (3.5"); rack & pinion drive on both sides; forward speed from 82 to 262 FPM (24 - 80 MPM), return speed of 262 FPM (80 MPM). -- Operator & Machine Control: -- HOLZMA Power Control with "CADMATIC 4.0" + "Windows XP" operating system; virtually unlimited cutting dimensions memory; TFT 17" flat screen monitor, REAL-TIME moving graphics; panel grooving & numeric display; industrial keyboard, 1.44MB Floppy & CD ROM drives, capable of online operation via RS 232 or USB port for possible link to office PC. -- Complete with: -- Automatic "CENTRIC" side aliginer with front & rear forks holding ripped strips squarely against the right angle fence. -- (3) Front air floatation tables 86" x 25" (2,160 mm x 650 mm). -- Includes: -- An air conditioning unit is activated when the temperature goes above 35 degrees C.

HOLZMA PROFIMAT HPL 500 38/16 REAR LOAD, AUTOMATIC PANEL SAW: -- Specifications: 149.6" (3,800 mm) Cutting length & pull-back; 6.7" (170 mm) max. main blade projection; 40 HP (29.8 kW) Main & 3 HP (2.2 kW) scoring motor. -- Saw carriage: Infinitely variable speed from 0 - 492 FPM (0 - 150 MPM), constant return of 492 FPM (150 MPM).Carriage is electronically & automatically controlled (cutting height & length) through the CADmatic according to the material/program being processed."Power-Loc" quick change system for fast and easy saw blade change.NC Controlled scoring saw adjustment from the control panel during operation -- Pusher Fence:Rack & pinion digital drives with AC Servos on both sides, forward speed 295 FPM (90 MPM), return speed 295 FPM (90 MPM).(7) Material clamps which open up to 6.7" (170 mm): (3) Standard clamps with two fingers & (4) clamps with one finger.(4) Trimming rakes for thin strips/scrap removal are attached at the clamps. -- Operator Interface:HOLZMA "Power Touch Control" IPC multi-tasking controller with Windows "7 PRO" + "CADmatic 4.0 PRACTIVE" operating system;Intel i5 Dual-core Processor, Intel HD graphics card, 4GB RAM, SATA 2-250GB hard drive, (6) USB ports, (1) serial port, ATI/DVI video port, Standard industrial keyboard connection,21.5" LCD "Touch-Screen" monitor with real-time moving 2D & 3D graphics (displays cutting dimensions & error diagnostic); virtually unlimited cutting dimension memory.(2) Ethernet 10/100 interface connections; downloading from office PC is possible. -- Rear of machine: Profile rails & "Combi-rollers" at 50 mm centers; (2) integrated front & cross-aligning units before cutting to prevent off-set panels within the same book. -- Front of machine: (3) Air flotation tables 85" x 31.5" (2,160 x 800 mm) with (1) central blower unit. -- Rear Lift Table:7-Ton (14,000 LBS), 4-Column electro-hydraulic powered rear lift table running lengthwise with fork cut-outs, 150" x 63" (3,800 x 1,600 mm) capacity. Powered rollers are 4.2" (107 mm) dia x 7.79" (198 mm) spacing, 39 FPM (12 MPM) infeed/outfeed speed; Feeding material from (3) sides is possible with additional roller conveyors.22" (560 mm) Max. bunk height from floor level; 30.7" (780 mm) max. bunk height with a pit or risers; -- Complete With: Holzma's Unique "EcoPlus" System offers energy savings up to 20%; Includes Standby button & IE3 energy efficiency Motors rating.Angular cross-cut fence; Automatic side pressure device integrated into the saw carriage for cross-cutting, the machine cuts left to right to the cross-cut fence.Front & rear forks electronically & automatically controlled through the CADmatic according to the material/program being processed.Min. side aligning dimension 0" (0 mm), max. side aligning dimension 149" (3,800 mm)."Power-Loc" quick blade change system for main/scoring blades. -- Options Include: (1) Non-Powered in/out-feed staging conveyor with fork cut-outs as pictured. Micro In-feed for thin an

HOLZMA - HPP 380 32/32: Front Load Automatic Panel SawSpecifications -- 126" (3,200 mm) Rip cutting capacity & pull back; 3.74" (95 mm) saw blade projection.18 HP (13.5 kW) Main saw motor and 3 HP (2.2 kW) scoring motor; scoring saw adjustment via "CADMATIC" control. -- Saw CarriageVariable saw carriage travel speed from: 16 - 426 FPM (5 - 130 MPM); constant return: 426 FPM (130 MPM). -- Pusher FenceElectronically controlled overhead program fence; equipped with: (6) Clamps that open up to 100 mm (3.9").Rack & Pinion driven on both sides; forward speed: 262 FPM (80 MPM); return speed: 262 FPM (80 MPM). -- Operator InterfaceHOLZMA Power Control with "CADMATIC" + "Windows XP" Operating System; virtually unlimited cutting dimensions memory.TFT 17" Flat Screen monitor, REAL-TIME moving graphics; panel grooving & numeric display.Industrial keyboard; 1.44 MB Floppy & DVD R/W drives; capable of online operation via RS 232 or USB port for possible link to an office PC. -- Complete with:Automatic "CENTRIC" side aligner with front & rear forks; holding ripped strips squarely against the right-angle fence.(3) Front air flotation tables; 67" x 25" (1,700 mm x 650 mm). Rear support rails with nonmarking roller modules. -- Options include:Label Printer as pictured & label printing software. -- Actual model is HOLZMA HPP 380 32/32.

HOLZMA - HPP 350 38/38: Front Load Automatic Panel Saw -- Specifications149.6" (3,800 mm) Cut length; 145.7" (3,700 mm) pull back; 3" (80 mm) saw blade projection. 18 HP (13.5 kW) Main saw motor; 3 HP (2.2 kW) scoring motor; scoring saw adjustment from "CADMATIC 4.0" control. -- Saw CarriageTravel speed: 16 - 492 FPM (5 - 150 MPM); constant return: 492 FPM (150 MPM). -- Pusher FenceOverhead program fence with: (7) Gripper clamps; clamps open up to 90 mm (3-1/2"); rack & pinion drive on both sides.Forward speed: 82 to 295 FPM (24 - 90 MPM); return speed: 295 FPM (90 MPM). -- Operator InterfaceHOLZMA "Power Control 22" with: "CADMATIC 4.0 PROFESSIONAL" + "Windows XP" operating system. Virtually unlimited cutting dimensions memory.TFT 19" flat Touchscreen monitor, REAL-TIME moving graphics; panel grooving & numeric display.Industrial keyboard; 1.44 MB Floppy & CD ROM drives; capable of online operation via RS 232 or USB port for possible link to office PC. -- Complete with: Automatic "CENTRIC" side aligner with front & rear forks holding ripped strips squarely against the right angle fence.(3) Front air floatation tables: 85" x 31.-1/2 (2,160 mm x 800 mm). -- Options Include:Label Printer as pictured. -- Actual model - HOLZMA HPP 350 38/38.

HOLZMA - Optimat HPP 350 31/31: Front Load Automatic Panel SawSpecifications -- 122" (3,100 mm) Cut length; 122" (3,100 mm) pull back; (80 mm) main saw blade projection; 12 HP (9 kW) main saw motor; 3 HP (2.2 kW) scoring motor; scoring saw adjustment from the "CADMATIC 4.0" control. Saw Carriage --Travel speed from: 16 - 426 FPM (5 - 130 MPM); constant return: 426 FPM (130 MPM). Pusher Fence -- Overhead program fence with: (6) Gripper clamps; clamps open up to 90 mm (3-1/2"); rack & pinion drive on both sides; forward speed from 82 - 262 FPM (24 - 80 MPM); return speed: 262 FPM (80 MPM). Operator & Machine Control -- HOLZMA Power Control with: "CADMATIC 4.0" + "Windows XP" Operating System; virtually unlimited cutting dimensions memory; TFT 17" flat screen monitor; REAL TIME moving graphics; panel grooving & numeric display. -- Industrial keyboard: 1.44 MB Floppy & CD ROM drives; capable of online operation via RS 232 or USB port for possible link to office PC.Complete with: -- Automatic "CENTRIC" side aligner with: front & rear forks holding ripped strips squarely against the right angle fence. -- (3) Front air floatation tables: 86" x 25" (2,160 mm x 650 mm). -- Actual model: HOLZMA - OPT. HPP 350 31/31

- SAW BLADE PROJECTION 3.2" - CUTTING LENGTH 126" - PROGRAM FENCE SPEED 295 ft/min - SAW CARRIAGE SPEED 492 ft/min - MAIN SAW MOTOR 18.5 HP - SCORING SAW MOTOR 3 HP - AVERAGE TOTAL AIR REQUIREMENT 4.3 cfm - COMPRESSED AIR REQUIREMENT 87 psi - EXTRACTION SYSTEM 1port 960 cfm - TOTAL CONNECTED LOAD 27 HP - WORKING HEIGHT 36" - AIR TABLES (3) 3/4 x 85"

HOLZMA HPP-11-32 OPTIMAT FRONT LOAD PANEL SAW:Specifications & features: 3,200 mm (126") Cutting length & pull-back behind the cutting line; 125 mm (4.9") saw blade projection; 30 HP (22.3 kW) main & 3 HP (2.2 kW) scoring motor. -- Variable saw carriage travel speed from 0 - 410 FPM (0 - 125 MPM), constant return of 410 FPM (125 MPM). -- Equipped with: Main blade 18" (450 mm) dia. and scoring blade 8" (200 mm dia.). -- Electronically controlled overhead pusher fence, rack & pinion drive on both sides by AC Servo motor; forward speed from 0 - 262 FPM (0 - 80 MPM), return speed of 262 FPM (80 MPM); equipped with (8) gripper clamps (open up to 4.7"). -- HOLZMA CADmatic Operating system; 15" color monitor (displays cutting dimensions); data input by keyboard or 1.44 MB floppy disk drive & downloading from office PC is possible. -- Control panel mounted on double swiveling arm for ergonomic positioning by the operator. -- Includes: Combi-rollers rear machine table with profile rails, rollers spaced at 50 mm centers; front with (3) air floatation tables, 85" x 26" (2,159 x 660 mm) each. -- Complete with: Angular square fence, automatic side aligner for crosscutting, (2) aligning devices on program fence; "Quick Saw Changing System" for main & scoring blade.

Holzma HPL11 Rear Load Panel Saw Still under power. Ready to be removed the end of January 2024

Holzmag Type Elan Super 60 Briketting/Fire Log Machine. Unit is complete with dust collection and controls. It was most recently installed making fire logs from waste paper. Dust collection portion has 65- 6" dia. x 54" bags for approx. 455 sq. ft. of cloth. Bag cleaning is by shaker. The fan has a 11KW motor and the hydraulic unit has 11KW and 3 hp. The oil cooling units have 1.5 hp and .25 kw. See photos Holzmag Type Elan Super 60 Briketting/Fire Log Machine of on our web site. Inventory No. 12521. Located at our Portland, Oregon facility. Click on link for photos. http://www.machinerysales.com/equipment.php?item=12521 Price, FOB Portland, OR ----------------------------------------------- $22,500.

Holzman 220 volt 15KW 3 Phase Gen Set

HOMAG KAL 310/7/A3/S2 EDGEBANDER (W/PRE-MILLING & CORNER ROUNDING)Working Capacity: -- Edgebanding thickness in rolls (min/max) 0.3 - 3 mm. -- Panels thickness (min/max) mm 12 - 60 (1/2" through 2-3/8"). -- Feed speed (adjustable) 18 - 25 MPM (59 to 82 FPM). Front-End Equipped: -- In-feed fence, manual digital positioning. -- Pre-Milling Unit (vertical joint trimmers) (2) x 3 Kw each. -- Lamps to pre-heat the work pieces edge. -- Edge Magazine, vertical coil cart with 2 positions. -- Gluing Unit QA 34, EVA (Hot Melt) -- Side Pressure Zone, (3) rollers, adjustable by N.C. servo motor. Working Units: -- End Trimming Unit HL 81 Motors, 2 x Kw 0.22 (0.50 HP) -- Pre-Rough Trimming Unit: Top/Bottom, 2 x 0.55 Kw. (0.75 HP) 12,000 RPM motors, none tilt with digital indicator positioning. -- Multi Function Unit FK 11: Profile Contour Trimming, 2 x 0.4 Kw, 12000 RPM motors, for linear top/bottom edge trimming and vertical front/back corner rounding. -- Profile Edge Scraping Unit:Pneumatic in/out and manual digital indicator positioning. -- Glue Scraper:Top/Bottom, flat panel surface glue scraper. -- Buffing Unit: Top/Bottom oscillating buffing motors 2 x 0.25 Kw (0.35 HP).Operator & Machine Control: -- HOMATIC NC 21 controller, flat color LCD screen with keyboard and mouse input. Complete With: -- Top pressure system with rubber belt. -- Panel Support Outrigger. -- Sound and safety hoods over all working stations. Actual Model is HOMAG KAL 310/7/A3/S2

HOMAG - SAWTEQ B-200 HPL200/38/16 Real Load Automatic Panel Saw Specifications -- Working Capacity: 149.6'' (3,800 mm) Rip cutting capacity; 145.6'' (3,700 mm) Pull back capacity. Main saw blade projection 2-1/2'' (65 mm). --37.5 HP (28 kW) Main saw blade & 2 HP (1.5 kW) scoring blade; scoring saw adjustment via "CADmatic" control. -- Max. stack height 25.98" (660 mm), Max. stack weight 4 Tons. -- Saw CarriageForward speed: 0 - 492 FPM (0 - 150 MPM); Saw carriage reverse speed: 0 - 492 FPM (0 - 150 MPM). -- Pusher Fence:Electronically controlled overhead program fence with: (8) 2-Finger gripper clamps; clamps open up to 65 mm (2-1/2").Rack & Pinion drive on both sides;, forward speed up to 296 FPM (90 MPM); return speed of 296 FPM (90 MPM). -- Rear Loading System:55-1/2" W x 16-1/2' L 4-Column electro-hydraulic lift table with Powered rollers & Fork cutouts. 58" W x 1-1/2' L x 13" H Infeed gravity roller conveyor.55-1/2" W x 15' L x 13" Infeed powered roller conveyor.All with 4" Dia. Rollers on 8" Centers.Rack & Pinion drive on both sides;, forward speed up to 296 FPM (90 MPM); return speed of 296 FPM (90 MPM). -- Operator InterfaceHOMAG "POWER CONTROL V2.1"/"powerTouch2" PC Front-End with "CADmatic 5.0" Operating System, "TAPIO" ready & "designed for industrial environments"; virtually unlimited cutting dimensions memory.21" Full HD widescreen "Touchscreen" monitor with multitouch display; online operation from an office PC is possible. All mounted into a dust-sealed, air-conditioned control cabinet."Real-Time" Cutting sequences with a new 3D assistance graphic supports the Operator and is intuitive to operate, which shortens the training period and reduces errors to a minimum. This results in efficient processes and a steady output.Simple handling via tapping and swiping (touch functions) with quick-change between the individual sections. CADmatic 5.0 is Tapio compatible & open for communication with other machines and software solutions.The SAWTEQ B-200 "IntelliDivide" optimizing software is Tapio-ready from installed software or directly from the Tapio cloud, allowing "IntelliGuide" to recognize the machine configuration of your saw and take it into consideration for every optimization run in the cloud, completely automatically & you have the choice. -- Complete with:Onboard Optimizer; automatic "CENTRIC" side aligner with front & rear forks holding ripped strips squarely against the right angle fence.Max. Side aligner stroke 145.6'' (3,700 mm): Rear support rails with non-marking roller modules.(3) Front air flotation tables: 85" x 31" (2,160 mm x 800 mm) with: (1) Central Blower; CE-mark. -- Actual model HOMAG SAWTEQ B-200 HPL 200/38/16Note tear down and loading not included

Weeke Model Optimal BHX050 Vertical CNC Machine 8 Vertical Drilling Spindels 2 Horizontal Spindle in X-Direction 1 Horizontal Spindle in Y-Direction Grooving Saw in X-Direction 1 Powerful 5kW ETP 25 Routing Spindle Vector Speed: X-30M/Min Y-30M/Min Z-15M/Min

Homag Optimat NBP084/ Vantech 480 4x8 Bed 12 HP Spindle (replaced in 2019) 7-Position Boring (3) Vacuum Pumps Clean Machine

HOMAG KAL 210 AMBITION 2260 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications:Coiled stock min/max. Edge thickness 0.4 - 3 mm (0.016. - 0.118"), Strip material min/max Edge Thickness 0.4 - 6 mm (0.16 - 0.234"). -- Panel stock min/max. thickness12 - 40 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18"). -- In-feed Fence: Adjustable in-feed fence with manual digital indicator positioning. -- Pre-Milling Station: Two 3.0 kW (4.0 HP), 150 Hz, 9,000 RPM Motors; equipped with trimming column, (2) horizontal and cross slides with spindle adjustment, electro-pneumatic horizontal jump movement of the first motor;Includes electronic frequency inverter for control of motor speed and braking, two (2) dust extraction hoods, an air-jet panel blow-off device & SIKO digital counters for adjustments. -- Panel Pre-Heater: the Pre-heater brings the panel to an appropriate temperature for better adhesion; this is especially beneficial in cooler temperatures. -- Multi-Purpose Magazine: 2-Coil magazine expands capability by running coiled material & strips, magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panel on the edgebanding. -- Gluing System: (EVA - Hot Melt) QA 3 -Quick Melt Overhead Unit & heated roller applicator; digitally displayed thermostat for both upper and lower unit.34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gates, lower melting unit equipped with automatic glue level control. Melting capacity: 12 KG/Hr (26 LBS/Hr). -- Pressure Section: Automatic pressure zone adjustment (Servo), (1) large 160 mm dia. driven & (6) 70 mm dia. idle rollers, pneumatic pressure control depending on edgebanding material used. -- WORKSTATIONSEnd Trimming Unit HL 81: 0.8 KW (1.0 HP) x 2 - 200 Hz, 12,000 RPM Motors. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer 30° to straight cut. -- Top & bottom Flush Trimming Unit: Top & bottom, 0.4 kW (0.74 HP) x 2 - 12,000 RPM Motors; Height adjustment with the top pressure-beam and tilting range +/- 1°. -- Profile/Bevel/Corner Rounding Unit FF 12: Multi-function 0.4 KW (0.54 HP) x 2 - 12,000 RPM Motor to fine trim the edge overhangs at the work-piece upper & lower edge, as well as trimming around the front & rear vertical edge. Max. feed speed 20 MPM (65.6 FPM) -- Profile/Bevel Scraping Unit PN 10: Top & bottom for thick PVC/ABS, pneumatically activated/adjustment. -- Flat Glue Scraper Unit: Top & bottom, pneumatically activated to remove potential glue squeeze-out. -- Buffing Unit FA 11: Top & bottom edge buffing/polishing, pneumatically activated. -- Operator & Machine Control:HOMATIC PC 22 Power Control w/Touch Screen: Controller functions in Windows environment and features: Keypad w/LCD flat-screen display, fault diagnostic, OS9 real-time operating syst

Homag BOF 311/37/15/R CNC Router Specs (to be confirmed): Homag "Vantage 12L" CNC Router Aluminum router table 60" x 144" working area Gridded Pneumatic reference stops Vacuum gauges Foot pedal control Drill unit Nine (9) vertical spindles One (1) horizontal spindle (two outlet) in X axis One (1) horizontal spindle (two outlet) in Y axis Router 16 HP HSK (quick-change) CW/CCW rotation Variable RPM Ten (10) position rotary tool changer Sound enclosure Front safety mats Safety fencing with interlocked access door Controller Flat screen monitor Standard keyboard and mouse Remote control pendant Also included: Laser projecting unit Ceiling mount

HOMAG - BHT 500: CNC Through-Feed Machining Center (2-Head) + BARGSTEADT Stacker -- SpecificationsHOMAG "BHT 500" CNC 2-Head Through-Feed PtP Machining Center: -- Working Capacity Single panel processing: "X" Axis 98.4" (2,500 mm); "Y" axis 55.4" (1,406 mm); "Z" axis 0.5" - "2.36" (12 - 60 mm) min./max. panel thickness.(2) Panel processing: "X" Axis 98.4" (2,500 mm); Y" Axis 23.6" + 23.6" (600 + 600 mm); 1/2" - "2.36" (12 - 60 mm) min./max. panel thickness. -- Positioning SpeedVertical boring unit(s) Positioning speed: "X" Axis 328 FPM (100 MPM); "Y" axis 230 FPM (70 MPM); "'Z" axis 82 FPM (25 MPM).Panel transfer belt variable feed speed from: 0 - 295 FPM (0 - 90 MPM). -- Horizontal Through-Feed Boring Units(2) 2 HP (1.5 kW) Motors (1-motor each side) with: Variable rotation speeds up to 9,000 RPM. (2) 19-Spindle LH units, (38) total LH spindles; (2) 19-spindle RH units, (38) total RH spindles; spindle are on 32 mm centers.LH Horizontal drilling support is fixed; RH support motorized & equipped with: LED Indicator for precision positioning, pneumatic locking, and individual adjustment for positioning according to the panel size. -- Horizontal PTP Boring UnitsCNC Controlled horizontal PtP boring units with: (2 + 2) spindles in the "Y" axis on each boring head; (8) "Y" axis spindles total) -- Vertical PTP Boring Units(2) 4 HP (3 kW) Motors (1-motor each head) with: Variable rotation speed; up to 9,000 RPM.(2) Independently controlled top mounted CNC PtP boring/grooving heads; each head with: (30) Independent vertical spindles; spindle are on 32 mm centers. -- Grooving Saws(2) 2 HP (1.5 kW) Motors (1-motor each head); "X" axis grooving saw with: Variable rotation speed up to 12,000 RPM & 100 mm dia. blade. -- Operator InterfaceIPC with: HOMAG "Power Control 85T" + WoodWOP + Windows "XP" Operating System; icon driven software with: Graphical interface allows Operator to quickly & efficiently create programs & diagnose malfunctions in simple terminology. 17" TFT Color monitor; multitask Operating System; input/output modules; axes override; 4-axis interpolation; diagnostic graphics aide for programming; machine data & tool management. -- Options Include: BARGSTEADT - "TBH 250/QL/25/12": Vacuum Stacker Device.Work cap. "X" Axis 98.4" (2,500 mm), "Y" axis 55" (1,400 mm), 2.3" (60 mm) Max. panel thickness.High-speed workpiece stack exchange with a cycle time of 35 seconds; thin work piece device for panels from 8 mm thick. -- Actual Model is HOMAG BHT 500
