Description:

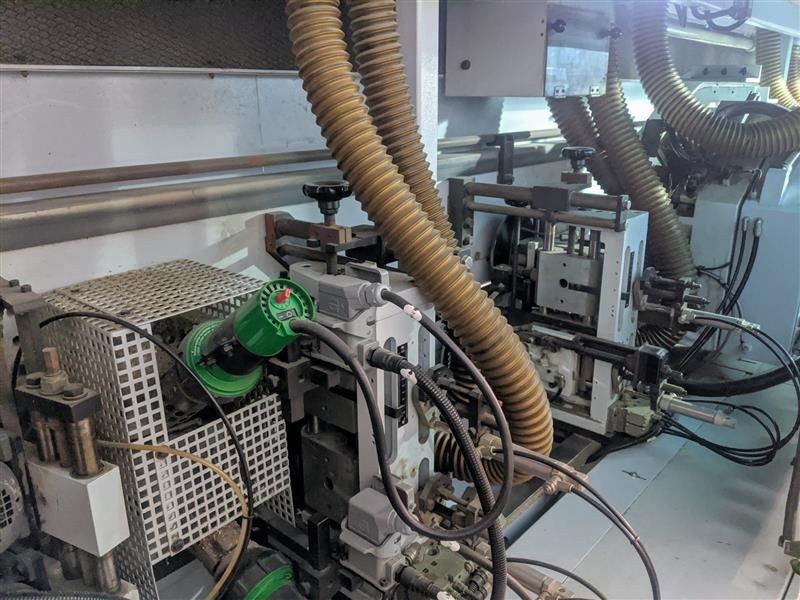

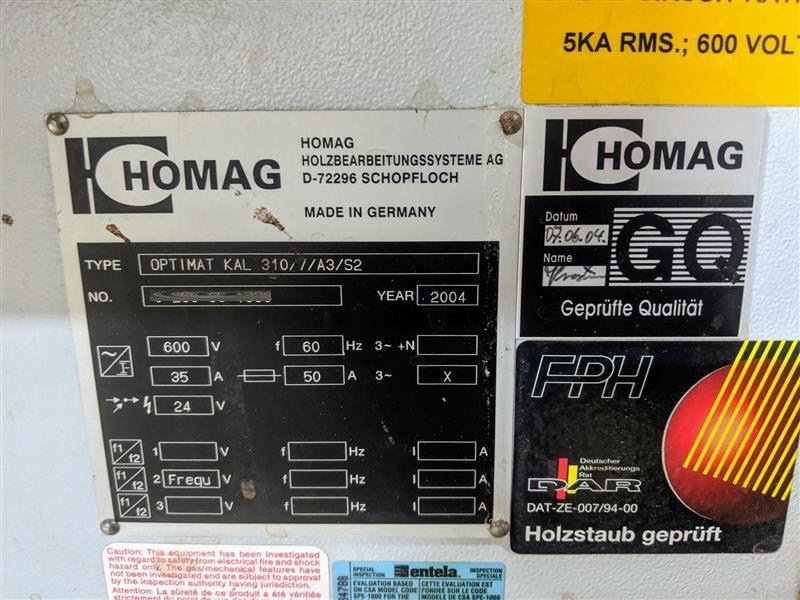

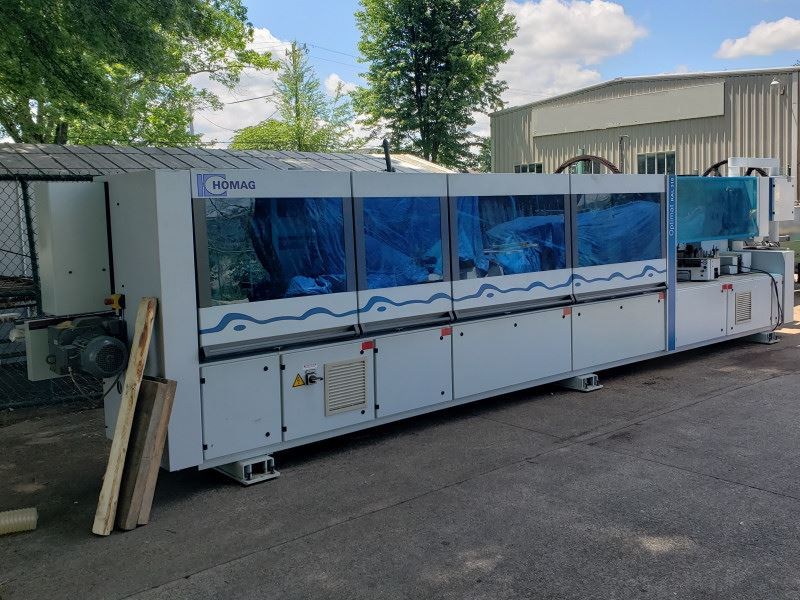

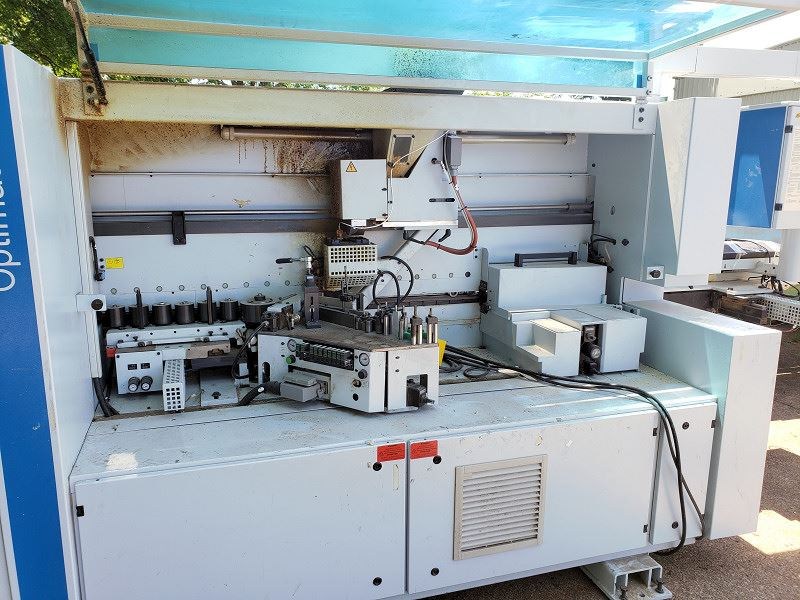

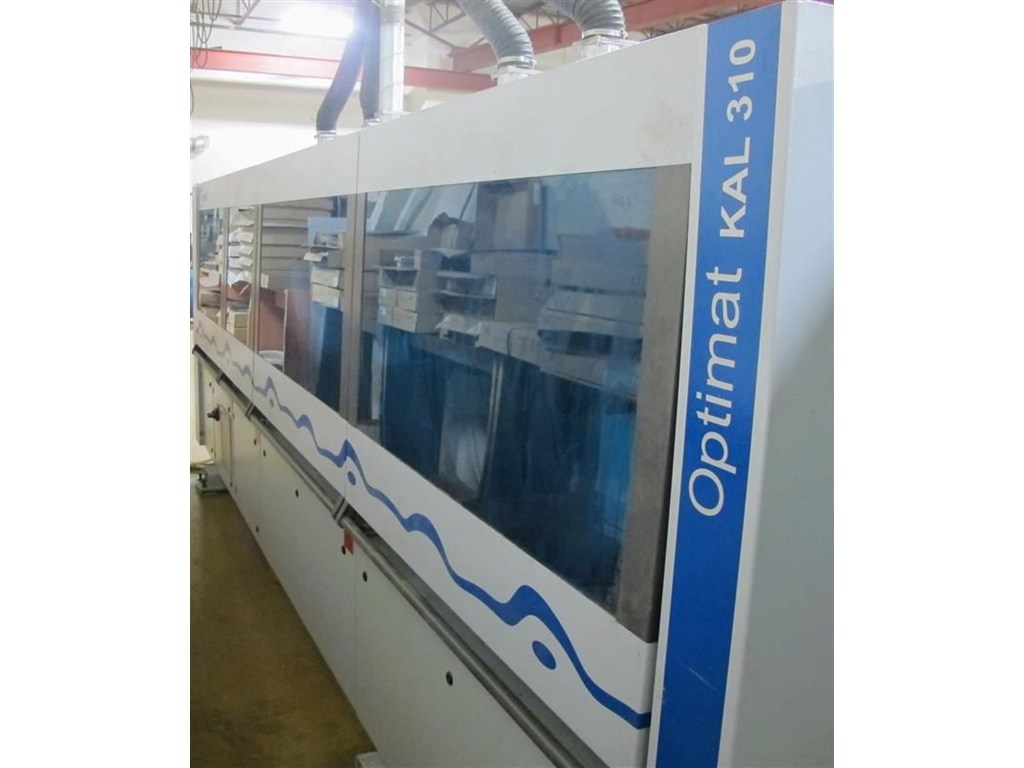

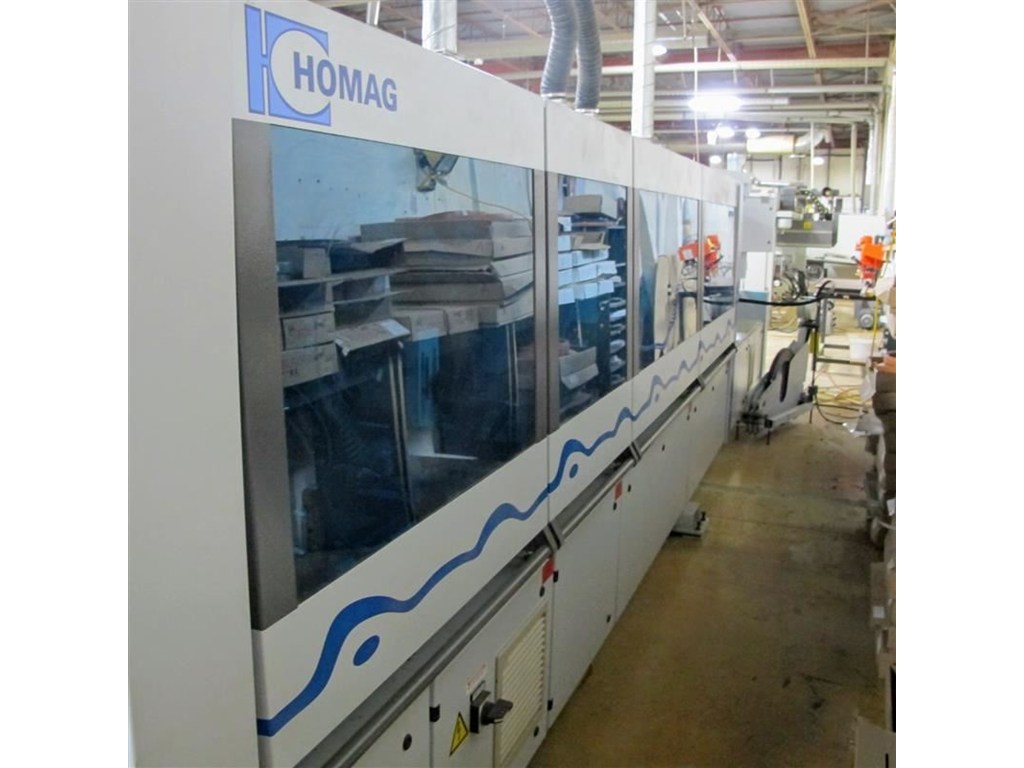

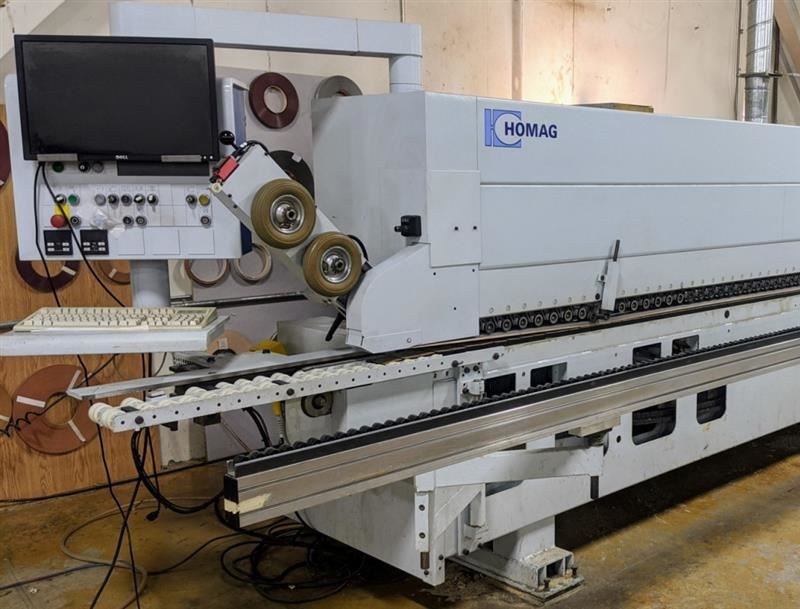

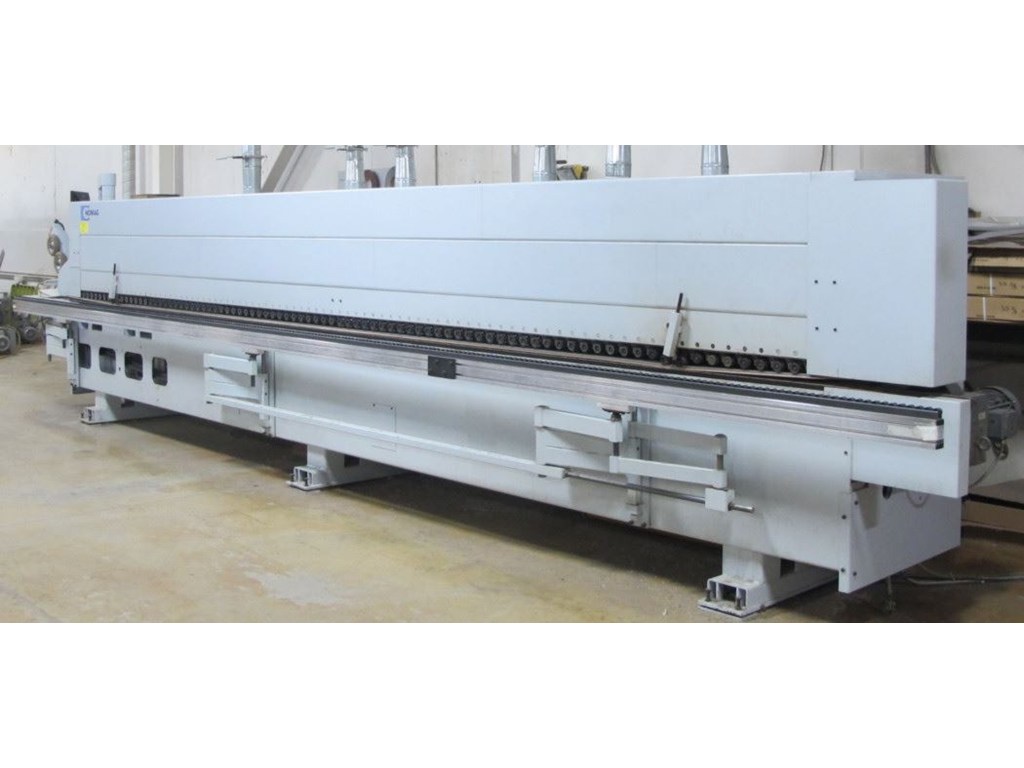

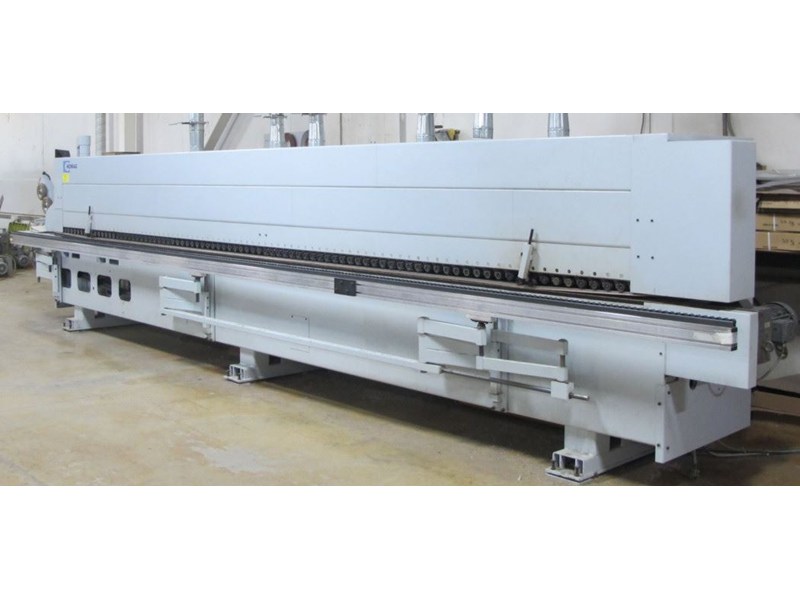

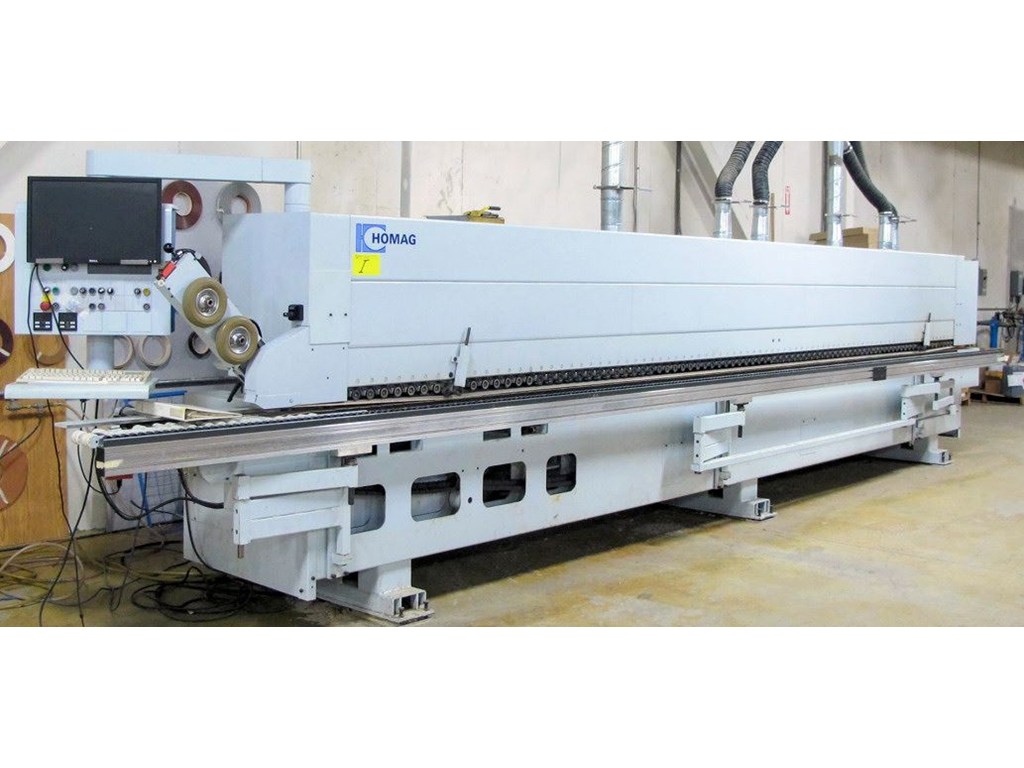

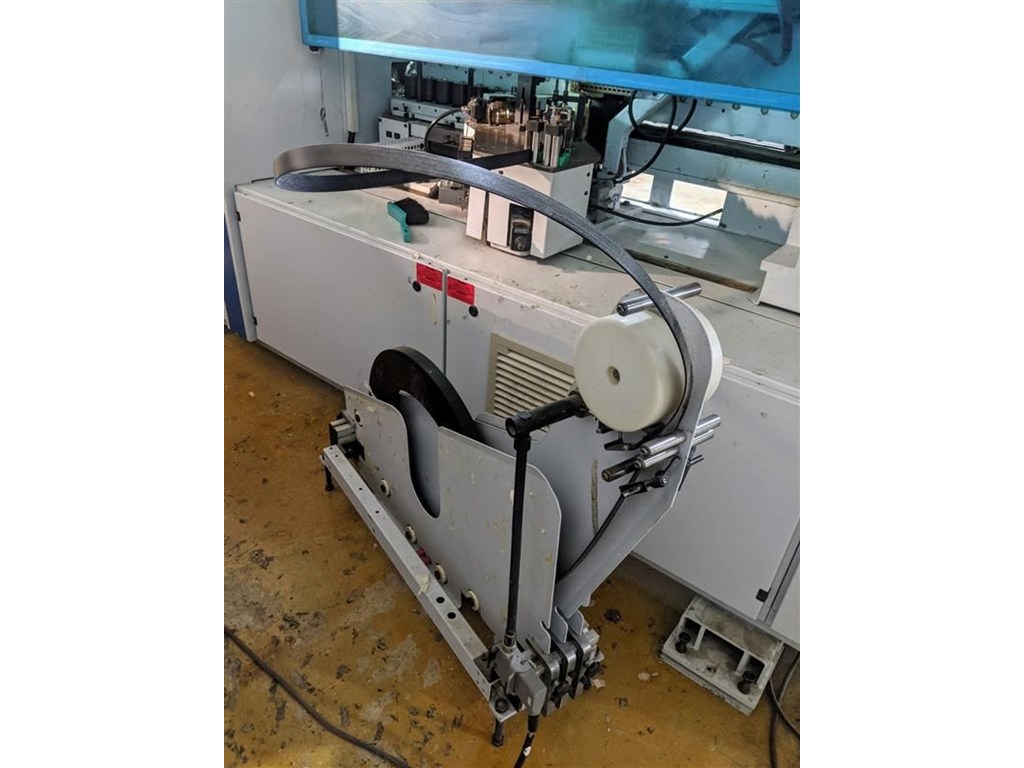

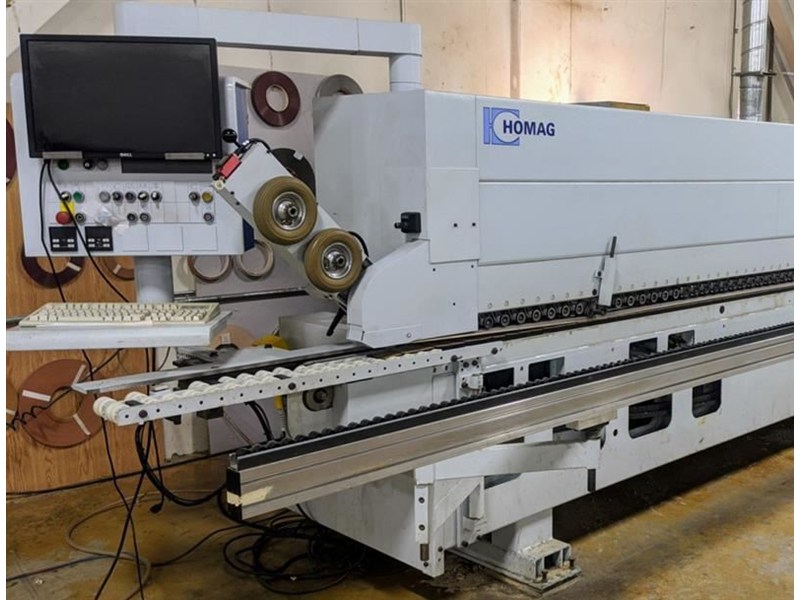

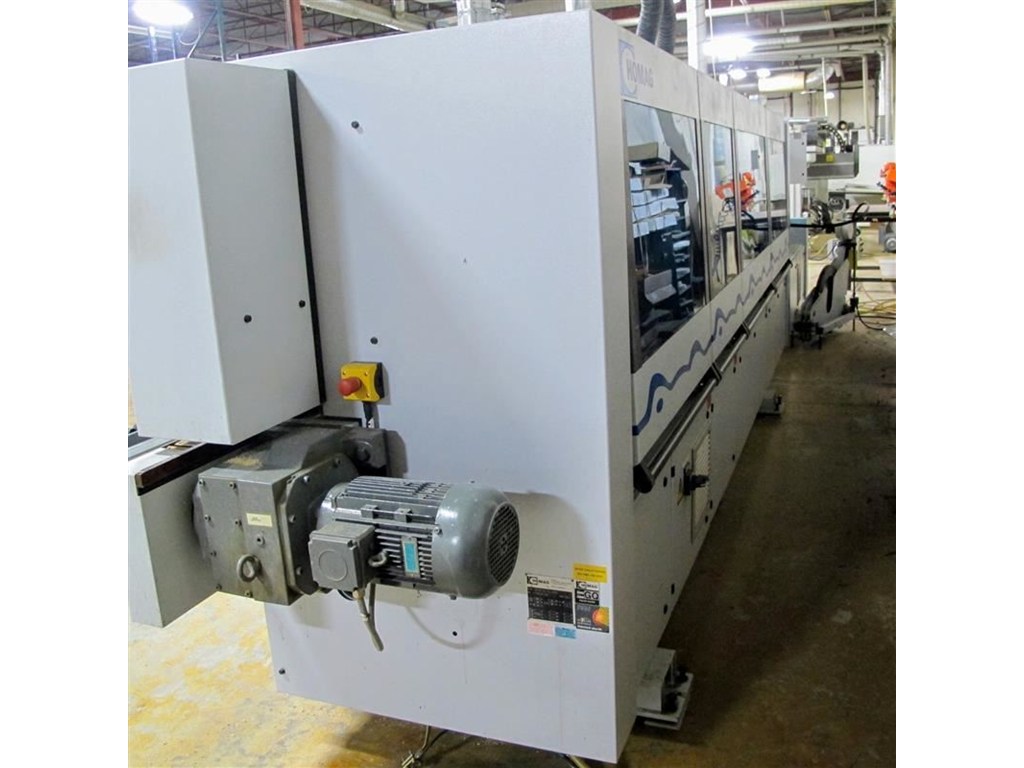

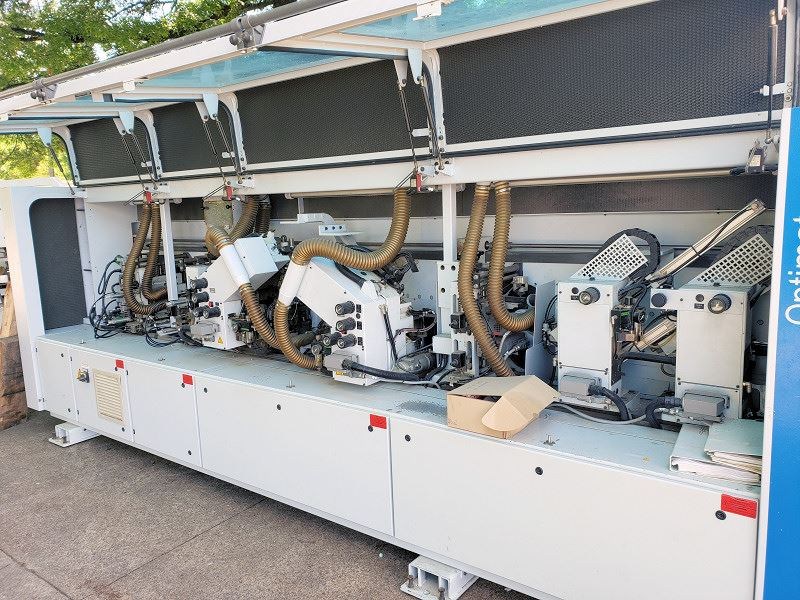

HOMAG KAL 310/7/A3/S2 EDGEBANDER (W/PRE-MILLING & CORNER ROUNDING)Working Capacity: -- Edgebanding thickness in rolls (min/max) 0.3 - 3 mm. -- Panels thickness (min/max) mm 12 - 60 (1/2" through 2-3/8"). -- Feed speed (adjustable) 18 - 25 MPM (59 to 82 FPM). Front-End Equipped: -- In-feed fence, manual digital positioning. -- Pre-Milling Unit (vertical joint trimmers) (2) x 3 Kw each. -- Lamps to pre-heat the work pieces edge. -- Edge Magazine, vertical coil cart with 2 positions. -- Gluing Unit QA 34, EVA (Hot Melt) -- Side Pressure Zone, (3) rollers, adjustable by N.C. servo motor. Working Units: -- End Trimming Unit HL 81 Motors, 2 x Kw 0.22 (0.50 HP) -- Pre-Rough Trimming Unit: Top/Bottom, 2 x 0.55 Kw. (0.75 HP) 12,000 RPM motors, none tilt with digital indicator positioning. -- Multi Function Unit FK 11: Profile Contour Trimming, 2 x 0.4 Kw, 12000 RPM motors, for linear top/bottom edge trimming and vertical front/back corner rounding. -- Profile Edge Scraping Unit:Pneumatic in/out and manual digital indicator positioning. -- Glue Scraper:Top/Bottom, flat panel surface glue scraper. -- Buffing Unit: Top/Bottom oscillating buffing motors 2 x 0.25 Kw (0.35 HP).Operator & Machine Control: -- HOMATIC NC 21 controller, flat color LCD screen with keyboard and mouse input. Complete With: -- Top pressure system with rubber belt. -- Panel Support Outrigger. -- Sound and safety hoods over all working stations. Actual Model is HOMAG KAL 310/7/A3/S2
