Description:

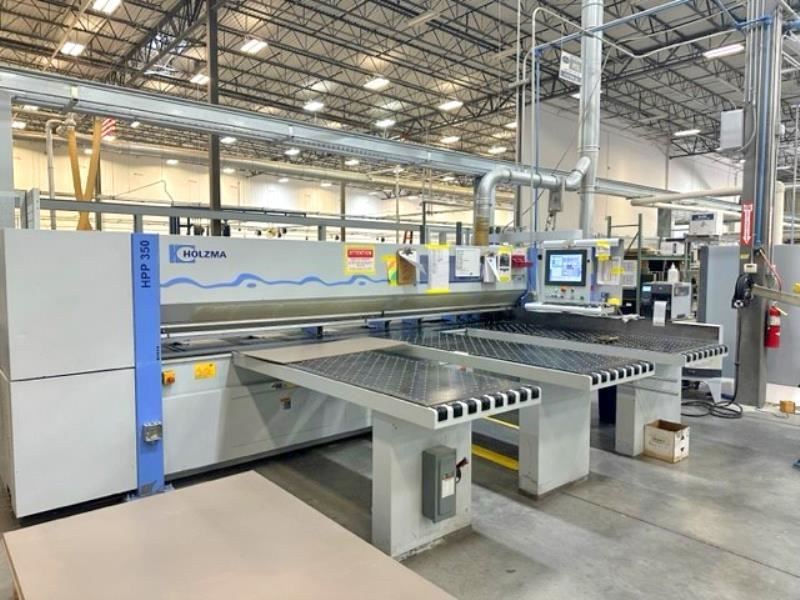

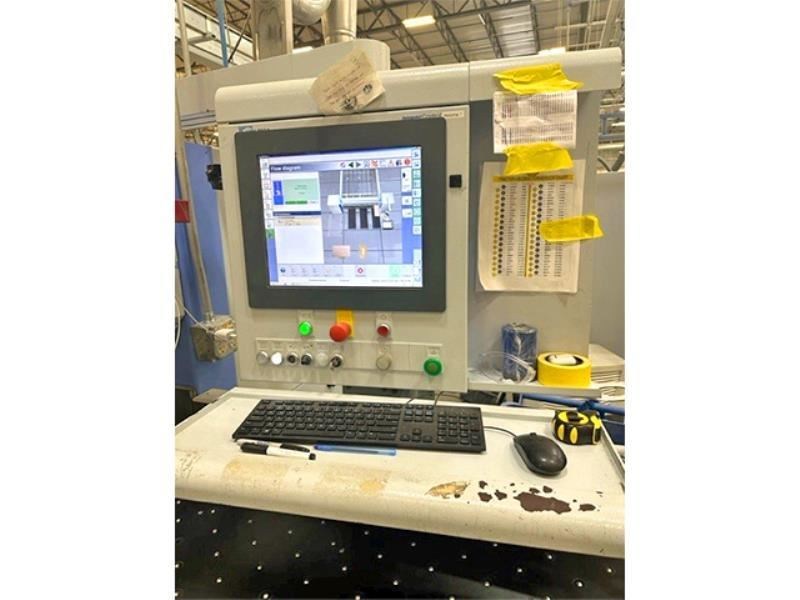

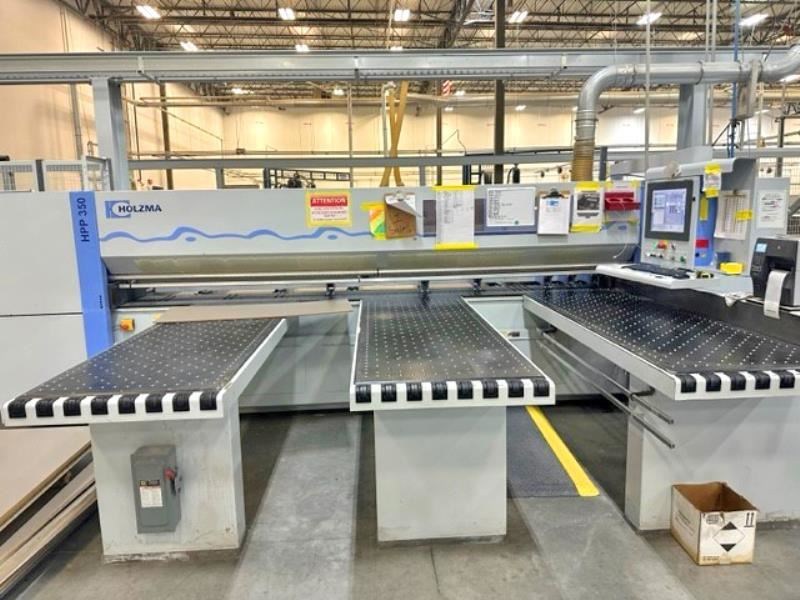

HOLZMA HPP 350 38/38 FRONT LOAD AUTOMATIC PANEL SAW: -- Specifications: 149.6" (3,800 mm) cut length, 145.7" (3,700 mm) pull back, 3" (80 mm) saw blade projection. 18 HP (13.5 kW) main saw motor and 3 HP (2.2 kW) scoring motor; scoring saw adjustment is from the "CADMATIC 4.0" control. -- Saw carriage:Travel speed from 16 - 492 FPM (5 - 150 MPM), constant return of 492 FPM (150 MPM). -- Pusher Fence: Overhead program fence with (7) gripper clamps, clamps open up to 90 mm (3.5"); rack & pinion drive on both sides,Forward speed from 82 to 295 FPM (24 - 90 MPM), return speed of 295 FPM (90 MPM). -- Operator Interface:HOLZMA Power Control 22 with "CADMATIC 4.0 PROFESSIONAL" + "Windows XP" operating system. Virtually unlimited cutting dimensions memory;TFT 19" flat Touch Screen monitor, REAL-TIME moving graphics; panel grooving & numeric display.Industrial keyboard, 1.44MB Floppy & CD ROM drives, capable of online operation via RS 232 or USB port for possible link to office PC. -- Complete with: Automatic "CENTRIC" side aligner with front & rear forks holding ripped strips squarely against the right angle fence.(3) Front air floatation tables 85" x 31.5" (2,160 mm x 800 mm). -- Options Include:Label Printer as pictured. -- Actual model is HOLZMA HPP 350 38/38.
