Description:

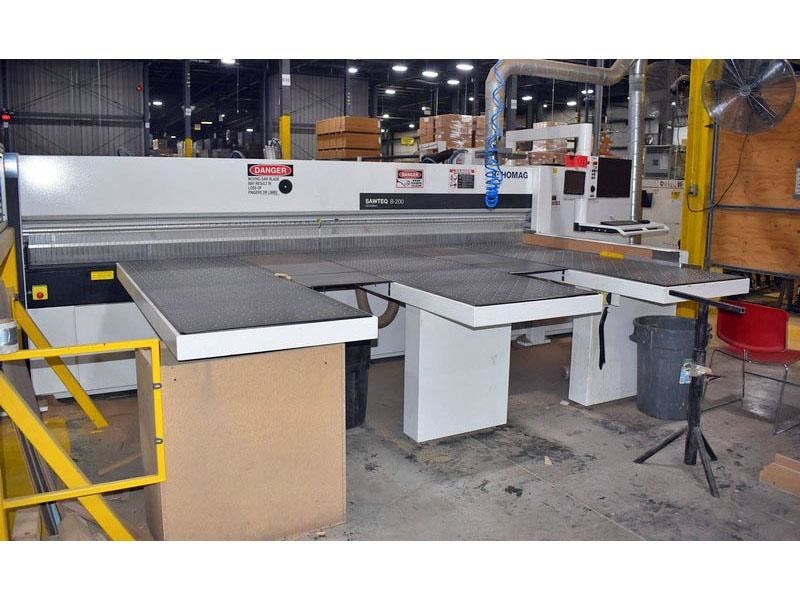

HOMAG - SAWTEQ B-200 HPL200/38/16 Real Load Automatic Panel Saw Specifications -- Working Capacity: 149.6'' (3,800 mm) Rip cutting capacity; 145.6'' (3,700 mm) Pull back capacity. Main saw blade projection 2-1/2'' (65 mm). --37.5 HP (28 kW) Main saw blade & 2 HP (1.5 kW) scoring blade; scoring saw adjustment via "CADmatic" control. -- Max. stack height 25.98" (660 mm), Max. stack weight 4 Tons. -- Saw CarriageForward speed: 0 - 492 FPM (0 - 150 MPM); Saw carriage reverse speed: 0 - 492 FPM (0 - 150 MPM). -- Pusher Fence:Electronically controlled overhead program fence with: (8) 2-Finger gripper clamps; clamps open up to 65 mm (2-1/2").Rack & Pinion drive on both sides;, forward speed up to 296 FPM (90 MPM); return speed of 296 FPM (90 MPM). -- Rear Loading System:55-1/2" W x 16-1/2' L 4-Column electro-hydraulic lift table with Powered rollers & Fork cutouts. 58" W x 1-1/2' L x 13" H Infeed gravity roller conveyor.55-1/2" W x 15' L x 13" Infeed powered roller conveyor.All with 4" Dia. Rollers on 8" Centers.Rack & Pinion drive on both sides;, forward speed up to 296 FPM (90 MPM); return speed of 296 FPM (90 MPM). -- Operator InterfaceHOMAG "POWER CONTROL V2.1"/"powerTouch2" PC Front-End with "CADmatic 5.0" Operating System, "TAPIO" ready & "designed for industrial environments"; virtually unlimited cutting dimensions memory.21" Full HD widescreen "Touchscreen" monitor with multitouch display; online operation from an office PC is possible. All mounted into a dust-sealed, air-conditioned control cabinet."Real-Time" Cutting sequences with a new 3D assistance graphic supports the Operator and is intuitive to operate, which shortens the training period and reduces errors to a minimum. This results in efficient processes and a steady output.Simple handling via tapping and swiping (touch functions) with quick-change between the individual sections. CADmatic 5.0 is Tapio compatible & open for communication with other machines and software solutions.The SAWTEQ B-200 "IntelliDivide" optimizing software is Tapio-ready from installed software or directly from the Tapio cloud, allowing "IntelliGuide" to recognize the machine configuration of your saw and take it into consideration for every optimization run in the cloud, completely automatically & you have the choice. -- Complete with:Onboard Optimizer; automatic "CENTRIC" side aligner with front & rear forks holding ripped strips squarely against the right angle fence.Max. Side aligner stroke 145.6'' (3,700 mm): Rear support rails with non-marking roller modules.(3) Front air flotation tables: 85" x 31" (2,160 mm x 800 mm) with: (1) Central Blower; CE-mark. -- Actual model HOMAG SAWTEQ B-200 HPL 200/38/16Note tear down and loading not included
