Description:

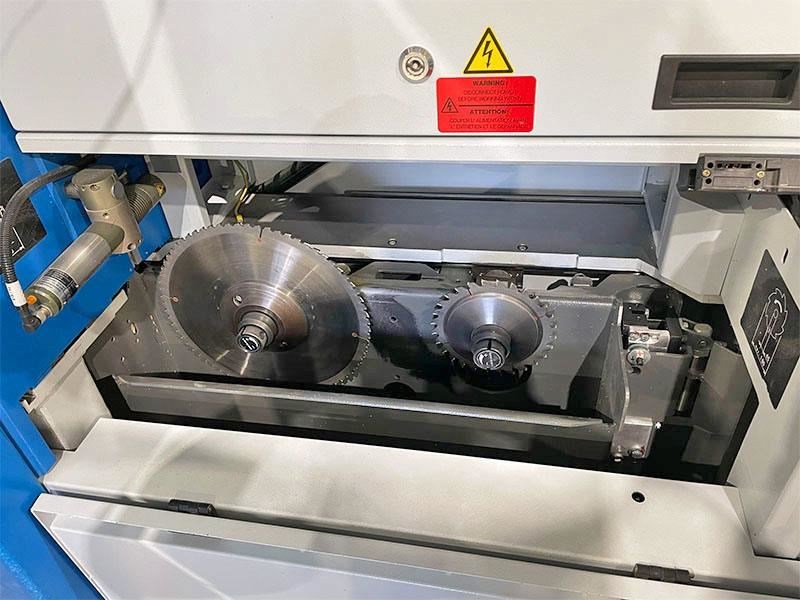

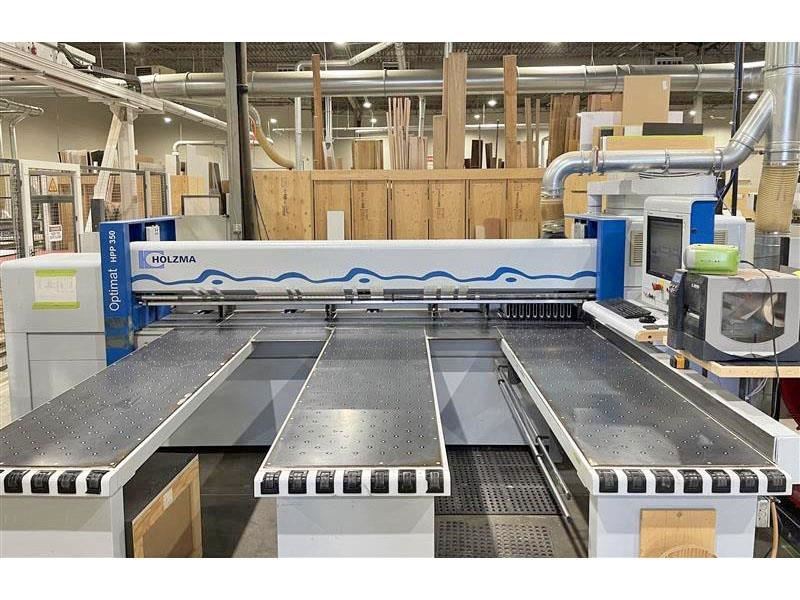

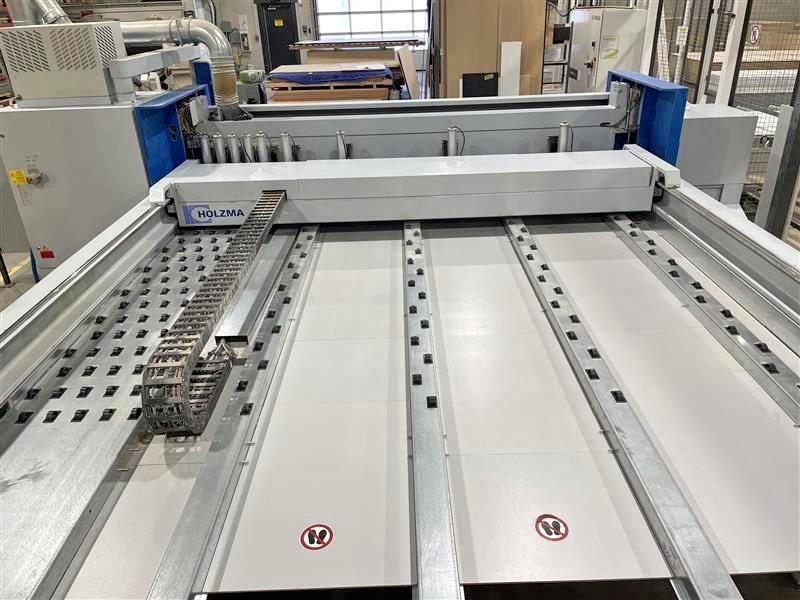

HOLZMA HPP 350 31/31 FRONT LOAD, AUTOMATIC PANEL SAWSpecifications: -- 122" (3,100 mm) cut length; 3" (80 mm) main saw blade projection; 18 HP main saw motor and 3 HP (2.2 kW) scoring motor; scoring saw adjustment is from the "CADMATIC 4.0" control. -- Saw carriage: -- Travel speed from 16 - 426 FPM (5 - 130 MPM), constant return of 426 FPM (130 MPM). -- Pusher Fence: -- Overhead program fence with (6) gripper clamps, clamps open up to 90 mm (3.5"); rack & pinion drive on both sides; forward speed from 82 to 262 FPM (24 - 80 MPM), return speed of 262 FPM (80 MPM). -- Operator & Machine Control: -- HOLZMA Power Control with "CADMATIC 4.0" + "Windows XP" operating system; virtually unlimited cutting dimensions memory; TFT 17" flat screen monitor, REAL-TIME moving graphics; panel grooving & numeric display; industrial keyboard, 1.44MB Floppy & CD ROM drives, capable of online operation via RS 232 or USB port for possible link to office PC. -- Complete with: -- Automatic "CENTRIC" side aliginer with front & rear forks holding ripped strips squarely against the right angle fence. -- (3) Front air floatation tables 86" x 25" (2,160 mm x 650 mm). -- Includes: -- An air conditioning unit is activated when the temperature goes above 35 degrees C.
