Equipment For Sale

BIESSE AKRON 1330 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications: Computer controlled interface for workstations with servos and pneumatic positioning devices. Programmable selections for 1-touch changeover between edgebanding types and thicknesses.Top Pressure Beam with automatic adjustment from the machine control. -- Working Capacity: Edgebanding thickness, 0.4 - 5 mm capacity. Min. panel width 85 mm (3.3"); min. panel length 140 mm (5.5"); panel thickness 10 - 50 mm (0.39" - 1.96").3 HP (2.2 kW) Variable Feed Speed from 10 - 20 MPM (32 - 65 FPM).Front-End Equipped With: -- Pre-milling Unit with "Auto-set" automatic intervention, Strip & Coil Edge magazine, automatic shear type guillotine. -- Hot-Melt Glue System: Teflon coated glue pot, digital thermostats with automatic kick-down when machine is in idle mode.Pressure Section with (1) large dia. "non-stick" coated drive roller & (5) Teflon plated idle rollers with servo positioning NC controlled material thickness adjustment.Workstations: -- End Trimming Unit:NC controlled end trimming unit, 0.33 HP (0.24 kW) - 12,000 RPM motors.Motors travel on (2) straight slides and pneumatic tilt 0° - 15° on horizontal. plane -- Top & Bottom Multi- Function Flush/Bevel/Radius Trimming Unit: NC Controlled 2-motor Top & Bottom Multi- Function Flush/Bevel/Radius Trimming Unit, 0.3 HP (0.24 kW) - 12,000 RPM.Servo driven positioning of motors for different edge trimming profiles & positions. -- Corner Rounding Unit:2-motor 0.3 HP (0.24 kW) - 12,000 RPM motors for trimming leading & trailing upper & lower edge/corners with "Fast Position",Unit can be used as a second top & bottom fine trimmer as well. -- Profile Scraping Unit:Top & bottom 2 mm or 3 mm thick PVC banding, digitals for horiz. adjustments. -- Flat Scraping Unit:Top & bottom glue scraping unit. -- Buffing Unit: Top & bottom Buffing Unit, 0.5 HP (0.37 kW) - 2,800 RPM motors), units tilt 0° - 30°Operator & Machine Control: -- Biesse SMART TOUCH 7" + Windows operating system, user friendly touchscreen control panel for workstations, rotating operator control panel w/keypad and LCD readout.Graphic 7" display touch screen. High-resolution screen for defined and intuitive images and text. Integrated 4GB hard disk for filing media files and the programs back up.USB port for managing in a simple and efficient way multimedia files, programs and updates. Ethernet port for connecting the machine to the net.Complete With: -- Insulated sound enclosure over all trim stations with split dust hood, viewing windows. -- Actual Model is BIESSE AKRON 1330 A

BIESSE ROVER B EDGE 1667 CNC MACHINING CENTER (W/EDGEBANDING) -- Specifications:This "Bridge Gantry" machine is "IDEAL" for window, stair, door & component parts manufacturing:Working Field considering "all" units when Routing, "X" Axis is 265" (6,735 mm), "Y" axis is 62.9" (1,600 mm), "Z" axis stroke 13.6" (345 mm), max. material thickness when machining 9.6" (245 mm)When "Edge Banding" "X" Axis is 227" (5,780 mm), "Y" axis is 62.9" (1,600 mm), the max. material thickness is 2.3" (60 mm); the minimum internal radius is 30 mm & minimum external radius is 8 mm (depending on flexibility of the banding material). -- Positioning Speed: "X" & "Y" axis is 279 FPM (85 MPM), "Z" axis is 98 FPM (30 MPM); AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Worktable: (8) Vacuum bar support rails with pneumatic lifting blades, (4) "ATS" vacuum pods per rail; set up assistance according to the program to process.(8) Pneumatic pop-up back stops, (8) pneumatic pop-up front stops, (4) pop-up side stops, (2) pop-up central stops create (2) independent work zones.Edge Banding unit:The edgebanding is automatically applied to square or irregularly shaped parts as the CNC head rotates along the "X" "Y" & "Z" axis and simultaneously rotates the tooling up to 360° on a high precision "C" axis.Floating "hot melt" glue pot & application roller with separate thermostats apply glue on the panel edge.Pneumatically controlled pressure roller with manually adjustable guides for coil & strip feeding; numerically controlled with encoder that measures strip feeding process.(1) 4-Coil tape magazine with warning sensor when the end of the spool is near; edge banding unit precisely applies 0.4 - 3 mm ABS & PVC with 60 mm (2.3") max. edge height.Pneumatically activated saw blade performs the end trimming at a 35° angle for precise fitting of overlapping joints on adjoining edges. -- Boring Unit: BH17 Boring Head with 4 HP (3 kW) motor, variable speed from 1,500 - 7,500 RPM; (10) Independent "Quick Change" vertical spindles with (6) spindles in "X" axis & (4) spindles in "Y" axis.(6) Horizontal boring spindles with (2+2) in "X" axis & (1+1) in "Y" axis; (1) "X" axis grooving for up to 120 mm dia blade. -- Machining: (2) 18 HP (13.2 kW) liquid cooled electro-spindle router with HSK F63 adaptor; 1,500 - 24,000 RPM.(1) NC controlled "C" axis for 360° horizontal processing; (1) 22-position ATC tool Plate mounted at the back of the machine. -- Operator & Machine Control: PC Front End with Biesse "BH 660" + "BiesseWORKS Advanced" + "bSOLID" + "bEDGE" + WINDOWS "XP" operating system.15" CRT monitor, full keyboard, mouse, 1.44MB & CD ROM disk drives, RS 232 & USB ports, Ethernet connection.Multitask operating system with specific function controls & and internet trouble shooting capabilities; input/output modules, axes override, 4-axes interpolation, diagnostic graphics aid for programming, machine data & to

Biesse Elix B Boring Machine

BIESSE ROVER A 1536 G FT FLAT TABLE MACHINE WITH C AXIS. -- Specifications:5' x 12' "Matrix" grid Phenolic surface for "Nested Base Manufacturing". -- Working Capacity:"X" Axis 148.2" (3,765 mm), "Y" axis 62.4" (1,585 mm), "Z" axis stroke is 12.8" (325 mm), max. material thickness 6.2" (160 mm). -- Positioning Speed:"X" & "Y" axis 197 FPM (60 MPM), "Z" axis 98.4 FPM (30 MPM).All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors. All motion components are maintained by an automatic lubrication system."X" & "Y" Axes use a precision rack & pinion system; "Z" axis uses precision ball screws. -- Work area:Flat table design with HI-FLOW, multi-zone Matrix" grid Phenolic surface for "Nested Base Manufacturing"; Automatic NC controlled zoning of the vacuum table with (9) individual zones.(2) Pneumatic "side" pop-up reference stops, (4) pneumatic "back" pop-up reference stops, & (6) pneumatic "front" pop-up reference stops.Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; with "quick connect" vacuum outlet for custom vacuum pods & fixtures. -- Boring Unit:(1) 2.5 HP (1.7 kW) Motor, variable speed up to 6,000 RPM: BH-40L boring block with (29) independent vertical spindles, (15) in "X" axis & (14) in "Y" axis;(10) Horizontal spindles with (3 + 3) in "X" axis & (2 + 2) in "Y" axis, (1) "X" axis grooving saw with 120 mm dia blade. -- Machining:(1) 16.1 HP (12 kW) Air cooled HSD Electro Spindle with HSK F63 adaptor, variable speed from 1,000 - 20,000 RPM.(1) NC Controlled "C" axis for 360° horizontal operating; (1) 16-position ATC tool changer plate located at the back of the machine base;NC controlled presetting for the measurement of the tool length. -- Operator & Machine Control:PC Front-End with: BIESSE XP 660 + BiesseWORKS + BiesseNEST + WINDOWS WRT operating system;15" TFT Flat screen monitor; server, full keyboard, & mouse all mounted on a mobile cart; Ethernet connection capabilities.BiesseWORKS Graphic interface makes full use of the operating methods typical of the WINDOWS operating system: Assisted graphic editor used to program machining operations; programming, and guided creation of parametric macros.Import of CAD and other external software files in DXF & CID3 format; 3D simulation of the tool path, calculation of machining time & the ability to create rotate virtual faces.BiesseNEST integrated with BiesseWORKS makes nesting simple & effective for every kind of shapes using parametric programs to optimize machining programs. -- Complete with:(2) 300 cbm/Hr BUSH Vacuum Pump, label printer & NC controlled label applicator, safety mats & fencing.Automatic program update according to the tool length; Automatic Lubrication System for linear guides, pads and recirculating ball screw.Universal Auto-Transformer for voltages between 200 - 600 V, 50/60 Hz; Tele-Service capabilities. -- Options (Must be purchased separately): BIESSE Agg

Biesse Rover B Edge semi automatic pod setting 4 coil magazine vertical and horizontal drill bank main spindle with U axis Milling X1: 5055 mm Y1: 1600 mm Edgebanding X2: 4100 mm Y2: 1600 mm Milling Module H74 - Z1: 245 mm Module H29 - Z2: 290 mm

BIESSE KLEVER 1224 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:4' x 8' "Bridge Gantry" Machine with "Aluminum" worktable allows: Automatic locking using T-slots or possible vacuum locking (requires a vacuum pump). -- Working Capacity:"X" Axis 98.8" (2,511 mm); "Y" axis 49.2" (1,250 mm); "Z" axis stroke is 10.2" (260 mm); max. material thickness 5.9" (150 mm). -- Positioning Speed:"X" & "Y" Axis 74 FPM (23 MPM); "Z" axis 41 FPM (13 MPM); "X" & "Y" Axes use a precision rack & pinion system; "Z" axis uses precision ball screws.All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors; all motion components are maintained by an automatic lubrication system. -- Work Area:Flat table design with "Aluminum" worktable that allows for automatic locking using T-slots or possible vacuum locking (requires a vacuum pump). (3 + 3) Manual flip reference stops in "Y" axis & (2) reference stops in "X" axis. -- Machining:(1) 12 HP (8.9 kW) Air-cooled "HSD" Electro-spindle with: ISO 30 Adaptor, variable speed from 1,000 - 24,000 RPM.(1) 6-Position tool rack; NC controlled digital presetting device for the measurement of the tool length. -- Operator & Machine Control:PC Front End with: BIESSE "BH 660" + "BiesseWorks" + WINDOWS "WRT" Operating System; 19" TFT flat-screen monitor; server, full keyboard & mouse all mounted on a mobile cart; Ethernet connection capabilities.BiesseWorks graphic interface with: Assisted graphic editor used to program machining operations, parametric programming, and guided creation of parametric macros.Import of CAD and other external software files in DXF and CID3 format; 3D simulation of the tool path, calculation of machining time & the ability to create rotate virtual faces. -- Complete with:(1) 10 HP (7.5 kW), 250 m³/Hr "BUSCH" vacuum pump; Tool Measuring Touch-Off Probe; safety fencing; automatic program update according to the tool length; automatic lubrication system for linear guides, pads and recirculating ball screw.; Universal Autotransformer for voltages between 200 - 600 V, 50/60 Hz. -- Options Include: NC Controlled automatic division of vacuum area according to the program. -- Actual Model is: BIESSE KLEVER 1224 G FT

BIESSE - ROXYL 5.5: Edgebander (w/Premill & Corner Rounding)SpecificationsEdgebanding Cap. - Edge thickness for strips: Min./max.: 0.4 - 22 mm (0.02" - 0.87"); coiled material from: 0.4 - 3 mm (0.02 - 0.12"); panel thickness from: 10 - 60 mm (0.39 - 2.36"); workpiece width; Min.: 85 mm (3.34"); workpiece length min.: 140 mm (5.51"); feed speeds: 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM). Machine Interface -- "Roxyl-Matic" Automated machine setup; MS/Windows XP Operating System; floppy drive; 4 GB HD; USB port, keyboard, and mouse interface. -- Flat-Screen (17") with Color graphics interface: Programs can be easily created & recalled at will; graphic interface makes programming easy: Icon of each unit may be brought up on the screen to show the Operator the status of the unit & parameters, which can be programmed; Edgebander may be operated manually when required, without necessity to write a program.Machine Infeed Configuration -- Premilling Station "FL-502". (2) LH & RH Rotating NC controlled spindles with: Automatic center positioning. -- Anti-Adhesive: "ADZ-700" Automatic Spray Unit with: Glue release agent preventing glue to adhere to workpiece surfaces. -- Infrared Heating Lamp. Preheating workpiece edge to ensure best possible surface adhesion quality of edgebanding material. -- Edge Magazine. Automatic for processing coiled & strip edgebanding material. -- Pressure Section Servo controlled programmable pressure section with: (1) Large driven roller and (4) idle rollers.Gluing System -- EVA (Hot Melt) "QM-705" Quick premelting granulate with: Glue roller applicator to cover conventional edgebanding material. Workstations -- End Trimming Unit "IN-801": Front & Rear trimming motors; unipoint swivel: 0° - 15° Bevel; programmable pneumatic change-over from flush to bevel. -- Rough/Flush Trimming Unit "RS-701": Top/Bottom pre- or flush trimming motors. -- Flush/Bevel/Radius Combination Trimming Unit "RF-400": Servo controlled: (2) Servo motors (one for horizontal tool position; one for tool up/down position); uses combination bevel/radius/flush insert knives; prepositioning of motors by pneumatic air cylinders. -- Corner Rounding Unit "CR-202": (2) Motors for front/back corner and upper & lower edge profiling. -- Profile Scraping Unit "RBK-503": Top/Bottom 2-axis NC programmable knife positioning (i.e. 2 - 3 mm radius) for PVC edges. -- Glue Scraping Unit "RCC-701": Flat top/bottom; digital positioning indicators; pneumatic controlled for in/out position. -- Buffing Station "SP-501" Top & Bottom buffing motors with: 150 mm (6") Cloth buffing wheel diameter; adjusts in multiple directions. -- Edge Reactivation Unit "PH-700": Top/Bottom hot air blowers to restore original color to profile scraped PVC edge material.Complete with: -- Top Pressure Beam with: Driven flat belt & programmable height positioning.Includes: Multi-Tap Transformer. - Sound Hoods with interior lights. - Outboard panel support.

BIESSEROVER B 4.40 CNC MACHINING CENTER (W/ATC/BORING)Specifications: -- Working cap "X" Axis 143.3" (3,640 mm), "Y" axis 51.4" (1,306 mm), "Z" axis stroke is 8.8" (225 mm), max. material thickness 7"(180 mm). -- Positioning Speed: "X" & "Y" axis is 262 FPM (80 MPM), "Z" axis is 98 FPM (30 MPM); helical rack and pinion drive on "X" axis & ballscrew on "Y" & "Z" axis. -- Work Table: (6) Panel support rails with (4) lifting bars to assist with panel loading/unloading, digital display readouts for rail & pod placement according to the programs, (3) Vacuum pods per panel support, (2) independent working areas with pop-up locating pins for positioning of parts on the worktable -- Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; each work zone with (1) "quick connect" vacuum outlet for custom vacuum fixtures. -- Boring unit: (24) Independent vertical boring spindles with (14) spindles in "X" axis & (10) spindles in "Y" axis, (10) horizontal spindles with (3+3) in "X" axis & (2+2) in "Y" axis, (1) "X" axis grooving saw with 120 mm dia blade. -- Machining unit: (1) 16 HP (12 kW) Vertically mounted HSD "Electro-spindle" router with ISO 30 adapter, inverter driven 1,000 - 20,000 RPM with max. torque from 12,000 - 20,000 RPM -- (1) 12-position ride-along ATC for "on the fly" tool change. -- Operator & Machine Control: PC Front End with: Biesse "XP 600" + BiesseWORKS Advanced + Windows "XP" operating system, INTEL "Celeron" 2.0 GHZ processor; 4 GB Hard drive; 15" color monitor, international keyboard, soft touch keypad & industrial mouse, RS-232 serial port, USB ports, CD ROM & 1.44MB disk drives -- Separate control panel with built-in 1,500 W air conditioner for constant temperature & dust-free environment, 11 KVA Stabilized auto-transformer for voltages between 200 - 600 Volts. -- Complete With: (1) 100 M3/Hr Vacuum Pump, Centralized manual lubrication system for guides & ball screw, emergency stop rope, safety mat protection barrier & sound absorbing protective head enclosure with debris curtain around bottom edge.

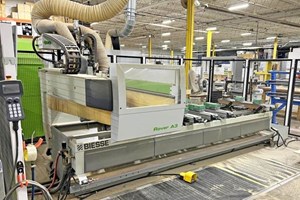

BIESSE ROVER A 3.65 FT FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:4' x 21.3' with (2) 10' Long Flat Table Workstations; "GANTRY TYPE" "Phenolic" table machine for Nested Base Manufacturing. -- Working Capacity: "X" Axis is 254" (6,450 mm) any unit, "Y" axis for routing is 51" (1,290 mm), "Y" axis for vertical drilling is 57" (1,436 mm), "Z" axis stroke is 7.9" (200 mm), max material thickness 6.2" (160 mm). -- Positioning Speed:"X" & "Y" Axis is 262 FPM (80 MPM), "Z" axis is 82 FPM (25 MPM) with helical rack and pinion drive on "X" Axis & ballscrew in "Y" & "Z" Axis. -- Work Table:Flat table designed for "Nested Base Manufacturing", (2) independent vacuum zones and working areas;(16) External pop-up reference pins with (2) on the RH side, (2) on the LH side + (6) on the front of the table & (6) on the back of the tablePrepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; each work zone with (1) "quick connect" vacuum outlet for custom vacuum fixtures. -- Boring Unit:Boring Head with (7) Independent vertical boring spindles in "X" axis. -- Machining:(1) 16.1 HP (12 kW) Liquid cooled electro-spindle with HSK F63 adaptor, 14 kW inverter 1,000 - 24,000 RPM with max. torque from 12,000 - 24,000 RPM.(1) 10-Position "Ride-Along", gantry mounted automatic tool changer. -- Operator Interface:PC front end with Biesse "XP600" + "BiesseWORKS" + Windows "XP Professional" operating system; 15" color monitor, international keyboard, soft touch keypad & industrial mouse, RS-232 serial port; (1) 1.44MB & CD ROM disk drive.BiesseWORKS is an easy operating system for real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible;Components are housed in 1,500 W air conditioner control cabinet for constant temperature control & dust-free environment. -- Complete with:(1) 300 m³/Hr Vacuum pumps; Centralized manual lubrication system for guides & ball screw; Safety mats; Emergency stop rope & protective head enclosure with debris curtain around bottom edge. -- Actual Model is BIESSE ROVER A 3.65 FT..

Biesse Akron 245 Machine was in good working condition when removed from service. Computer works, but the screen does not.

BIESSE - AKRON 246: Edgebander with Corner Rounding 0.4 - 8 mm (5/16") Cap. Edgebanding thickness; min. panel width: 85 mm; min. length: 140 mm; panel thickness: 10 - 50 mm; automatic strip & coil feed magazine with: Robust shear type 3 mm PVC guillotine.Equipped with: -- Adjustable top pressure beam positioning. -- Hot Melt glue system (12 min. heat up time) with: Teflon coated glue pot; digital thermostats with automatic kickdown when machine is in idle mode. -- 1" Dia. glue applicator roller; pressure section with: (1) Large dia. "non-stick" coated drive roller & (2) chrome plated idle rollers with pneumatic positioning.Workstations -- Front & Rear end trims (0.33 HP - 12,000 RPM motors); motors travel on (2) straight slides; pneumatic tilt 0° - 25° on horiz. plane. -- Top & Bottom flush trims with "Quick Change" motors (1.0 HP - 12,000 RPM motors), digital readouts for easy setup. -- Corner rounding unit for trimming leading & trailing upper & lower edge/corners with "Fast Position"; can be used as a 2nd Top & Bottom fine trimmer, as well. -- Top & Bottom scrapers for 3 mm thick PVC banding; digitals for horiz. adjustments. -- Top & Bottom (2,000 Watt) hot air blowers with temperature adjustment. -- Top & Bottom buffing (0.5 HP - 2,800 RPM motors); units tilt 0° - 30°. -- Feed Speed: 39 FPM, 3 HP feed drive.Complete with: -- Microprocessor for workstations & feed speed; insulated sound enclosure over all trim stations with: Triple split dust hood; industrial lights; viewing windows. -- Extendible side panel support rail; 12 KVA - 240 Hz digital frequency inverters. -- Includes: Used tooling on all workstations.NOTE: Seller states that all workstations are functioning properly as can be seen in the video, but the End Trim needs adjustment. The Return Conveyor is not included.

BIESSE ROVER A 3.30 CNC MACHINING CENTER (W/ATC/BORING): -- Specifications: Working cap. "X" Axis is 118" (3,000 mm) any unit, "Y" axis for routing is 45.2" (1,150 mm), "Y" axis for boring is 49.6" (1,260 mm), "Z" axis stroke 7.8" (198 mm) max. material thickness 5.9" (150 mm). -- Positioning Speed: "X & Y" Axis is 262 FPM (80 MPM), "Z" 111 FPM (34 MPM); helical rack and pinion drive on "X" axis & precision ball screw on "Y & Z" axis. -- Work Table: (6) Support rails with (3) vacuum pods per rail; (6) pop-up back stops, (4) pop up side stops; (2) independent working areas.Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; each work zone with (1) "quick connect" vacuum outlet for custom vacuum fixtures. -- Boring Unit: (14) Independent vertical boring spindles forming an L-configuration with (7) spindles in "X" axis & (7) spindles in "Y" axis.(6) Horizontal spindles with (2+2) in "X" axis & (1+1) in "Y" axis, (1) "X" axis grooving saw for max. 120 mm dia. blade. -- Machining: (1) 9.5 HP (7 kW) Vertically mounted HSD electro-spindle router with HSK F63 adaptor,inverter driven 1,000 - 24,000 RPM with max. torque from 12,000 - 24,000 RPM. (1) 18-Position "Ride-Along" "on the fly" automatic tool changer. -- Operator & Machine Control: PC Front End with Biesse "XP600" + Windows "XP" + Biesse "WORKS" operating system;INTEL "Celeron" 2.0 GHz processor; 4 GB Hard drive; 15" color monitor; international keyboard; soft touch keypad & industrial mouse; RS-232 serial port and (1) 1.44 MB floppy disk drive.BiesseWORKS is an easy CAD program which can be done from the office or at the machine; operating system for real-time multitask processing; programs can be transferred via diskette or downloaded by wire. -- Complete With: (1) 250 M³/Hr vacuum pump; 11 KVA Stabilized auto-transformer for voltages between 220 - 600 Volts. Centralized manual lubrication system for guides & ball screw. Built-in 1,500 W air conditioner for constant temperature & dust-free environment. Emergency stop rope & sound absorbing protective head enclosure with debris curtain around bottom edge. -- Actual model is BIESSE ROVER A 3.30

BIESSE - ELIX B: CNC Bore, Glue, and Dowel InserterBIESSE Drill & Dowel Inserter features: Single-spindle for drilling; dowel insertion unit; glue injecting unit installed on a carriage moving in the X-axis.Position for drilling dowel insertion provided through simple programs through the NC control or third party software. Operator Control interface is: Intuitive, user-friendly, and very easy to use. -- Specifications Max. parts length: 1,300 mm (51";); min. parts length:120 mm (4.7";); parts thickness: 10 - 40 mm (0.4"; to 1-1/2";). -- Positioning Speed "X" & "Y" Axis positioning speed: 40 MPM (131 FPM); "Z" axis has manual adjustment with: Max stroke of 40 mm (1.57").The working units travel: Precision machine ground ball screws; powered by brushless AC Servo motors. -- Worktable(4) Working Zones with: Center fence position in up mode; (2) large work zones in down position; (4) holddown cylinders. -- Boring UnitDrilling Uunit. High-speed unit with: 6,000 RPM spindle; max. drilling depth of 30 mm (1-1/4"); max. drill bit dia.: 12 mm (0.47"); manual adjustment of depth with: Digital indicator. -- Dowel Insertion UnitDowel prepositioning ensures: high repeatability of inserting dowels for each hole; distance between the dowel insertion unit and the drilling spindle: 32 mm (1.3") for simultaneous drilling; dowel insertion when holes are spaced at 32 mm; standard dowel dimensions: 8 x 30 mm; Max. dowel projection: 14 mm (0.551"). Glue Tank: Holds up to 8 liters (3.1 gallons) of glue; max. glue density: 900 CPS. - Glue inserting unit: Flow sensor and electronic adjustment of the amount of glue. -- Operator InterfaceIndustrial Numerical Control with: Extremely simple Program Editor; macro & parametric programming. Icon driven. -- Includes: Original Factory Machine Documentation. -- Actual Model: BIESSE ELIX B

BIESSE - AKRON 855, ...Edgebander with Premill & Corner Rounding (Loaded!)Specifications: -- Edge & Workpiece Capacity: 0.4 - 15 mm (0.016" - 0.59") Edge thickness; 14 - 65 mm (0.55" - 2.56") edge height; 10 - 60 mm (0.39" - 2.36") panel thickness; 140 mm (5-1/2") min. panel length; 85 mm (3.3") min. panel width. Infeed Section: -- Premilling Unit - "FI-701"Rectifies face to be edged before applying glue; horizontal & vertical movement of (2) motors on linear guides; independent automatic temporized intervention of (2) 1.8 kW (2-1/2 HP) - 12,000 RPM motors; independent copying pads on each unit, Autoset device to ensure optimum positioning of cutters according to thickness of panel being machined. -- Edge Feeding, Gluing & Pressing Unit - "VC-710"With automatic edge magazine for strip & coil stock; 3 mm (0.04") PVC guillotine; "TEKNO-GLUE" System includes: Pre-Melt "QM-701"; for quick heating & tank changing with floating & bidirectional glue roller applicator & NC axis idle presser roller movement device. -- Pressure Section: (1) Large driven & (5) Idle rollers, Independent pneumatic pressure control, Programmable servo motor for quick edge thickness changeover, Feed speeds 10, 14 & 20 MPM (33, 46 & 65 FPM).WORKSTATIONS: -- End (Edge) Trimming Unit - "IN-701-V"(2) 0.35 kW (0.5 HP) - 12,000 RPM Motors; automatic 4-position programmable chamfer from Control Panel (0°, 3.6°, 11°, 15°); sliding in slicing motion on 45° precision guide bar with oversized bearing blocks. -- Superimposed Flush (Double Edge) Trimming Unit - "RS-701"Top & bottom; (2) 0.8 kW (1 HP) - 12,000 RPM motors with superimposed motor position; 1° tilt capability; includes: Pneumatic exclusion device & Pneumatic top/bottom motor positioner. -- Tilting Top & Bottom Trimming Unit - "RI-701"(2) 0.65 kW (0.87 HP) - 12,000 RPM Motors; for radius top & bottom fine trimming; unit can be tilted 0° - 45°; includes: NC axis multiple machining device. -- Corner Rounding Unit - "CR-200V"For corner rounding; top & bottom trimming on panel edge with synthetic material & wood edgebanding up to 5 mm (0.20") max. edge thickness. -- Edge Scraping Unit - "RB-701"For finishing rounded off edges in PVC or ABS up to 5 mm (0.20") thickness includes: Pneumatic Unit Lifter. -- Flat (Glue) Scraper - "RCC-700"Top & Bottom, Removes potential excess glue before buffing unit. -- Buffing Unit, "SPL-700":Top & Bottom. -- Hot Air Blower Unit - "PH-700" - (2) STEINEL "2346" 2,000 W; reactivates color of thick plastic.Complete with: -- PC-Based Control Panel with: 15" Color LCD monitor, HF (High Frequency motors on all cutting & trimming workstations. Top pressure beam programmable via positioning motor; top pressure provided by belt holddown. 36" Dia. Coil table: Padded sound enclosure. -- Manuals (as pictured).Dimensions: 280" x 42" x 72" H. - Weight: 3,500 kG (7,750 Lbs.).

BIESSE SPARK 3.3 Edgebander (Compact)0.4 mm to 3 mm Material thickness. Min. panel thickness 10 mm, max. panel thickness 40 mm. Min. panel width 90 mm, min. panel length 140 mm.Equipped with: -- 2 Liter Glue Teflon coated tank with quick heating system. -- Top pressure beam with manual adjustment through numerical read-out equipped with rubberized holddown wheels. -- Pneumatic Guillotine knife for automatic edge cutting with a max thickness of 3 mm with automatic “kickback"; of the edge. -- Adjustable edge pressure unit with (2) rollers: 1st roller motorized with separate adjustable pressure system; 2nd idle roller with separate adjustable pressure system. Workstations: -- Double Motor End Trimming Unit - 2 tilting motors HF 0.5 HP each. -- Top and bottom Trim with (2) HF motors, 0.75 HP (0.55 kW) each and micrometric adjustment with numerical read-out. Cutters with 3 mm radius with (4) knives. -- Top and bottom Buffing station. -- Material feed speed 12 MPM (39 FPM).

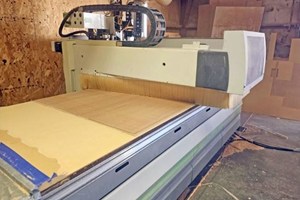

BIESSE SKILL G FT 1536 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:5' x 12' "Matrix" Grid phenolic surface for "Nested Base Manufacturing". -- Working Capacity:"X" Axis 148.2" (3,765 mm); "Y" axis 61.4" (1,560 mm); "Z" axis stroke is 12.7" (324 mm); max. material thickness 4.7" (119 mm). -- Positioning Speed:"X" & "Y" Axis 197 FPM (60 MPM); "Z" axis 65.6 FPM (20 MPM)."X" & "Y" Axes use a precision rack & pinion system; "Z" axis uses precision ball screws.All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors.All motion components are maintained by an automatic lubrication system. -- Work Area:Flat table design with: "Matrix" grid phenolic surface for "Nested Base Manufacturing".(5) External pneumatic pop-up stops for piece positioning at (4) corners of workstations; automatic NC controlled 8-zone vacuum table.Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; with "quick connect" vacuum outlet for custom vacuum pods & fixtures. -- Boring Unit:(1) 2-1/2 HP (1.7 kW) Motor; variable speed up to 6,000 RPM; Boring unit with: (10) Independent vertical spindles; (7) in "X" axis & (3) in "Y" axis. -- Machining:(1) 16 HP (12 kW) Air-Cooled "HSD" Electro-spindle with: HSK F63 Adaptor; RH & LH rotation; variable speed from 1,000 - 24,000 RPM.(1) 12-Position ride along tool changer for "on the fly" ATC. NC Controlled tool presetting for the measurement of the tool length -- Operator & Machine Control:PC Front-End with: BIESSE "BH 660" + "BiesseWORKS + "WINDOWS "WRT" (Windows Real Time) Operating System'19" LCD Flat screen monitor; Server; full keyboard & mouse all mounted on a mobile cart.Intel(R) Core i CPU; 8 GB RAM memory; 500 GB (SSHD) hard disk; dedicated graphic card; DVD reader; USB ports; Ethernet card for network connection capabilities. -- Complete with:(1) 300 m³/Hr Vacuum Pump; air-conditioned control cabinet; automatic program update according to the tool length.Automatic Lubrication system for linear guides, pads, and recirculating ball screw; universal autotransformer for voltages between 200 - 600 V, 50 / 60 Hz; teleservice capabilities; perimeter safety mats; manuals & documents on CD. -- Options Include:Prearrangement for a "C" axis at a later date. -- Actual Model is BIESSE SKILL 1536 G FT.

BIESSE ROXYL 5.5 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) + "AIR FORCE" PUR/EVA GLUING TECHNOLOGY: -- Features: Latest Technology combines productivity, efficiency, and flexibility for all types of edgebanding material. "AirForce" emits high temperature compressed air through a slot nozzle directly onto the reactive layer of laser banding. That layer is activated and bonds the banding to the panel fibers. This technology allows changes based on banding colors without any setup. Environmentally friendly providing a “clean - green"; technology that eliminates glue and fumes, which becomes timely & important now that "AirForce" can use PVC. -- In addition, it features a conventional EVA (Hot Melt) Gluing System to cover the full range of edgebanding processes in use today!Specifications: -- Edgebanding Capacity: Edge thickness for strips min./max. 0.4 - 22 mm (0.02" - 0.87"), coiled material from 0.4 - 3 mm (0.02 - 0.12"); panel thickness from 10 - 60 mm (0.39 - 2.36"), workpiece width min. of 85 mm (3.34"); workpiece length min. 140 mm (5.51"); feed speeds 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM). -- Machine Controls: "Roxyl-Matic" Automated machine setup, MS/Windows XP Operating System, floppy drive, and 4 GB HD; USB port, keyboard, and mouse interface. -- Flat Screen (17") with color graphics interface: Programs can be easily created and recalled at will; Graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters, which can be programmed; Edgebander may be operated manually when required, without necessity to write a program.Machine In-Feed Configuration: -- Pre-Milling Station "FL-502": (2) LH & RH Rotating NC controlled spindles with automatic center positioning. -- Anti-Adhesive "ADZ-700" Automatic Spray Unit with: Glue release agent preventing glue to adhere to work piece's surfaces. -- Infrared Heating Lamp: Preheating workpiece edge to ensure best possible surface adhesion quality of edgebanding material. -- Edge Magazine: Automatic for processing coiled and strip edgebanding material. -- Pressure Section: Servo controlled programmable pressure section with (1) large driven roller and (4) idle rollers.Gluing System: -- EVA (Hot Melt) "QM-705": Quick premelting granulate with glue roller applicator to cover conventional edgebanding material. -- AirForce "VC-710": High pressure, hot air system to reactivate special pre-coated edge-material (commonly referred to as laser edge).Workstations: -- End Trimming Unit "IN-801": Front & rear trimming motors, uni-point swivel 0° - 15° bevel, programmable pneumatic change-over from flush to bevel. -- Rough/Flush Trimming Unit "RS-701": Top/Bottom pre- or flush trimming motors -- Flush/Bevel/Radius Combination Trimming Unit "RF-400": Servo controlled, (2) Servo motors (one for horizontal tool position, one for tool up/down position); using combination bevel/radius/flush insert knives; pre-posit

BIESSE ROVER K 1532 CNC MACHINING CENTER (W/ATC & "C" AXIS): -- Specifications:"BRIDGE GANTRY" machine with a working field in "X" axis 126" (3,200 mm), "Y" axis 61" (1,560 mm), max. material thickness 6" (165 mm). -- Positioning speed:"X" Axis 279 FPM (85 MPM), "Y" Axis 196 FPM (60 MPM), "Z" axis 65 FPM (20 MPM). -- Work Table:(8) "ATS" Panels supports with lifting rails for heavy pieces; (4) "ATS" vacuum pods with universal clamping systems on each panel support.BIESSE "Set Up Assist" & digital readouts for pod & rail placement.(2) Independent working areas with (8) pneumatic back stops, (2) pneumatic side stops & (2) pneumatic central stops. -- Boring Unit:4 HP (3 kW) motor with variable speed from 1,500 - 7,500 RPM;"BL 30" Boring head with (20) "Quick Change" independent vertical spindles, (9) spindles in "X" axis & (11) spindles in "Y" axis;(8) Horizontal boring spindles with (2+2) in "X" axis & (2+2) in "Y" axis;(1) "X" axis grooving saw with 120 mm dia. blade. -- Machining:(1) 17 HP (12.6 kW) electro-spindle router with HSK F63 adaptor, variable speed from 3,000 - 24,000 RPM.Motorized dust deflector shield & 6-position adjustable dust suction hood,(1) NC controlled "C" axis for 360° horizontal processing.(1) 16-position ATC tool plate mounted on board the "X" axis at the rear of the machine. -- Operator & Machine Control:PC Front End with Biesse "BH 660" + Biesse "bSolid" + Windows "7 WRT" operating system,15" Flat screen monitor, full standard keyboard & mouse, 1.44MB & CD ROM disk drives for data entry,RS 232 & USB ports, Ethernet connection, specific function controls & internet trouble shooting capabilities.Electronics are mounted in an air conditioning & dust free environment control cabinet. -- Biesse "bSolid" is a 2D/3D Cad/Cam software program that supports the performance of any machining operation thanks to vertical modules designed for specific manufacturing processes.Planning with "bSolid" takes just a few clicks & has endless possibilities; "Real-Time" simulation allows the operator to visualize the piece prior to processing, it provides virtual prototyping of the piece to avoid collisions & ensures optimal machine performance. -- Complete with:(1) 250 m³/Hr Vacuum pump; Hand-held "Remote Control" pendant for immediate operator control; LED bar with (5) colors that show the machine's status in "Real-Time".Safety fences, safety bumpers, safety photocells & safety mats; scrap conveyor; original documentation + user & maintenance manuals, wiring diagrams and operation of Numerical Control. -- Actual Model is BIESSE ROVER K 1532 G VS2

BIESSE - ARTECH LEVIA 330, ...3-Head Wide Belt Sander43" Width cap. Drum, Drum, and Combination Head.Head Configuration: -- 1st Head: Rubber covered Contact Roll, 6" dia., 25 HP motor. -- 2nd Head: Steel Contact Roll, 6" dia., 25 HP motor. -- 3rd Head: Combination head with a rubber-covered Contact Roll and Finishing Platen.NOTE: There are (2) 25 HP motors; one drives the 1st head and the 2nd drives the other (2) heads.Specifications: -- 44" x 85" Abrasive belts, electronic abrasive belt tracking; all contact rolls with pneumatic seclusion; Head #3 with air belt cleaner. -- EASY PRO "2000 C" Processor with (200) programs, touchscreen for control of Sander functions, thickness opening, feed speed, sequential startup, contact roll seclusion, and abrasive belt cleaner. -- Conveyor belt feed, 11 - 66 FPM variable feed speed, 2 HP feed drive with inverter control. -- 1/8" - 7-7/8" Motorized thickness adjustment with LED readout; automatic part thickness setup.Equipped with & Features; -- Automatic conveyor belt tracking. -- Infeed & outfeed shoes or rubber-covered holddown rolls, infeed panel "over thickness" sensor. -- Electronic brakes on both sanding head motors. -- Infeed emergency stop, 3-roll infeed extension, and motor load meter.

BIESSE ROVER 20 CNC MACHINING CENTER (W/ATC/BORING): -- Specifications: Working field: "X" Axis 113.9" (2,893 mm); "Y" axis 37.4" (950 mm); "Z" axis stroke is 3.9" (100 mm), max. panel thickness 2-1/2" (65 mm). -- Positioning Speed:"X" Axis at 246 FPM (75 MPM); "Y" axis 147 FPM (45 MPM); "Z" axis 49 FPM (15 MPM)."X" Axis moves on high precision prismatic guides and ground helical rack; "Y" & "Z" axis via hardened ground ball screw. -- Worktable:(6) Pneumatically locked & manually positioned panel supports with (2) vacuum cups each.(2) Working zones with: (6) Pneumatic backstops; (2) pneumatic side & (2) center stops; stops raised & lowered automatically by start/stop of machining cycle. -- Boring Unit:(1) 2.3 HP - 5,135 RPM Motor; (10) vertical spindles independently operated with (6) in "X" axis & (4) in "Y" axis.(6) Horizontal spindles: (2 +2) in "X" Axis & (1 + 1) in "Y" axis; 2-1/2" (65 mm) max. boring depth.(1) "X" Axis grooving saw with: 120 mm Dia. blade - 5,200 RPM. -- Machining: Equipped with: (1) 9 HP (6.6 kW) Air-cooled "Quick Change" electro spindle with ISO 30 adaptor.Router is driven by: 10.2 HP (7.5 kW) Inverter for variable speed from 1,000 - 24,000 RPM; RH & LH rotation.(1) 3-Position automatic tool changer mounted at the back of the machine for "on the fly" ATC. -- Operator & Machine Control: Separate Control Console with: CNi "NC 410" Operating System housed in air-conditioned cabinet.8" LCD Monitor: Displays programming graphics, numerical & function keyboard; 512 KB RAM memory; (1) "UPGRADED" USB drive.RS-422 Serial port for PC and RS-425 port for inverter connection; EPROM for machine data & subroutines; machine runs production programs while programming and editing. -- Complete with:Stabilized autotransformer for voltages between 200 - 600 Volt 50/60 Hz; (1) 100 cbm/Hr Vacuum Pump; triple photocell barrier; assortment of misc. parts and tooling; Users operator/maintenance manuals & backup disks. -- Actual Model is: BIESSE - ROVER 20.
