Description:

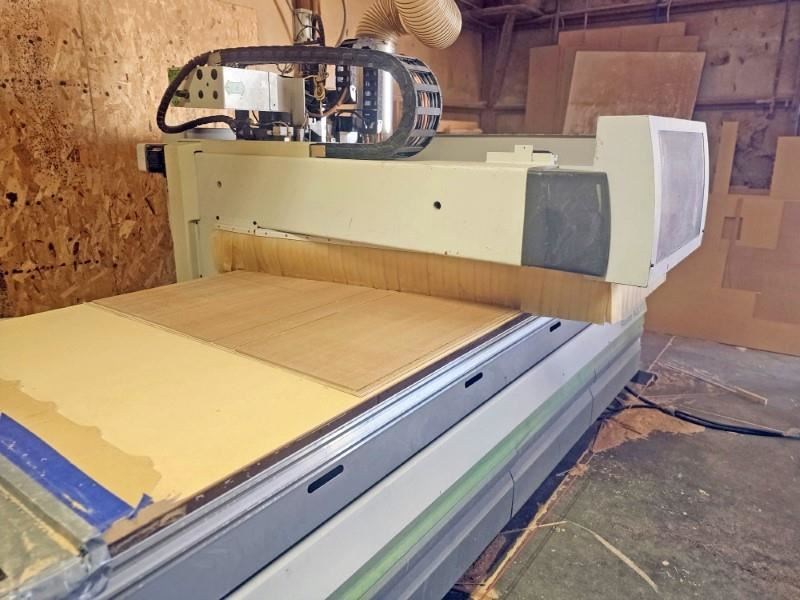

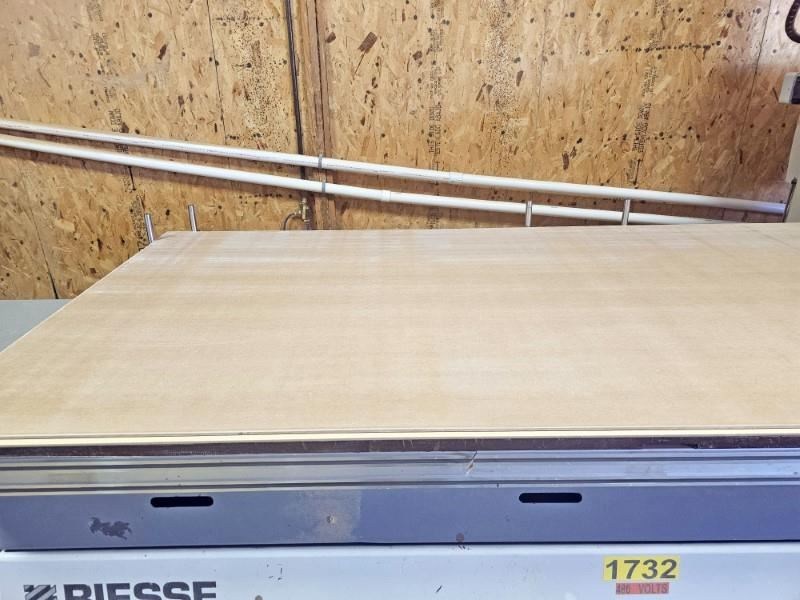

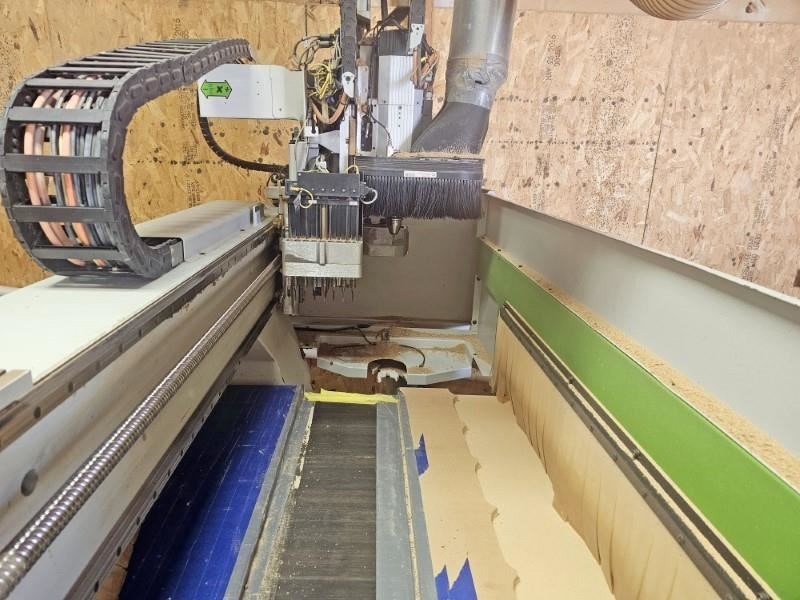

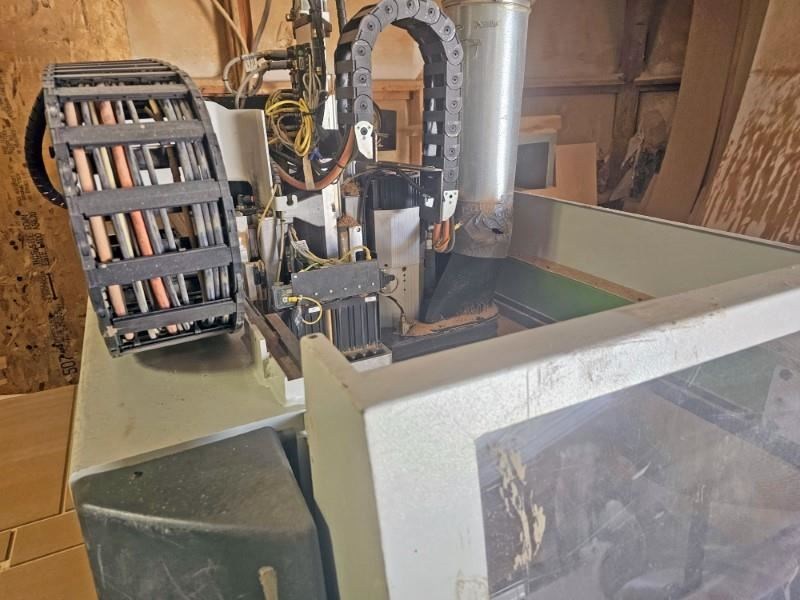

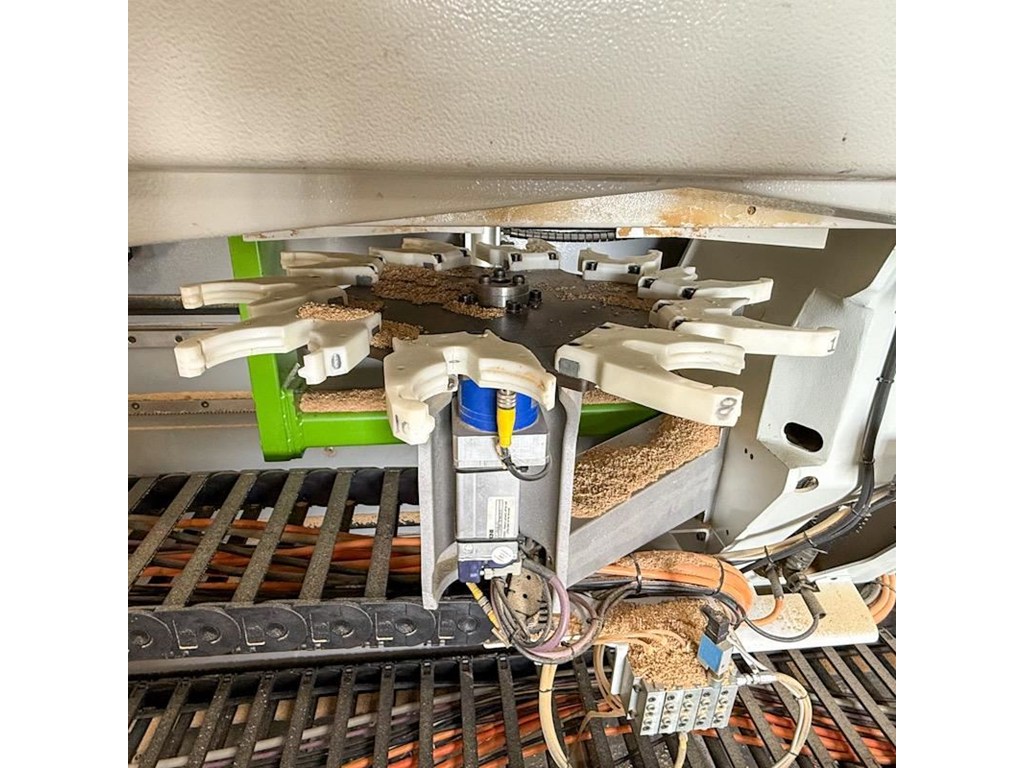

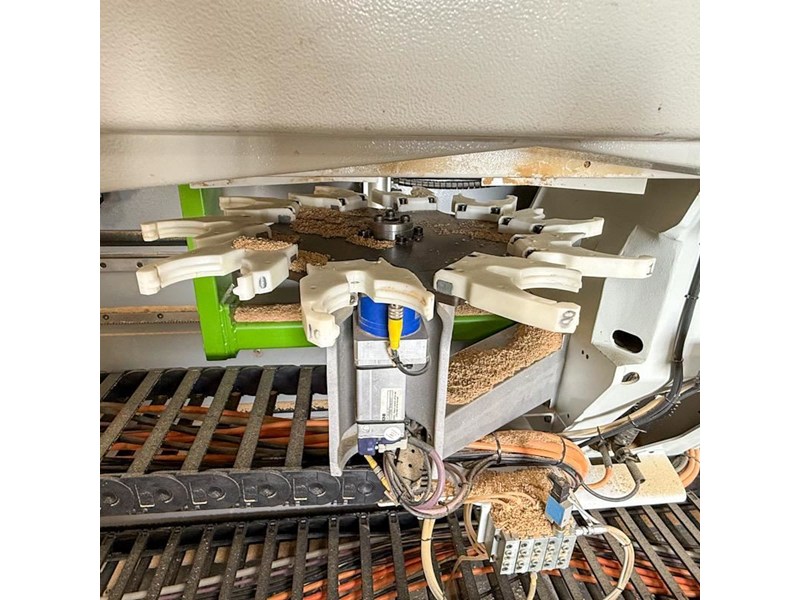

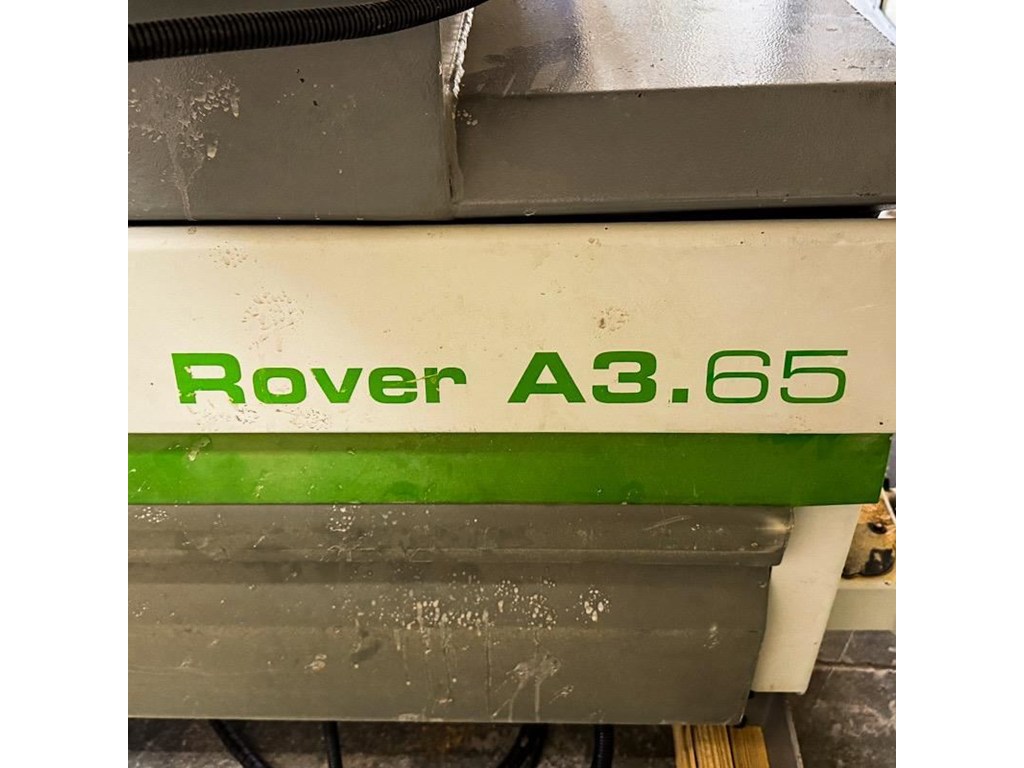

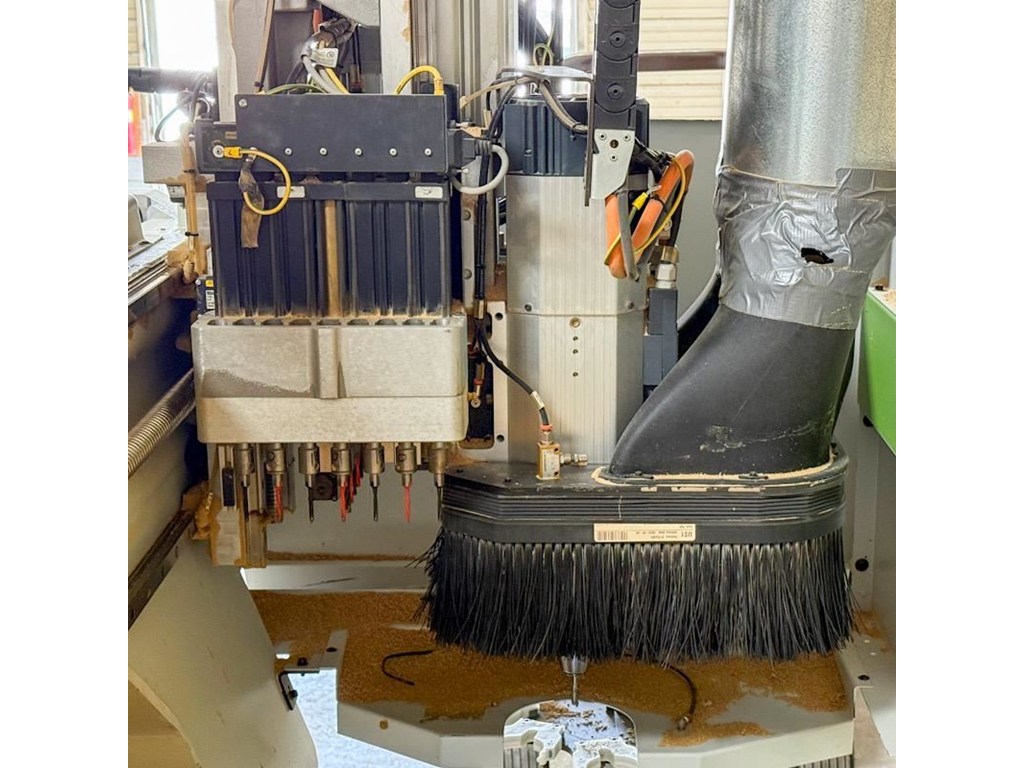

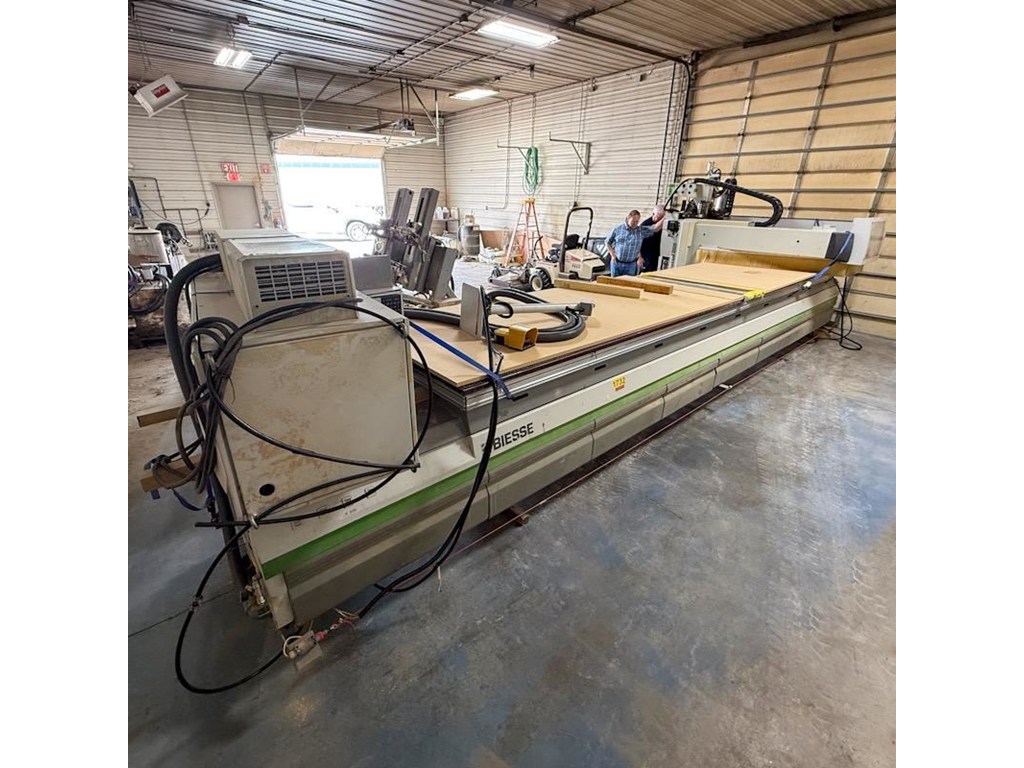

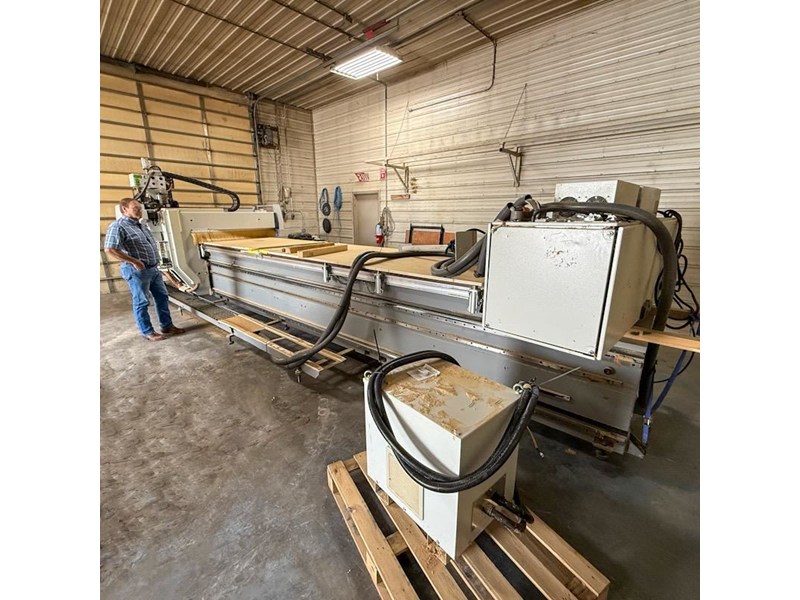

BIESSE ROVER A 3.65 FT FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:4' x 21.3' with (2) 10' Long Flat Table Workstations; "GANTRY TYPE" "Phenolic" table machine for Nested Base Manufacturing. -- Working Capacity: "X" Axis is 254" (6,450 mm) any unit, "Y" axis for routing is 51" (1,290 mm), "Y" axis for vertical drilling is 57" (1,436 mm), "Z" axis stroke is 7.9" (200 mm), max material thickness 6.2" (160 mm). -- Positioning Speed:"X" & "Y" Axis is 262 FPM (80 MPM), "Z" axis is 82 FPM (25 MPM) with helical rack and pinion drive on "X" Axis & ballscrew in "Y" & "Z" Axis. -- Work Table:Flat table designed for "Nested Base Manufacturing", (2) independent vacuum zones and working areas;(16) External pop-up reference pins with (2) on the RH side, (2) on the LH side + (6) on the front of the table & (6) on the back of the tablePrepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; each work zone with (1) "quick connect" vacuum outlet for custom vacuum fixtures. -- Boring Unit:Boring Head with (7) Independent vertical boring spindles in "X" axis. -- Machining:(1) 16.1 HP (12 kW) Liquid cooled electro-spindle with HSK F63 adaptor, 14 kW inverter 1,000 - 24,000 RPM with max. torque from 12,000 - 24,000 RPM.(1) 10-Position "Ride-Along", gantry mounted automatic tool changer. -- Operator Interface:PC front end with Biesse "XP600" + "BiesseWORKS" + Windows "XP Professional" operating system; 15" color monitor, international keyboard, soft touch keypad & industrial mouse, RS-232 serial port; (1) 1.44MB & CD ROM disk drive.BiesseWORKS is an easy operating system for real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible;Components are housed in 1,500 W air conditioner control cabinet for constant temperature control & dust-free environment. -- Complete with:(1) 300 m³/Hr Vacuum pumps; Centralized manual lubrication system for guides & ball screw; Safety mats; Emergency stop rope & protective head enclosure with debris curtain around bottom edge. -- Actual Model is BIESSE ROVER A 3.65 FT..
