Description:

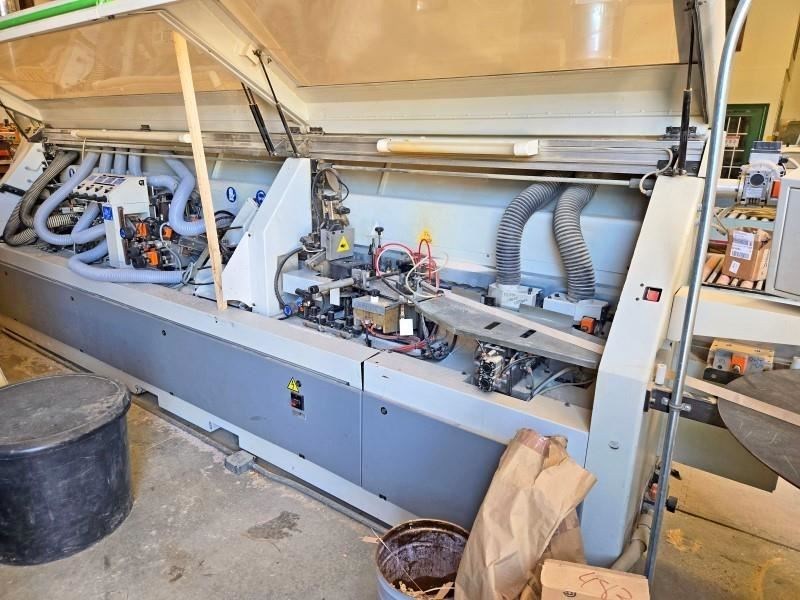

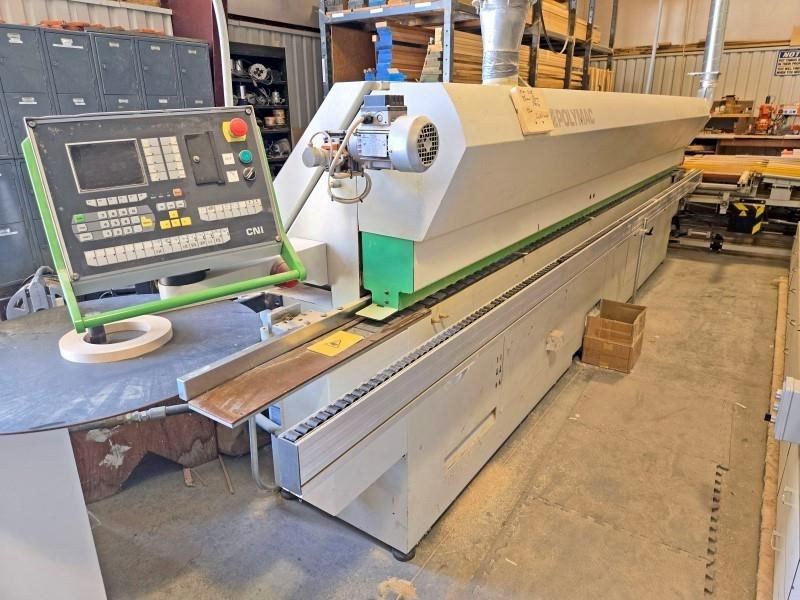

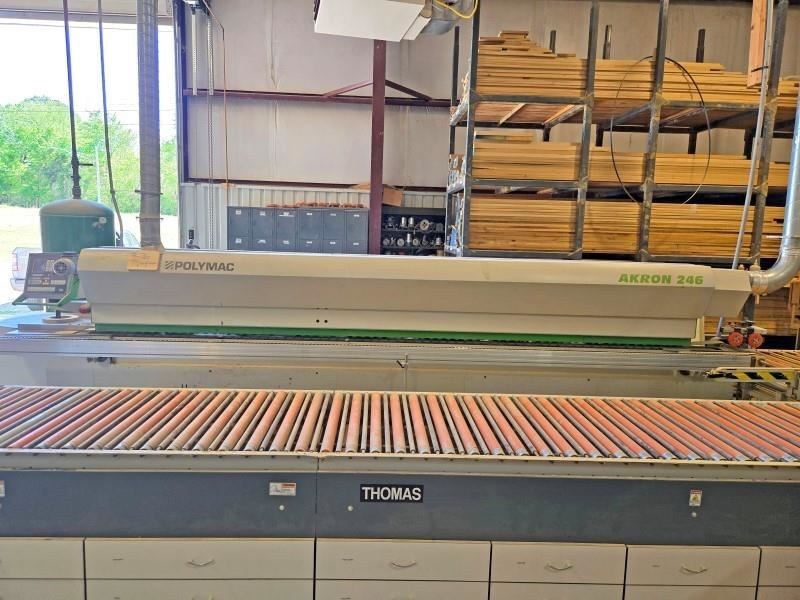

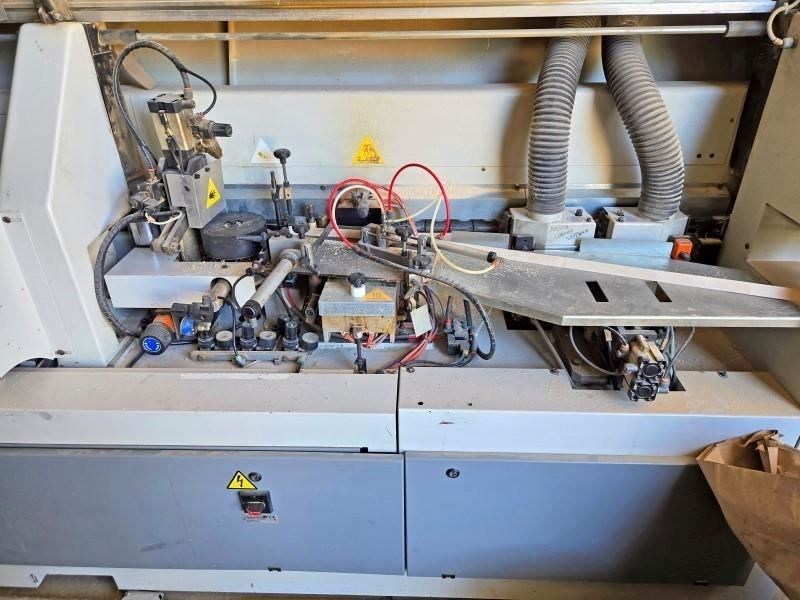

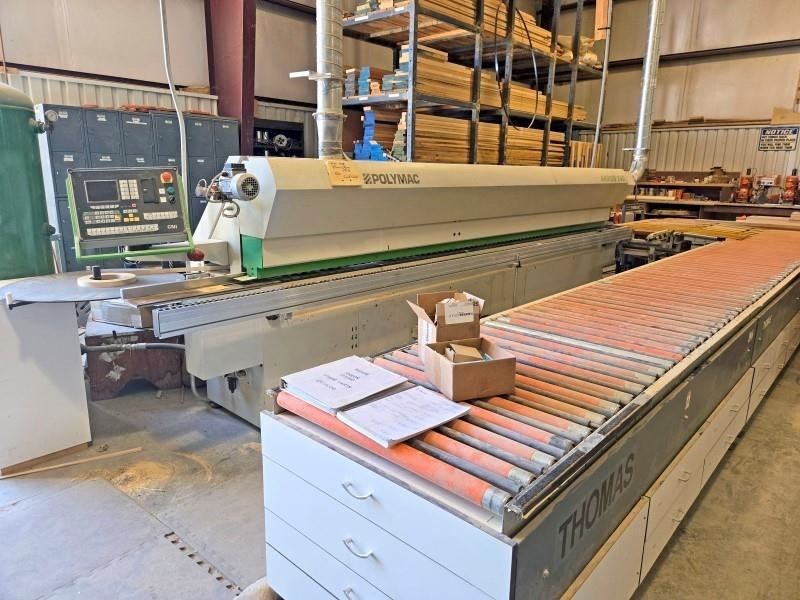

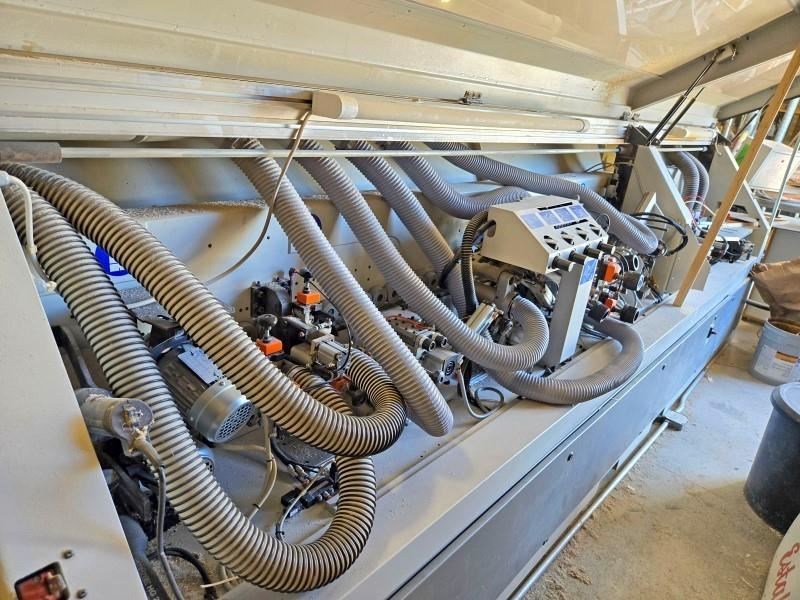

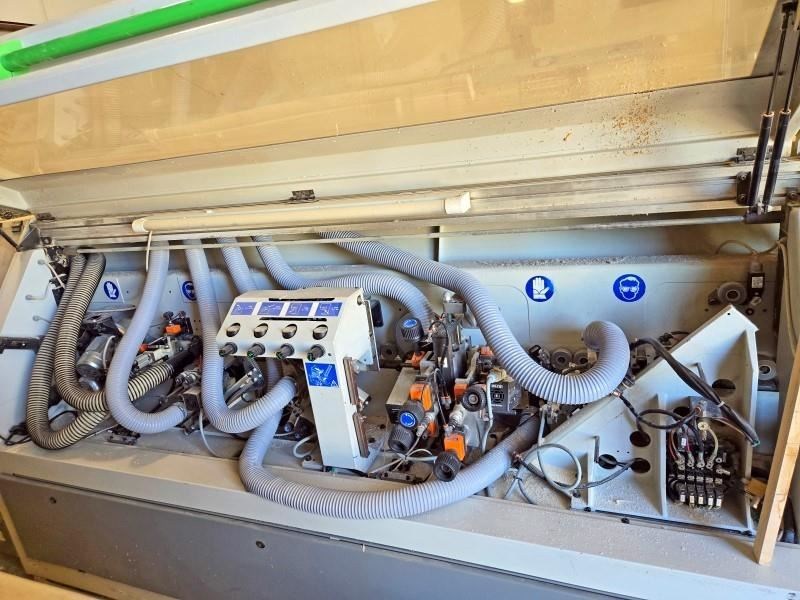

BIESSE - AKRON 246: Edgebander with Corner Rounding 0.4 - 8 mm (5/16") Cap. Edgebanding thickness; min. panel width: 85 mm; min. length: 140 mm; panel thickness: 10 - 50 mm; automatic strip & coil feed magazine with: Robust shear type 3 mm PVC guillotine.Equipped with: -- Adjustable top pressure beam positioning. -- Hot Melt glue system (12 min. heat up time) with: Teflon coated glue pot; digital thermostats with automatic kickdown when machine is in idle mode. -- 1" Dia. glue applicator roller; pressure section with: (1) Large dia. "non-stick" coated drive roller & (2) chrome plated idle rollers with pneumatic positioning.Workstations -- Front & Rear end trims (0.33 HP - 12,000 RPM motors); motors travel on (2) straight slides; pneumatic tilt 0° - 25° on horiz. plane. -- Top & Bottom flush trims with "Quick Change" motors (1.0 HP - 12,000 RPM motors), digital readouts for easy setup. -- Corner rounding unit for trimming leading & trailing upper & lower edge/corners with "Fast Position"; can be used as a 2nd Top & Bottom fine trimmer, as well. -- Top & Bottom scrapers for 3 mm thick PVC banding; digitals for horiz. adjustments. -- Top & Bottom (2,000 Watt) hot air blowers with temperature adjustment. -- Top & Bottom buffing (0.5 HP - 2,800 RPM motors); units tilt 0° - 30°. -- Feed Speed: 39 FPM, 3 HP feed drive.Complete with: -- Microprocessor for workstations & feed speed; insulated sound enclosure over all trim stations with: Triple split dust hood; industrial lights; viewing windows. -- Extendible side panel support rail; 12 KVA - 240 Hz digital frequency inverters. -- Includes: Used tooling on all workstations.NOTE: Seller states that all workstations are functioning properly as can be seen in the video, but the End Trim needs adjustment. The Return Conveyor is not included.
