Description:

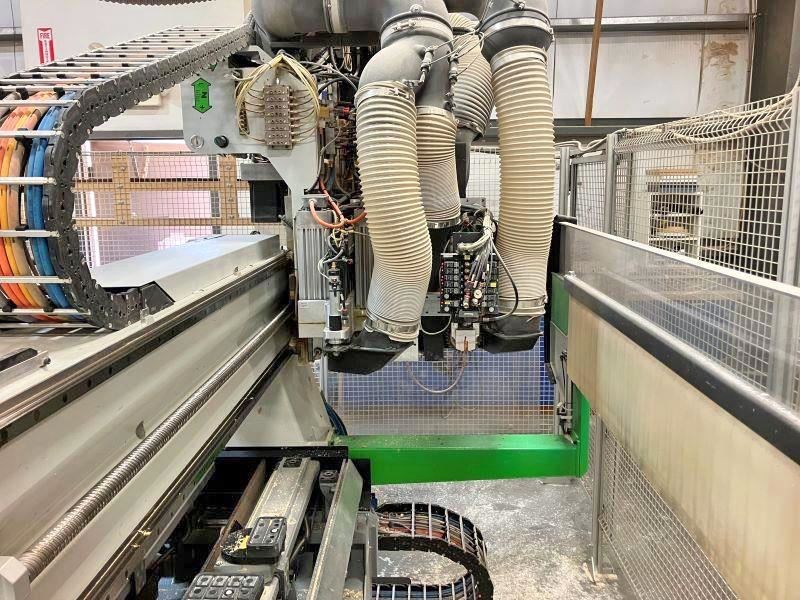

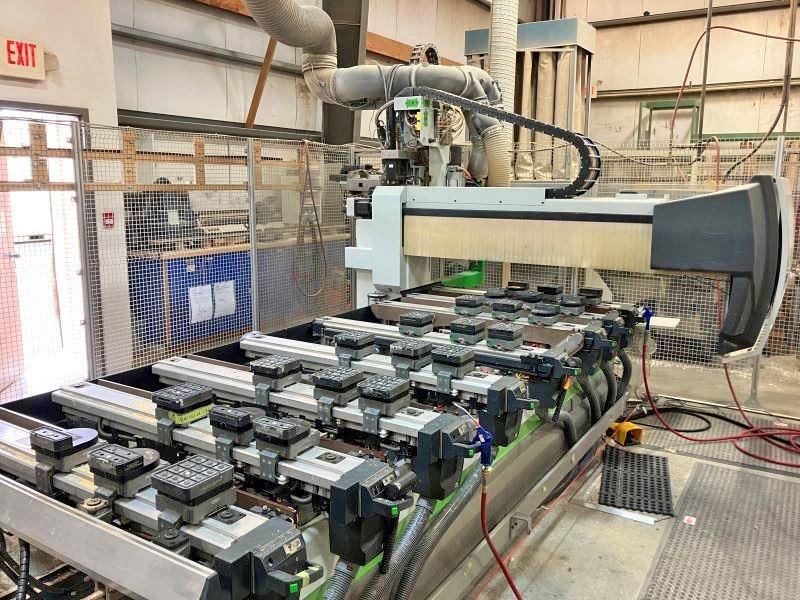

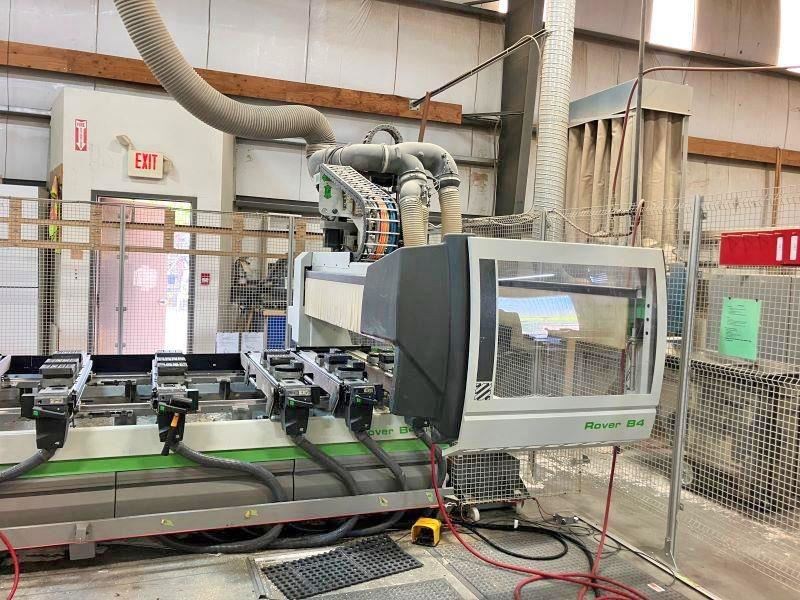

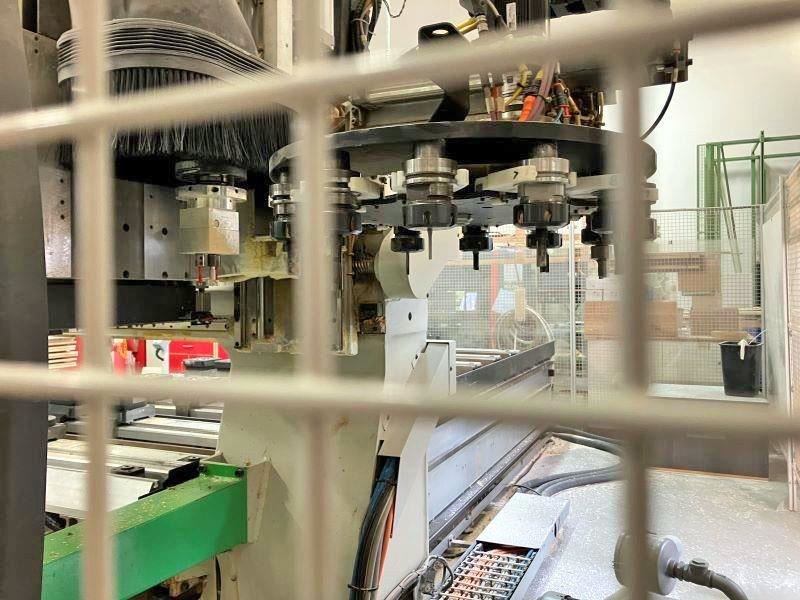

BIESSEROVER B 4.40 CNC MACHINING CENTER (W/ATC/BORING): --Specifications:÷Working cap "X" Axis 143.3" (3,640 mm), "Y" axis 51.4" (1,306 mm), "Z" axis stroke is 8.8" (225 mm), max. material thickness 7"(180 mm). --Positioning Speed:÷"X" & "Y" axis is 262 FPM (80 MPM), "Z" axis is 98 FPM (30 MPM); helical rack and pinion drive on "X" axis & ballscrew on "Y" & "Z" axis. -- Work Table:÷(6) Panel support rails with (4) lifting bars to assist with panel loading/unloading, digital display readouts for rail & pod placement according to the programs, (3) vacuum pods per panel support; --(2) independent working areas with pop-up locating pins for positioning of parts on the worktable; prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; each work zone with (1) "quick connect" vacuum outlet for custom vacuum fixtures. -- Boring unit:÷(24) Independent vertical boring spindles with (14) spindles in "X" axis & (10) spindles in "Y" axis; --(10) horizontal spindles with (3+3) in "X" axis & (2+2) in "Y" axis; (1) "X" axis grooving saw with 120 mm dia blade. -- Machining unit:÷(1) 16 HP (12 kW) Vertically mounted HSD "Electro-spindle" router with ISO 30 adapter, inverter driven 1,000 - 20,000 RPM with max. torque from 12,000 - 20,000 RPM; --(1) 12-position ride along ATC for "on the fly" tool change. -- Operator & Machine Control:÷PC Front End with: Biesse "XP 600" + BiesseWORKS Advanced + Windows "XP" operating system; --INTEL "Celeron" 2.0 GHZ processor; 4 GB Hard drive; 15" color monitor, international keyboard, soft touch keypad & industrial mouse, RS-232 serial port, USB ports, CD ROM & 1.44MB disk drives; --separate control panel with built-in 1,500 W air conditioner for constant temperature & dust-free environment; 11 KVA Stabilized auto-transformer for voltages between 200 - 600 Volts. -- Complete With:÷(1) 100 M3/Hr Vacuum Pump; centralized manual lubrication system for guides & ball screw; emergency stop rope; safety mat protection barrier & sound absorbing protective head enclosure with debris curtain around bottom edge. -- Actual model is Biesse Rover B 4.40
