Equipment For Sale

SCHUTTE BUFFALO - Model WA16L, ... HammermillModel# WA16L, 3500 RPM, with filtration system and multiple grates for destruction sizes. -- It also includes Electrical panel. -- This system is apart and palletized. All you have to do is pick it up and transport it to you. -- System was in perfect working order when it was taken apart and palletized for transport. -- The system is perfect for the destruction of computer hard drives and different types of media.

Schutte Hammer Mill Horizontal Infeed HZF40 w/100HP Electric Motor and Attached Blower

Schutte Hammer Mill 40-HZF with 100HP Electric Motor. No. 172 Attached Blower.

Grinder. This machine is a Shutte grinder. With Webster vibratory infeed. Item #C625

Schutte Pallet Hog - Model 56-35 heavy duty horizontal hog.   Features 50 inch wide horizontal feed  opening with top and bottom powered rolls; 50  2-way, reversible swinging hammers with hardsurfaced tips ; 250 HP direct drive electric motor; 3/4" thick screen with 1-3/8" diameter holes;    Rear discharge.   Electrical cabinets included.   Hammers are approximately 1-3/4" x 5" x 8".    Serial #0506071.

Schutte Hammer Mill #40 S/N 111375-R

Schutte Swing Hammer Grinder

Worktable dimensions: 145? x 61? Z -Axis stroke: 9.84? Spindle speed: 24,000 RPM Electrospindle (S1/S6 rating): 7.5 HP / 9HP Tool Changer: 10 position Spindle Taper: HSK 63 Boring Block (7) Spindles: 6,000 RPM Maximum positioning vectorial speeds: X/Y axis: 115 feet/minute Electrics: 208/230/460 volts, 3-phase, 60 cycles EQUIPPED WITH: Windows Based Operating system 17” Flat Panel Monitor Remote Pendant with 7? Display 7-Spindle Boring Block Touch Probe Spindle Air Blowers Built In Vacuum Pumps- 2 Zones

SCM - SI 400 NOVA: Sliding Table Panel SawSpecifications & Features -- 126" Stroke with scoring; telescoping crosscut fence with panel support; back squaring fence: (2) Flip-stops; 3/4" dado capacity. -- Max. cutting height: 3-3/4" at 90°; 2-3/4" at 45°; 51" rip cut cap. with movable fence; "EZ Dial" adjustable split scoring blade assembly. -- 35" x 21" Main fixed table.Equipped with: -- 9 HP Main blade motor; 1 HP scoring blade motor; tilting arbor 0° - 45°; 300 mm (11.8") main saw blade dia.; 1" main blade arbor; 4,000 RPM. -- 100 mm (3.9") scoring blade dia.; 3/4" scoring blade arbor; 8,000 RPM; 2-position table lock mechanism. Complete with: -- "EZ Dial" adjustable split scoring blade assembly: Simply turn the dial to adjust the width of the score. This system eliminates the need for shims and is fully adjustable in 0.1 mm increments. -- Handwheels in front for lifting & tilting of saw blades; blade guard on riving knife with dust outlet. Includes: 120 mm Main dust collection outlet.

SCM PRATIX S-12-B FLAT TABLE MACHINE (W/ATC/BORING): -- SpecificationsSingle 4' x 8' traveling "Bridge Gantry" and stationary aluminum dual-vacuum table with: "MATRIX" square grid pattern for fixturing parts.Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil-boards for "nested base machining".Part location pop-up pins mounted on the table perimeter. -- Working field:"X" Axis is 98" (2,486 mm); "Y" axis is 49.4" (1,255 mm); "Z" axis stroke is 9.8" (250 mm); max. material thickness 5.9" (150 mm). -- Positioning Speed:"X" & "Y" Axis 115 FPM (35 MPM), "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system.High precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screws "Z" axis; all axes ride on extra-large precision profile linear guideways. -- Boring Unit:3 HP (2.2 kW) - 6,000 RPM motor; (7) vertical spindles on 32 mm centers, (5) spindles in "X" axis & (2) spindles in "Y" axis. -- Machining:(1) 9 HP (6.7 kW) Air-cooled electro-spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 7-Position ATC tool rack mounted to the machine base RH side. -- Operator & Machine Control:PC Front-End with: "XILOG Plus" + Windows "XP Pro" Operating System; 17" high resolution LCD; ergonomic keypad.USB Ports, serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible.All computer components are mounted on a mobile stand.XILOG Plus Offers incredible list of functions from: (a) Auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- Additionally Equipped with:Onboard mini-CAD with built-in programming for writing: Circles, ellipses & angles with only a few keystrokes.Onboard cycle optimization, onboard calculator, mirror-imaging, and repeat imaging. -- Complete with:(2) 150 cbm Vacuum Pumps; safety enclosure around the spindle carriage. Tool length measuring device.(1) Universal remote Pendant; 7" color display allows for the effective management of all machine functions from manual Jog Mode to loading & execution of a program. The pendant is fitted with a USB port to allow quick load & setup of new programs.Safety "bump-stop" bumpers; emergency stop rope, doc's & manuals. -- Actual Model: SCM PRATIX S-12-B

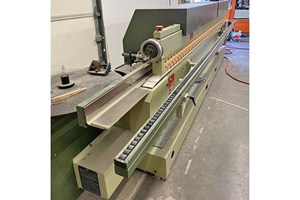

SCM OLIMPIC K 560 T-ER2 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- SpecificationsEdge Capacity: 0.4 to 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity: Min. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Pre-milling Station: (2) 2.0 HP (1.5 kW) motors; rectifies/cleans panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: "SGP" for EVA (Hot Melt) with quick change/disconnect Teflon glue pot for fast glue tanks change if needed; heat up time approx. (10) Min. -- Pressure Section: Manual digital positioning; Teflon coated pneumatic driven roller, and (2) spring loaded idle rollers.Workstations -- End Trimming Station: (2) Front & rear 0.5 HP - 12,000 RPM motors, mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit: (2) 0.7 HP - 12.000 RPM Motors; capable of tilting & pneumatic positioning for (3) settings: Flush/bevel/radius trimming for quick setup. -- Corner Rounding Unit "Round 2M" with: (2) 0.8 HP Independent motors that slide on THK guides. -- Top & Bottom Profile Scraping Unit with: Digital indicators; large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue scraping Unit "RC-N": Eliminates any excess glue. -- Buffing Unit "SP-V": (2) Top/bottom 0.25 HP - 2,800 RPM motors; tilting up to 12°.Operator Interface -- "STARTOUCH" Controller with: 12" Touchscreen display; capable of storing (100) programs. -- Machine automation by PLC function and encoder positioned in the panel feed track pinion. -- Diagnostics for a quick solution to errors: Process statistics data (i.e., number of pieces/edges) and track feeding.Features & Complete with: -- 2-Speed feed speed of 40 & 60 FPM (12 & 18 MPM); (1) 2.5 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Electronic Positioning of the top hold-down pressure beam. -- Nesting Copying Device. -- Full sound enclosure cover and outboard panel support. -- Actual Model is: SCM OLIMPIC K 560 T-ER2

SCM - S520 E, ...Planer Specifications: -- 20" Width cap.; 9 HP main motor; 4-3/4" dia. 4-knife TERSA cutterhead at 4,500 RPM. -- 1/8" - 9-1/4" Powered opening with digital readout for fine adjustment; max. depth of cut 5/16"; 10" min. length of workpiece. -- (4) Feed speeds: 20 - 33 - 43 & 56 FPM; table size 20-3/4" x 39".Equipped with: -- Chip breaker; sectional grooved infeed & solid outfeed rollers; (2) adjustable bed rollers. -- Complete with: Magnetic starter & shaving hood.

SCMI - OLIMPIC K 560 R HP: Edgebander (w/Premill & Corner Rounding) -- Specifications Edge Capacity: 0.4 to 6 mm (0.016 to 1/4") for strip feeding. -- Panel Capacity:Min. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Premilling Station: (2) 2.0 HP (1.5 kW) motors; Servo controlled; to rectify/clean panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges; 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with quick-change/disconnect Teflon glue pot for fast glue tanks change if needed. Heat up time approx. 10 Min. -- Pressure Section: Manual digital positioning; Teflon coated pneumatic driven roller; (2) spring-loaded idle rollers.Workstations -- End Trimming Station: Front & rear: (2) 0.5 HP - 12,000 RPM Motors mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit: (2) 0.7 HP - 12.000 RPM motors; capable of tilting & pneumatic positioning for (3) settings: flush/bevel/radius trimming for quick setup. -- Top & Bottom Profile Scraping Unit with: Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Glue Scraping Unit: Eliminates any excess glue. -- Buffing Unit: Top/Bottom; (2) 1/4 HP - 2,800 RPM motors; tilting up to 12°.Operator & Machine Control -- "STARTOUCH" Controller with: 21-1/2" Touchscreen display; capable of storing (100) programs. Machine automation by: PLC Function; encoder positioned in the panel feed track pinion.Diagnostics for a quick solution to errors; process statistics data: i.e., Number of pieces/edges and track feeding.Features & Complete with: -- 2-Speed feed speed of: 40 & 60 FPM (12 & 18 MPM); (1) 2-1/2 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Servo controlled; adjustable top holddown pressure beam. -- Auto. panel spacer to eliminate premature loading -- Anti-adhesive spray. -- Full sound enclosure cover and outboard panel support. -- THIS MACHINE IS FULL SERVO CONTROLLED. -- Actual Model: SCM - OLIMPIC K 560 R HP

SCMI OLIMPIC S1000 T-ERL EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) -- Specifications:Edge Capacity, 0.4 to 15 mm (0.016 to 5/8") for strip feeding. -- Panel Capacity, min. width 50 mm and 140 mm min. length, (2.0" and 5-1/2"). Panel thickness min./max. 8 - 60 mm (3/8" - 2-3/8"). Equipped With: Adjustable In-feed Fence: Manually pre-set with digital indicator and pneumatic panel spacing device. -- Pre-Milling Station, RT-E: Spindles 2 x 5.25 HP, 12,000 RPM, (1) with PLC controlled jump action and manual digital indicators positioning and Diamond Cutter-heads. -- Anti-Adhesive Spraying System: Top/Bottom, positioned prior to the Pre-Milling Unit, it prevents glue buildup on the work-piece surfaces. It consists of (2) independent spray nozzles, and a tank for anti-adhesive liquids. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station, Vc/1000: For EVA (Hot Melt) with Teflon coated glue tank and quick disconnect to change glue tanks fast if needed. Heat-up time approx. 10 Min. -- Pressure Section: Servo motor positioning, (4) pressure rollers, first larger, Teflon coated and powered. Workstations: End Trimming Station K-SEL: Front & rear 2 x 0.5 HP, 12,000 RPM motors mounted on THK guides, swivels 0ø - 15ø, rapid set up between straight and angled cutting with the automatic swivel cylinder. -- Flush Trimming Unit, Rsp: Top/Bottom, 2 x 1.5 HP, 12,000 RPM with 2 pre-set pneumatic positions, flush and overhang, remote pneumatic in/out positioning. -- Bevel/Radius Trimming Unit, Ri/S: Programmable, servo motor positioning, 2 x 1.0 HP - 12.000 RPM motors for change-over on the fly. -- Corner Rounding / Trimming Unit, Round-K: For additional top & bottom trimming of linear an/or vertical leading & trailing corner when edgebanding all (4) sides, 2 x 0.8 HP - 12,000 RPM motor. Comes with (2) pre-set pneumatic positions to allow to go from thick to thin pvc automatically. -- Profile Scraping Unit "RAS/1000": Top/Bottom with (2) indexed manual pre-sets. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue Scraping Unit, "RCA/2c": Top/bottom flat glue scraper with pneumatic positioning through controller and air-blow off nozzle to keep the knifes clean. -- Buffing Unit "SPN": Top/bottom, oscillating 2 x 0.25 HP - 3,000 RPM motors, tilting up to 12°. -- Hot Air Unit: Single blower with adjustable heat range and directional heat shield for top/bottom coverage. Restores color luster on thick pvc edging materials that may be lost during the edge scraping process.Controls: -- Startouch Controller, 12" color touch screen, swivels 270° at in-feed of machine. Capable to store (100) programs, (6) at the touch of a single key. Graphical display of all working units. Tracks production data, diagnostic information and monitors maintenance schedules. Complete With & Features: -- Feed-speed, 40/60 FPM, 1 x 2.5 HP feed drive motor, 200 Hz frequency inverter for all

SCM ACTION FL 2500 CASE CLAMP (SEMI-AUTOMATIC): -- SpecificationsMax. standard working dimensions: 2,500 mm (98.4") Wide x 1,250 mm (49.2") high x 800 mm (31-1/2") depth. -- Min. standard working dimensions: 250 mm (9.8" Wide x 250 mm (9.8") high x 150 mm (5.9") depth. -- Working height: 508 mm (20"). -- Vertical pressing force: 15 KN (3,372 Lbs.).Features -- Full top & bottom platen for maximizing pressing PSI on the box. -- Rack & Pinion guides at all (4) corners of the top platen & side pressure to keep the top platen parallel and the side pressure square. -- Sizes of box can be input for efficient cycle control when running repetitive box closings. -- Machine can also find the size of the box, so all the Operator has to do is open the Clamp to a size larger than the box to be clamped. -- The vertical & horizontal pressure is adjustable according to the type of furniture to be assembled. -- Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention. -- Pressure supplied by infinitely adjustable brushless electro-motors.Complete with: -- 5.7" Touchscreen panel with: Software by CPC in order to program cycles. -- Rack & Pinion system, brushless motors. -- Front & rear photocell barriers. -- Actual Model is: SCM CPC ACTION FL 2500

SCM - FORMULA S35: Sliding Table SawSpecifications -- 10' Cap. with: Scoring; 9 HP motor for main & scoring blade; tilting arbor: 0° - 45°. -- 126" Table stroke; 51" rip cut capacity with movable fence. -- 350 mm (13-3/4") Main saw blade dia.; 120 mm (4-3/4") scoring blade dia.; max. cutting height: Approx. 120 mm at 90°; 4,000 RPM. Complete with: -- Overhead guard with: 4" Dust extraction outlet. -- Crosscut fence assembly with: (2) Flip stops.

SCMI - K201 HFE: Single Sided Edgebander1/8" Max. edge cap.; 1-1/2" max. panel thickness; semiautomatic strip & coil feed magazine (manual single strip feed); Teflon coated glue pot w/fast 8-Minute heat up time; 1.2 mm cap. guillotine. -- Workstations: Single motor front & rear end trim; 0.8 HP - 10,000 RPM motor; top & bottom flush trims, 0.8 HP - 27,000 RPM ea. motor; straight or 12° bevel cutters. -- Top & Bottom buffing unit, 0.25 HP - 2,800 RPM motors; 25 FPM fixed feed speed with 0.8 HP drive. -- Complete with: Sound enclosure, frequency converter, and used tooling.

SCM OLIMPIC K360 EDGEBANDER (W/PRE-MILLING):Specifications -- Edge Capacity: 0.3 - 3 mm (0.012 - 0.118"); for coiled edges: 0.3 - 6 mm strips with: 6 x 60 mm kit included; dia. coil holder plate: 780 mm (31"). -- Panel Capacity. Min. width: 90 mm; min. length: 140 mm (3-1/2" & 5-1/2"); panel thickness min./max.: 8 - 50 mm (3/8" - 2") & max. 60 mm (2.4") with 6 x 60 mm kit included.Equipped with: -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Premilling Station - "RT-VP": Spindles: (2) x 2.0 HP - 19,000 RPM; (1) PLC controlled jump action; diamond cutterheads. -- Automatic Strip & Coil Feed Magazine: For straight edges; 3 mm guillotine for coils. -- Gluing Station for EVA (Hot Melt) with: Teflon-coated glue tank; quick disconnect to change glue tanks fast if needed; Heat-up time approx. 10 Min. Includes 1.5 kG glue pot instead of standard. -- Pressure Section: Manual digital positioning, (3) pressure rollers: 1st Larger; Teflon Coated and powered. Workstations -- End Trimming Station - "K2". Front & rear: (2) x 1/2 HP (included extra); 12,000 RPM Motors mounted on THK guides; swivels 0° - 15°; rapid setup between straight & angled cutting with the automatic swivel cylinder.Automatic positioning for (3) cutting modes: Straight, chamfered, and radius of thick edges. -- Top & Bottom Trimming Unit - "R-K". Remote (via control panel) pneumatic positioning for (3) settings: Flush/bevel/radius trimming; (2) x 0.7 HP - 12,000 RPM motors with precision digital indicators for quick setup. -- Top & Bottom Profile Scraping Unit. Manual preset with: Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Buffing Unit - "SP-V": Top/bottom; (2) x 1/4 HP - 2,800 RPM Motors; tilting up to 12°; cleaning & polishing of edges.Controls -- ORION - "1" Plus: Controller. Fixed at infeed of machine; soft keys; graphics; 4" LCD display panel.Handles most machine setup functions & workstations; machine automation by PLC function; encoder positioned in the panel feed track pinion; diagnostics for a quick solution to many errors; process statistics data: Number of pieces/edges and track feeding.Features & Complete with: -- Feed speed: 36 FPM Fixed; (1) x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units; manual adjustable holddown pressure beam; full sound enclosure cover; outboard panel support. -- Overall dimensions: 3,600 mm (142") x 900 mm (36") x 1,600 mm (63"); approx. weight: 997 kG (2,200 Lbs). -- UL/CSA approved version.

SCM - B5L: Edgebander3/4" Edge thickness cap.; panel thickness 7/16" - 2-5/16"; min. panel width 2-1/2"; min. length 6". Equipped with: -- Pre-heated infeed fence; automatic feed magazine for strip or coil stock; glue pot unit with dual thermostat; 3 mm PVC cap. guillotine; (1) large driven & (4) idle roller pressure rollers; gluing unit and pressure section tilt 0° to 6°. Workstations -- Double motor end trim; tilt: 0° to 15°; 1 HP - 8,500 RPM motors. -- Top & Bottom trimming; bevels 0° - 45°; 3-1/2 HP - 12,000 RPM motors. -- Top & Bottom Fine/Radius Trimming: Tilts 0° - 45°; 2-1/2 HP - 12,000 RPM motors. -- Top & Bottom buffing; 0.5 HP - 3,000 RPM motors. -- Dual feed speed: 32 & 48 FPM with: 3-1/2/5-1/2 HP feed drive. Complete with: Sound enclosure; outboard panel support; used tooling.

SCM M3 Multi-Blade Dip Chain Gang Rip SawSpecifications: -- 300 mm (11.81") Width cap. -- 110 mm (4.33") Max. depth of cut. -- 8-3/4" Throat depth. -- 390 mm (15.35") Min. stock length. -- 200 - 350 mm (7.87" - 13.78") Blade diameter. -- Arbor dia. 70 mm (2.76"). -- Table size 750 x 1,530 x 750 mm H (29-1/2" x 60.24" x 29-1/2" H). -- Blade speed 4,200 RPM. -- Feed speeds 6 - 48 MPM (19 - 157 FPM).Equipped with: -- 44 kW (60 HP) - 3,554 RPM Blade motor. -- Variable speed drive feed chain motor. (2) Upper infeed & (2) Upper outfeed 4" Dia. rollers, Automatic chain lubrication. -- Top & bottom anti-kickback fingers. -- Main dust hood, with 200 mm (7.87") Dia. outlet. -- 40"; x 2-3/4"; H Adjustable infeed fence. -- Motor load meter.Note: Some spec's need to be verified
