SCM - ACCORD 25 FX -M: CNC Machining Center (w/ATC) -- Specifications4' x 20' Aluminum "MATRIX" Grid 2-zone vacuum table. -- Working Capacity"X" Axis: 242.9" (6,170 mm); "Y" axis: 51.9" (1,320 mm); "Z" axis stroke: 17.3" (440 mm); 9.8" (250 mm) max. material thickness. -- Positioning Speed"X" & "Y" Axis: 197 FPM (60 MPM); "Z" axis is 82 FPM (25 MPM).Movement is controlled by: AC Brushless motors; YASKAWA drives; high precision rack & pinion system for: "X" & "Y"; precision ball screw for "Z" axis.Working unit travels on Prismatic guideways & sliding blocks with: Peloaded recirculating balls; NC controlled automatic lubrication system. -- Worktable"FX-MATIC" Aluminum "MATRIX" Grid 2-zone vacuum table with: (6) Adjustable pneumatic pop up reference stops; can be positioned on the perimeter of the worktable. -- Boring Unit3 HP (2.2 kW); Boring Block with: (8) Independent Vertical units; variable speed: 2,000 - 8,000 RPM with: (4) Bits in "X" axis & (4) bits in "Y" axis.(1) NC Controlled "X" Grooving saw: Max. 125 mm dia. blade.(4) Horizontal Boring units with: (2 + 2) in "X" axis; (2 + 2) in "Y" axis. -- Machining Units(1) 16 HP (12 kW) Electrospindle router with: HSK F63 Adaptor; rotation speed: 600 - 24,000 RPM.Constant torque achieved: 12,000 RPM; Router controlled by:12 kW Inverter for stepless speed & rapid shutdown rotation.(1) Rapid 16-position ATC plate mounted at the back of the "Y" axis carriage; "on the fly" ATC; center distance between tools: 104 mm (4.13"); max. tool dia.: 300 mm (11.18"); max. tool weight/tool: 8 kG (17.6 Lbs). -- Operator InterfacePC Front with: SCMI "Xilog MAESTRO" + "eye-M" + Windows "10-IOT" 64-bit Operating System. 21" Full HD, LCD Display; ergonomic industrial keyboard & mouse; central USB connection; RJ45 Ethernet port for possible link to an office PC. "Xilog MAESTRO" + "eye-M" software offers full real-time 2 - 3 D graphic interface for programming assistance & error diagnostics. -- Complete with:Tool Touch Off Probe; "TECPAD" handheld mobile console with: 7" Color display; "Pro-Space" safety system with: photocell barriers & bumpstop; safety fences; 208 / 230 / 460 V Multitap autotransformer for various voltages. -- Actual Model: SCM ACCORD 25 FX-MNOTE: No Vacuum pump is included with this machine.

SCM T 160 TILTING SPINDLE SHAPER9 HP Main motor, (5) speeds of 2,900 - 4,400 - 6,000 - 7,800 & 10,000 RPM (..but currently with single speed 6,000 RPM pully only!); 1-1/4" dia. interchangeable spindle, 7" spindle length with 4-3/4" motorized vertical spindle adjustment, 9" max. height above table. -- Features: 0° - 45° Motorized tilting, degree tilt gauge, spindle height gauge; max. insert opening 16-1/2", and 39" x 40" table size. -- Complete with: Adjustable fence, mechanical spindle brake & lock, dust hood & reversing switch; NOTE: 3-ROLL FEEDER IS NOT INCLUDED

SCM - B5L: Edgebander3/4" Edge thickness cap.; panel thickness 7/16" - 2-5/16"; min. panel width 2-1/2"; min. length 6". Equipped with: -- Pre-heated infeed fence; automatic feed magazine for strip or coil stock; glue pot unit with dual thermostat; 3 mm PVC cap. guillotine; (1) large driven & (4) idle roller pressure rollers; gluing unit and pressure section tilt 0° to 6°. Workstations -- Double motor end trim; tilt: 0° to 15°; 1 HP - 8,500 RPM motors. -- Top & Bottom trimming; bevels 0° - 45°; 3-1/2 HP - 12,000 RPM motors. -- Top & Bottom Fine/Radius Trimming: Tilts 0° - 45°; 2-1/2 HP - 12,000 RPM motors. -- Top & Bottom buffing; 0.5 HP - 3,000 RPM motors. -- Dual feed speed: 32 & 48 FPM with: 3-1/2/5-1/2 HP feed drive. Complete with: Sound enclosure; outboard panel support; used tooling.

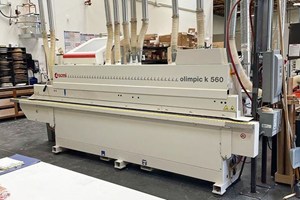

SCMI - OLIMPIC K 560 R HP. Edgebander (w/Premill & Corner Rounding) -- Specifications Edge Capacity: 0.4 to 6 mm (0.016 to 1/4") for strip feeding. -- Panel CapacityMin. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Premilling Station. (2) 2.0 HP (1.5 kW) motors; Servo controlled; to rectify/clean panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine. For straight edges; 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with quick-change/disconnect Teflon glue pot for fast glue tanks change if needed. Heat up time approx. 10 Min. -- Pressure Section. Manual digital positioning: Teflon coated pneumatic driven roller; (2) spring-loaded idle rollers.Workstations -- End Trimming Station. Front & rear: (2) 1/2 HP - 12,000 RPM Motors mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit. (2) 0.7 HP - 12.000 RPM motors; capable of tilting & pneumatic positioning for (3) settings: flush/bevel/radius trimming for quick setup. -- Top & Bottom Profile Scraping Unit. Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Glue Scraping Unit. Eliminates any excess glue. -- Buffing Unit. Top/Bottom; (2) 1/4 HP - 2,800 RPM motors; tilting up to 12°.Operator & Machine Control -- "STARTOUCH" Controller with: 21-1/2" Touchscreen display; capable of storing (100) programs. Machine automation by: PLC Function; encoder positioned in the panel feed track pinion.Diagnostics for a quick solution to errors; process statistics data: i.e., Number of pieces/edges and track feeding.Features & Complete with: -- 2-Speed feed speed of: 40 & 60 FPM (12 & 18 MPM); (1) 2-1/2 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Servo controlled; adjustable top holddown pressure beam. -- Auto. panel spacer to eliminate premature loading -- Anti-adhesive spray. -- Full sound enclosure cover & outboard panel support. -- This machine is: FULL SERVO CONTROLLED. -- Actual Model: SCM - OLIMPIC K 560 R HP

SCMI - OLIMPIC K 560 T-ER2. Edgebander (w/Premill & Corner Rounding) -- Specifications Edge Capacity: 0.4 to 6 mm (0.016 to 1/4") for strip feeding. -- Panel CapacityMin. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Premilling Station. (2) 2.0 HP (1.5 kW) motors; Servo controlled; to rectify/clean panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine. For straight edges; 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with quick-change/disconnect Teflon glue pot for fast glue tanks change if needed. Heat up time approx. 10 Min. -- Pressure Section. Manual digital positioning: Teflon coated pneumatic driven roller; (2) spring-loaded idle rollers.Workstations -- End Trimming Station. Front & rear: (2) 1/2 HP - 12,000 RPM Motors mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit. (2) 0.7 HP - 12.000 RPM motors; capable of tilting & pneumatic positioning for (3) settings: flush/bevel/radius trimming for quick setup. -- Corner Rounding Unit. With: (2) 0.8 HP Independent motors that slide on THK guides. -- Top & Bottom Profile Scraping Unit. Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Glue Scraping Unit. Eliminates any excess glue. -- Buffing Unit. Top/Bottom; (2) 1/4 HP - 2,800 RPM motors; tilting up to 12°.Operator Interface -- "STARTOUCH" Controller with Touchscreen display; capable of storing (100) programs. Machine automation by: PLC Function; encoder positioned in the panel feed track pinion.Diagnostics for a quick solution to errors; process statistics data: i.e., Number of pieces/edges and track feeding.Features & Complete with: -- 2-Speed feed speed of: 40 & 60 FPM (12 & 18 MPM); (1) 2-1/2 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Servo controlled, adjustable top hold-down pressure beam. -- Auto. panel spacer to eliminate premature loading -- Anti-adhesive spray. -- Full sound enclosure cover & outboard panel support. -- Actual Model: SCM - OLIMPIC K 560 T-ER2

SCM - ACTION TF 2500: Case Clamp (Automatic Feed Through) -- Specifications Max. standard working dimensions: 2,500 mm (98.4") Wide x 1,250 mm (49.2") high x 800 mm (31.5") depth. -- Min. standard working dimensions: 250 mm (9.8" Wide x 250 mm (9.8") high x 250 mm (9.8") depth. -- Working table height: 600 mm (23.6"). -- Max. Vertical pressing force: 1,500 kG (3,300 Lbs). Max. Side pressing force: 1,200 kG (2,640 Lbs).Features -- Full top & bottom platen for maximizing pressing PSI on the box. -- Rack & Pinion guides at: All (4) corners of the top platen & side pressure to keep the top platen parallel and the side pressure square. -- Sizes of box can be input for efficient cycle control when running repetitive box closings. -- Machine can also find the size of the box, so all the Operator does is place the box onto the powered infeed belt to be clamped. -- The vertical & horizontal pressure is adjustable according to the type of furniture to be assembled. -- Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention. -- Pressure supplied by infinitely adjustable brushless electric motors.Complete with: -- 5.7" Touchscreen panel with: Software by CPC to program cycles. -- Rack & Pinion system; Brushless motors. -- Front & rear photocell barriers. -- Actual Model SCM ACTION TF 2500

SCM - ACTION FL 2500: Case Camp (Semi-Automatic) -- SpecificationsMax. standard working dimensions: 2,500 mm (98.4") Wide x 1,250 mm (49.2") high x 800 mm (31-1/2") depth. -- Min. standard working dimensions: 250 mm (9.8" Wide x 250 mm (9.8") high x 150 mm (5.9") depth. -- Working height: 508 mm (20"). -- Vertical pressing force: 15 kN (3,372 Lbs).Features -- Full top & bottom platen for: Maximizing pressing PSI on the box. -- Rack & Pinion guides: All (4) corners of the top platen & side pressure to keep the top platen parallel and the side pressure square. -- Sizes of box can be input for efficient cycle control when running repetitive box closings. -- Machine finds the size of the box; Operator only opens the Clamp to a size larger than the box to be clamped. -- Vertical & horizontal pressure: Adjustable according to the type of furniture to be assembled. -- Machine is equipped with: (3) Side pressure bars & able to sequence different furniture pieces without manual intervention. -- Pressure supplied by: Infinitely adjustable brushless electric motors.Complete with: -- 5.7" Touchscreen panel with: CPC Software to program cycles. -- Rack & Pinion system, brushless motors. -- Front & rear photocell barriers. -- Actual Model SCM CPC ACTION FL 2500

SCM - SC 4 Elite: Sliding Table Saw -- Specifications. 102" Cutting length; 12" main blade capacity with scoring; 5/8" saw arbor; 3/4" dado capacity; 4.8 HP main motor; 50" rip capacity to the right of the blade. -- Equipped with: Cast iron monoblock Saw unit with: Dual tilting trunnions with dial indicator of the saw blade tilt; cast iron rip fence knuckle; microadjustment control; steel round bar support. -- Complete with: Aluminum sliding table with machined steel ways; telescoping crosscut fence with (2) adjustable flip stops; 2-position sliding table lock for ease of panel loading; eccentric panel clamp.

SCM - K 203 F: Edgebander0.4 to 5 mm Max. edge cap. for strip feeding; 1/8" (3 mm) for coil feeding; 60 mm min. panel width; 160 mm min. panel length; panel thickness: 10 - 50 mm. Equipped with: -- Teflon coated glue pot (heat-up time 10 - 15 min.); automatic strip &coil feed magazine; 3 mm cap. guillotine; 3-roll pressure unit w/pneumatic control.Workstations -- Double motor front & rear-end trim mounted on: THK Guideways (0.4 HP - 12,000 RPM motor ea.); tilts 0° - 15° from the control panel with: (2) Preset positions. -- Top & Bottom flush & bevel trims with: Quick release mount & plug-in motors for quick tooling changes; 0.7 HP - 12.000 RPM motor ea.; bevels 0° - 15° with: Precision digital indicators for quick setup. -- Top & Bottom scraping unit with: Pneumatic positioning from the control panel; Top & Bottom buffing unit, 0.25 HP - 2,800 RPM motors. -- 36 FPM Fixed feed speed; 0.75 HP feed drive.Includes Microprocessor for line control (store up to 50 preset programs); control panel at eye level for ease of programming; full cover sound enclosure.Features. Mechanical digital readouts for setup adjustments; frequency inverter; outboard panel support.

gabbiani g 2 Single beam panel saw for industrial applications - Cutting dimensions: 4500 x 4300 mm - Max. blade protrusion: max 130 mm - Max. saw carriage speed: 170 m/min - Max. pusher speed: 135 m/min - max 22 kW-50Hz main blade engine - Saw carriage runs on rectified round guides (opt. prismatic) - HI-TRONIC device - FLEXCUT 1/S for simultaneous execution of differentiated cuts flexstore elr Loading flexible warehouse with 3-axes - Variable configuration of number station – available surface up to 12 x 60 mt - Storage widtht: 7 - 9 - 12 m - Panel length: mm 1.800 ÷ 3.200 mm (2200 ÷ 4250 mm. Opt.) - Panel width: 800 ÷ 2.200 mm - Panel thickness: 10 ÷ 40 mm (3mm. Opz.) - Max. panel weight: 200 Kg - Loading arm with 3 degrees of freedom + rotation (opt.) - Vacuum loading arm with electronic adjustment depending of the dimension of the panels - Device for the automatic detachment of the panels - Check device for the detachment of the panels - Offcuts management - Mixed stacks management Price includes dismantling and install.

SCMI 1998 Drum Sander

SCMI Sandya Uno 37" Wide Belt Sander

SCMI "Olimpic S-215" Edgebander Edge thickness capacity, 0.4 - 15 mm Minimum working width, 4-3/4" 59 FPM feed speed Motorized top pressure beam Controller Edgebanding infeed table 230V/60HZ

Belt size 43” x 85” (2) six inch dust ports 1st head 24 HP 230 2nd head 18 HP 230 Fiest head contact drum Second head combination with finish platen Feed rate 3 to 68 feet per minute Weight 4550 lbs 230 volt 3-phase

SCMI Olimpic K201 Edgebander

Combination Head Motor HP 18 HP Motor Type Single Speed Abrasive Belt Speed 18 mps Drum Size 120 mm Drum Type 85 Sh Rubber Platen Size 50 mm Abrasive Belt Length 60" 1st Working Unit Working Width 950 mm Number of Heads Available 1 Feed Motor .7 HP Feed Speed 15 or 30 fpm Maximum Work Piece Thickness 160 mm Minimum Work Piece Length 12.5" Abrasive Belt Size 37" X 60" Compressed Air Requirements 6 Bar (88 PSI) Dust Outlets 1 outlet @ 140 mm Exhaust Requirements 900 CFM Power Requirements 54 amps @ 230V Three Phase

SCMI Concept NT Double End Tenoner manufacturer specifications (to be confirmed) 120 Opening 24 Laydown Space Narrow Track 2 Digital Infeed Scale Digital Opening & Closing Top Scoring 3 H.P. Bottom Jump Scoring 3 H.P. 10 H.P. Hogging Unit 15 H.P. Shaping Head 15 H.P. shaping Head Variable Feed Speed Digital Readouts

Table: 14’x5' X-axis: 120? Y-axis: 51? Z-axis: 12? RPM: 6,000 Dimensions: 255?x118?x106? Weight: 14770 Equipped with: Dust Collector Tool changer: 12

SCMI Pratix CNC Router 5x12 Table Scissor Lift Outfeed Table (2) 10 HP Vacuum Pumps Transformer Ready to load!

2014 SCMI Olimpic K600 Edgebander Premill Corner Round Still used daily!
