Description:

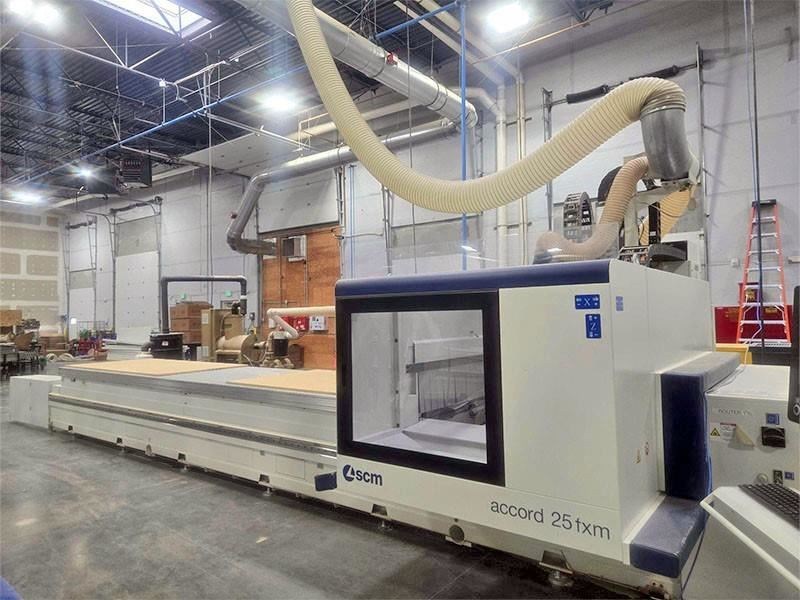

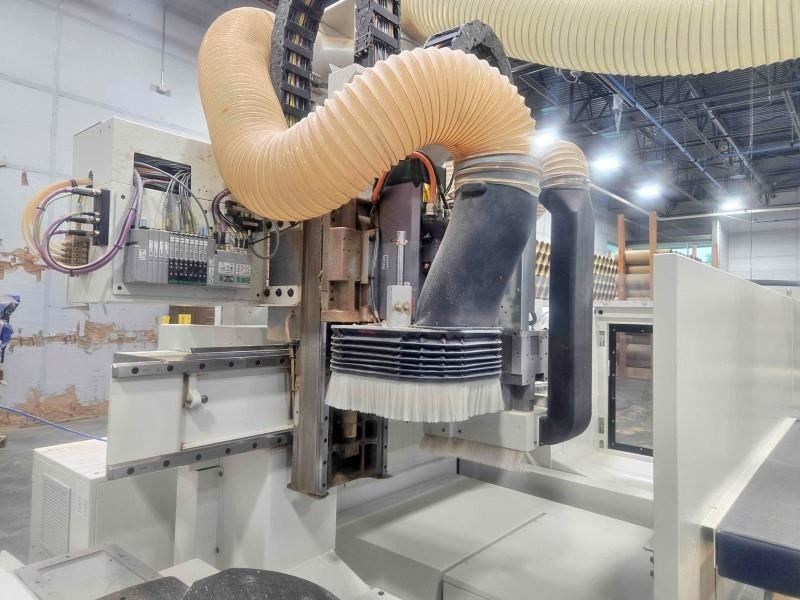

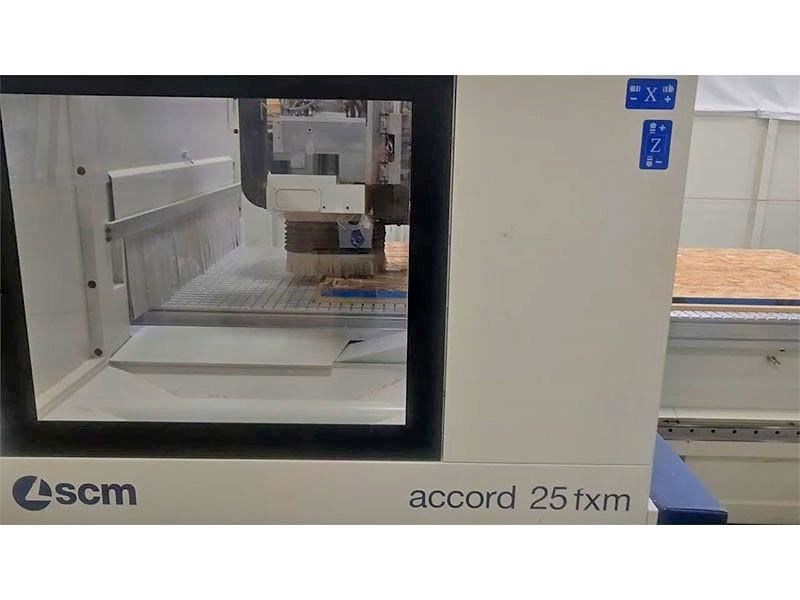

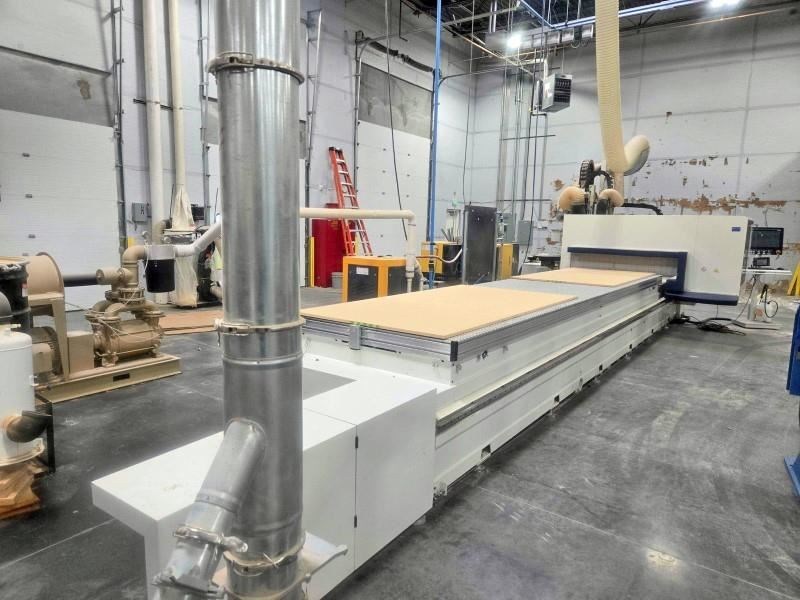

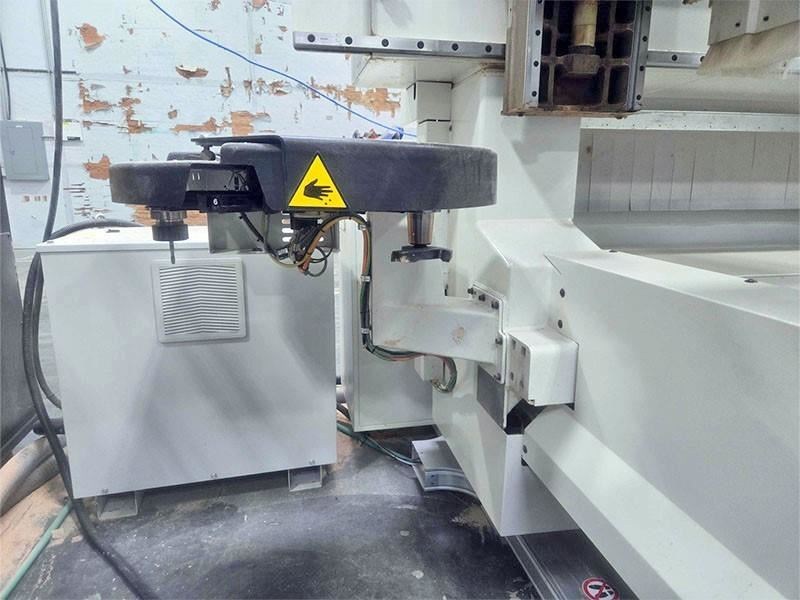

SCM - ACCORD 25 FX -M: CNC Machining Center (w/ATC) -- Specifications4' x 20' Aluminum "MATRIX" Grid 2-zone vacuum table. -- Working Capacity"X" Axis: 242.9" (6,170 mm); "Y" axis: 51.9" (1,320 mm); "Z" axis stroke: 17.3" (440 mm); 9.8" (250 mm) max. material thickness. -- Positioning Speed"X" & "Y" Axis: 197 FPM (60 MPM); "Z" axis is 82 FPM (25 MPM).Movement is controlled by: AC Brushless motors; YASKAWA drives; high precision rack & pinion system for: "X" & "Y"; precision ball screw for "Z" axis.Working unit travels on Prismatic guideways & sliding blocks with: Peloaded recirculating balls; NC controlled automatic lubrication system. -- Worktable"FX-MATIC" Aluminum "MATRIX" Grid 2-zone vacuum table with: (6) Adjustable pneumatic pop up reference stops; can be positioned on the perimeter of the worktable. -- Boring Unit3 HP (2.2 kW); Boring Block with: (8) Independent Vertical units; variable speed: 2,000 - 8,000 RPM with: (4) Bits in "X" axis & (4) bits in "Y" axis.(1) NC Controlled "X" Grooving saw: Max. 125 mm dia. blade.(4) Horizontal Boring units with: (2 + 2) in "X" axis; (2 + 2) in "Y" axis. -- Machining Units(1) 16 HP (12 kW) Electrospindle router with: HSK F63 Adaptor; rotation speed: 600 - 24,000 RPM.Constant torque achieved: 12,000 RPM; Router controlled by:12 kW Inverter for stepless speed & rapid shutdown rotation.(1) Rapid 16-position ATC plate mounted at the back of the "Y" axis carriage; "on the fly" ATC; center distance between tools: 104 mm (4.13"); max. tool dia.: 300 mm (11.18"); max. tool weight/tool: 8 kG (17.6 Lbs). -- Operator InterfacePC Front with: SCMI "Xilog MAESTRO" + "eye-M" + Windows "10-IOT" 64-bit Operating System. 21" Full HD, LCD Display; ergonomic industrial keyboard & mouse; central USB connection; RJ45 Ethernet port for possible link to an office PC. "Xilog MAESTRO" + "eye-M" software offers full real-time 2 - 3 D graphic interface for programming assistance & error diagnostics. -- Complete with:Tool Touch Off Probe; "TECPAD" handheld mobile console with: 7" Color display; "Pro-Space" safety system with: photocell barriers & bumpstop; safety fences; 208 / 230 / 460 V Multitap autotransformer for various voltages. -- Actual Model: SCM ACCORD 25 FX-MNOTE: No Vacuum pump is included with this machine.
