SCM For Sale

SCMI - K201 HFE, ...Single Sided Edgebander1/8" Max. edge cap. and 1-1/2" max. panel thickness; semi-automatic strip & coil feed magazine (manual single strip feed), Teflon coated glue pot w/fast 8-Minute heat-up time, 1.2 mm cap. guillotine. -- Workstations: Single motor front & rear end trim, 0.8 HP - 10,000 RPM motor; top & bottom flush trims, 0.8 HP - 27,000 RPM ea. motor; straight or 12° bevel cutters. -- Top & bottom buffing unit, 0.25 HP - 2,800 RPM motors. 25 FPM Fixed feed speed with 0.8 HP drive. -- Complete with: Sound enclosure, frequency converter, and used tooling.

SCM OLIMPIC K 560 T-ER2 EDGEBANDER (W/PER-MILL & CORNER ROUNDING): -- SpecificationsEdge Capacity: 0.4 to 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity: Min. panel width: 60 mm (2.375"); Min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); Min. distance between panels: 600 mm (24").Equipped with: -- Pre-milling Station: (2) 2.0 HP (1.5 kW) motors; rectifies/cleans panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station "SGP" for EVA (Hot Melt) with: Quick change/disconnect Teflon glue pot for fast glue tanks change if needed; heat up time approx. (10) Min. -- Pressure Section: Manual digital positioning; Teflon coated pneumatic driven roller, and (2) spring loaded idle rollers.Workstations: -- End Trimming Station: (2) Front & rear 0.5 HP - 12,000 RPM motors, mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit: (2) 0.7 HP - 12.000 RPM Motors; capable of tilting & pneumatic positioning for (3) settings, flush/bevel/radius trimming for quick setup. -- Corner Rounding Unit "Round 2M" Corner rounding unit with: (2) 0.8 HP independent motors that slide on THK guides. -- Top & Bottom Profile Scraping Unit with: Digital indicators; large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue scraping Unit: "RC-N": Eliminates any excess glue. -- Buffing Unit: "SP-V": (2) Top/bottom 0.25 HP - 2,800 RPM motors; tilting up to 12°.Operator Interface: -- "STARTOUCH" Controller with: 12" Touchscreen display; capable of storing (100) programs. -- Machine automation by PLC function and encoder positioned in the panel feed track pinion. -- Diagnostics for a quick solution to errors: Process statistics data (i.e., number of pieces/edges) and track feeding.Features & Complete with: -- 2-Speed feed speed of 40 & 60 FPM (12 & 18 MPM); (1) 2.5 HP feed drive motor. -- 200 Hz frequency inverter for all trimming units. -- Electronic Positioning of the top hold-down pressure beam. -- Nesting Copying Device. -- Full sound enclosure cover and outboard panel support. -- Actual Model is: SCM OLIMPIC K 560 T-ER2

SCM PRATIX S-15-B FLAT TABLE MACHINE (W/ATC/BORING) -- Specifications: Single 5' x 12' traveling "Bridge Gantry" and stationary aluminum dual vacuum table with: "MATRIX" Square grid pattern for fixturing parts.Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining".Part location pop-up pins mounted on the table perimeter. -- Working Field"X" Axis is 145.11" (3,686 mm); "Y" axis is 61.2" (1,555 mm); "Z" axis stroke is 9.8" (250 mm); max. material thickness: 5.9" (150 mm). -- Positioning Speed"X" & "Y" Axis 229 FPM (70 MPM); "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system.High precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screws "Z" axis; all axes ride on extra-large precision profile linear guideways. -- Boring Unit - 3 HP (2.2 kW) - 6,000 RPM Motor; (7) vertical spindles on 32 mm centers; (5) spindles in "X" axis & (2) spindles in "Y" axis. -- Machining - (1) 9 HP (6.7 kW) Air-cooled electrospindle with: HSK F63 Adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 10-Position ATC tool rack mounted to the machine base. -- Operator & Machine ControlPC Front-End with: "XILOG Plus" + Windows "XP Pro" Operating System; 17" high resolution LCD; ergonomic keypad; CD ROM & 1.44 MB disk drives.USB Ports; serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible.All computer components are mounted on a mobile stand.XILOG Plus - Offers incredible list of functions from: (a) Auto diagnostic to (z) zooming; controlled acceleration & deceleration; encoder feedback; dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- Additionally Equipped with:Onboard mini CAD with built-in programming for: Writing circles, ellipses & angles with only a few keystrokes; onboard cycle optimization; onboard calculator; mirror imaging, and repeat imaging. -- Complete with:(2) 150 cbm/Hr Vacuum Pumps; safety enclosure around the spindle carriage; (1) Universal Remote Pendant; 7" color display allows for the effective management of all machine functions from manual Jog Mode to loading & execution of a program.The pendant is fitted with a USB port to allow quick load & setup of new programs; safety "bump stop" bumpers; emergency stop rope, manuals. -- Options Include:Rake System for removing finished product and sweeping up dust residue. -- Actual Model: SCMI PRATIX S 15 B

SCMI - OLIMPIC K 560TE: Edgebander (w/Premilling) -- SpecificationsEdge Capacity: 0.4 to 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity Min. panel width: 60 mm (2.375"); Min. panel length: 140 mm (5-1/2").Min./max. Panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Pre-milling Station: (2) 2.0 HP (1.5 kW) motors; rectifies/cleans panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: For EVA (Hot Melt) with: Quick change/disconnect Teflon glue pot for fast glue tanks change if needed; heat up time approx. (10) Min. -- Pressure Section: Manual digital positioning; Teflon coated pneumatic driven roller & (2) spring loaded idle rollers.Workstations -- End Trimming Station: (2) Front & rear 1/2 HP - 12,000 RPM motors mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit: (2) 0.7 HP - 12.000 RPM Motors; capable of tilting & pneumatic positioning for (3) settings, flush/bevel/radius trimming for quick setup. -- Top & Bottom Profile Scraping Unit with: Digital indicators; large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue Scraping Unit: Eliminates any excess glue. -- Buffing Unit: (2) Top/bottom 1/4 HP - 2,800 RPM motors; tilting up to 12°.Operator & Machine Control: -- "STARTOUCH" Controller with: 12" Touchscreen display; capable of storing (100) programs. -- Machine automation by PLC function and encoder positioned in the panel feed track pinion. -- Diagnostics for a quick solution to errors: Process statistics data (i.e., number of pieces/edges) and track feeding.Features & Complete with: -- 2-Speed feed speed of 40 & 60 FPM (12 & 18 MPM); (1) 2-1/2 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Manual adjustable top holddown pressure beam. -- Full sound enclosure cover and outboard panel support. -- Actual Model is: SCM OLIMPIC K 560TE

SCMI - OLIMPIC K 360: Compact Edgebander with PremillingSpecifications -- Edge Capacity: 0.3 to 3 mm (0.012 - 0.118"); for coiled edges: 0.3 - 6 mm Strips with 6 x 60 mm kit included; dia. coil holder plate: 780 mm (31"). -- Panel Capacity: Min. width: 90 mm; Min. length: 140 mm (3-1/2" & 5-1/2"); panel thickness min./max.: 8 - 50 mm (3/8" - 2") & max. 60 mm (2.4") with 6 x 60 kit included.Equipped with: -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Premilling Station - RT-VP: Spindles: (2) x 2.0 HP - 19,000 RPM; (1) PLC controlled jump action; diamond cutterheads. -- Automatic Strip & Coil Feed Magazine: For straight edges; 3 mm guillotine for coils. -- Gluing Station for EVA (Hot Melt) with: Teflon-coated glue tank; quick disconnect to change glue tanks fast if needed; Heat-up time approx. 10 Min. Includes 1.5 kg glue pot instead of standard. -- Pressure Section: Manual digital positioning, (3) pressure rollers: First larger; Teflon-coated and powered. Workstations -- End Trimming Station - K2: Front & rear (2) x 1/2 HP (included extra); 12,000 RPM motors mounted on THK guides; swivels 0° - 15°; rapid setup between straight & angled cutting with the automatic swivel cylinder.Automatic positioning for (3) cutting modes: Straight, chamfered, and radius of thick edges. -- Top & Bottom Trimming Unit - R-K: Remote (via control panel) pneumatic positioning for (3) settings: Flush/bevel/radius trimming; (2) x 0.7 HP - 12.000 RPM motors with precision digital indicators for quick setup. -- Top & Bottom Profile Scraping Unit. Manual preset with: Digital indicators; large dia. copy wheels for max. accuracy; pneumatic in/out positioning. -- Buffing Unit - SP-V: Top/bottom; (2) x 1//4 HP - 2,800 RPM motors; tilting up to 12°; cleaning & polishing of edges.Controls -- ORION 1 Plus Controller: Fixed at infeed of machine; soft keys, graphics, and 4" LCD display panel.Handles most machine setup functions & workstations; machine automation by PLC function; encoder positioned in the panel feed track pinion; diagnostics for a quick solution to many errors.; process statistics data: Number of pieces/edges and track feeding.Features & Complete with: -- Feed speed: 36 FPM Fixed; (1) x 2.0 HP feed drive motor; 200 Hz frequency inverter for all trimming units; manual adjustable holddown pressure beam; full sound enclosure cover; outboard panel support. -- Overall dimensions: 3,600 mm (142") x 900 mm (36") x 1,600 mm (63"); approx. weight: 997 kG (2,200 Lbs). -- UL/CSA approved version.

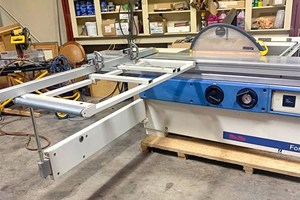

SCM FORMULA S35 Sliding Table SawSpecifications: -- 10' Cap. with scoring, 9 HP motor for main and scoring blade, tilting arbor 0° - 45°. -- 126" Table stroke, 51" rip cut capacity with movable fence. -- 350 mm (13-3/4") Main saw blade dia., 120 mm (4-3/4") scoring blade dia., max. cutting height is approx. 120 mm at 90°; 4,000 RPM. Complete with: -- Overhead guard w/4" dust extraction outlet. -- Crosscut fence assembly with (2) flip stops.
